RIPWEDGE - Modular, Three-in-One Push Block/Stick
Print Profile(1)
Description

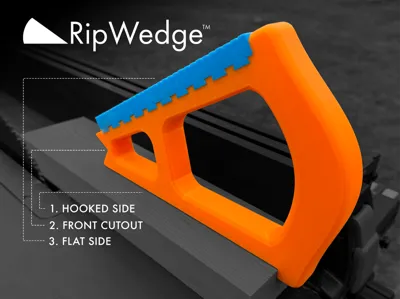

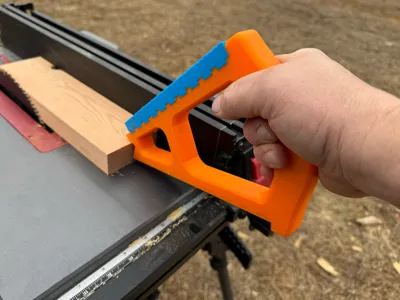

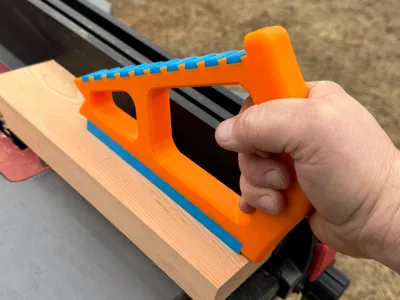

RipWedge - A modular, three-in-one push block/stick

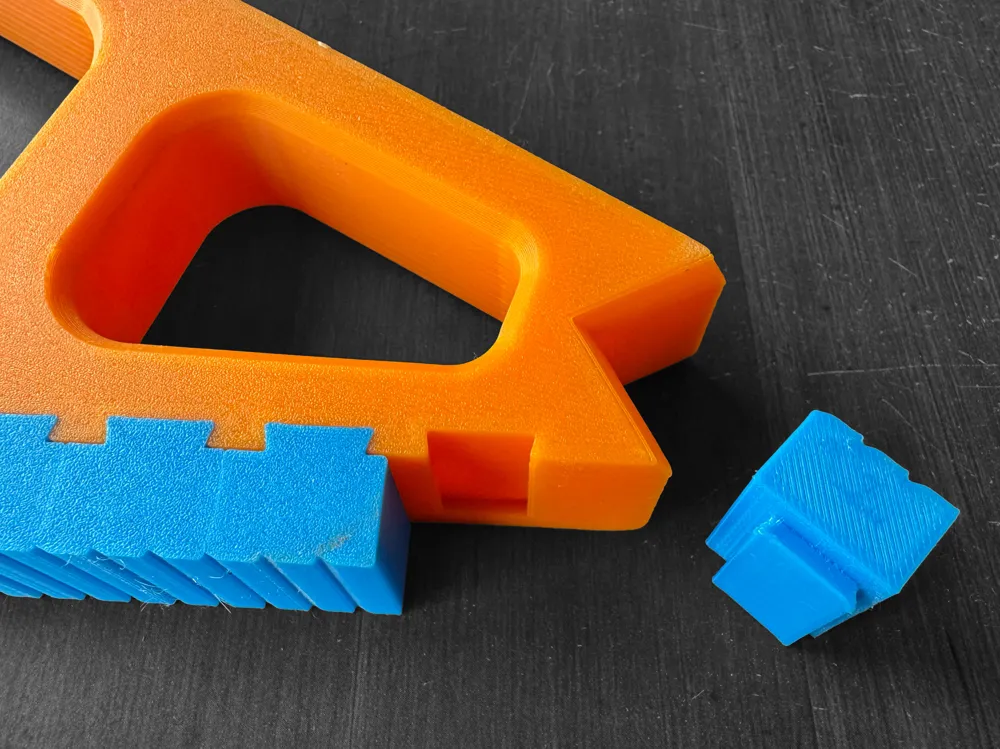

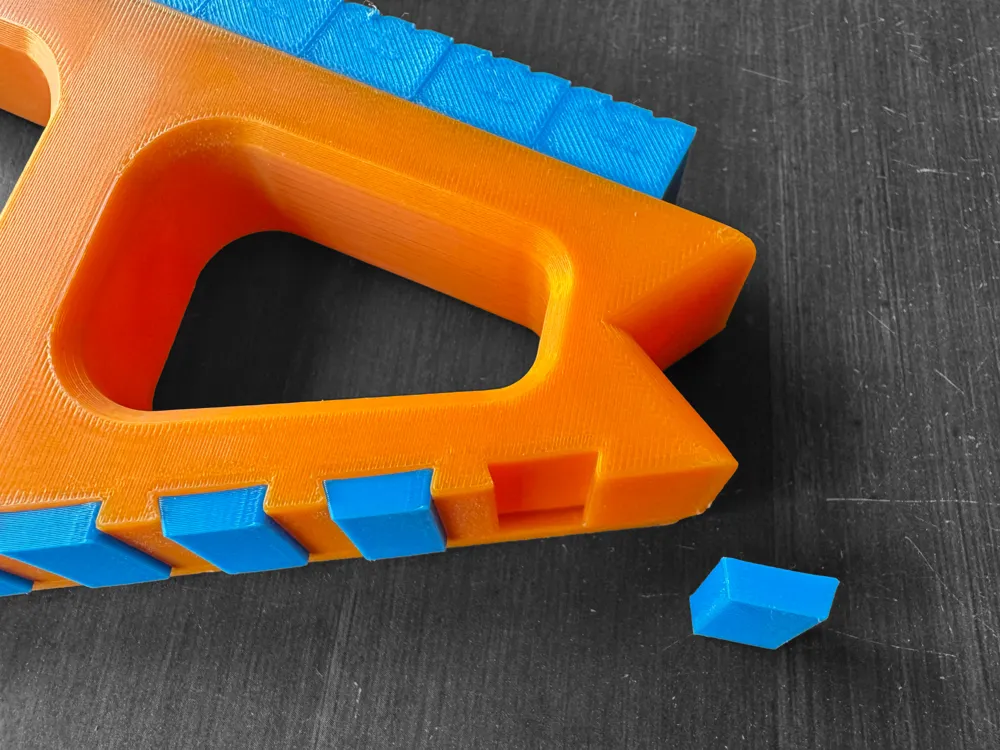

Includes two grip insert designs:
Small - For the configuration of a “hooked” side
Large - For the configuration of a flat side
Printing Recommendations:
RipWedge
Filament: PLA
Layer height: 0.2
Walls: 3 or 4
Infill: 20% - Adaptive Cubic
Supports: None needed
Grip Inserts
Filament: TPU 95A
Layer height: 0.2
Walls: 2 (softer) - 3 or 4 (more rigid)
Infill: 20% - Honeycomb (for more even deformation)
Supports: None needed
Size Requirements:
The print area needed for the main body of RipWedge is 208x208.
Comments, pictures and boosts are always appreciated!
Boost Me (for free)
Like this model? Please consider a boost. Thanks in advance!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
