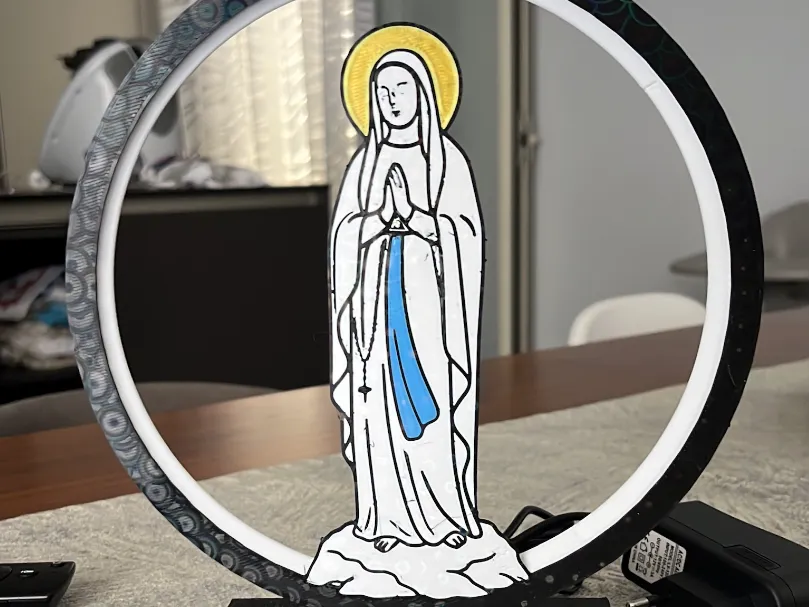

I created this ring lamp dedicated to Our Lady of Lourdes
Assembly is simple and entirely interlocking
Additional materials
12V adhesive LED strip
1A 12V transformer
On/off switch
The electrical wiring is also very simple
Let's begin
Print all STLs; for the panel featuring the Madonna, I've also included a print profile
Adhere the LED strip to the main panel, starting from the rectangular opening and leaving the initial wired section outside
Slot the main panel into the rectangular base, feeding the LED strip wires through first
Add the diffuser and the panel featuring the Madonna
Electrical wiring
After tying a small knot in the LED strip wires, thread them through the hole in the angled base and then secure the base cover
Solder one side of the switch to the LED strip's positive terminal and the other side to the transformer's positive terminal
Solder the two negative poles of the switch and the transformer
A second version of the base has been added, featuring a 10mm hole for an on/off switch and a 12mm hole for a USB-C (female) connector
