Description
. : SlimFlat Ret retractable Nozzle For Vacuum Cleaner – Ø32 / Ø35 : .
The SlimFlat Ret retractable Nozzle for vacuum cleaner is compatible with 32 mm and 35 mm diameters, covering the majority of household vacuum cleaners
While reading the paragraph for the contest “ revolutionizing cleaning in small spaces ”, the idea for this nozzle immediately came to mind This project was designed to address that vision: a design that doesn’t just vacuum, but emphasizes real cleaning efficiency, with a compact and easy-to-carry format

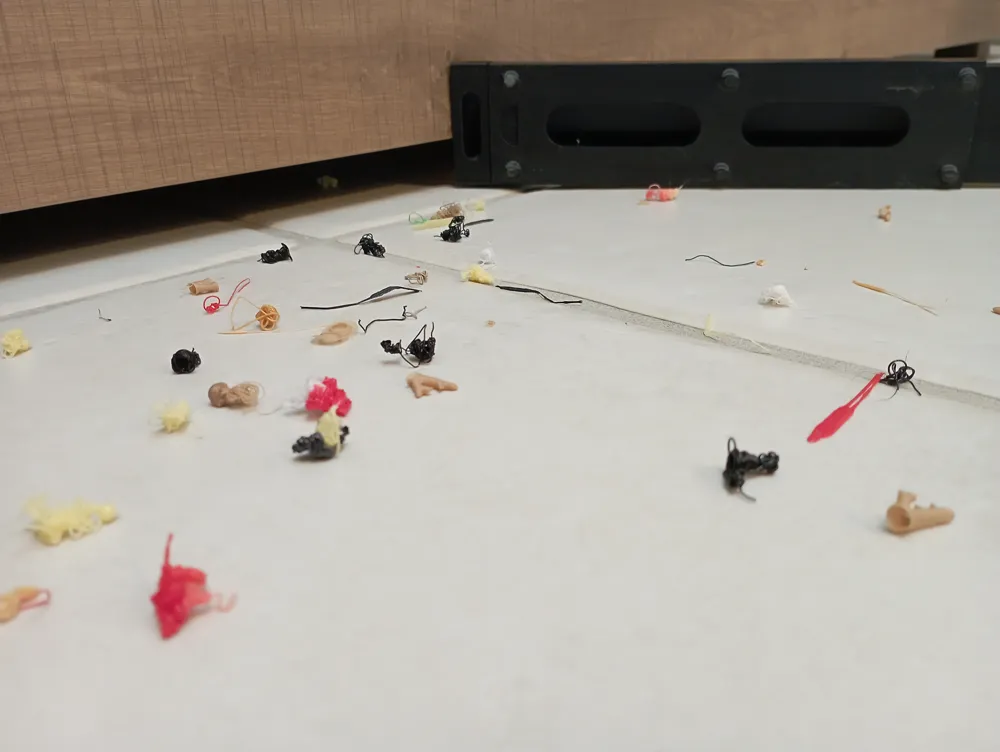

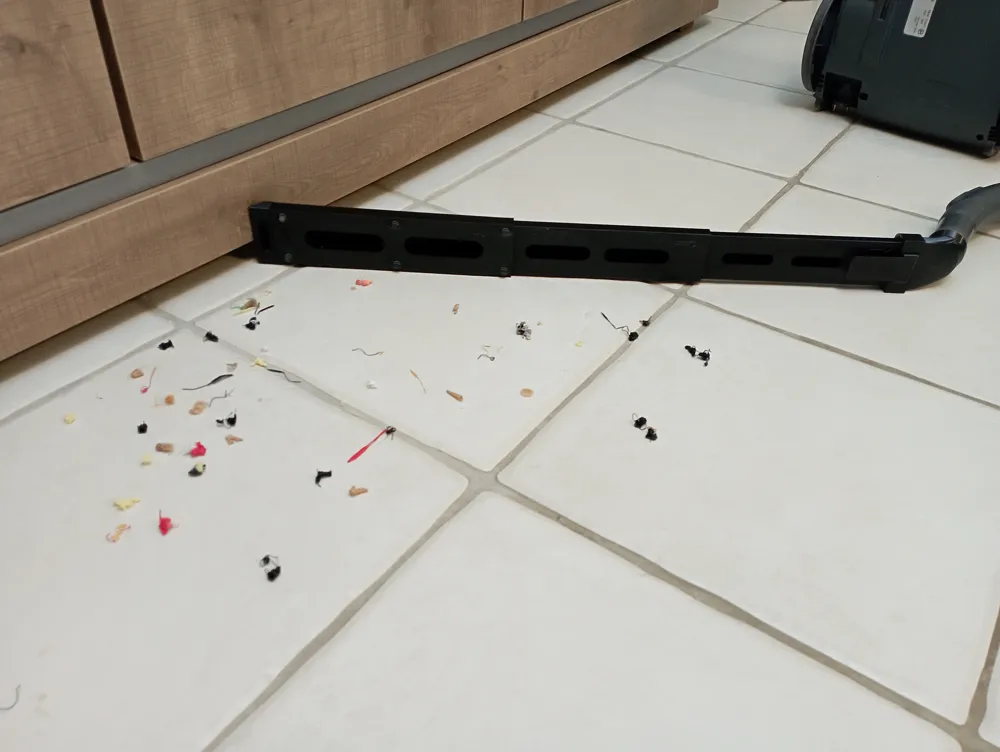

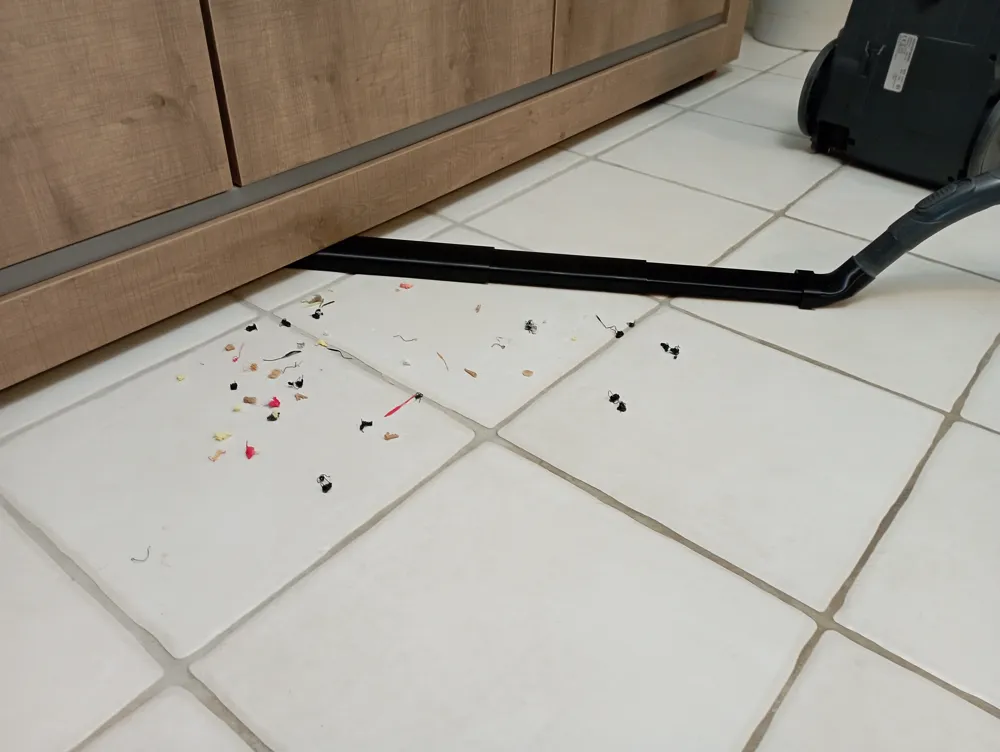

It is ideal for confined spaces, especially under low furniture, thanks to its ultra-flat profile and retractable system Its small footprint when folded allows for simple storage, while offering a wide reach when deployed

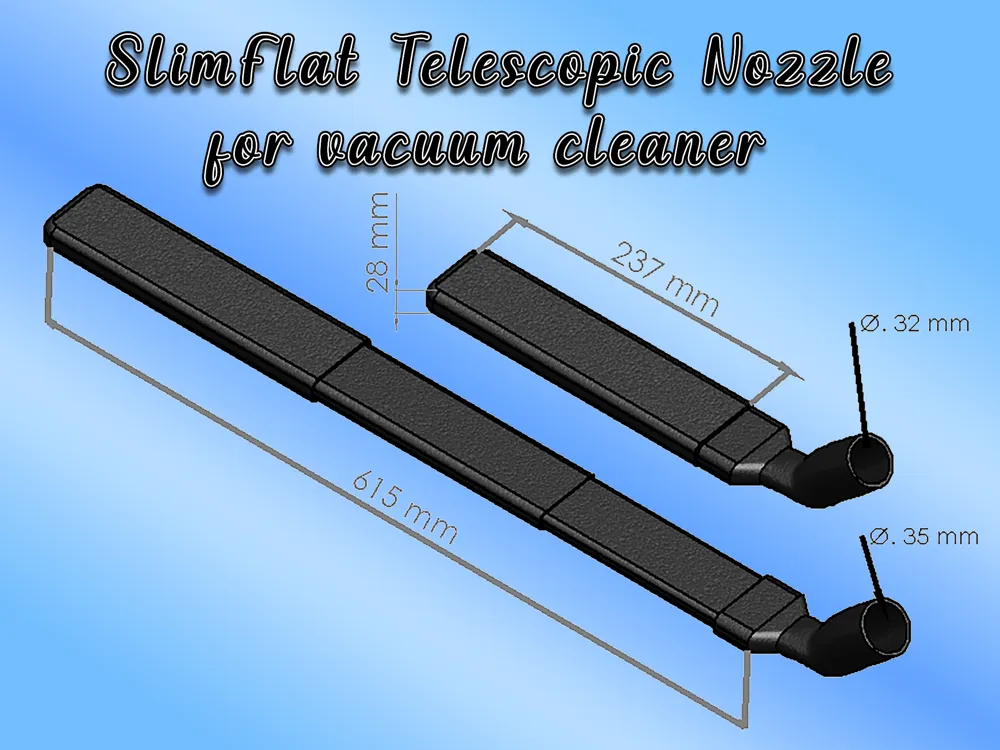

Dimensions :
Height : 28 mm
Unfolded length : > 600 mm
Retracted length : ± 250 mm
/!\ Diameter compatibility : 2 files included in the .3mf
Ø 32 mm → most common (Bosch, Siemens, Philips, old Miele, Rowenta)
Ø 35 mm → also very common (Dyson, Kärcher, Nilfisk, hoover, professional vacuum cleaners)
Other diameters encountered :
Ø 30 mm → rarer
Ø 31 mm → certain specific brands
Ø 36 mm → industrial / construction site vacuum cleaners
Ø 38 mm → professional / workshop use
Ø 40 mm → niche
Diameters can be adapted or modified on request Simply provide me with the exact diameter to create to ensure optimal compatibility
Flow direction : The direction of the suction flow is indicated under each part to ensure correct assembly

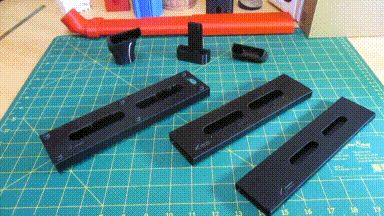

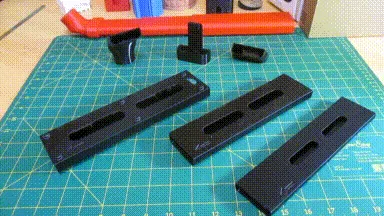

I advise you to print the parts separately and not nested
This method helps avoid bonding problems encountered during testing
A conical alignment key is integrated to ensure proper alignment once deployed

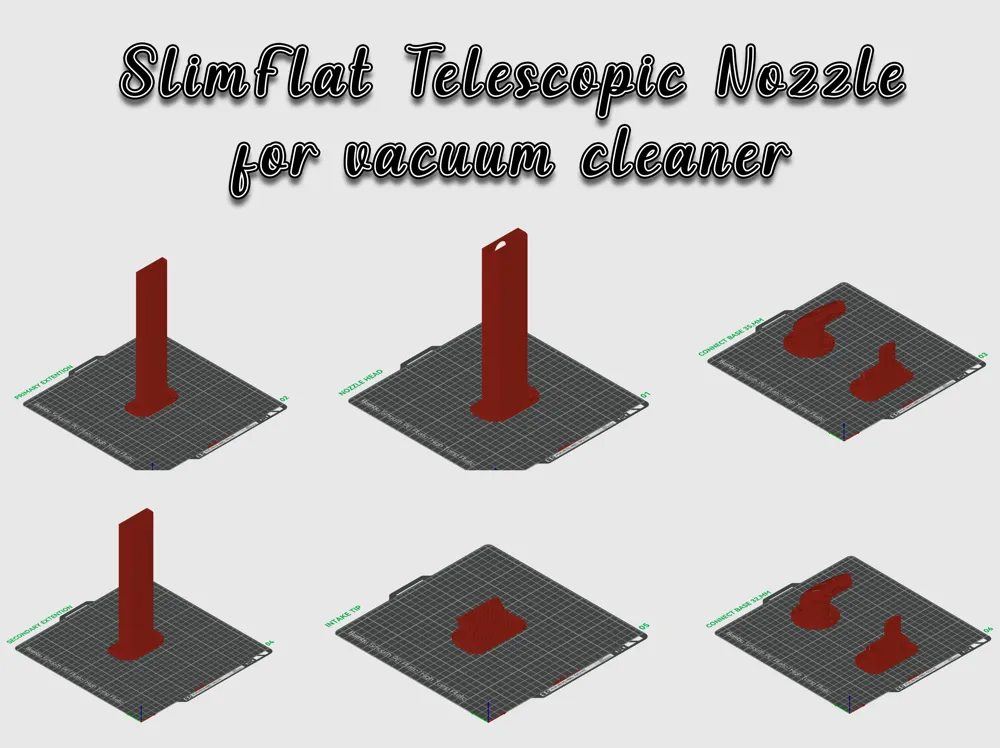

Recommended material : PETG ; Vertical printing
A print brim of more than 15 mm is provided to ensure good bed adhesion This brim should be removed after printing and has no impact on the nozzle's function

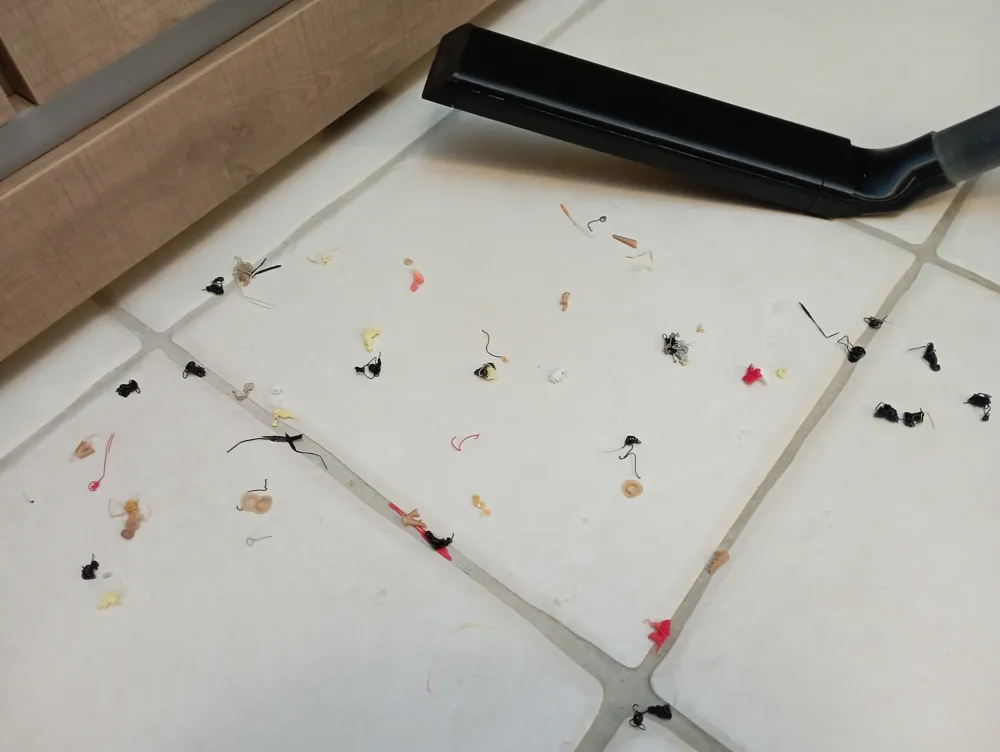

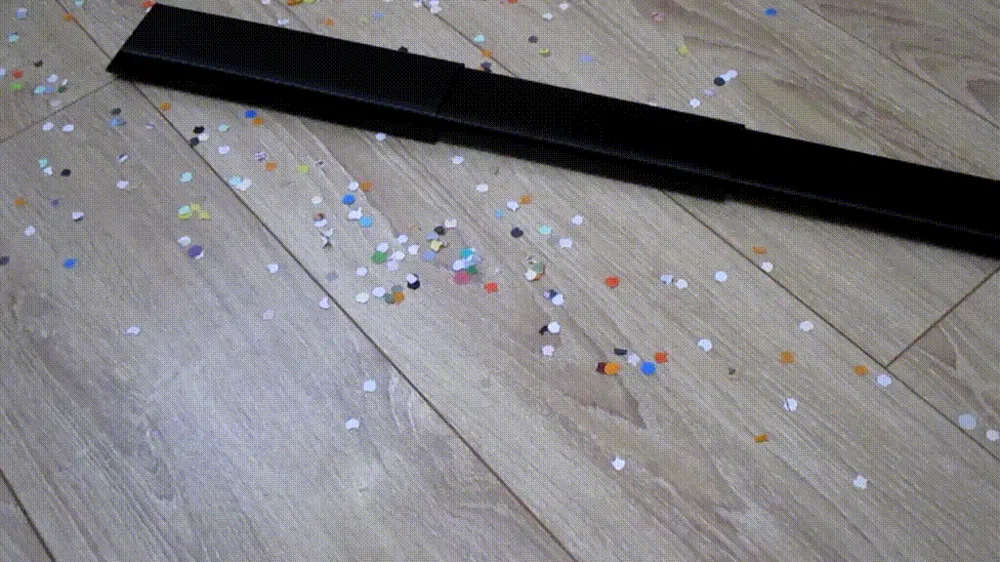

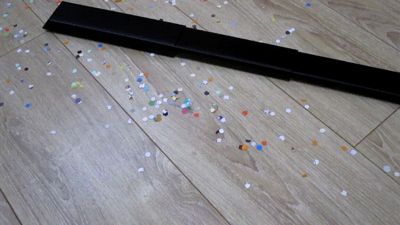

Tests and performance : Tested with a 1200 W vacuum cleaner
Happy printing! Zino
