Precision Pipe Center Finder Ø 4–48 mm Drill Tool
Print Profile(0)
Description
This tool allows you to quickly find the center of a pipe or any round object, essential for precision work in metal, wood, or plastic.
Operating Instructions:

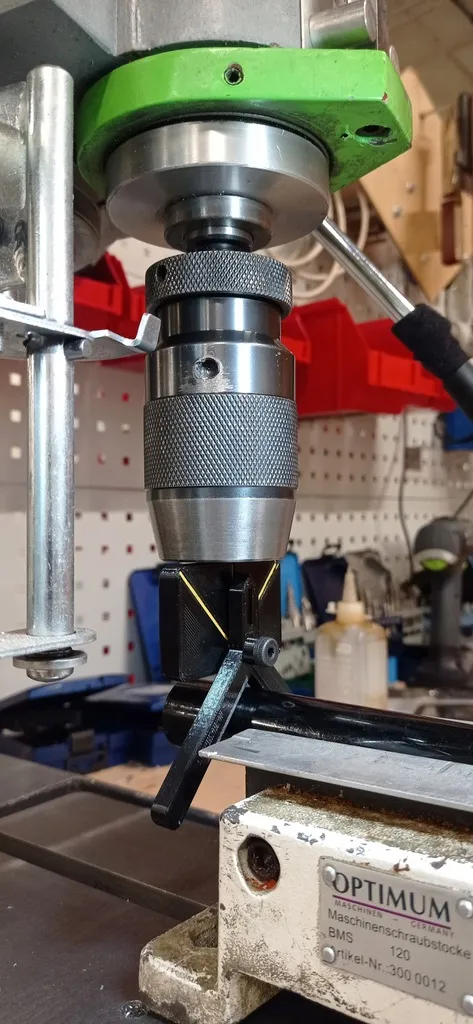

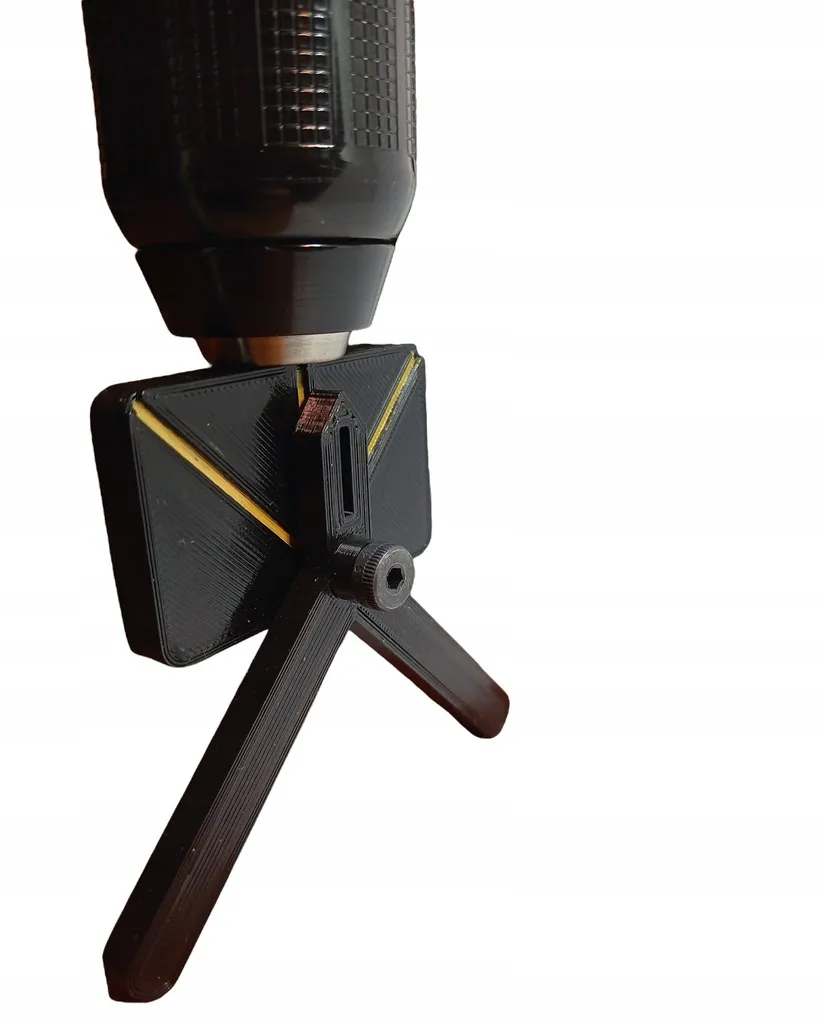

1. Installation: Mount the finder in the drill chuck using the integrated 10 mm shank.

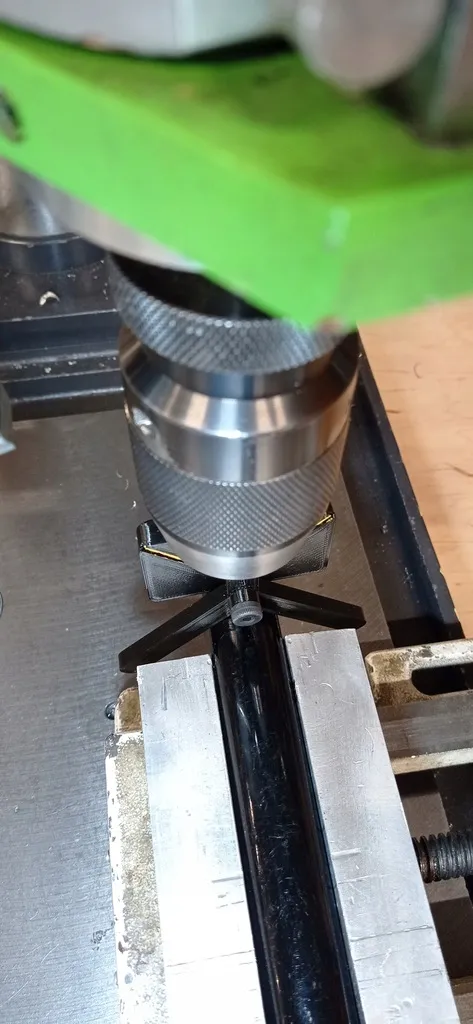

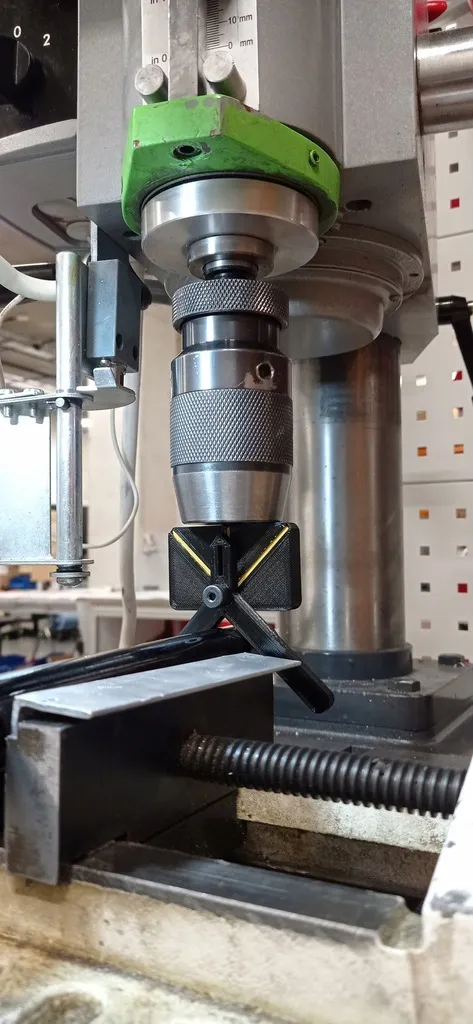

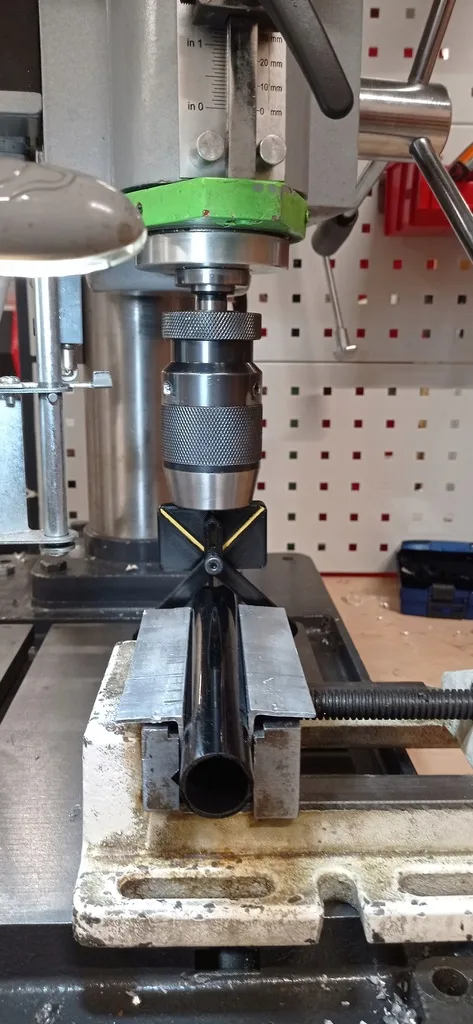

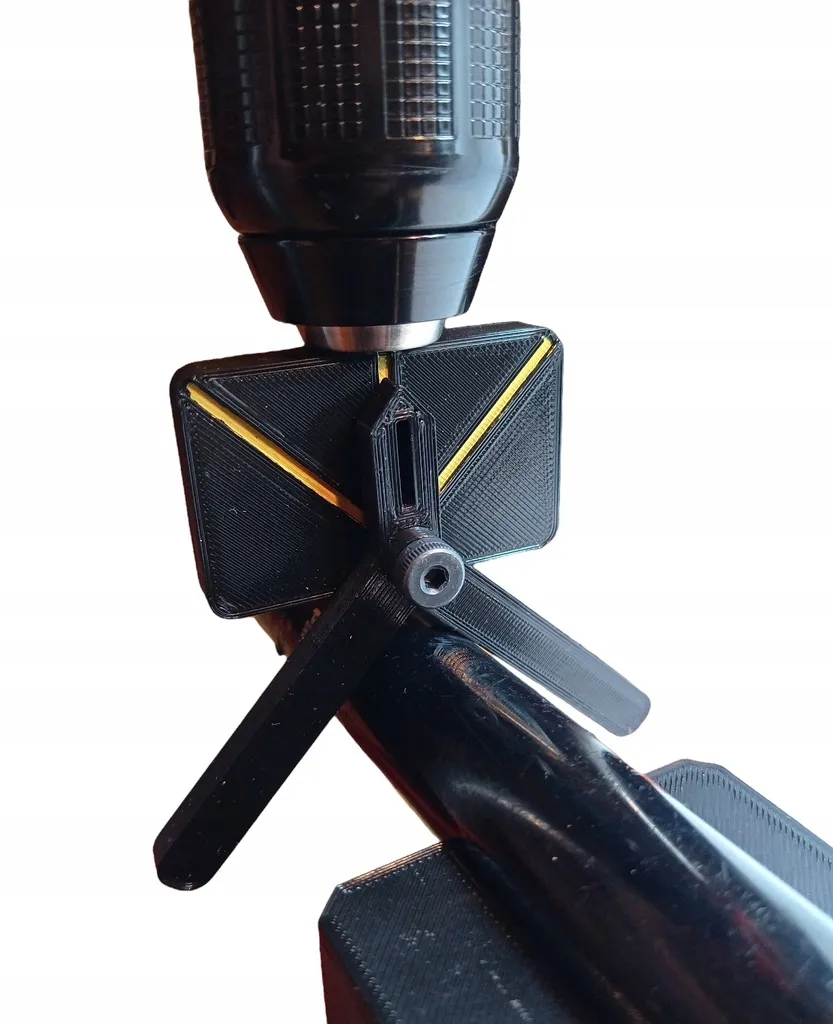

2. Alignment: Move the vice with the workpiece across the drill table until the pointer and the bright line inside the window align with the center.
3. Drilling: Once centered, raise the chuck, swap the finder for a drill bit, and proceed with drilling.
Main Benefits:

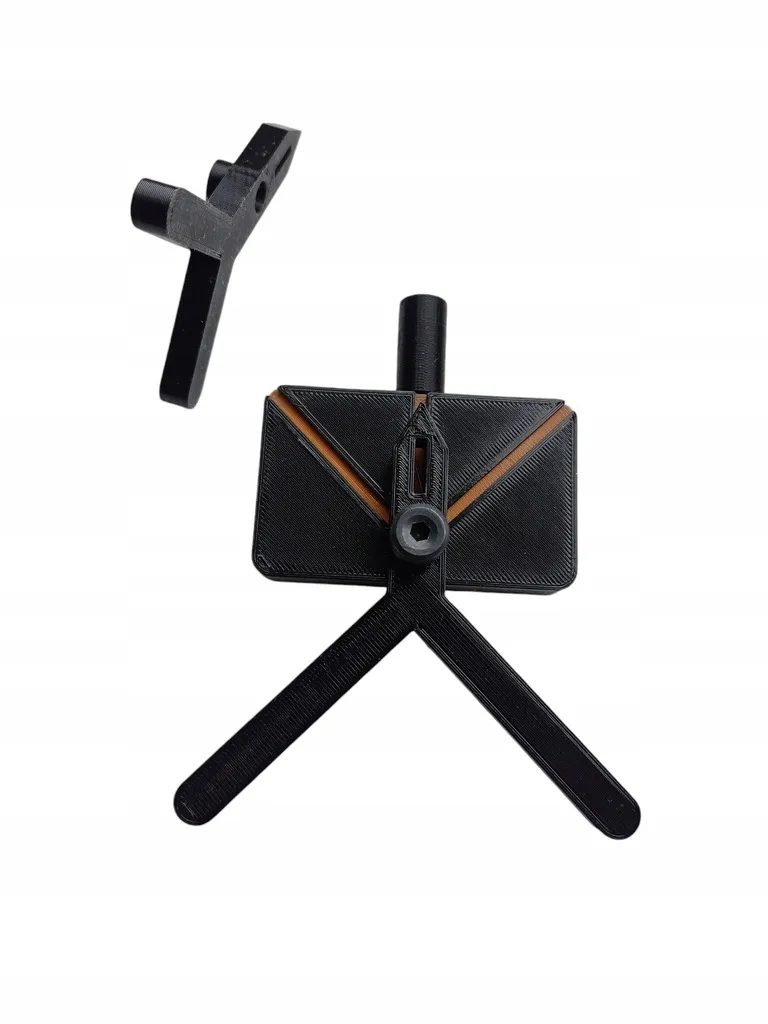

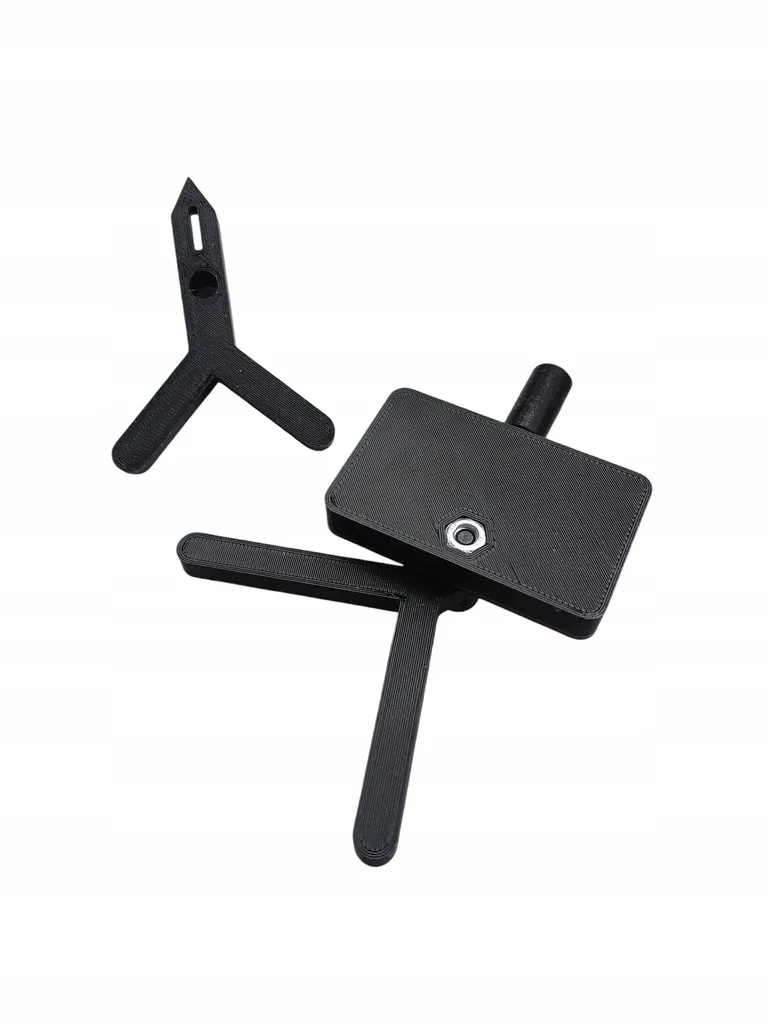

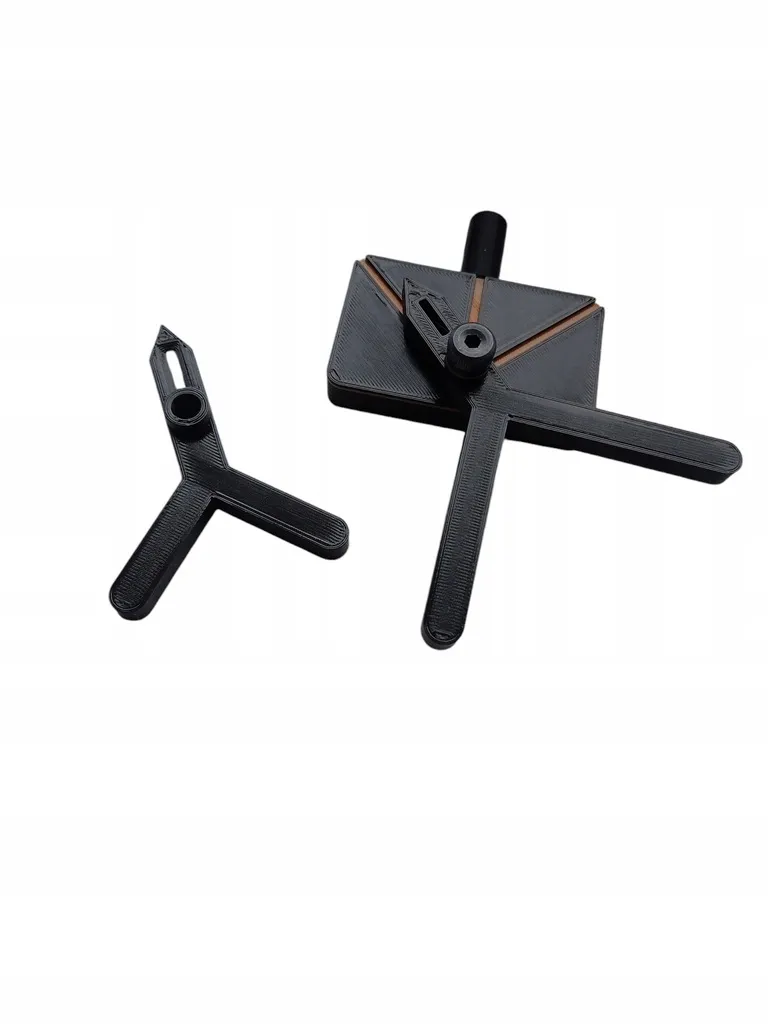

• Dual Arm System: Includes shorter arms for diameters up to 28 mm and longer arms for up to 48 mm (swappable with a single screw).

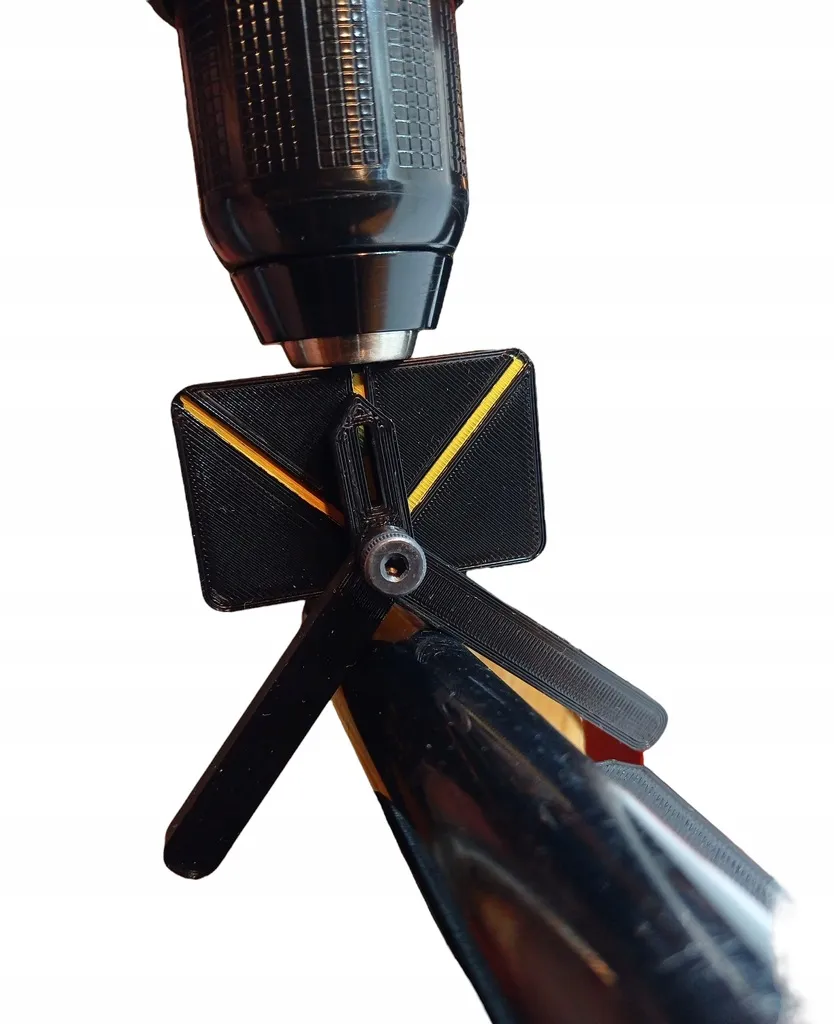

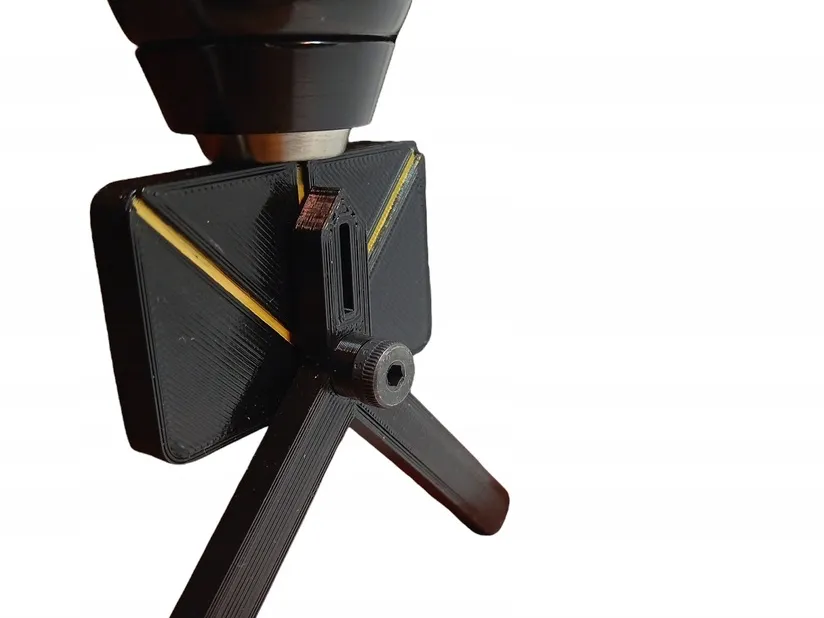

• High Contrast: A bright indicator line (achieved via a marker or filament color swap) ensures easy reading.

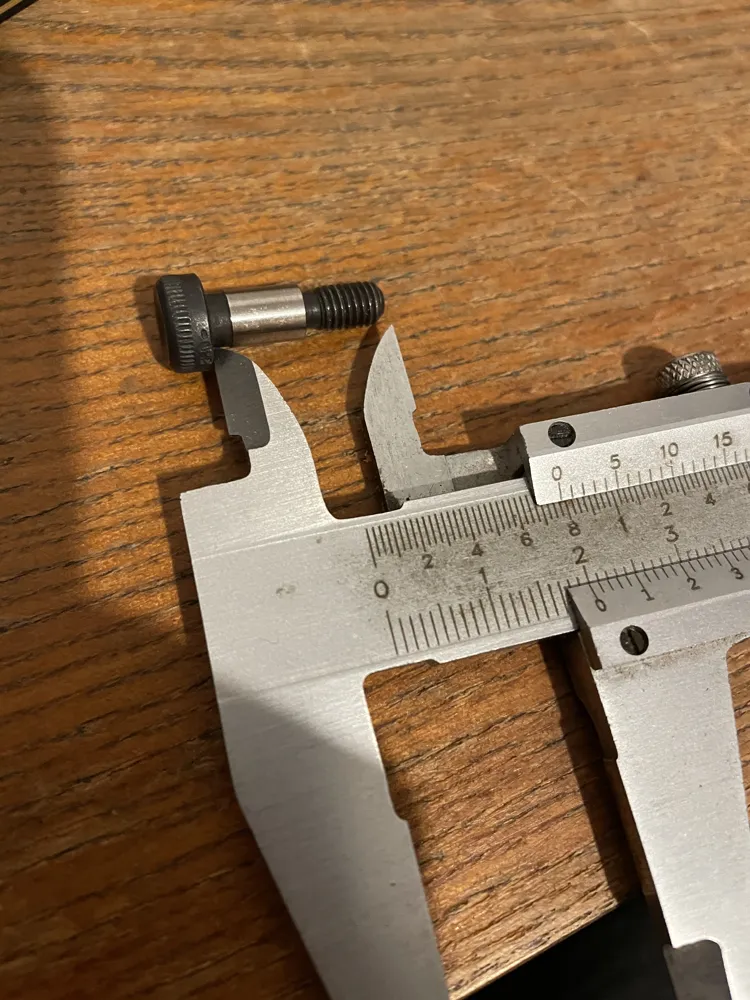

For assembly, use a M5x20 shoulder screw
