Bill of Materials
- 5MM COB LED Strip DC 5V x 1: https://www.aliexpress.com/item/1005008131482005.html?spm=a2g0o.order_list.order_list_main.23.6ded1802Pt6lIA
- COB LED Wire Connector 5 mm Connection Solderless Mini Bucklelink x 1: https://www.aliexpress.com/item/1005005467938991.html?spm=a2g0o.order_list.order_list_main.11.6ded1802Pt6lIA
- 24AWG USB Type-C Female Chassis C Connector Jack Female Charging Port x 1: amazon.com/Chassis-Connector-Charging-Waterproof-Current/dp/B0CH9N6CV8/ref=sr_1_7?crid=R6D5XZVRFEJB&dib=eyJ2IjoiMSJ9.MOpdPv7pLTzWONBR6xpunS3BDUtgTi1lHhzsTTcQtq0QiSitzG5gxt17bW_3UHYIZW6eoLsa1fto73fz1A_6aKYoUD0YKbRQv1slqYbTuFTOAH-31MikdONtxT7C8s6LhdzzWXzuaEefUbuVfWwNWbgdQe0unFGj91JdH7_08eX9JbXNXvZrhoYiQICFal5EBEACNoDHRqZz-aCP_fQiDQTVWCyQeCeTLcZW24bC15E.UAxSor-XBzMd35_wrGJDxJqt5pOr2Jbw3sYGYMiWwiE&dib_tag=se&keywords=usb+type+c+2p+wire+connector&qid
Description
Street Legends – Racing Book Nook
Street Legends – Racing Book Nook is a modular, LED-lit book nook designed to bring urban street racing culture directly into your bookshelf.

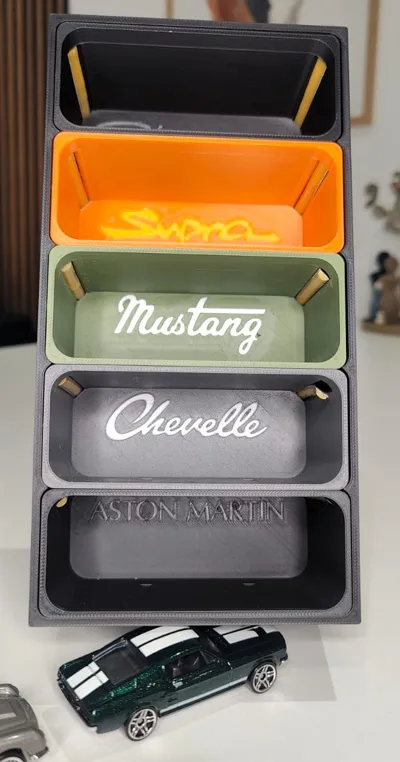

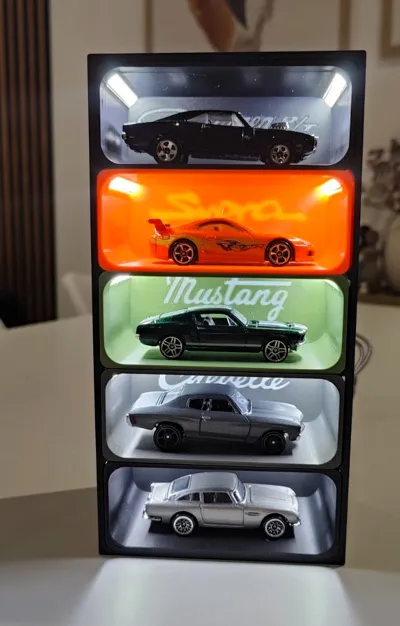

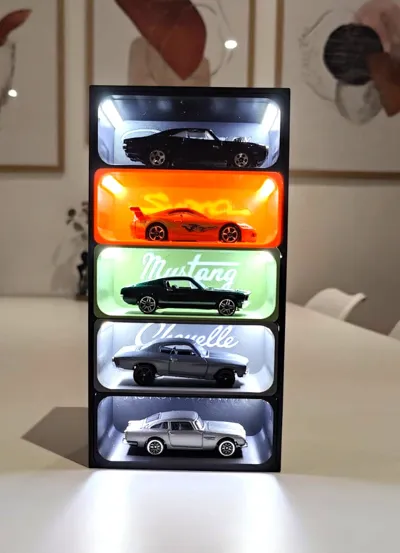

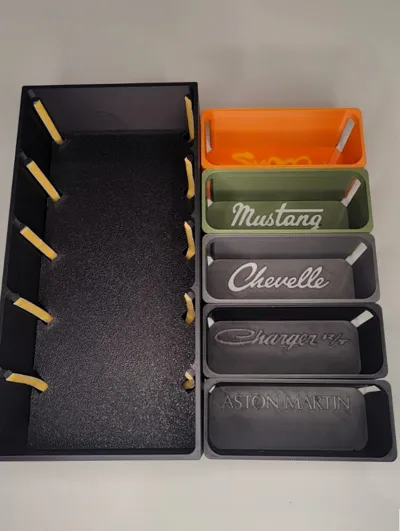

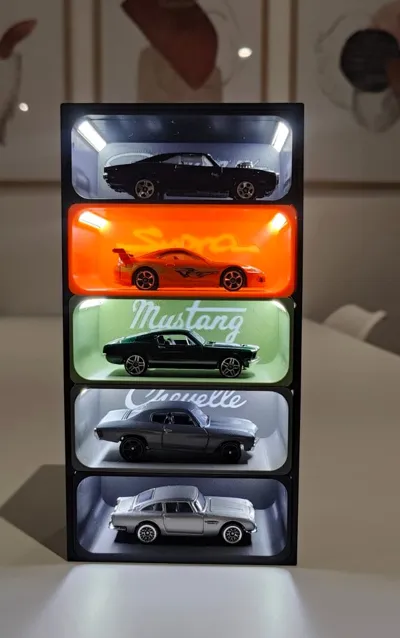

The model features five individual garage-style compartments arranged vertically, each designed as a miniature scene for iconic street racing cars. Color-coded drawers, layered walls, and controlled depth create a strong diorama effect, while ambient LED lighting adds atmosphere and visual focus.

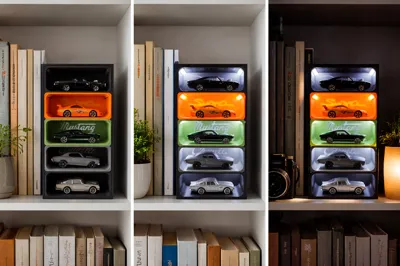

This design combines storytelling, display, and functionality — transforming a bookshelf slot into a dynamic racing showcase. Each compartment can be printed separately, customized in color, and illuminated individually, making the model flexible for makers and collectors.
🔧 LED & Electronics Setup (tested configuration)
The book nook was designed and tested using 5V COB LED lighting components:
- LED strips:
5 mm COB LED Strip, DC 5V
Cut into 10 segments of 6 cm each - Mounting:
LED strips are attached directly to the 3D-printed parts using the integrated self-adhesive backing - Connectors:
5 mm COB LED wire connectors (solderless mini buckle type)
Used for clean and tool-free wiring - Power input:

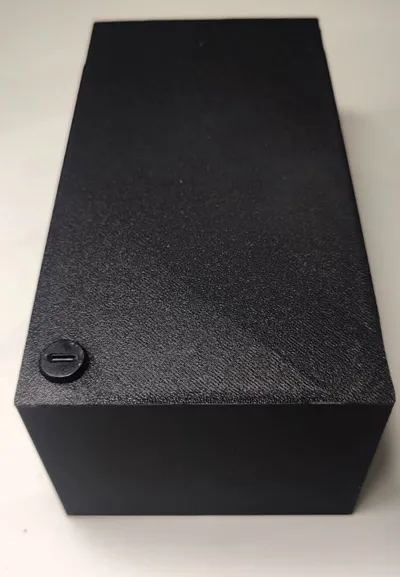

USB Type-C female chassis connector (24 AWG)
Allows simple 5V power supply via USB

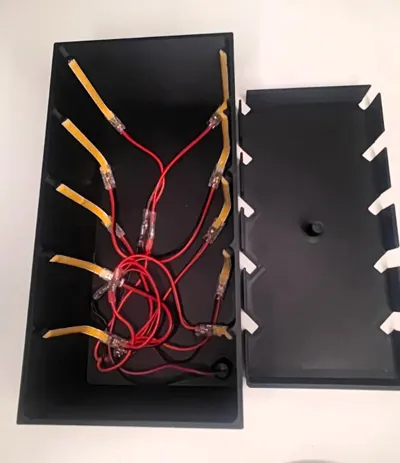

The internal geometry includes space for cable routing and connectors, keeping wiring hidden and assembly clean.
🚗 Vehicle Compatibility

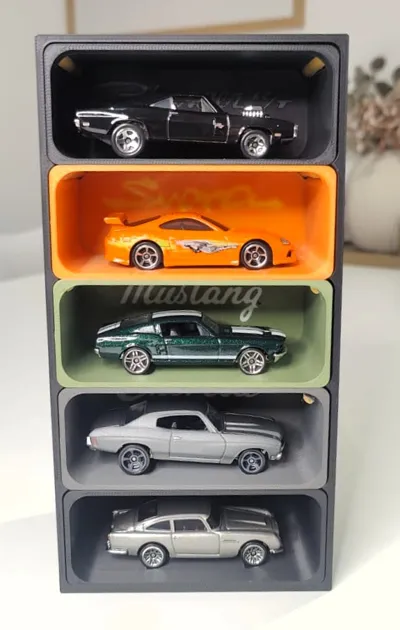

The compartments are sized to display 1:64 scale die-cast cars, tested with a 5-pack street racing set.
Other 1:64 models with similar dimensions will also fit.
🖨️ Printing Notes
- Designed for PLA or PETG
- Modular multi-part construction
- Optimized for easy printing and assembly
- No supports required for most parts
- Colors and lighting can be customized per compartment
Inspired by street racing culture and iconic movie cars.
