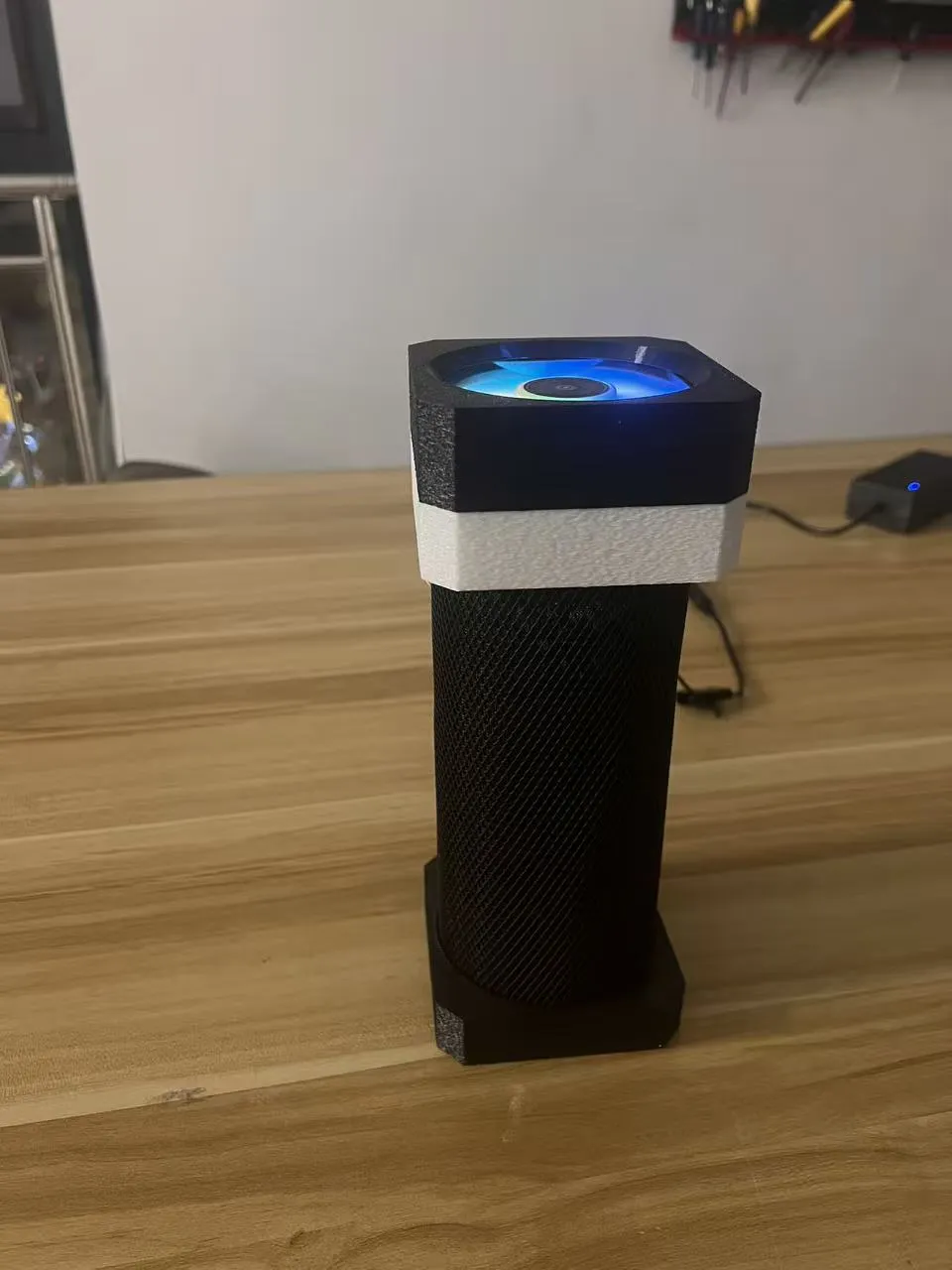

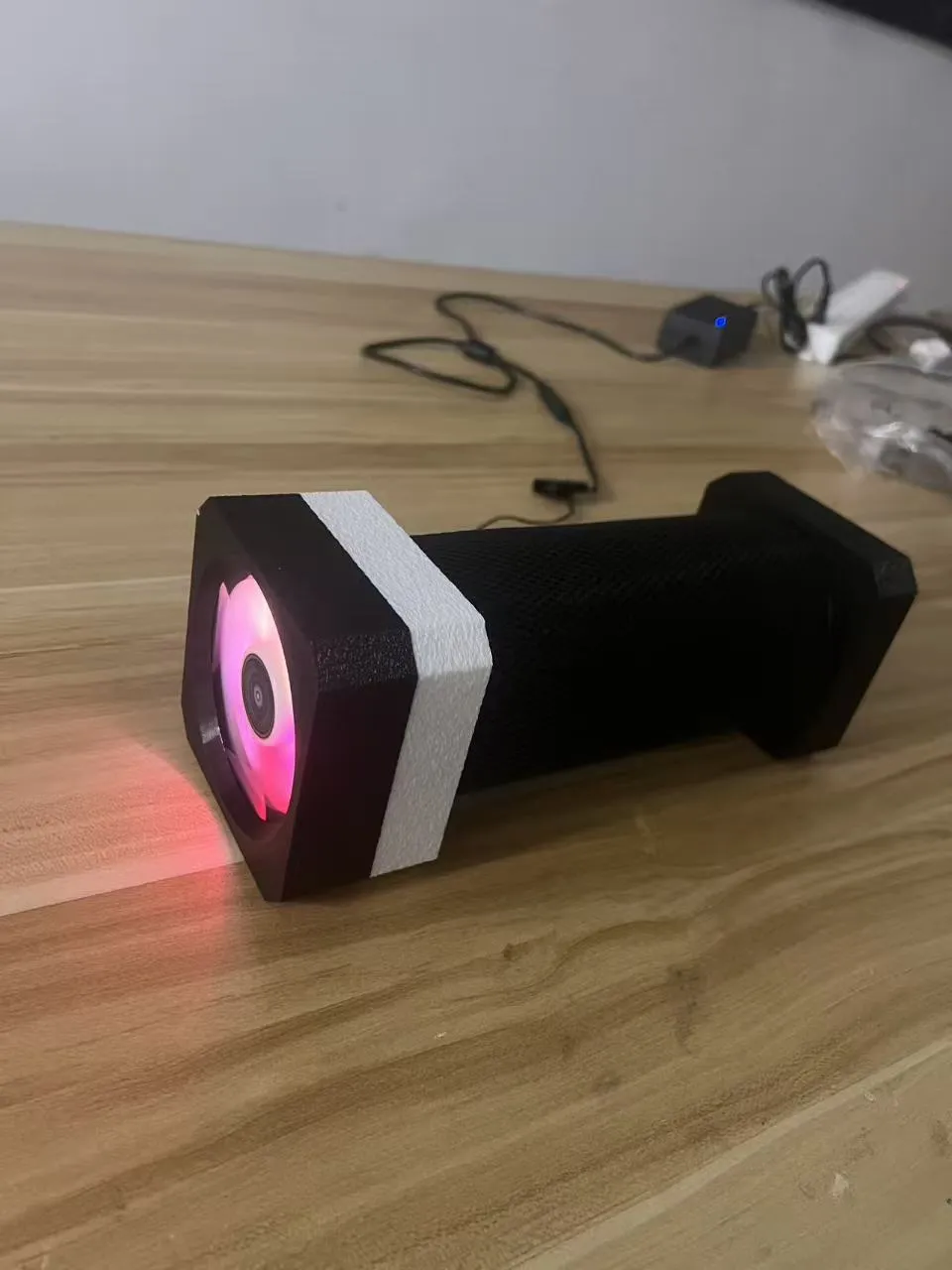

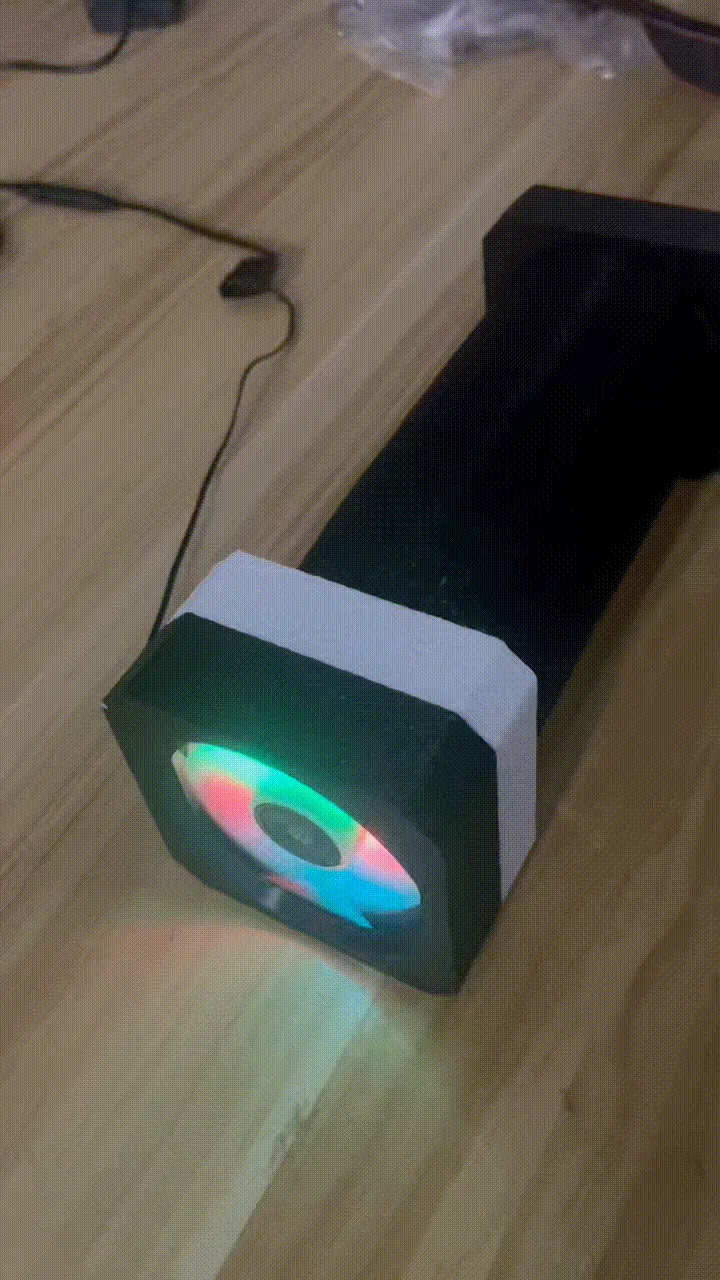

Desktop Vacuum Cleaner/Purifier
Print Profile(2)
Description
Boost Me (for free)
Easy installation, colors can be matched according to your preferences. There are currently 2 usage modes.

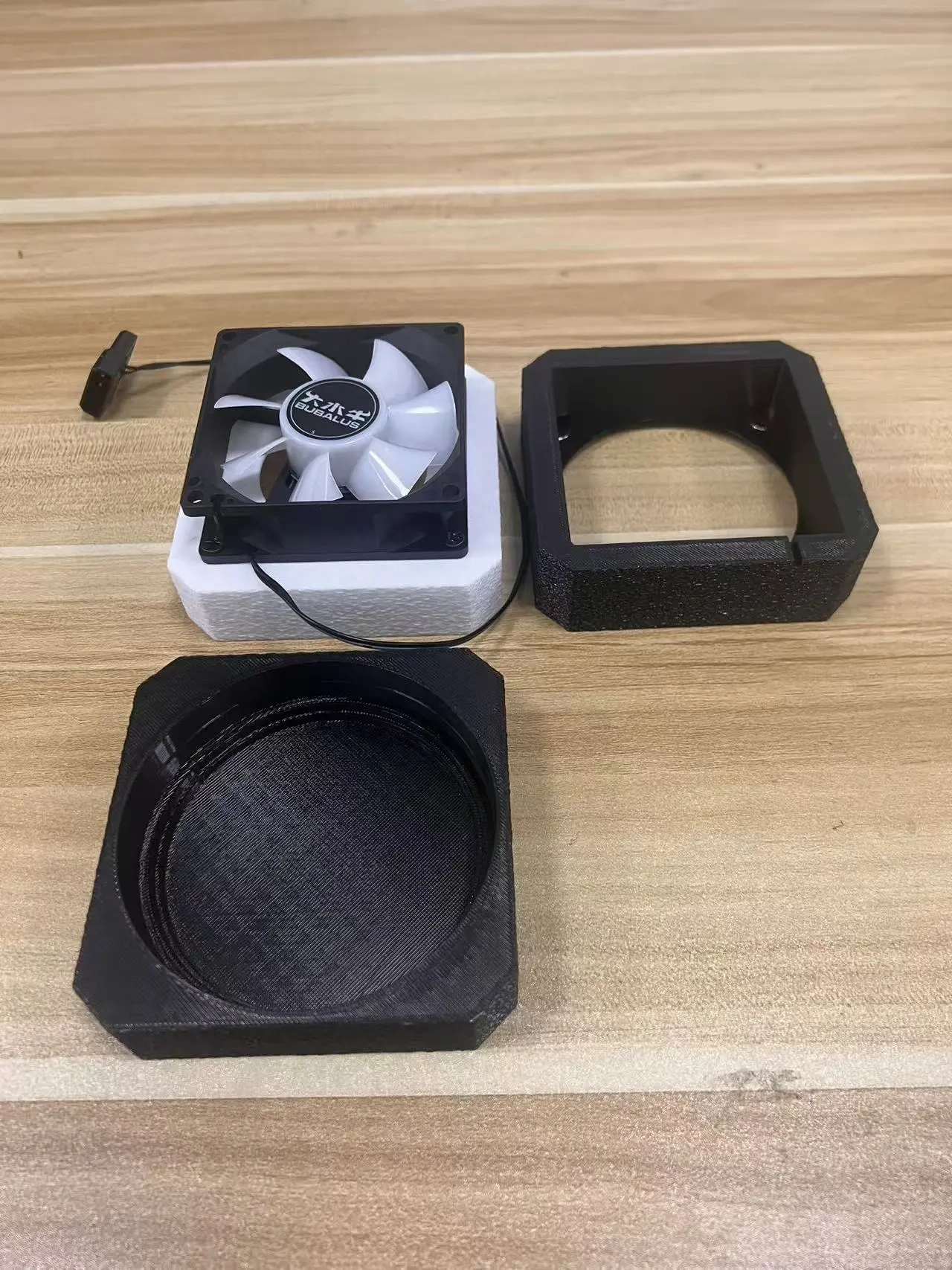

Mode 1: Just download print profile 1 and assemble it according to the diagram to create your own desktop purifier.

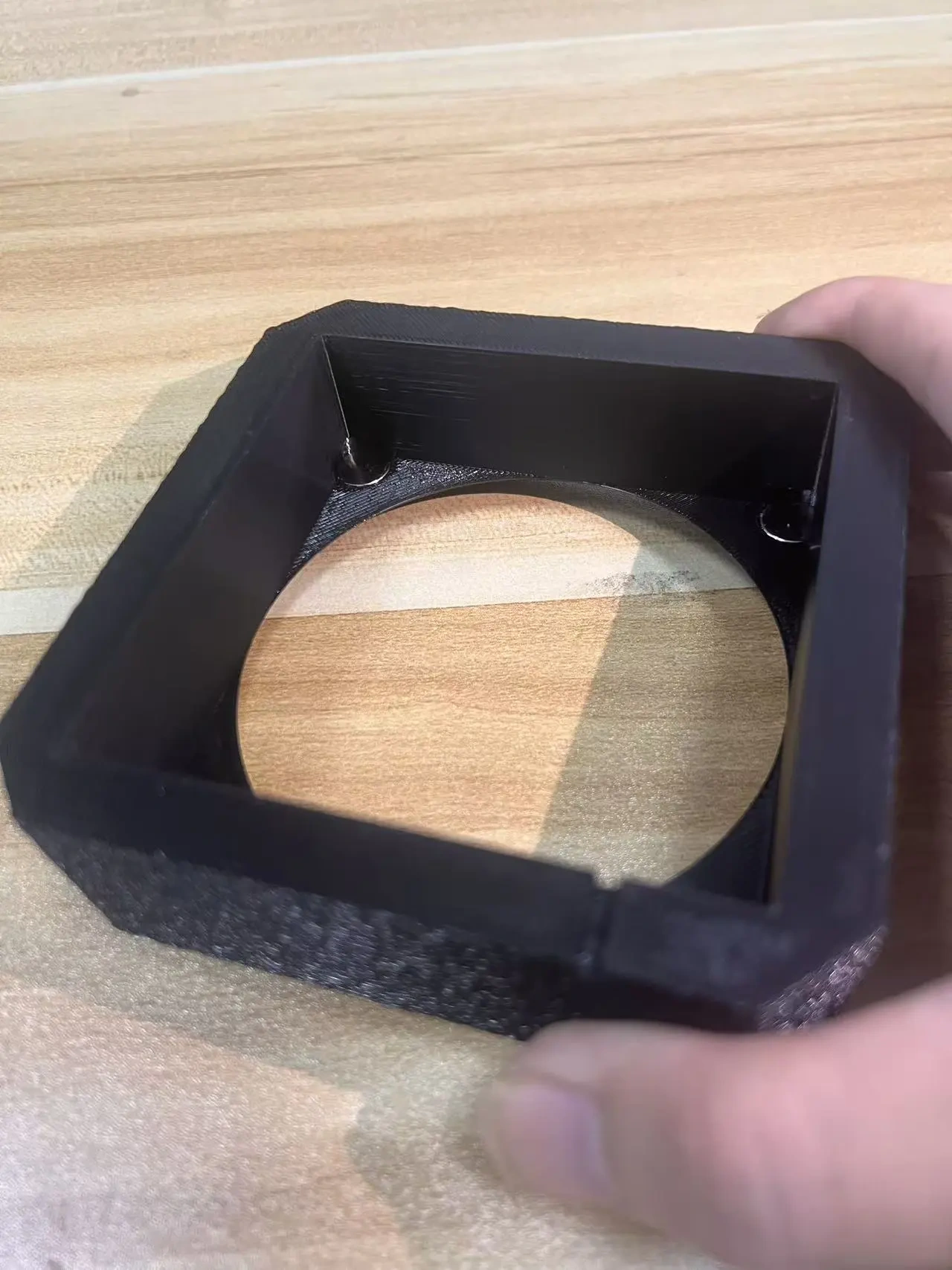

Please note during installation: The base and fan mount are designed with clasps, requiring some force to press them in. If you need to replace the filter later, a light tap with a hammer will allow removal. No glue is needed for fixation.
Note: The fit requires a bit of force. If it's too loose or too tight due to different material sinkage rates, please adjust the XY compensation accordingly.

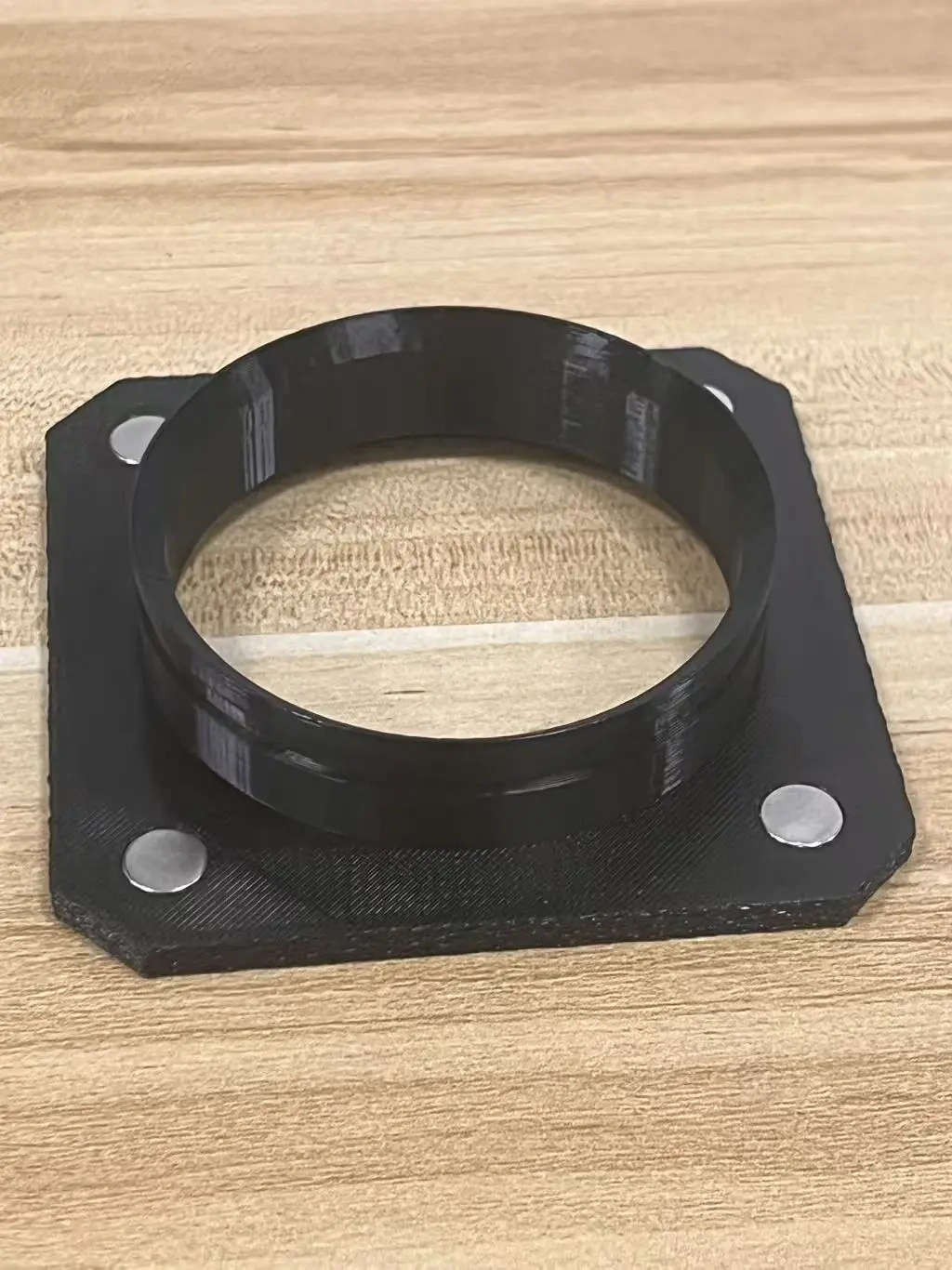

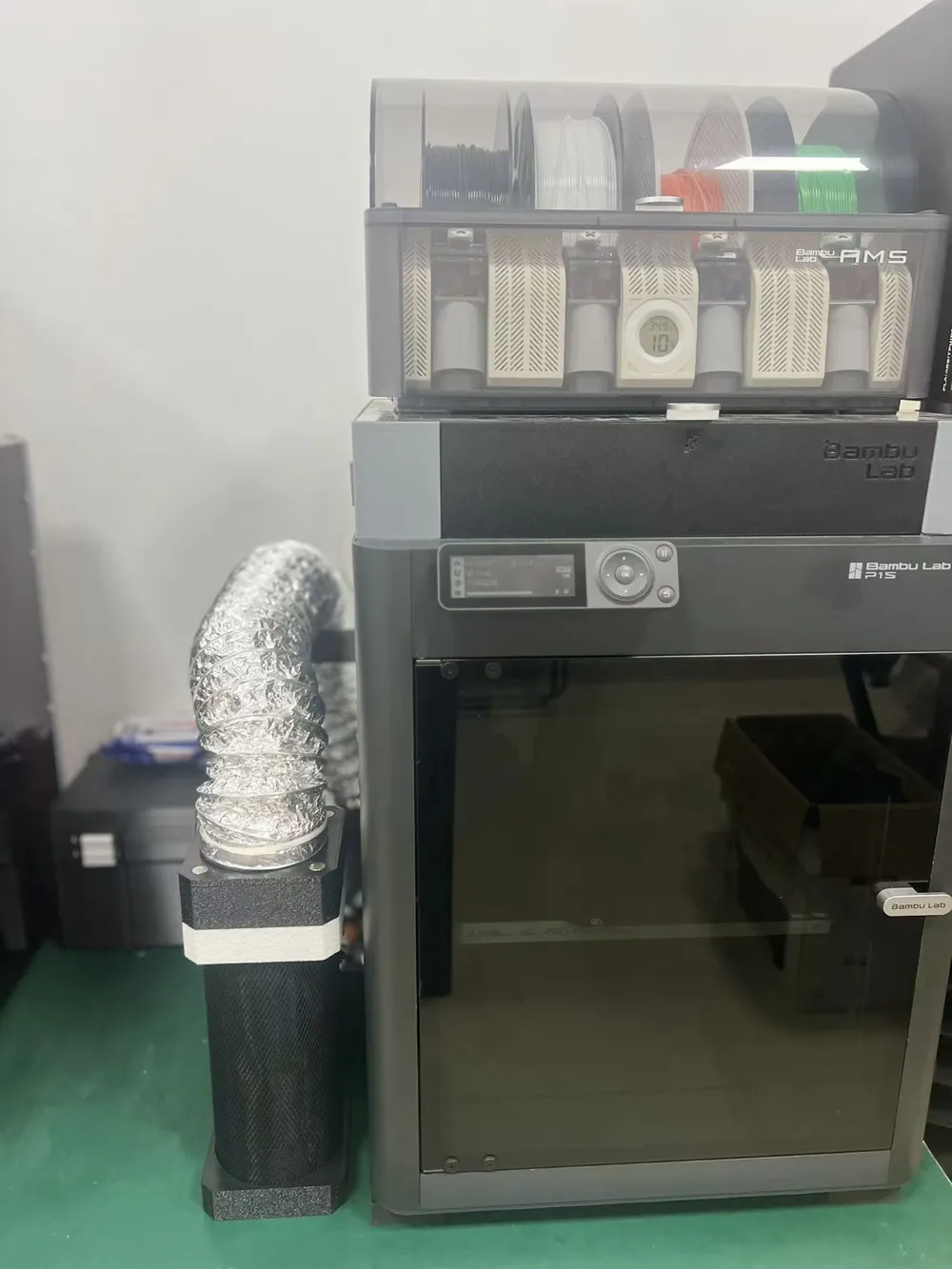

Mode 2: Additionally, download print profile 2, add 8 magnets (10mm diameter * 3mm thick), which can be paired with an air vent component for air purification in enclosed printers like P1X1, reducing harmful substances like ABS.
For Mode 1, magnets are not required.
Magnet installation does not require glue, just press firmly. Please be sure to note the magnet polarity.

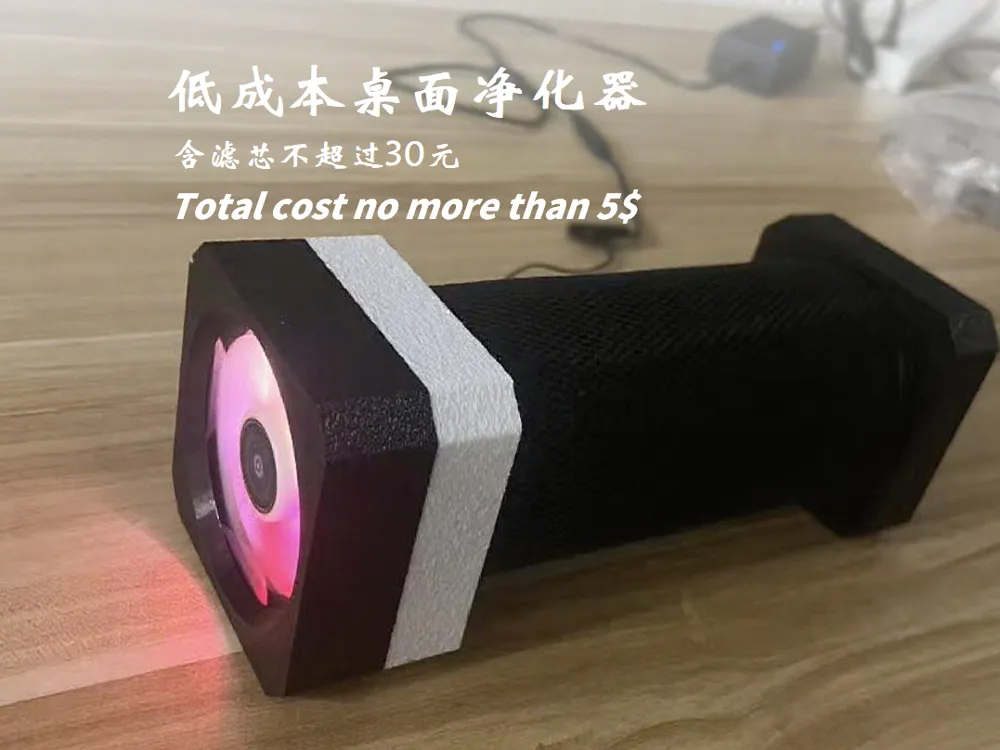

Material list reference (Total price 28.75 yuan, excluding printed parts)

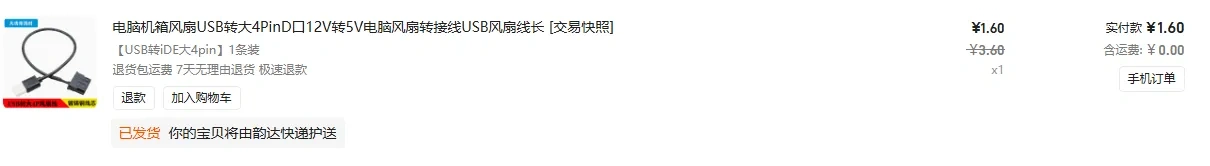

USB power cable (can be adjusted according to the fan you choose)

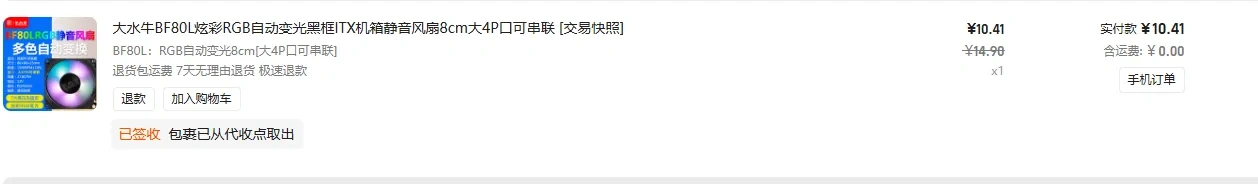

8cm fan (as long as the size is 8cm, other specifications don't matter)

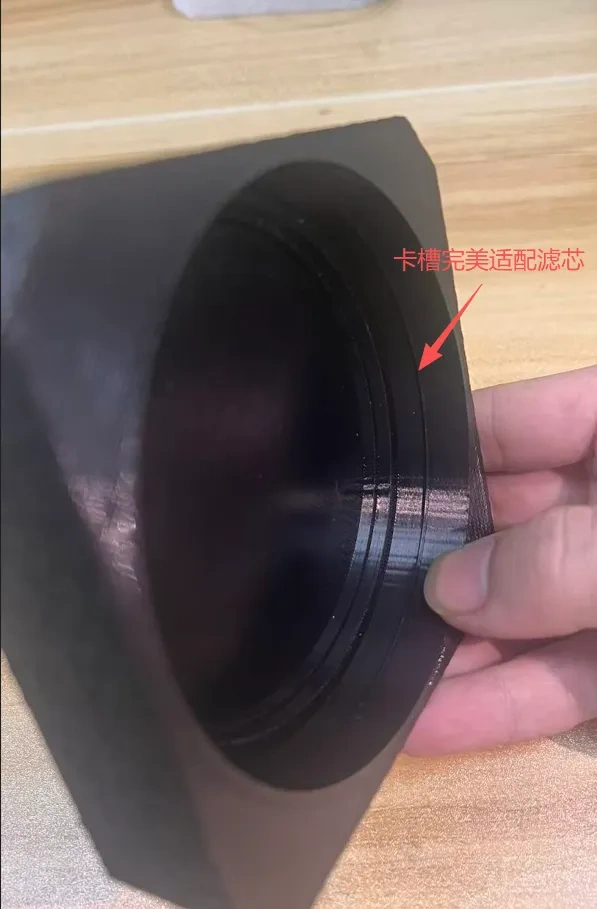

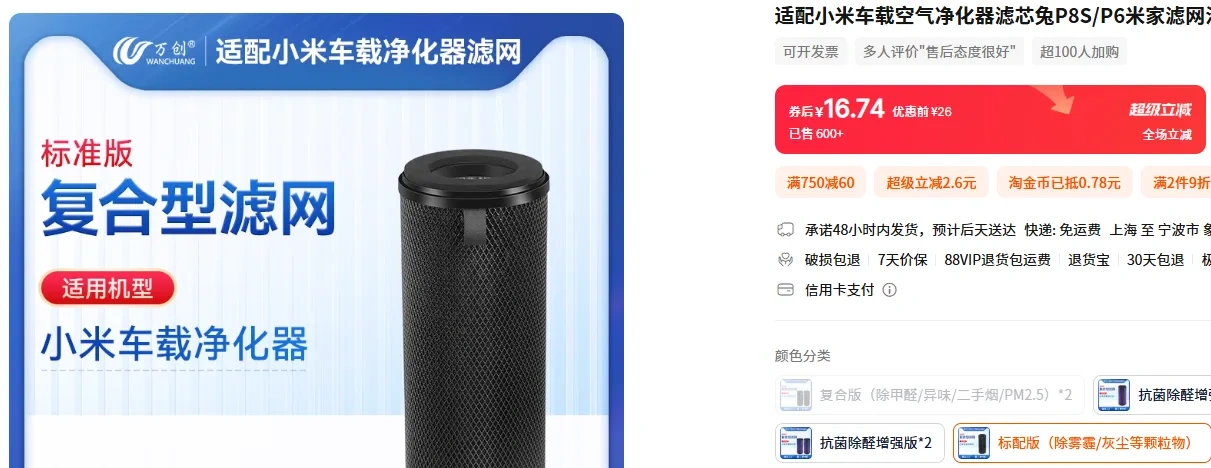

Filter element (the purple antibacterial formaldehyde removal one is also good)
