20 RMB Variable Speed Desktop Air Filter / Soldering Fume Extractor
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
5.3 h
2 plates
Open in Bambu Studio
Boost
1
5
0
0
2
0
Released
Description
Content has been automatically translated.

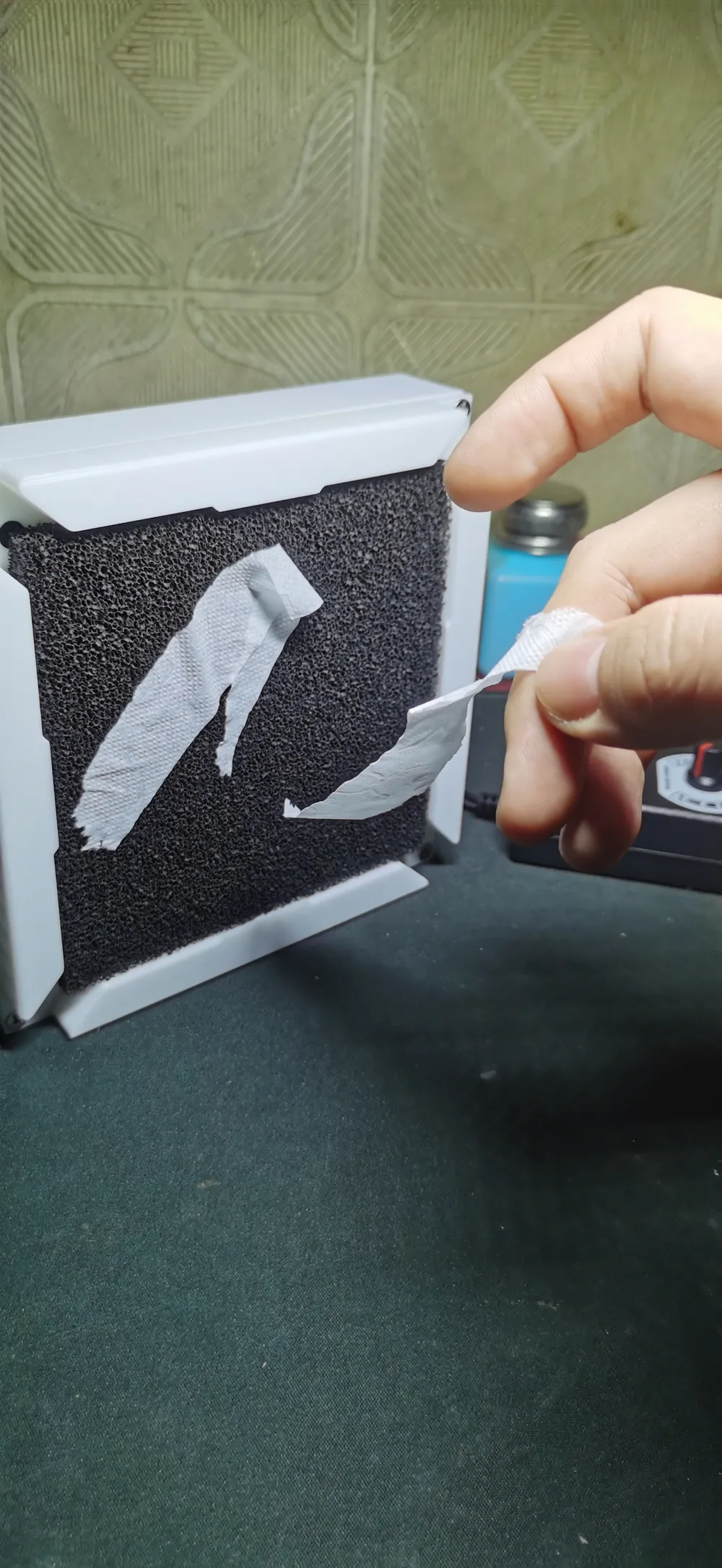

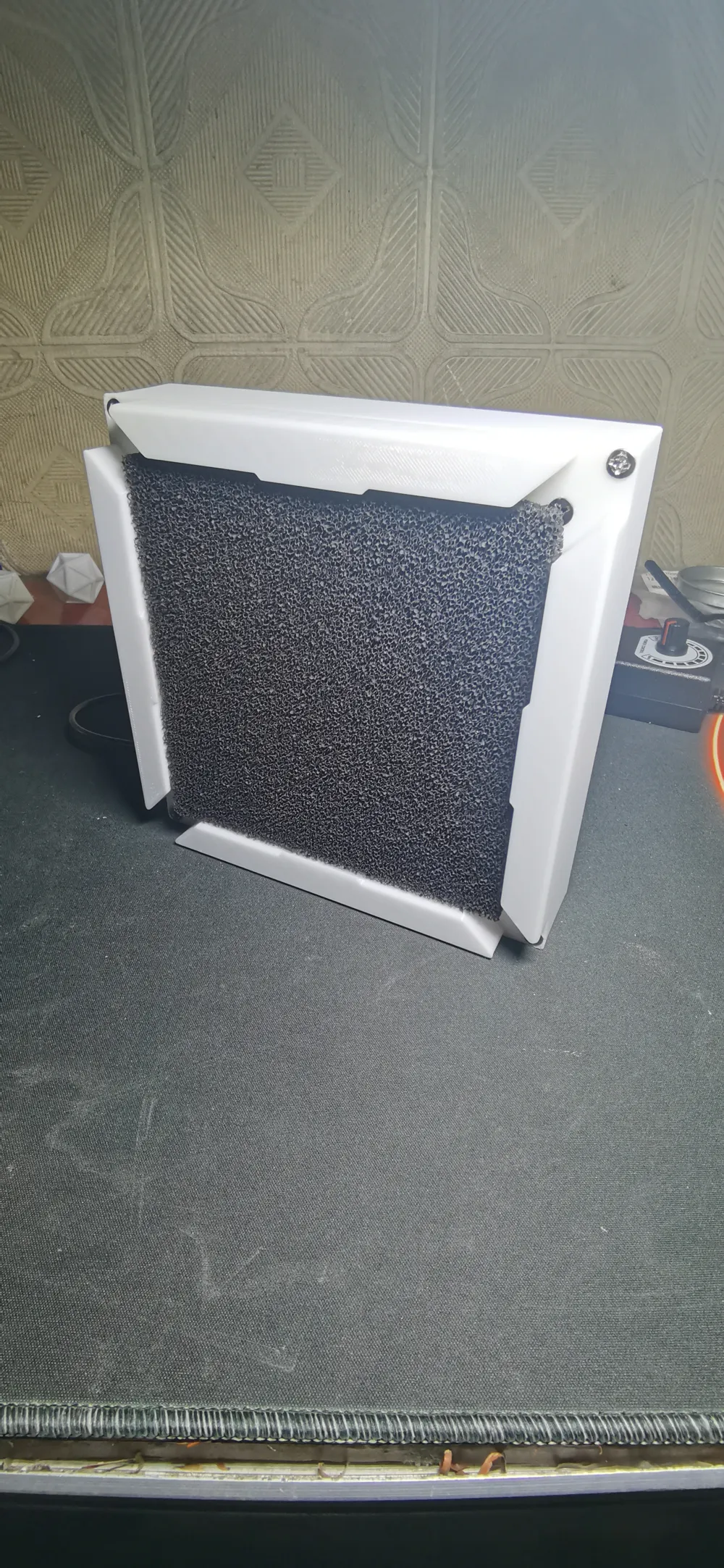

You can call it a desktop air filter, or a soldering fume extractor
It was originally intended to be used for fume extraction during soldering

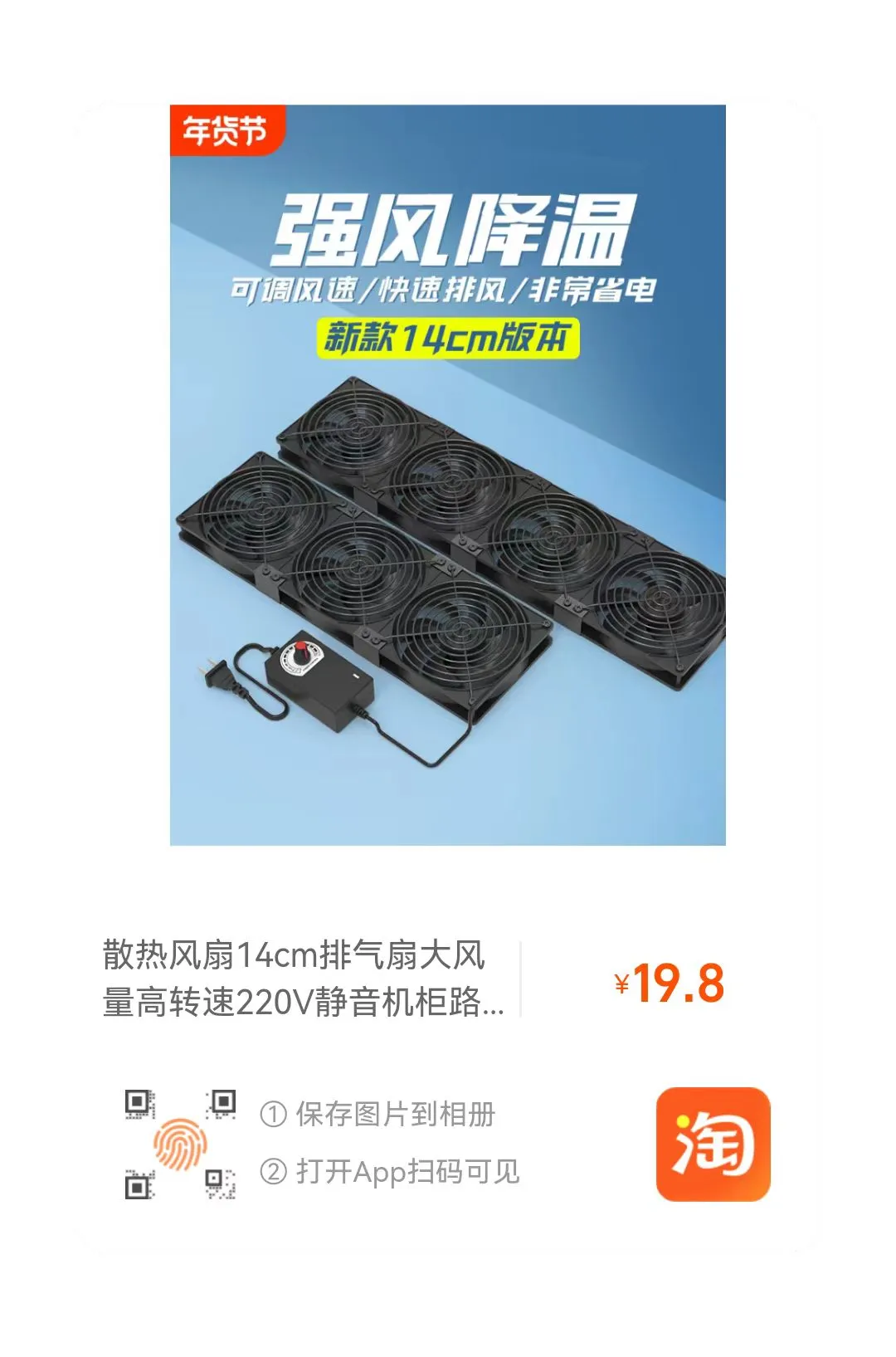

The speed control uses a 12V adjustable adapter, which came with the fan when I bought it I bought two, originally planning to make a two-layer one, but later realized one was enough
Two fans with adapters cost 30 yuan I plan to make a desktop heater with the other unused one later

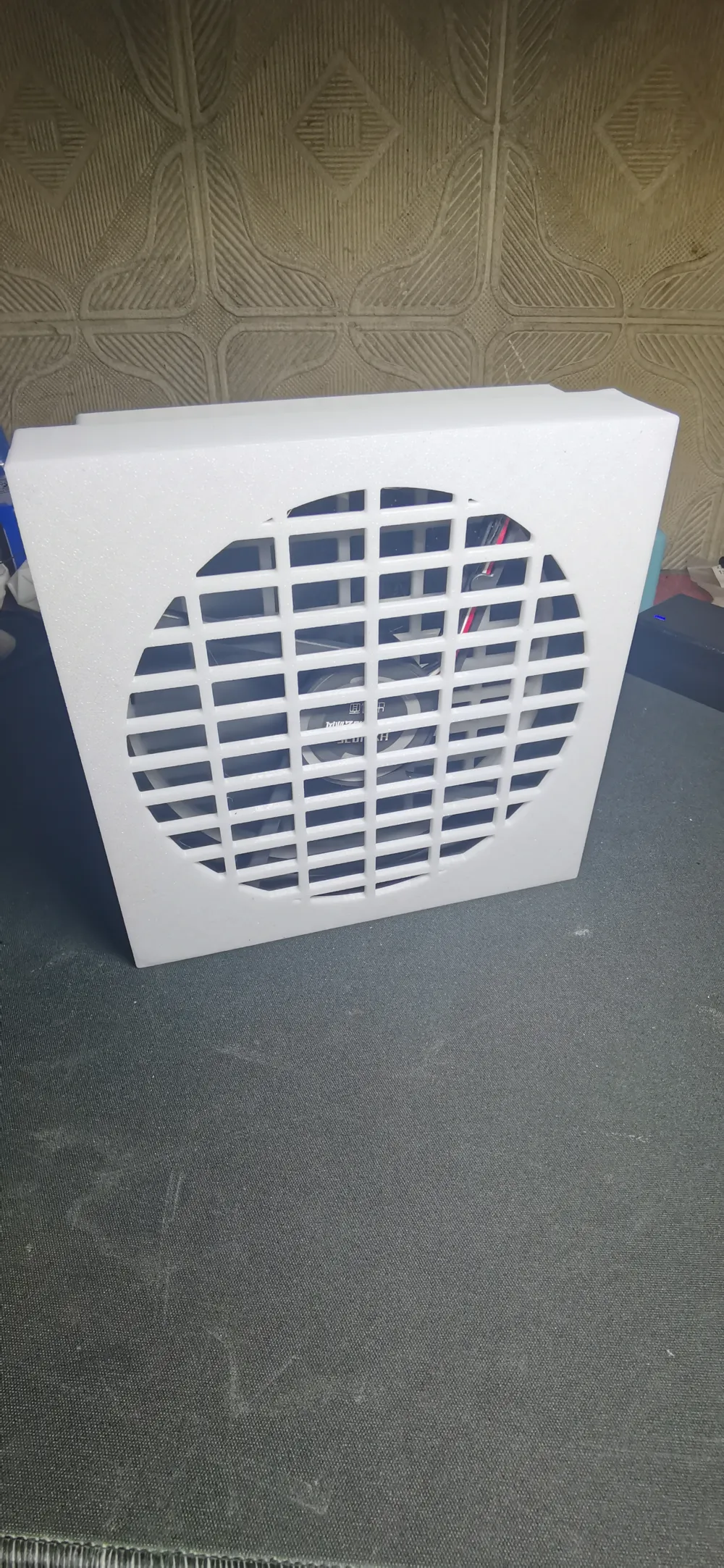

The fan adapted for the model is 14cm in size, and is fixed with the screws provided

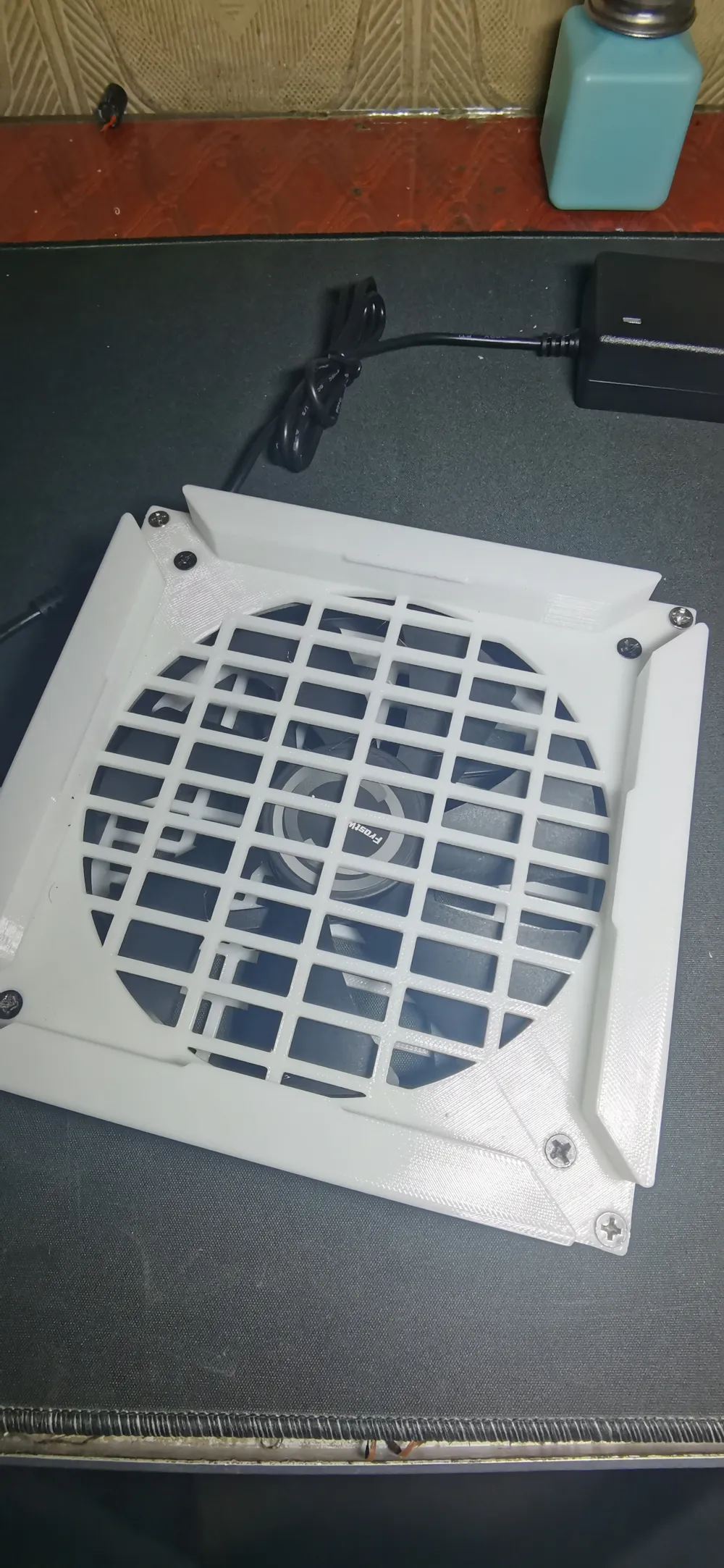

The front and back covers are fixed with M3.5 self-tapping screws, as I happened to have them, but M3 self-tapping screws should also work

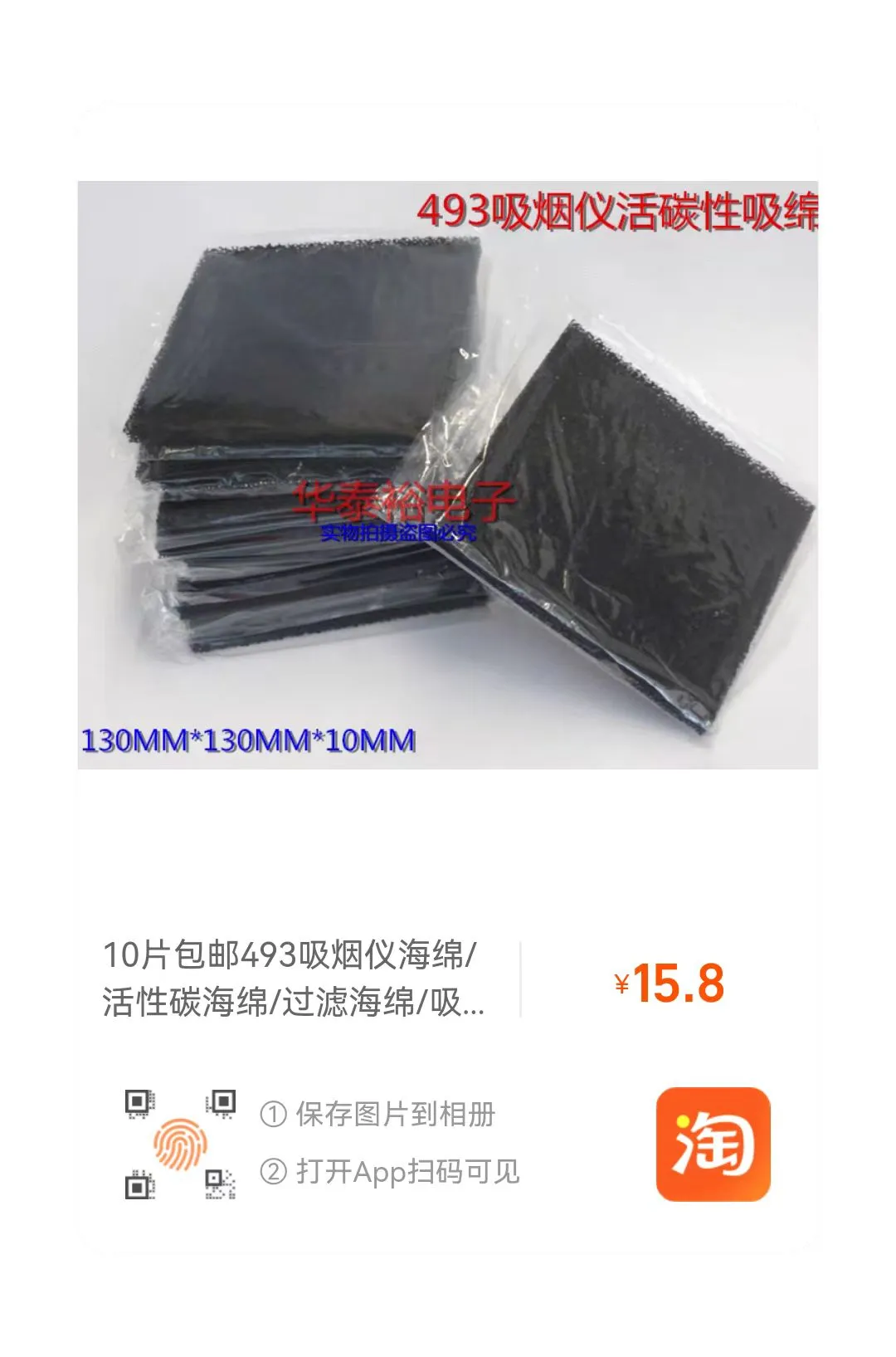

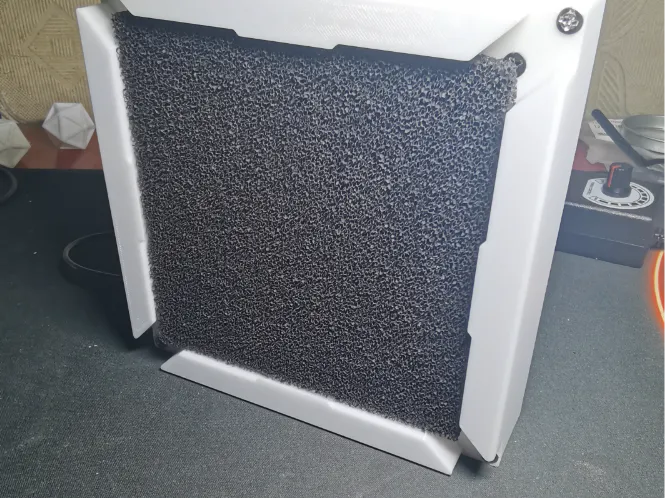

The front filter cotton is 493 activated carbon, 10 pieces for 15 yuan, and the size is 13*13
14CM Fan Link：https://detail.tmall.com/item.htm?id=819201916916&mi_id=0000ZHVLjT8AjByHV1BC4eptY4_7lf43_YRQX4pZzIB0uRI&spm=tbpc.boughtlist.suborder_itemtitle.1.71592e8d7QL3Mg
Activated Carbon Filter Cotton：https://item.taobao.com/item.htm?id=14734609814&mi_id=0000dM-R_nTHpVyOR3sJEP-rhJihovjlo86D0zfPoQ3knsw&spm=tbpc.boughtlist.suborder_itemtitle.1.71592e8d7QL3Mg&skuId=61789542809
