Large Hexagon Box (240 mm)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
25.1 h
5 plates
Open in Bambu Studio
Boost
9
33
0
0
10
0
Released
Description

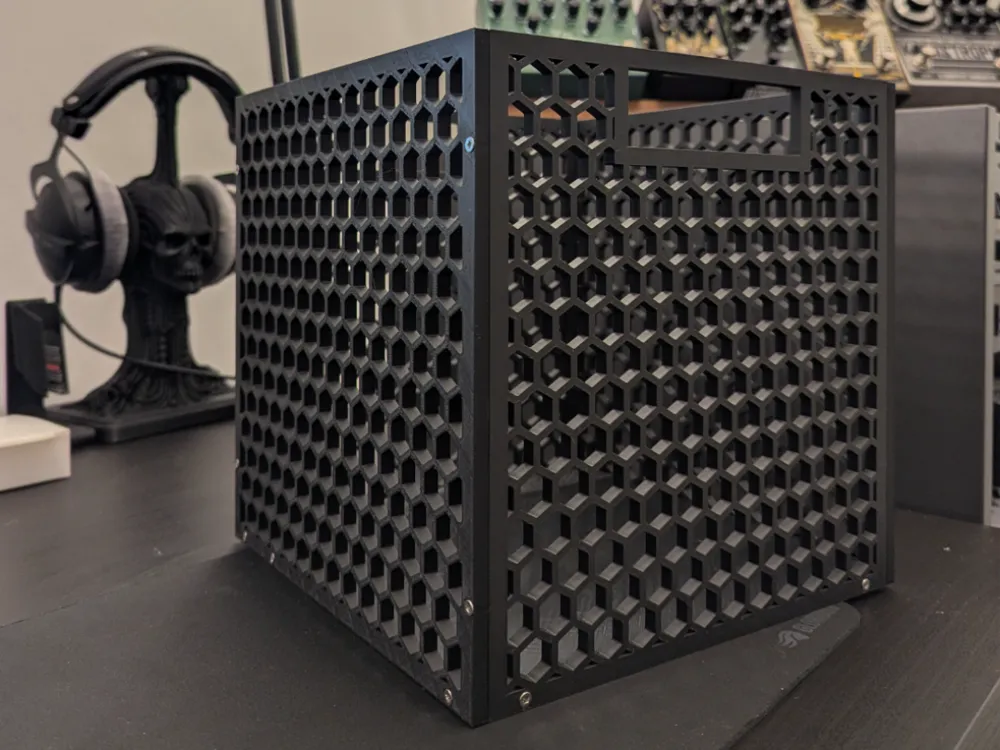

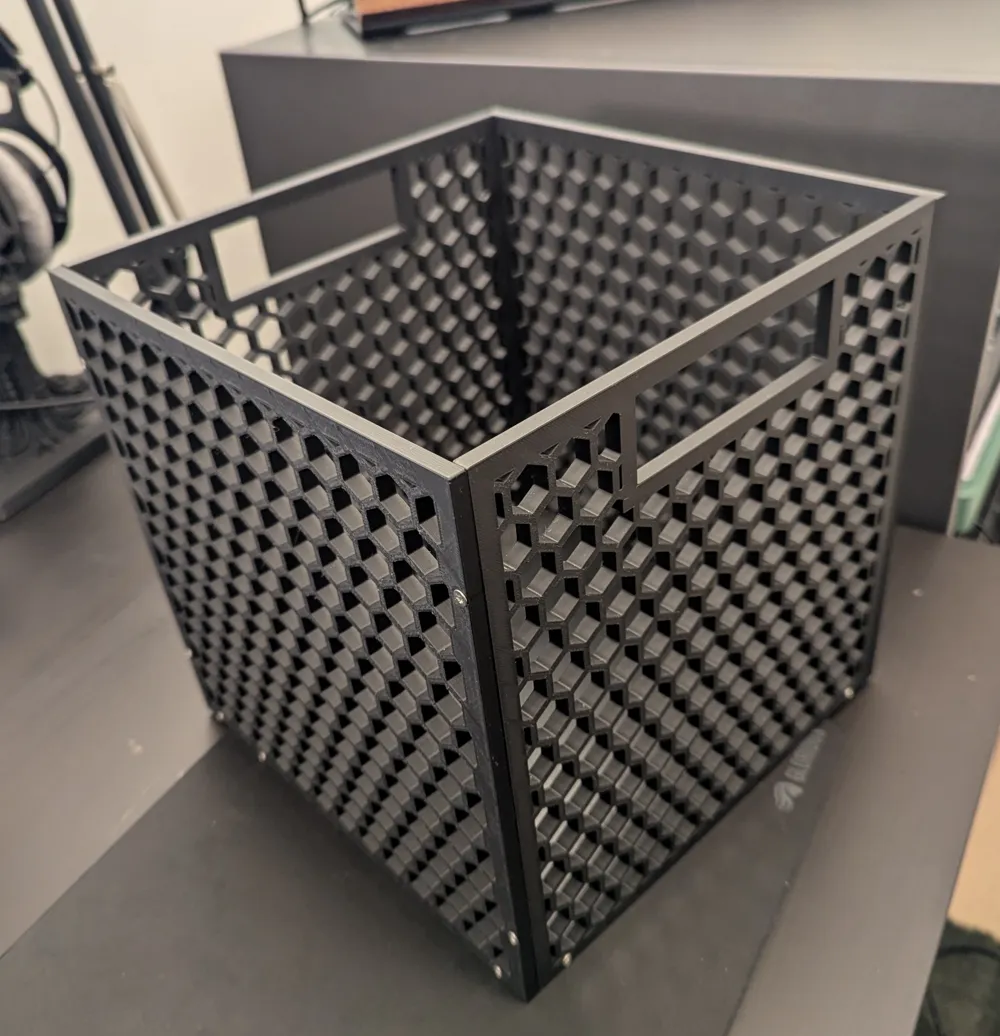

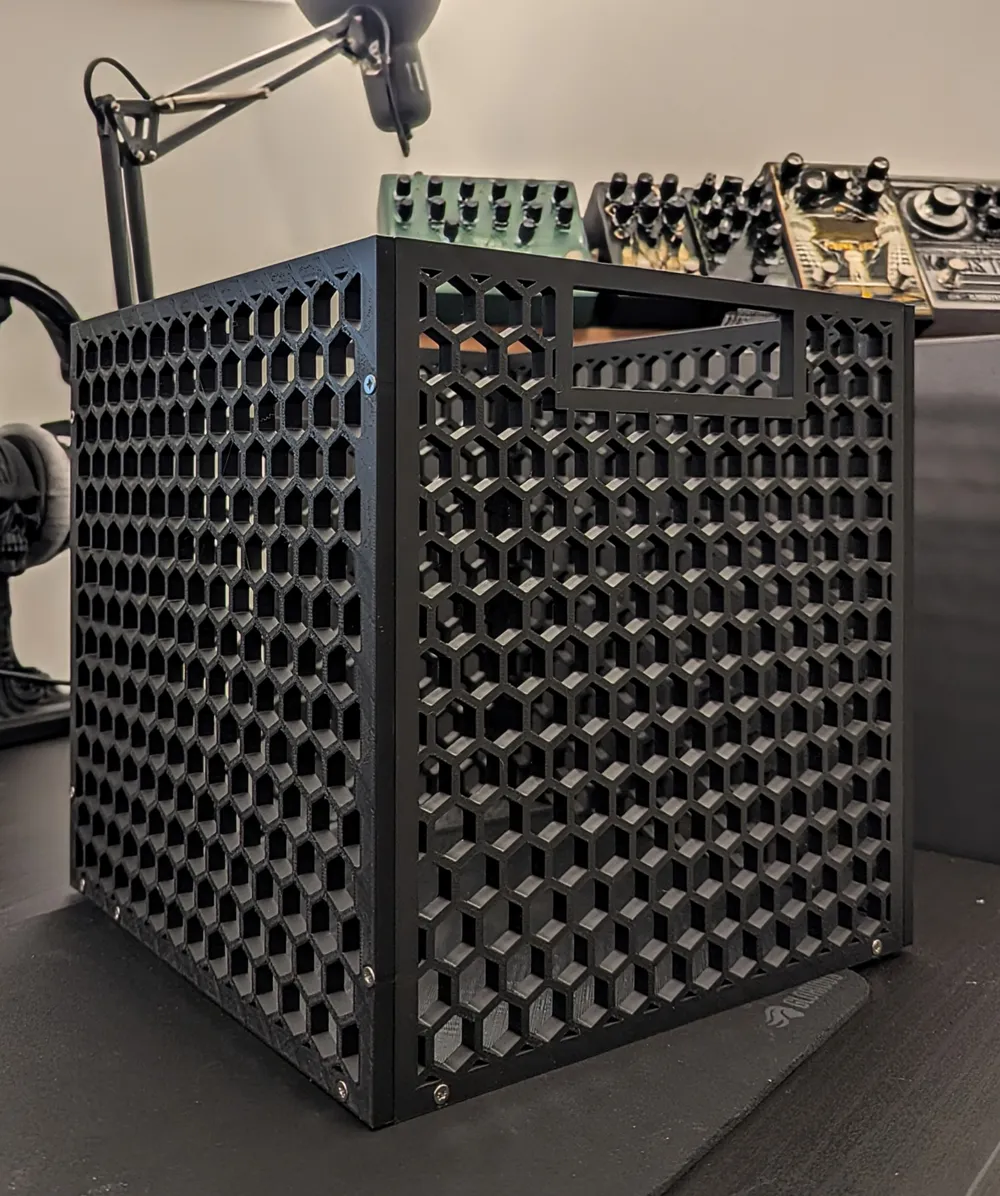

A large hexagon box designed to be printed in separate parts and assembled after printing.

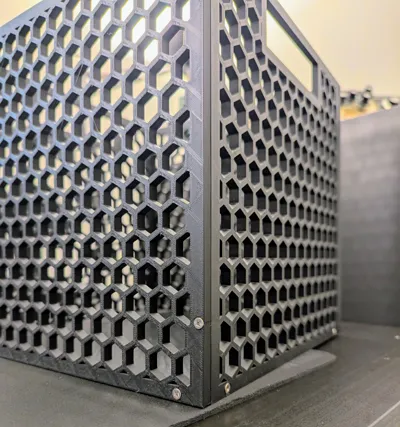

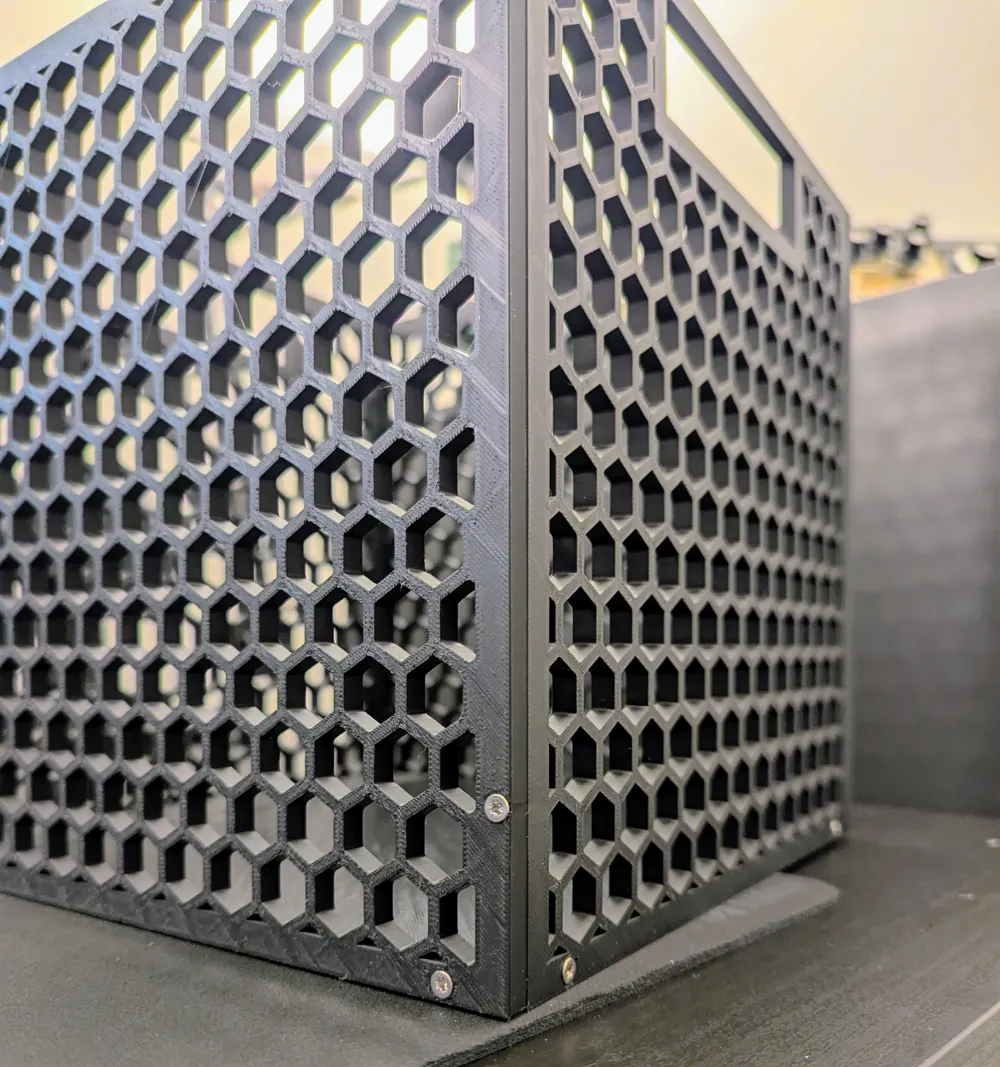

Each side and the base are printed individually and assembled using heat-set inserts and countersunk screws. The insert holes are sized for heat-setting only.
Dimensions & parts
- Outer size: 240 mm
- Inner size: 228 mm
- Height: 240 mm
Hardware:
- M3 heat-set insert nuts (M3 × 8 × 4.2)
- M3 × 16 countersunk screws
Printing & assembly notes
- Parts print flat without supports
- Heat-set inserts required (press-fit not supported)
- PLA or PETG recommended
- Fully mechanical assembly, no glue
