Ooono NO1 External Power Supply
Print Profile(1)
Description

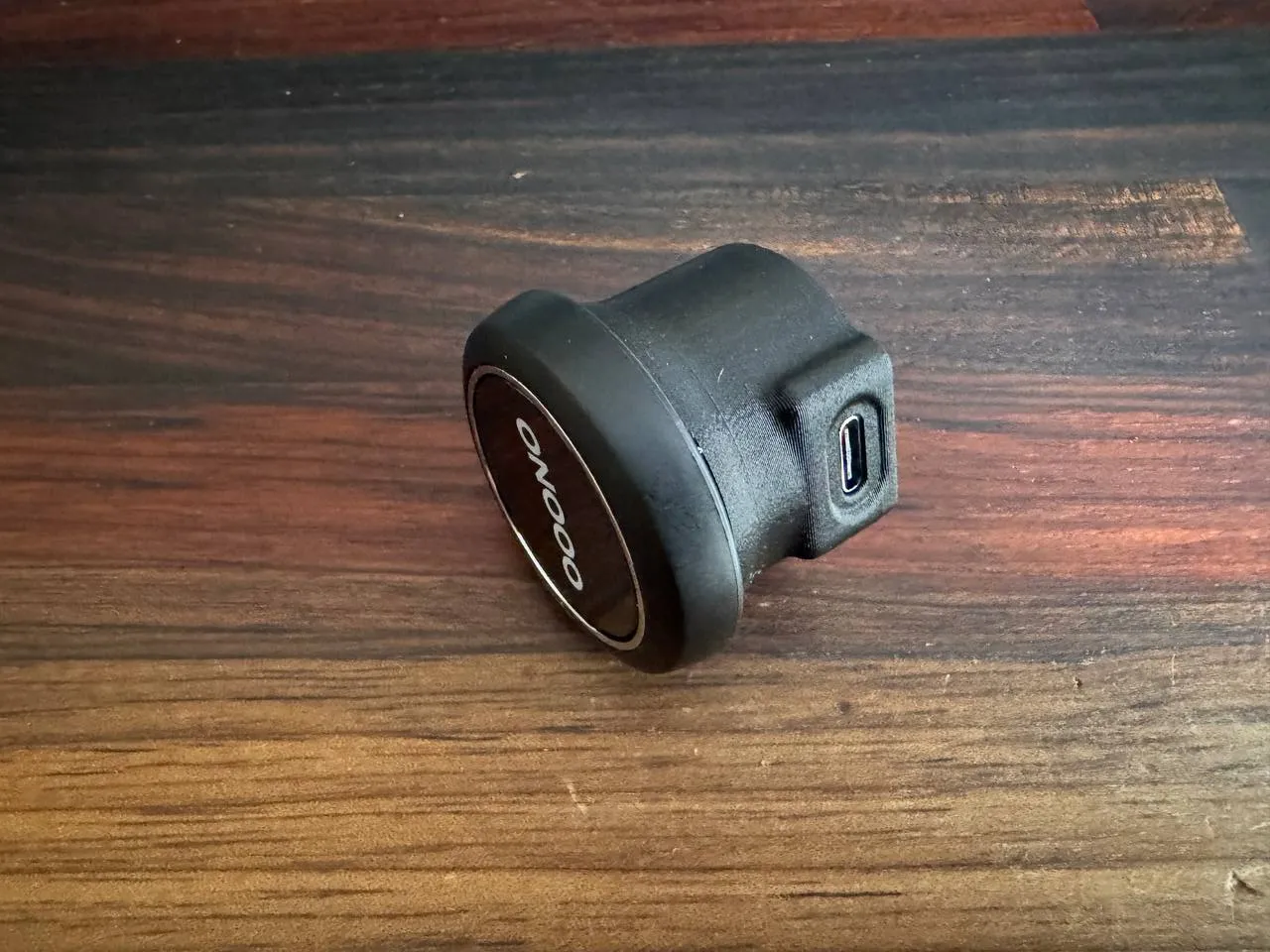

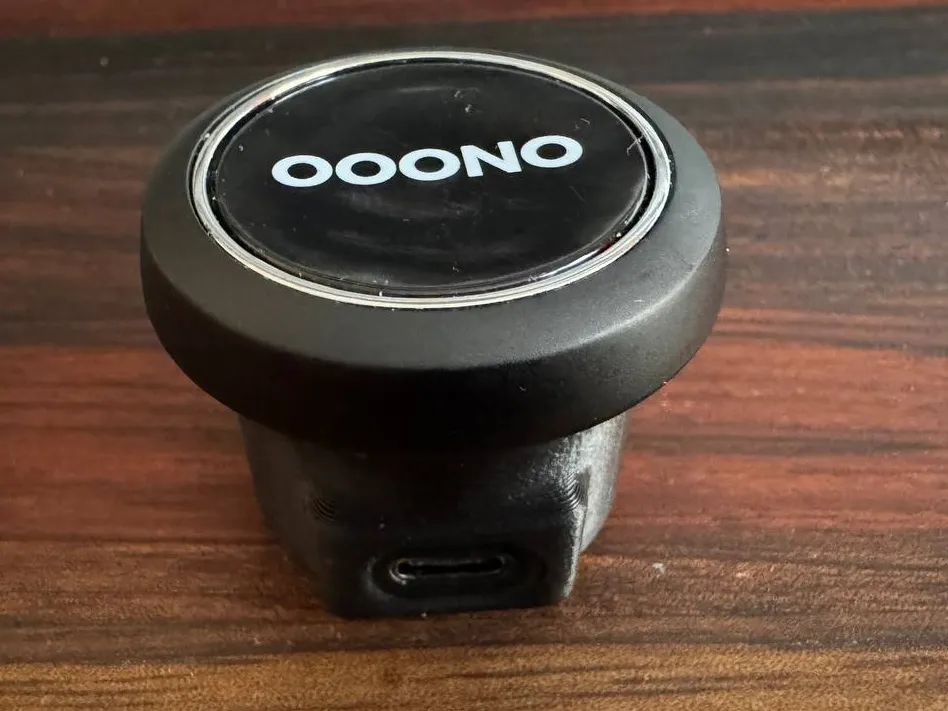

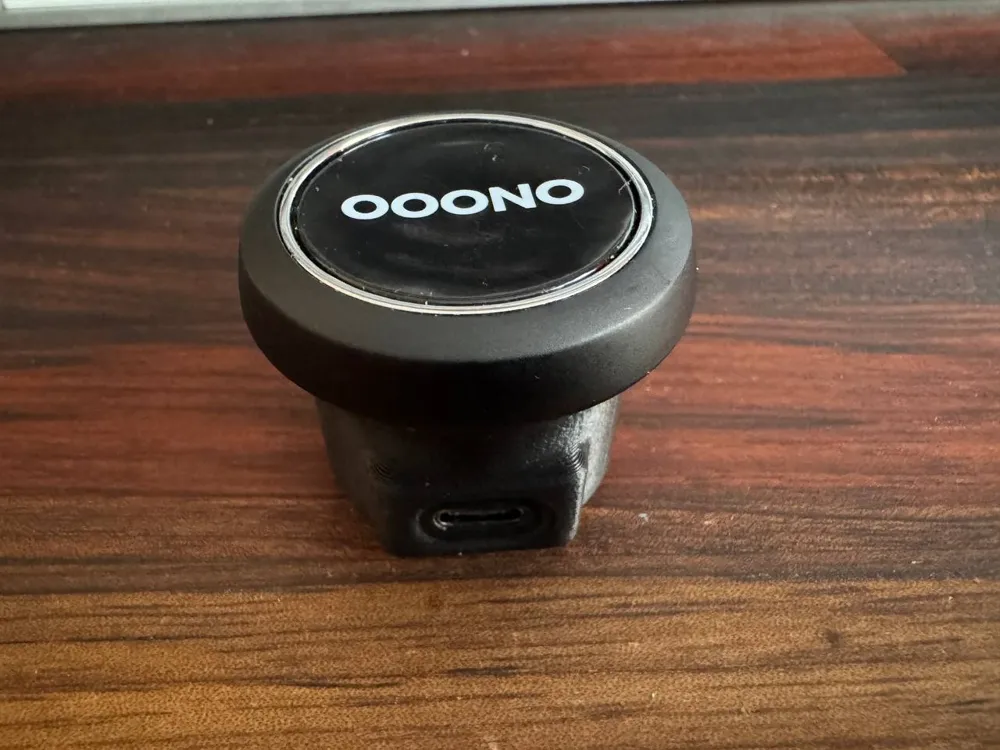

This is a project that provides an Ooono NO1 with an external power supply.

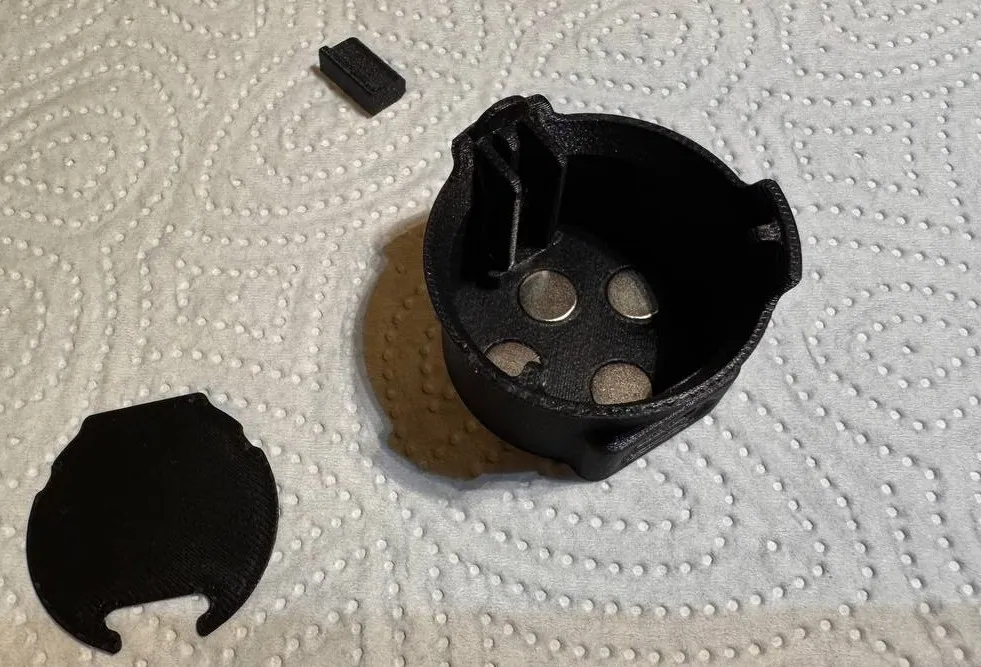

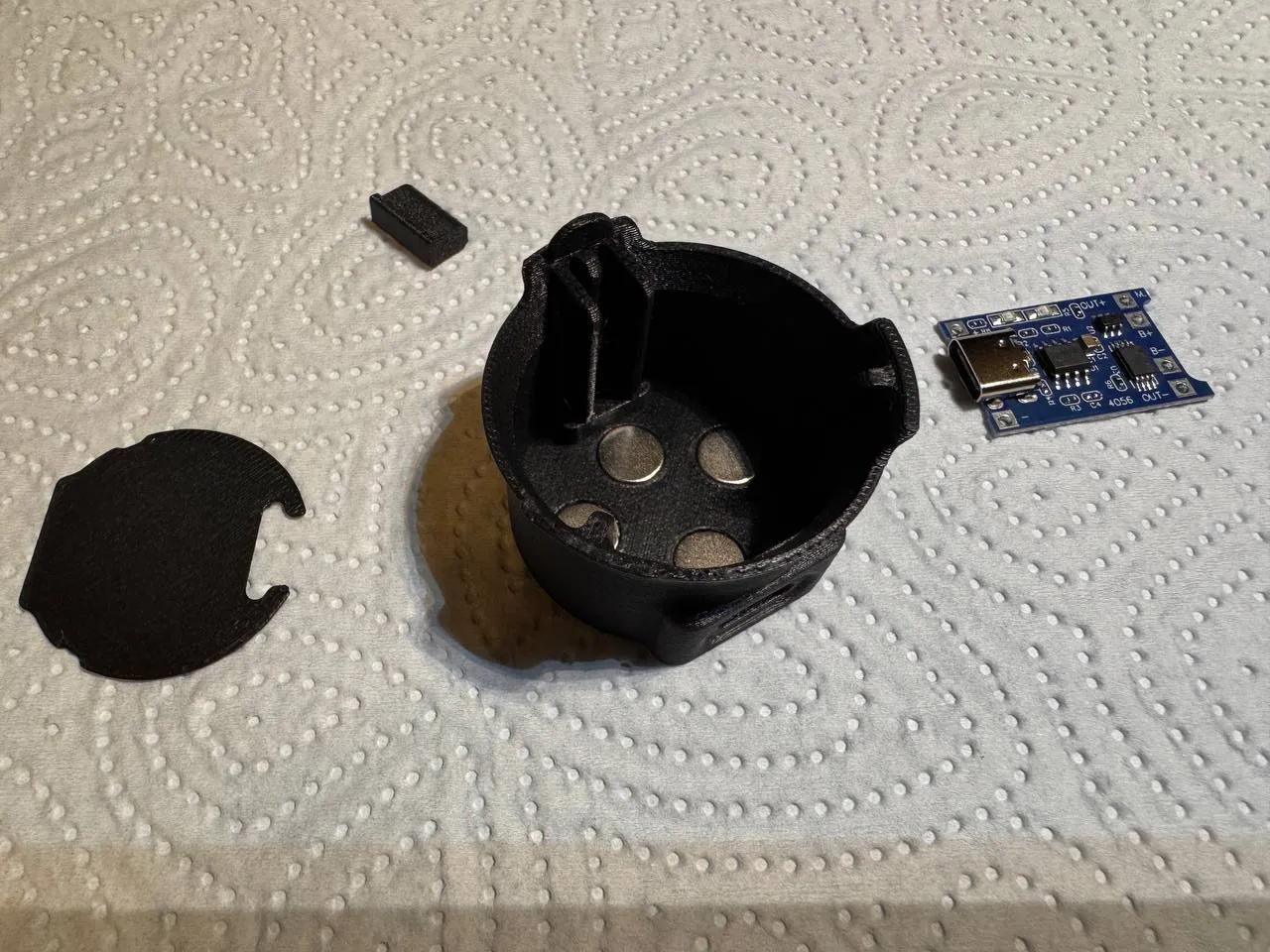

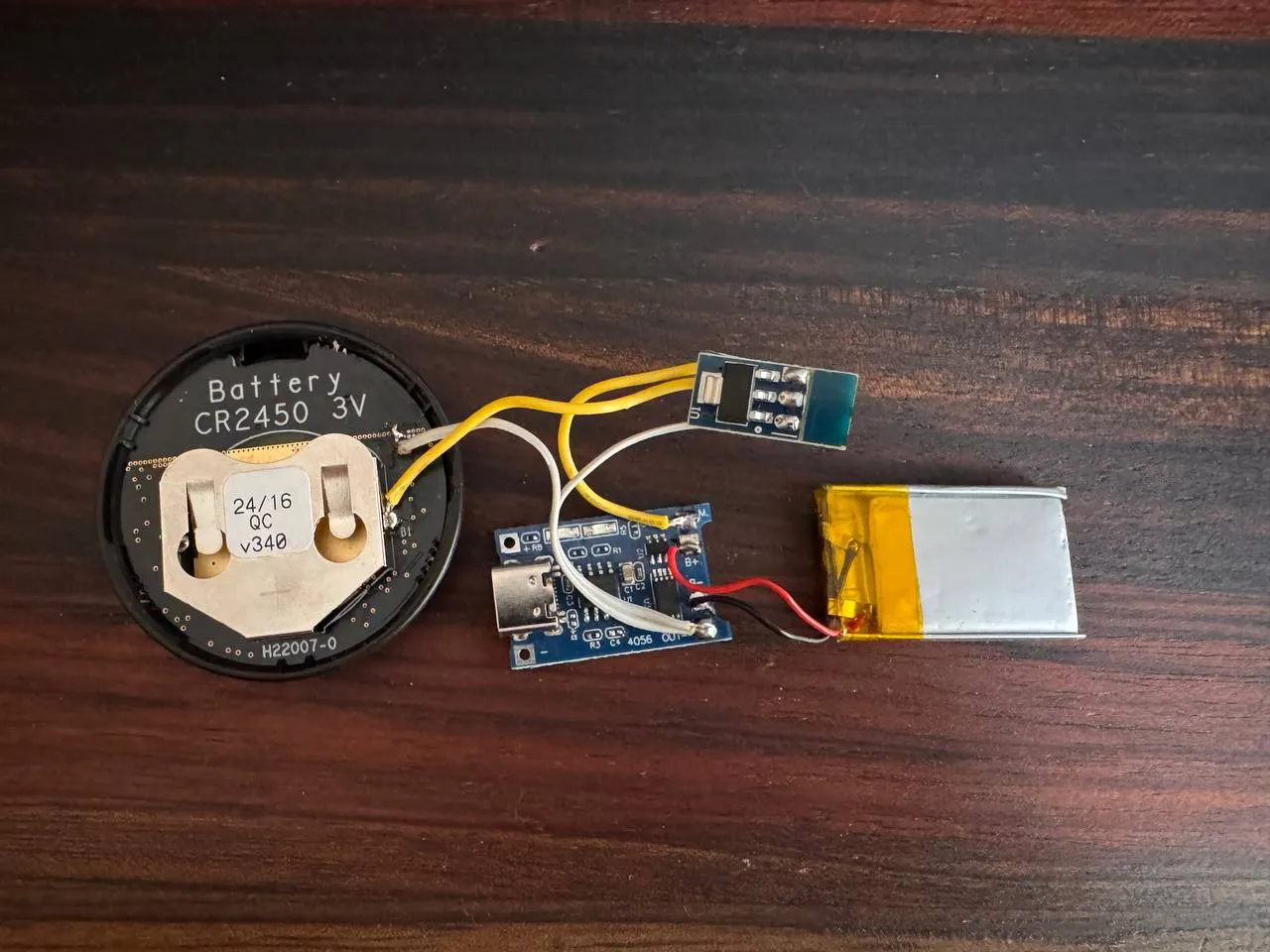

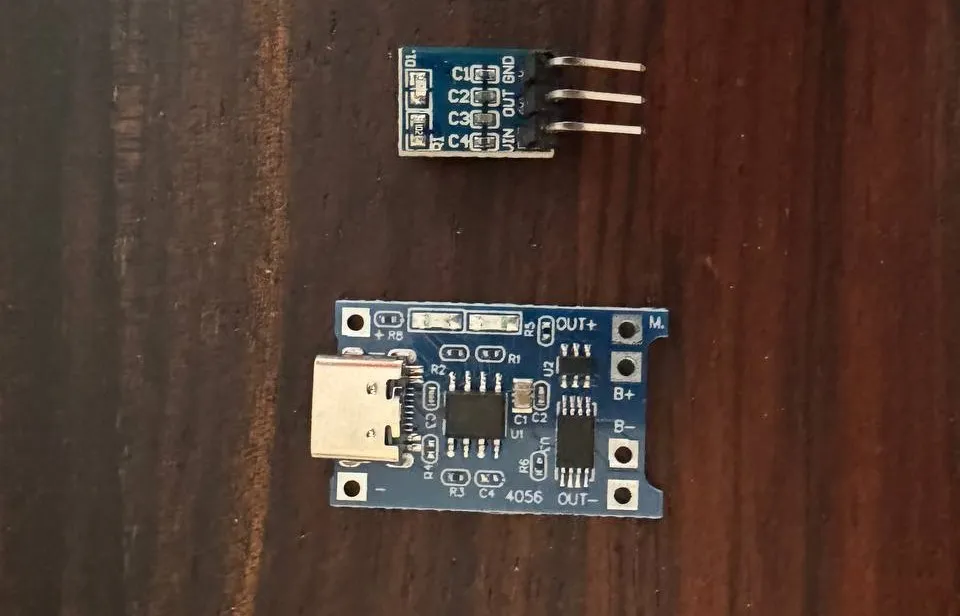

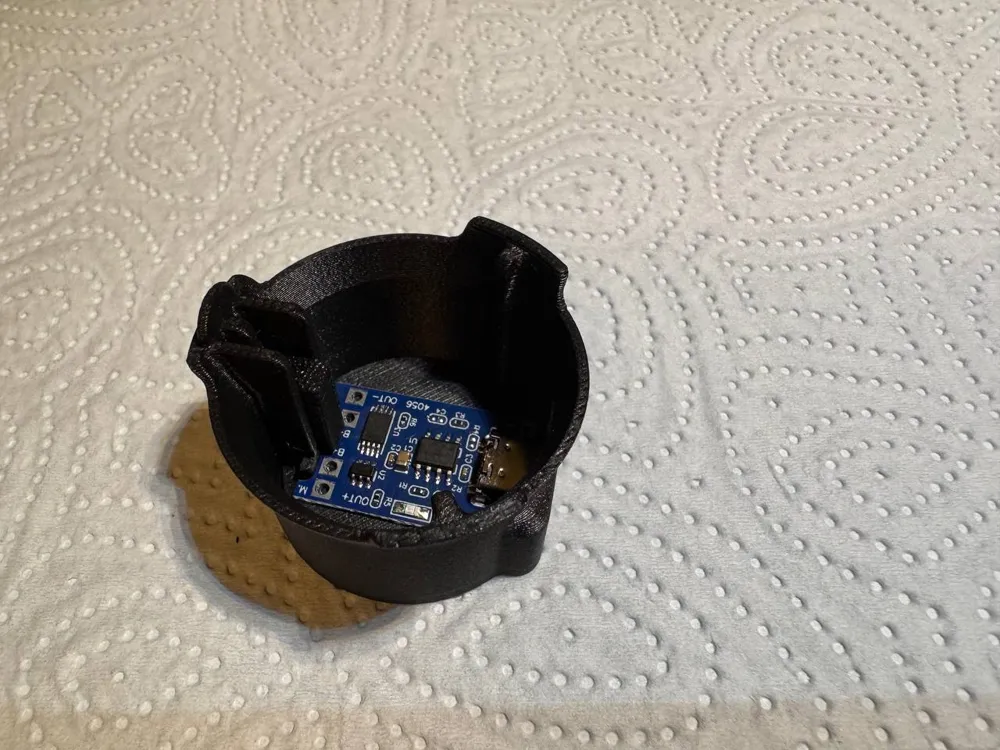

I modeled the body for a TP4056 USB-C module with a step-down regulator (AMS1117) that appropriately regulates the voltage down to 3.2 V.

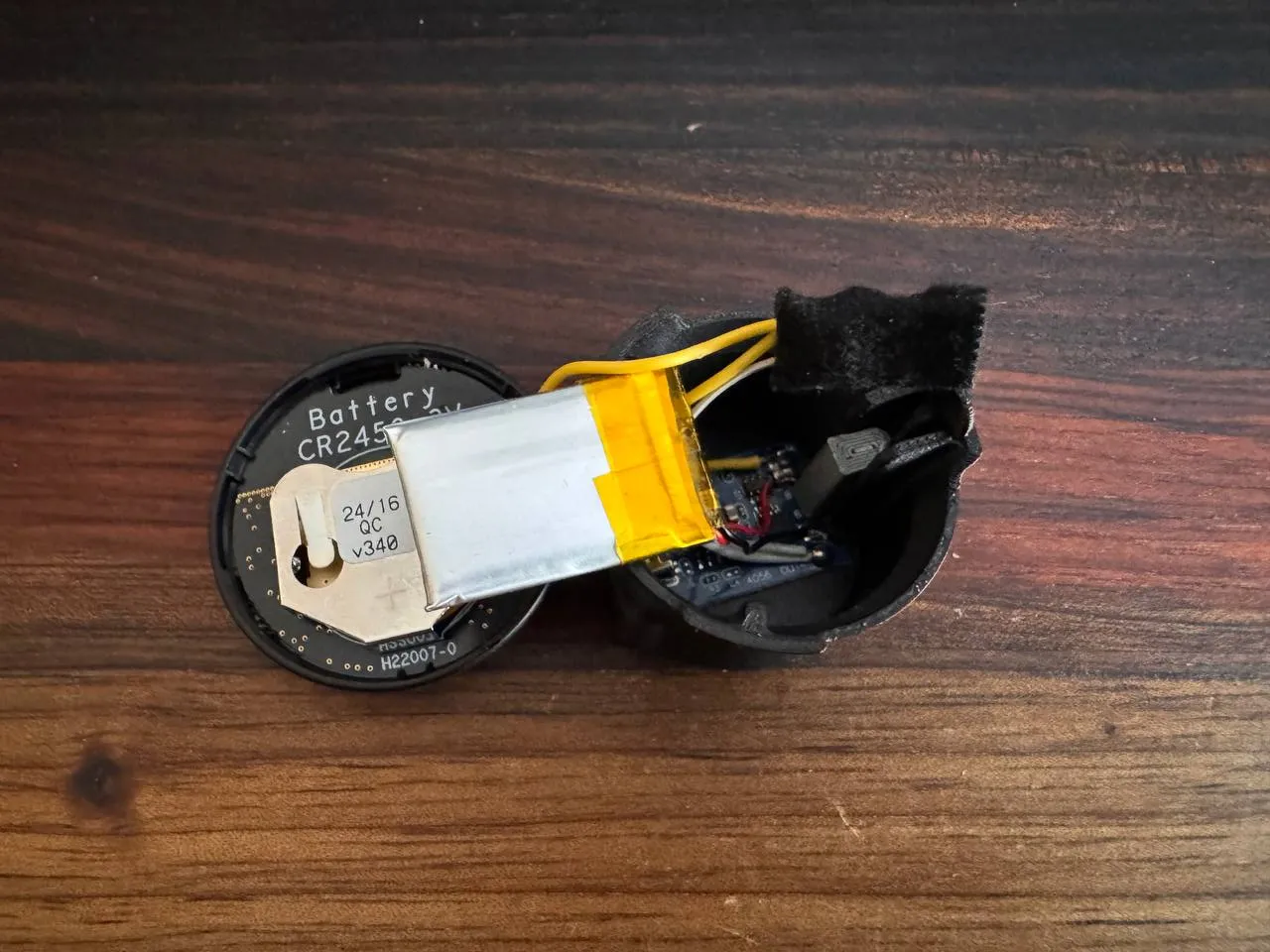

A small battery can either be purchased to fit (approx. 150–300 mAh) or removed from used disposable e-cigarettes – at least that's how I did it 😉
So, what's needed:

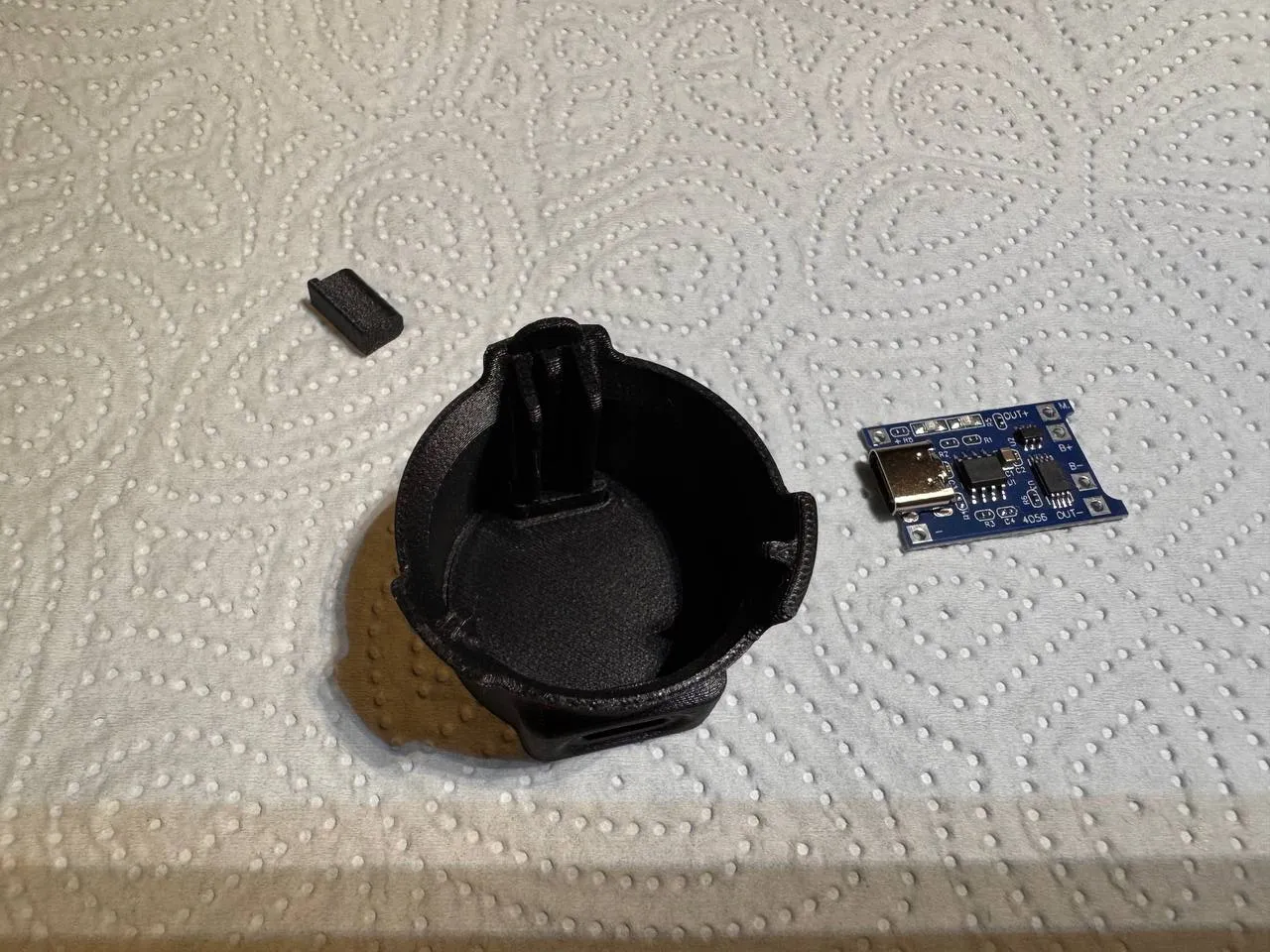

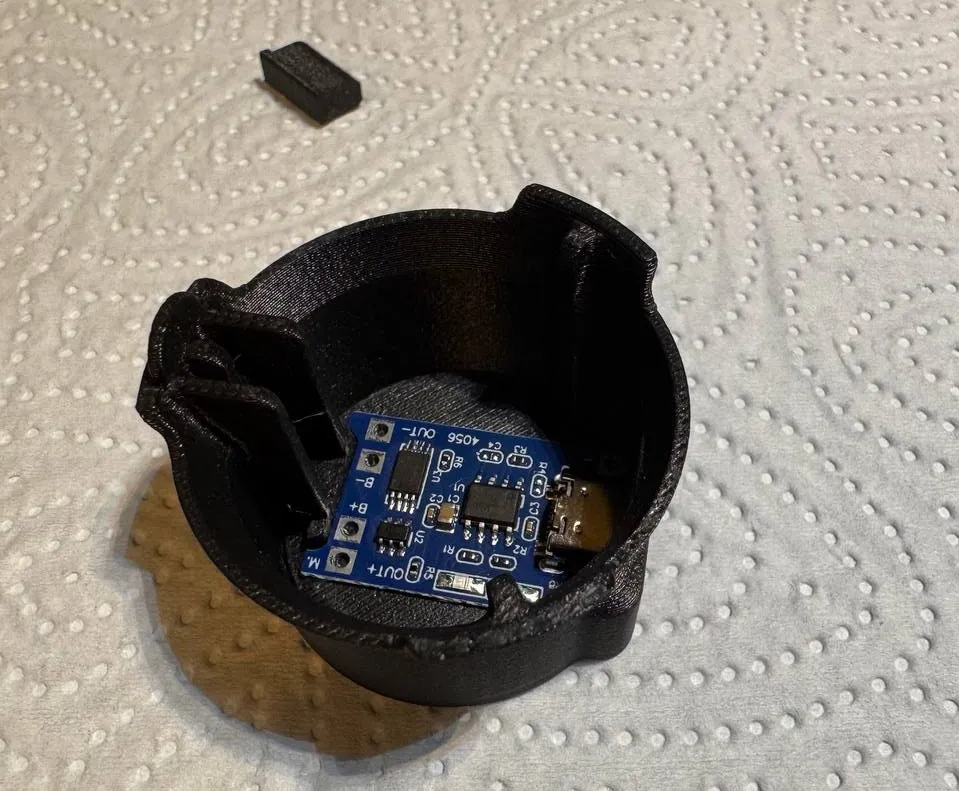

- 1× TP4056 USB-C Module
- 1× AMS1117 (5 V → 3.3 V)
Optional:
- 4× Neodymium Magnets (8 × 2 mm)
- 1× Rechargeable Li-Ion Battery (3.7 V, approx. 250 mAh)
These are easy to find on well-known sales platforms.
