Battery Door PetSafe Pawz Away Model RFA-537

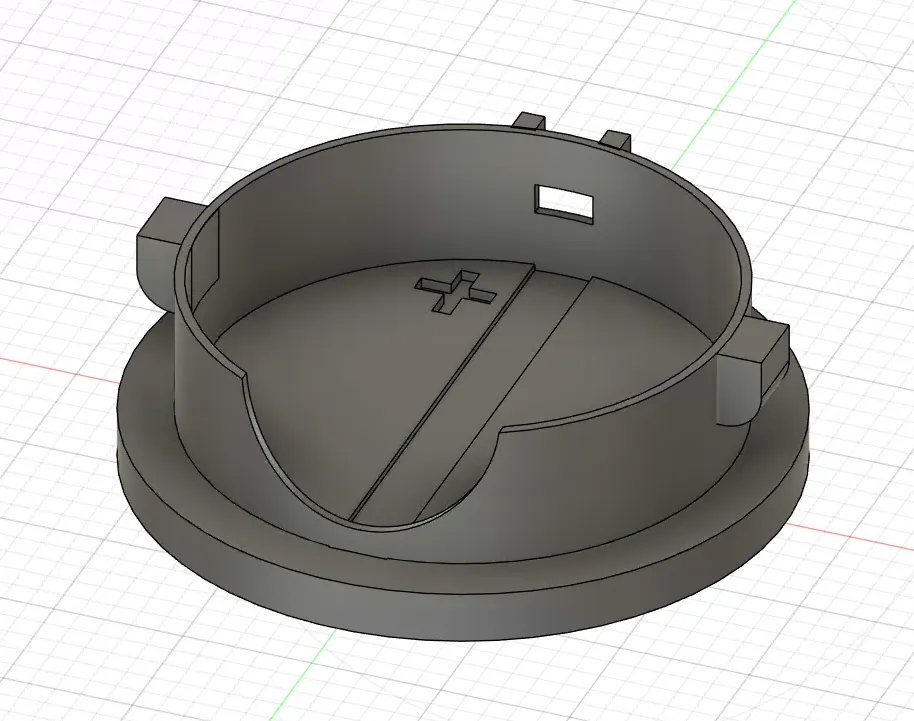

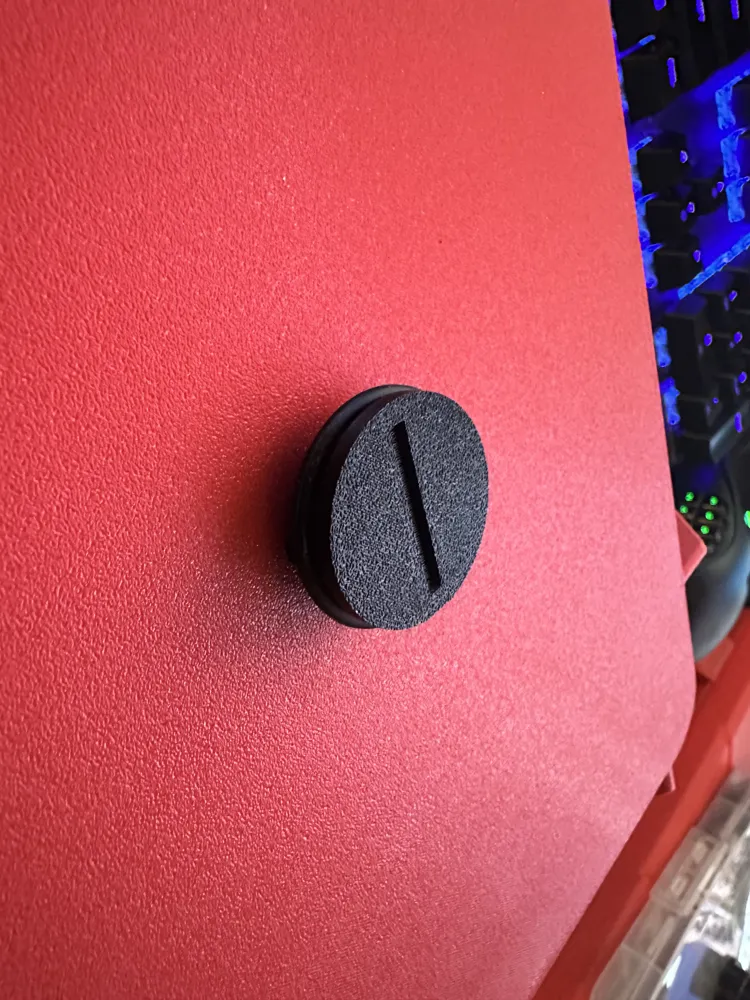

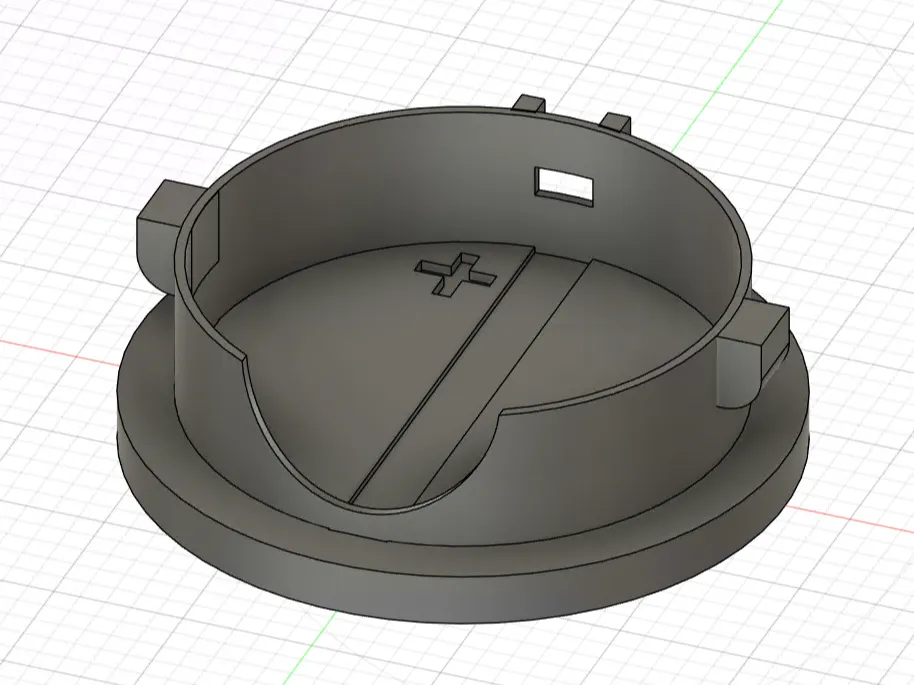

This is a replacement battery cap/door designed for the PetSafe Pawz Away Indoor/Outdoor Receiver Collar (specifically model 700-1336) RFA-537. If you’ve lost your original battery cover or the threads have stripped, this print will get your device back up and running(with some caveats).

⚠️ Hardware Requirements

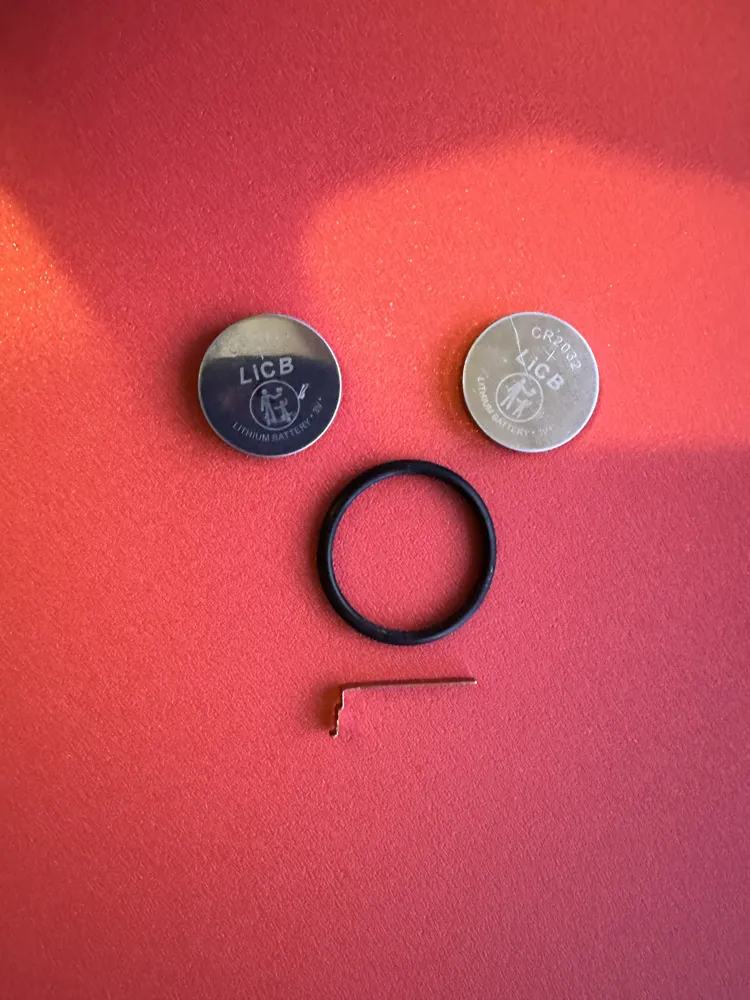

Please note that this print is not a standalone replacement. To complete the assembly and ensure functionality, you will need:

1. Metal Contact Piece: You must transfer the small metal battery contact plate from your original broken door to this printed one. Alternatively, you can fashion a replacement piece out of conductive metal if the original is lost.
2. O-Ring (Optional but Recommended): To maintain water resistance, you must install an O-ring. You can reuse the one from the original cap or source a similar-sized rubber O-ring. Note: Without the O-ring, the collar will not be water-resistant.

🖨️ Print Settings

• Nozzle: 0.2mm (Required for the fine details to print correctly).
• Supports: None needed.
• Material:
  • I prototyped this in PLA and it works fine for indoor use.
  • Recommendation: For better durability and impact resistance (especially if used outdoors), PETG, ASA, or ABS is suggested.
• Infill: Provided profile is 45%. Not sure long term if it matters.

📝 Assembly Notes

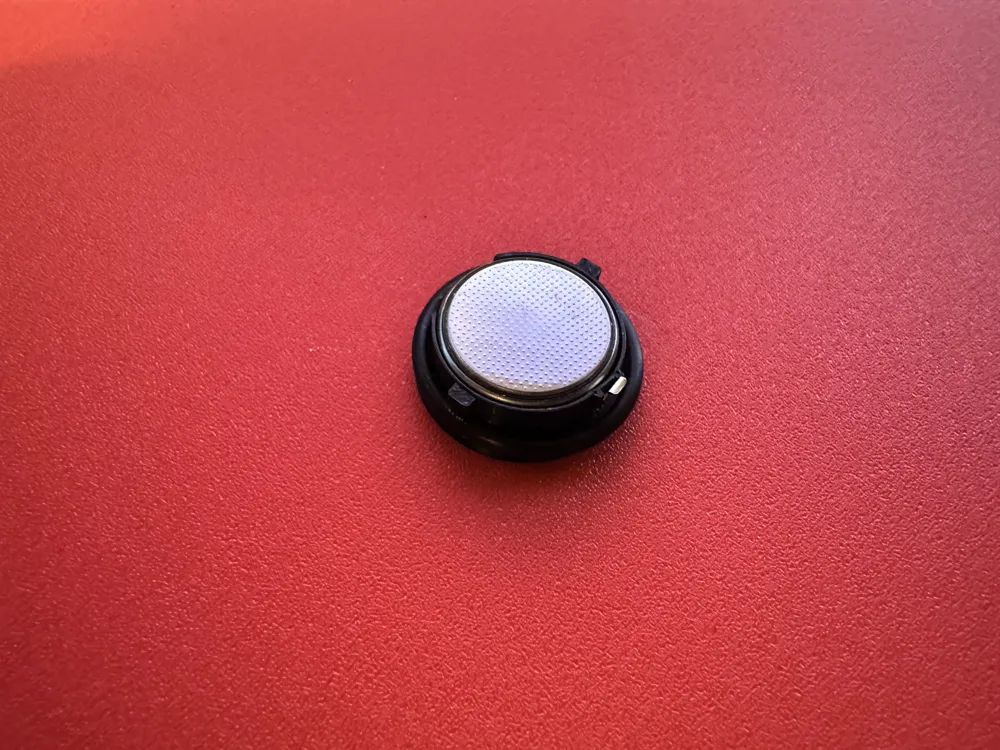

• Insert the metal contact piece into the slot on the inside of the printed cap.
• Place the O-ring between the lid and the small thread locks.
• Screw carefully into the receiver. Do not overtighten, as 3D printed thread locks can strip if forced.

Disclaimer: This is a community-created replacement part. Water resistance cannot be guaranteed and depends heavily on your printer calibration and the quality of the O-ring used.

This is an option to:

https://www.petsafe.com/p/pawz-away-collar-battery-door-repair-kit/RFA-537/
