4L Cereal Filament Dry Box Roller Insert Feeder

This is my take on a dry box system after using many other models.

• First, I wanted a very lightweight insert for when I didn't need a full roller system, it is less than 30g.
  • Model link: 4L Cereal Dry Box Lightweight Hydrometer Insert
• Second, I wanted a roller system that wasn't so tall that it interfered with my desiccant insert.
  • Model link: 4L Cereal Dry Box Desiccant / Silica Lid LONGER

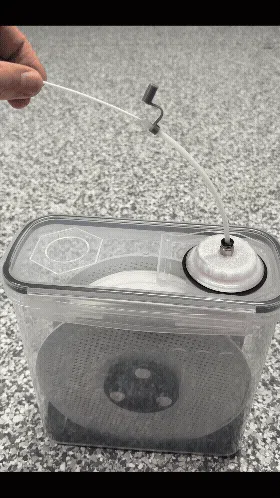

• Third, I wanted a way to integrate feeding outside with a PTFE tube through the desiccant insert.
  • Model link: 4L Cereal Dry Box Desiccant / Silica PTFE Feeder

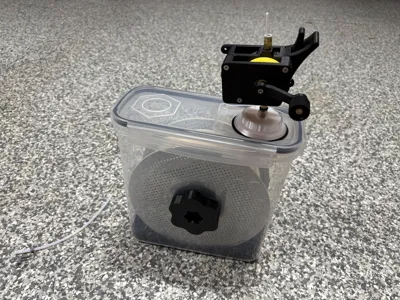

• Fourth, I wanted to be able to use two other models to avoid opening up the box to feed and retract
  • Link: rewinder for dry box (cereal box)

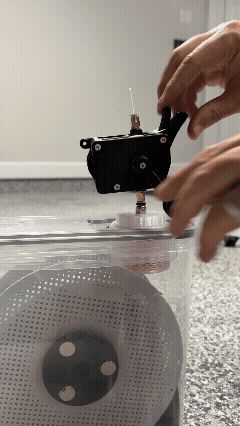

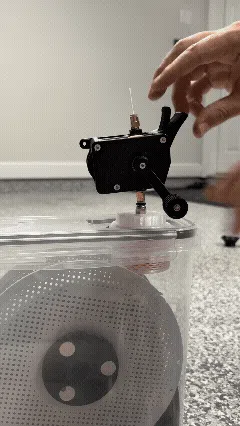

  • Link: Accelerated Manual Filament Feeder
    • Parts kit for the Feeder: US Parts kit for the Accelerated Manual Filament Feeder

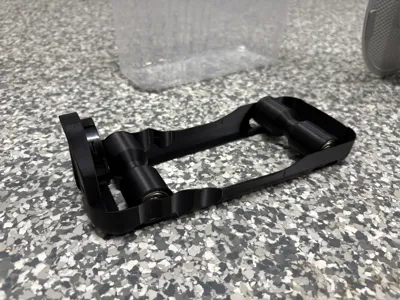

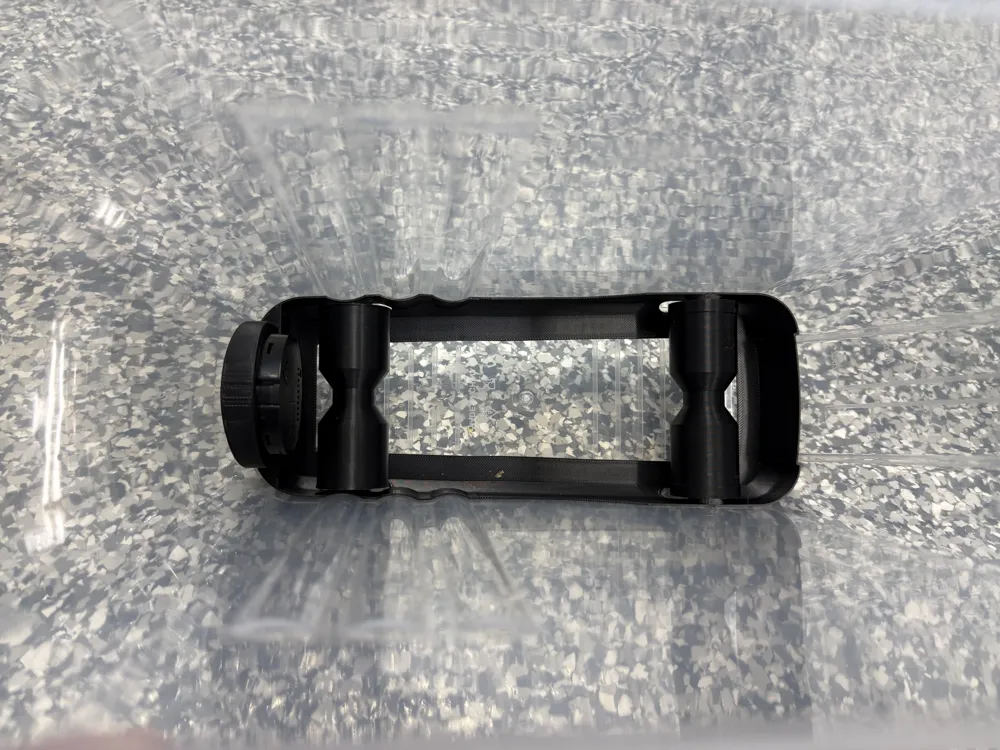

This is a very lightweight Roller insert optimized for use with the “Skroam” or similar dryboxes with three ribs.  I've found these particularly cheap on TEMU.

• 1x Round Hydrometer

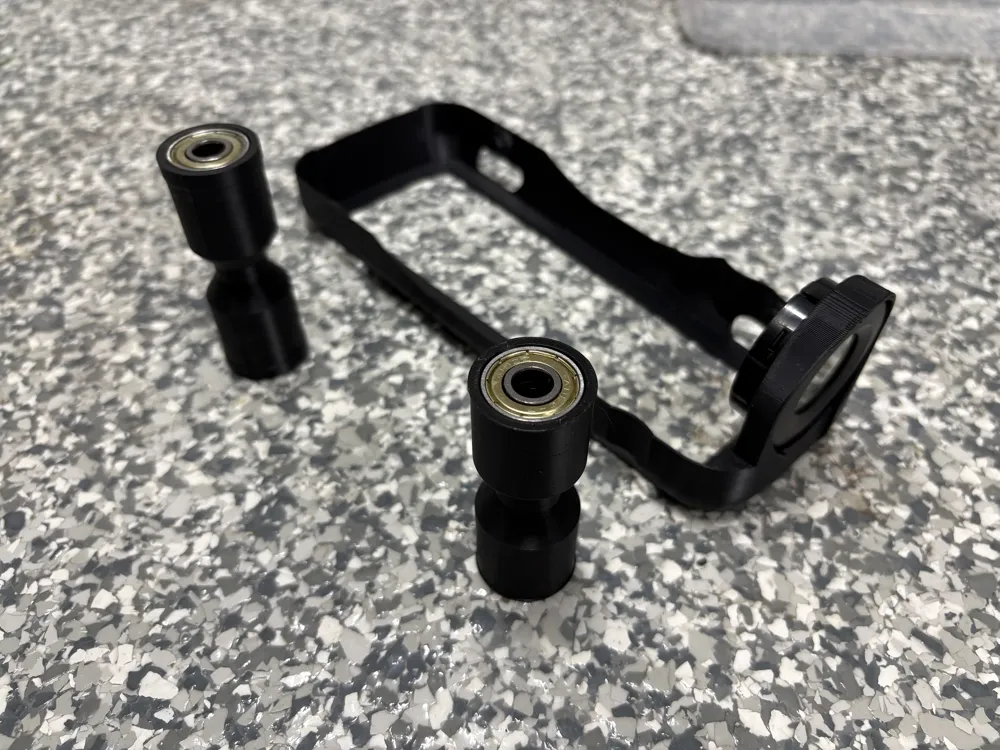

• 4x 608 bearings

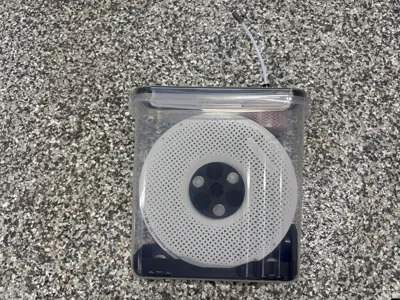

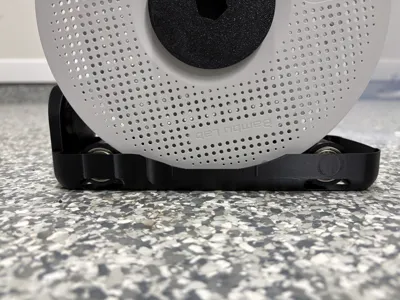

I've adjusted the distance between the rollers to optimize the depth the 200mm Bambu spools sit in the box, with between 7 and 8 mm to the bottom.  This allows use of the desiccant container with PTFE tube feeding system.
