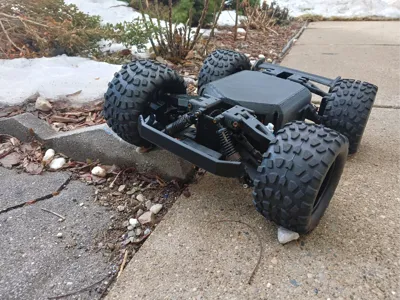

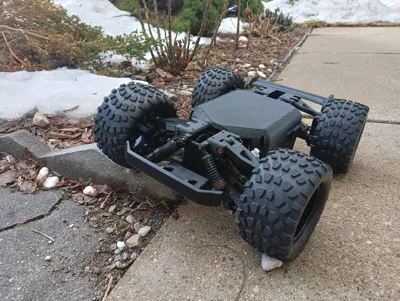

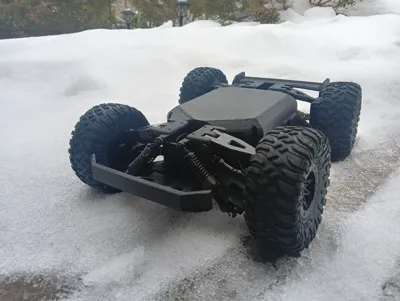

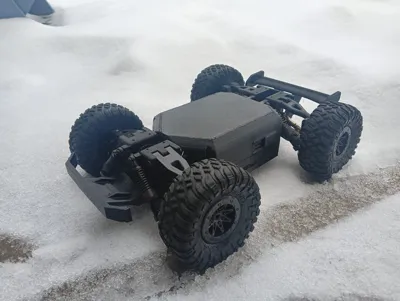

4WD 60km/h 3d Printed RC Car

Extensive support is no longer available for this version. Newer 4WD with full metal drive train IS NOW RELEASED. CHECK: LINK

This is a heavily upgraded version of my previous rc car. Here is a basic list of the upgrade

1. TPU Parts
2. Exceptionally strong (unbreakable almost)
3. 4WD
4. 60km/h (double the last version)
5. Excellent control
6. Upgraded Design
7. Spoiler
8. Easier to put together

FOR A DETAILED DESCRIPTION, FILES, AND INSTRUCTIONS PLEASE VISIT THE GITHUB PAGE:  https://github.com/HydranceAK/3D-Printed-RC-Car

Now there's a ton of stuff to this car. It may not be as easy to build as my previous one, so if you're not as advanced, you may need some help. There is however still no soldering or advanced tools needed, other than:

*IMPORTANT* The wheel connectors will require heat threaded inserts to be inserted. You'll need a soldering iron for this.

If you have any questions or concerns, feel free to message me on discord: .hydrance. or by email: abdusamaku@gmail.com. Or you can message me here on makerworld, though it would take a bit longer for me to see it.

• angle grinder (to cut alen key and main central shaft down to size)
• wrench / pliers (to remove supports)
• screw driver
• file / sander
• soldering iron

Other than those tools, you won't really need anything else to put this model together.

Here is a list of items you'll need to purchase (anything but the electronics should NOT be changed, the pieces have been designed with perfect clearances and fits, other version or parts you have may not fit.):

(on the github page, there is another BOM, it has some aliexpress links for some items, it may be cheaper so check that out. )

https://www.aliexpress.com/item/1005006191847055.html (4 of the smallest one 68-88mm, color is your choice)

https://www.aliexpress.com/item/1005006293171727.html (Buy the 4mm Diameter 125mm Length, and cut down to 90mm)

https://www.aliexpress.com/item/1005007572156636.html (120A ESC for best performance)

https://www.amazon.ca/GoolRC-S3670-2850KV-Brushless-Sensorless/dp/B08YD792LM/ (motor)

https://www.amazon.ca/gp/product/B01DU4N8YM/

https://www.amazon.ca/gp/product/B0BJQ28WX7

https://www.amazon.ca/gp/product/B09164YLNT

https://www.amazon.ca/Besitu-1600Pcs-Assortment-Washers-Printing/dp/B0D1KQCBMT

https://www.amazon.ca/MAPLE-ACE-6902-2RS-61902-2RS-15x28x7mm/dp/B0CVCJK8RC (4 set)

https://www.amazon.ca/Zeelo-6001-2RS-12x28x8mm-Pre-Lubricated-Performance/dp/B0CQK8CPF1 (12 pieces)

https://www.amazon.ca/Treedix-MG996R-Servo-High-Torque-Helicopter/dp/B08743N181

https://www.amazon.ca/CNHL-Battery-2200mAh-Quadcopter-Airplane/dp/B0BCVKJLSL

https://www.aliexpress.com/item/1005005858319911.html (4mm diameter, 100mm length, you'll need to cut 4x 20mm pieces, and 2x 55mm pieces)

https://www.amazon.ca/dp/B0D477DN3M (m4 kit)

https://www.amazon.ca/dp/B0CNX3W3YB

injora t6dc transmitter and receiver or any of your choice
