IKEA Bilresa Remote Holder with Wall Plate

Remixed by

Print Profile(1)

All
A1
X1
X1 Carbon
P2S
P1S
P1P
A1 mini
H2C
H2D
X1E
H2S
H2D Pro
X2D
A2L

0.08mm layer, 2 walls, 15% infill
0.08mm layer, 2 walls, 15% infill
Designer
2.6 h
1 plate
5.0(1)

Open in Bambu Studio
Boost
10
52
13
3
34
16
Released

Description

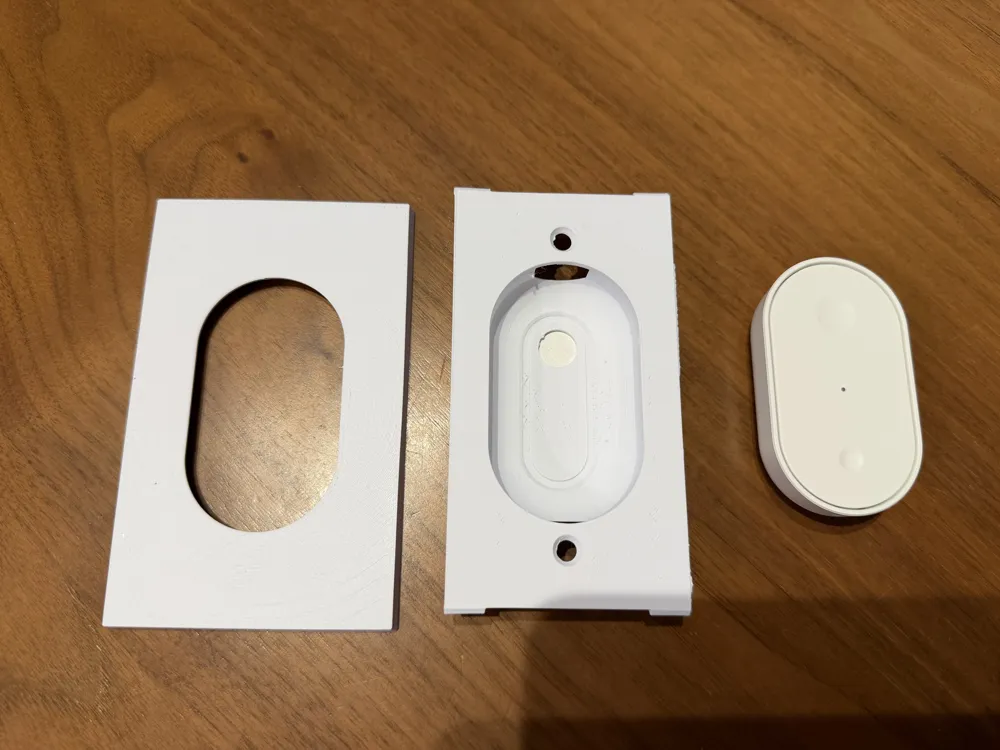

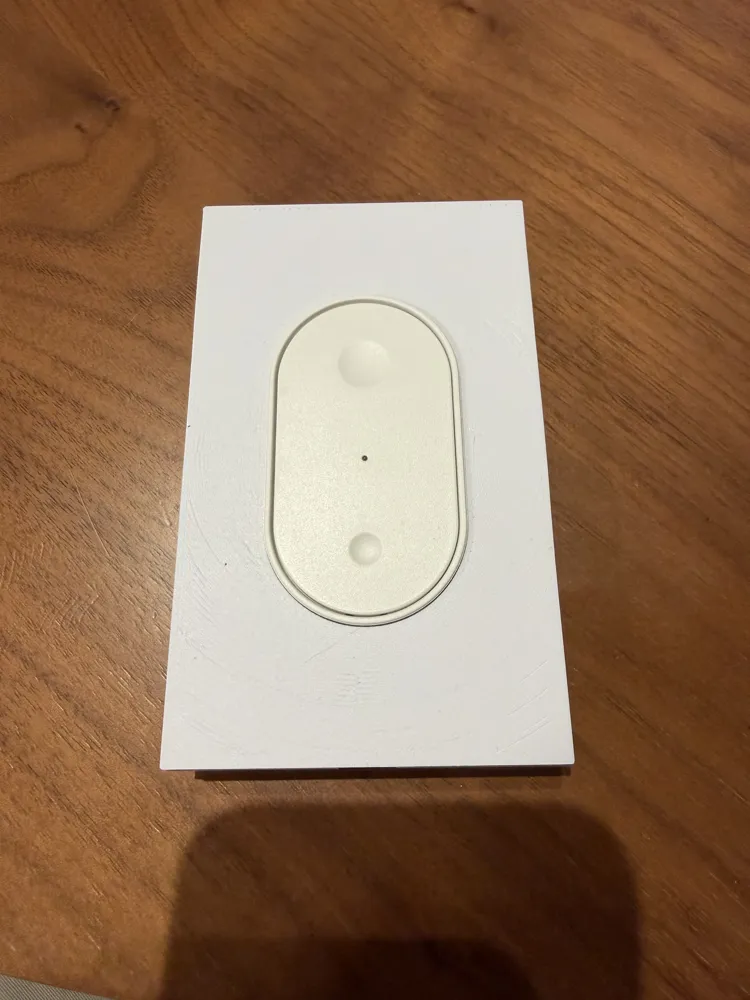

I wanted a way to wall mount an IKEA Bilresa remote in an existing wall box so I remixed the case @barnacle made for the remote and created a holder that would fit in a standard US wall box and made a screwless wall plate cover to go over it.

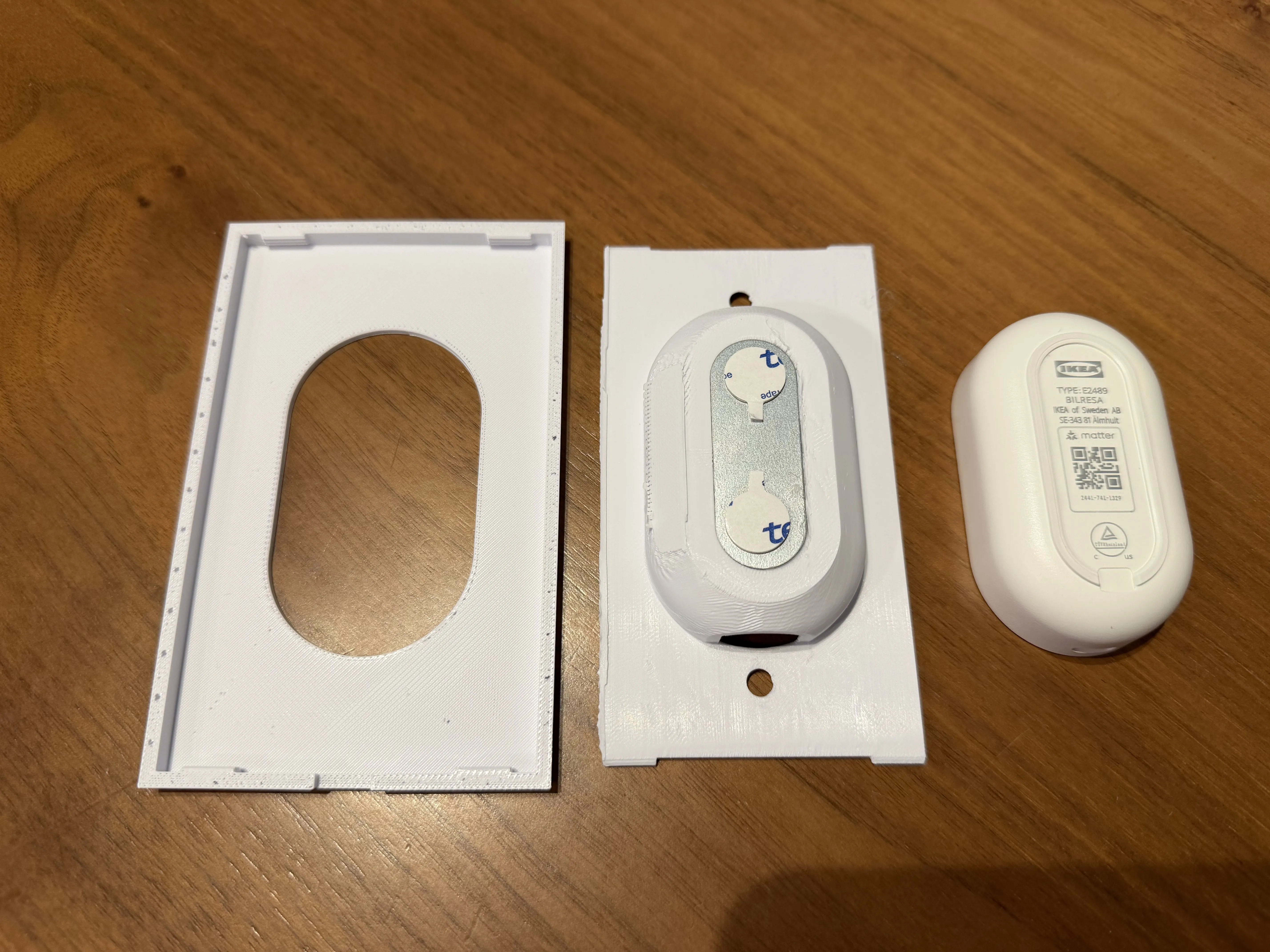

Assembly is simple. I superglued the metal plate that comes with the Bilresa remote to the back of the case print. The remote then just magnets in from the front.

WARNING: If you are installing this in an wall box that has live wires in it please follow all necessary precautions to turn off power and correctly cap wiring before installing. I am not an electrician, nor am responsible for any electrical work.

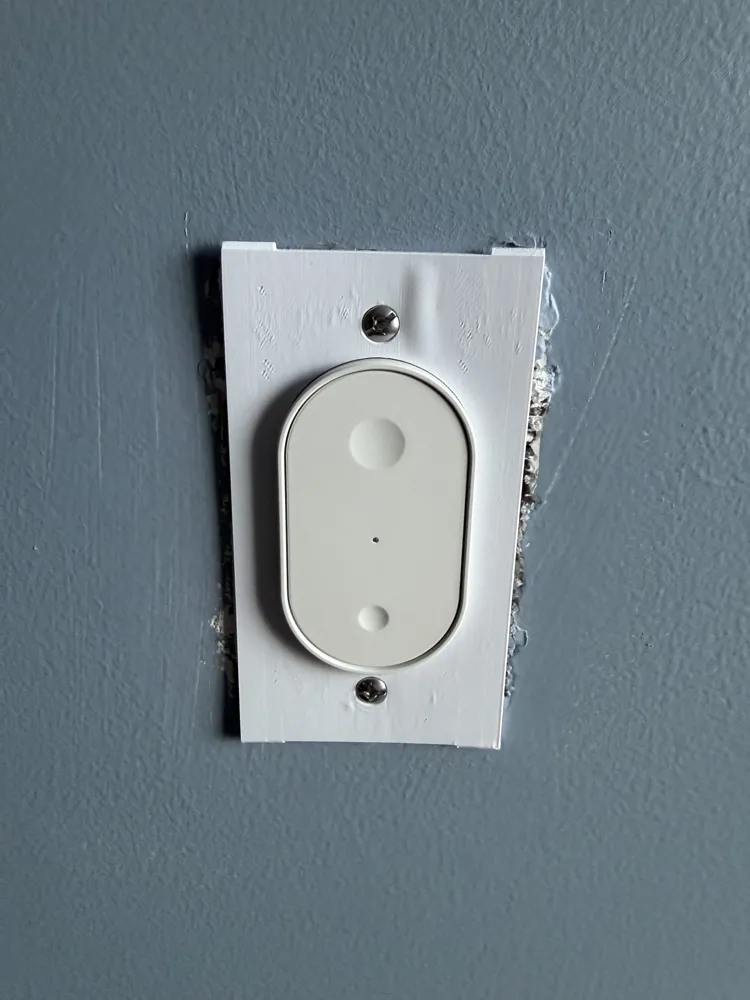

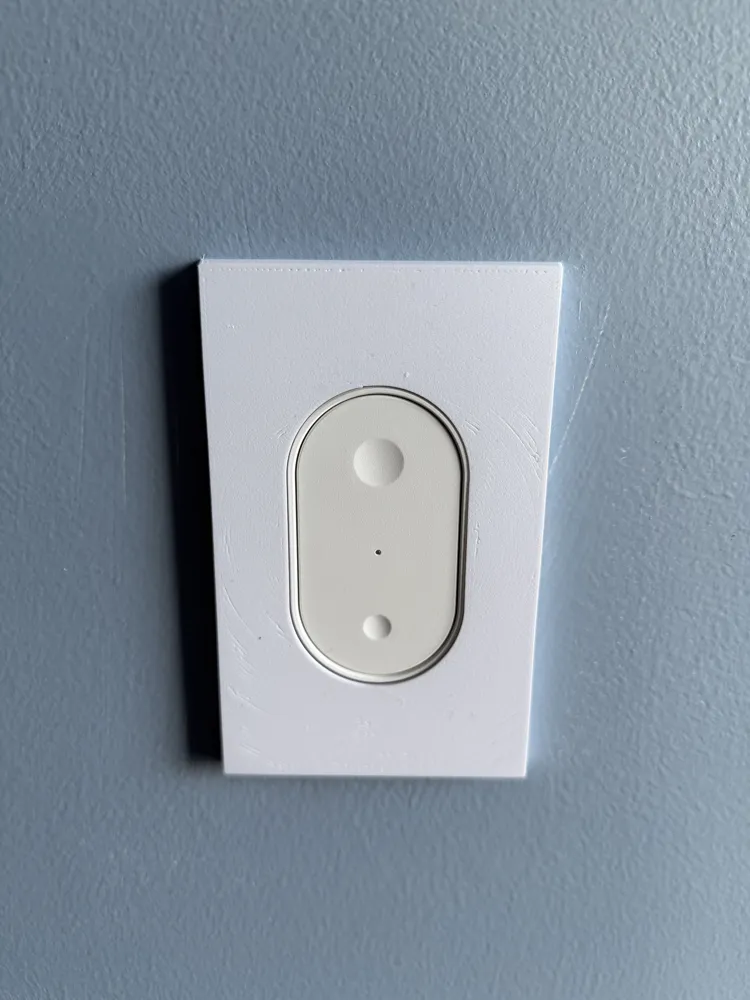

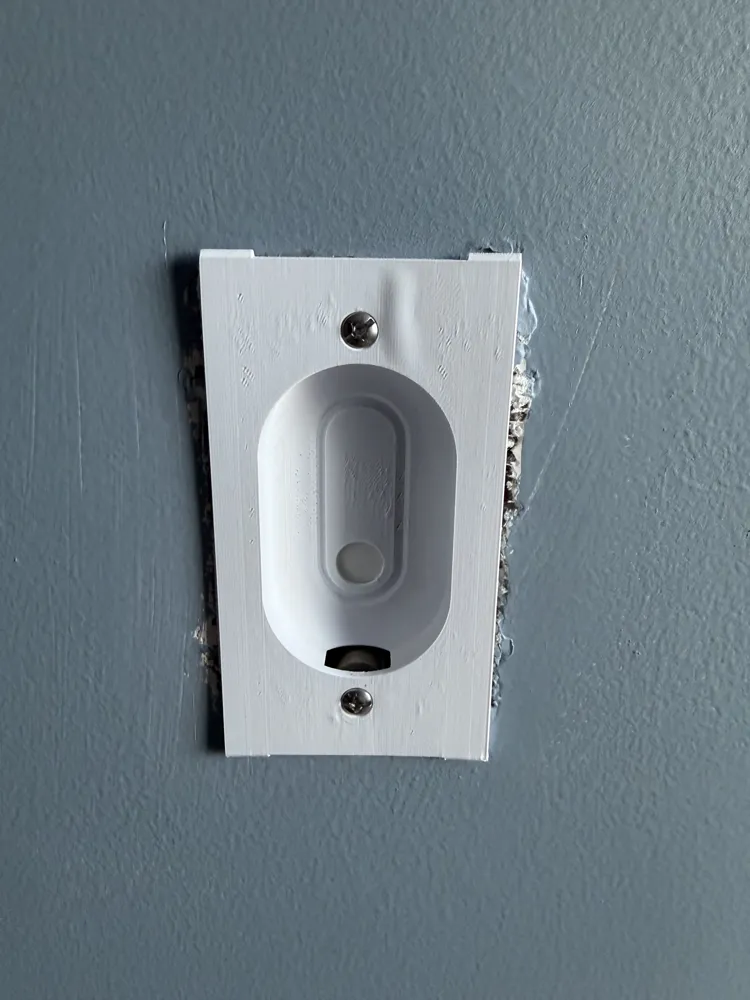

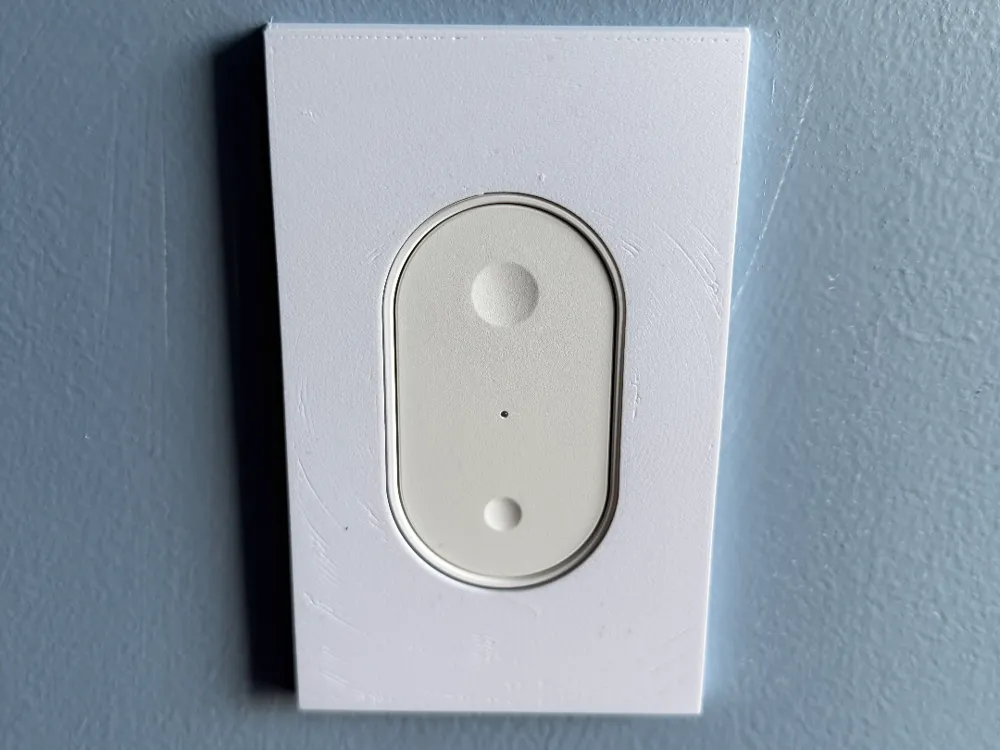

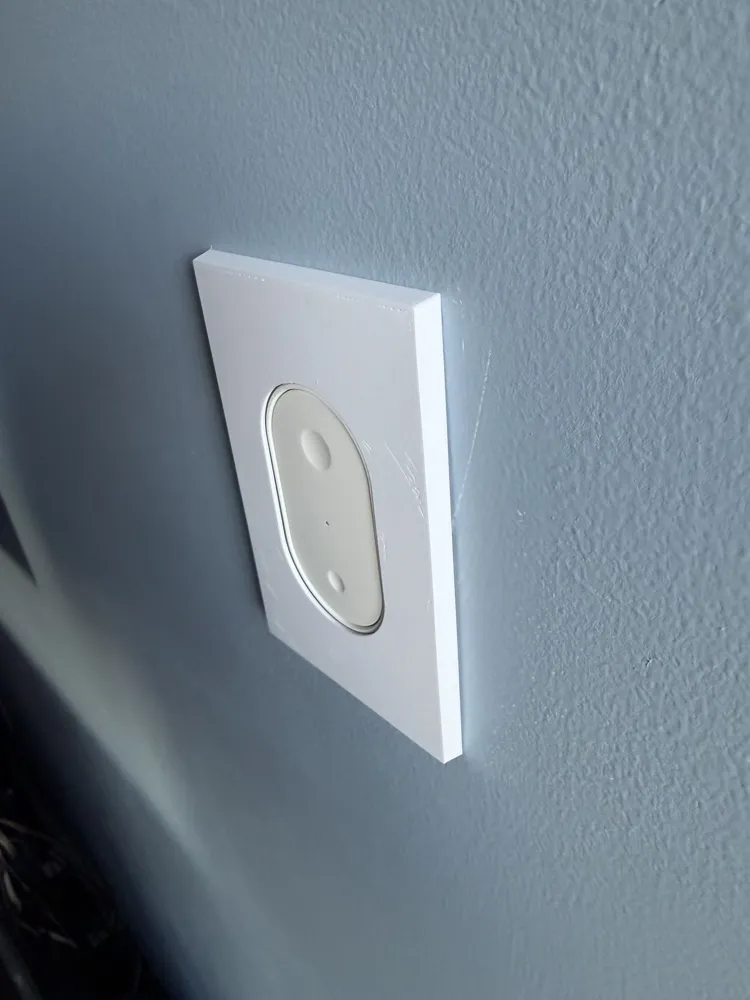

To install, just screw the base holder into a standard wall box using standard light switch screws then magnet the remote in. The magnet will hold the remote in place. Then snap the cover on the front and you're done.



When you need to change the battery on the remote you can pop the cover off and easily pull the remote out. No tools needed.



Thank you to @barnacle for their amazing case model!

https://makerworld.com/en/models/2178739-bilresa-case-quick-print#profileId-2364337
