[Dummy] SIG Sauer TANGO6T 1-6x24mm LPVO

This project is mostly for my enjoyment, any feedback is greatly appreciated, especially with the print configuration since I mostly created the model and commissioned someone else to print it, I have 0 other 3D printing knowledge.

-------------------------------------------------------------------------

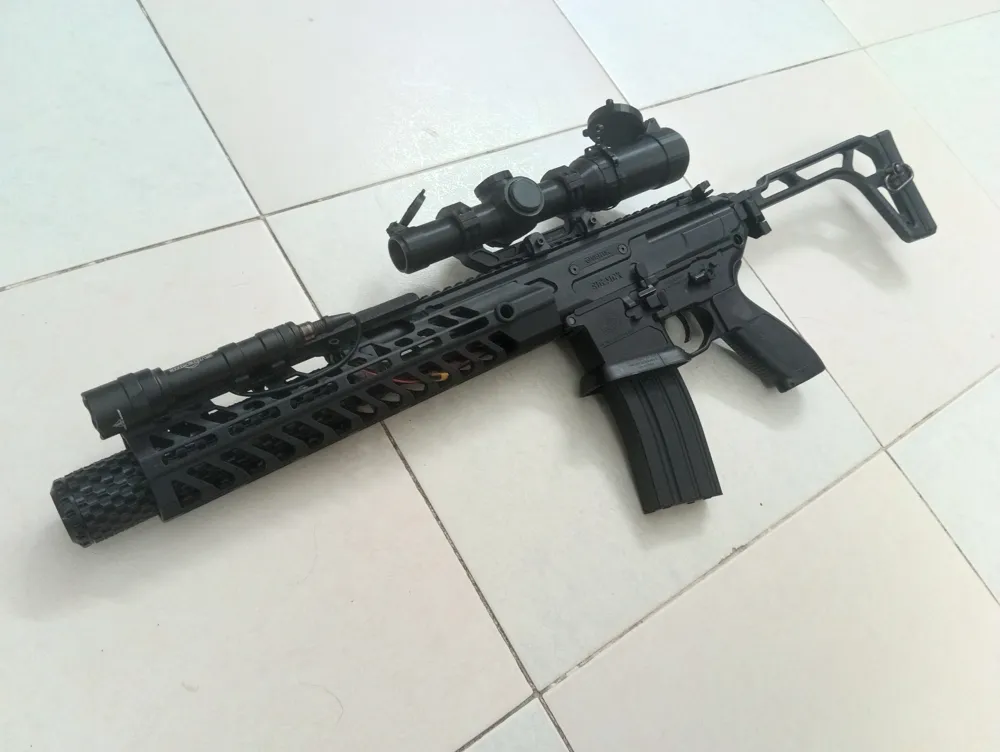

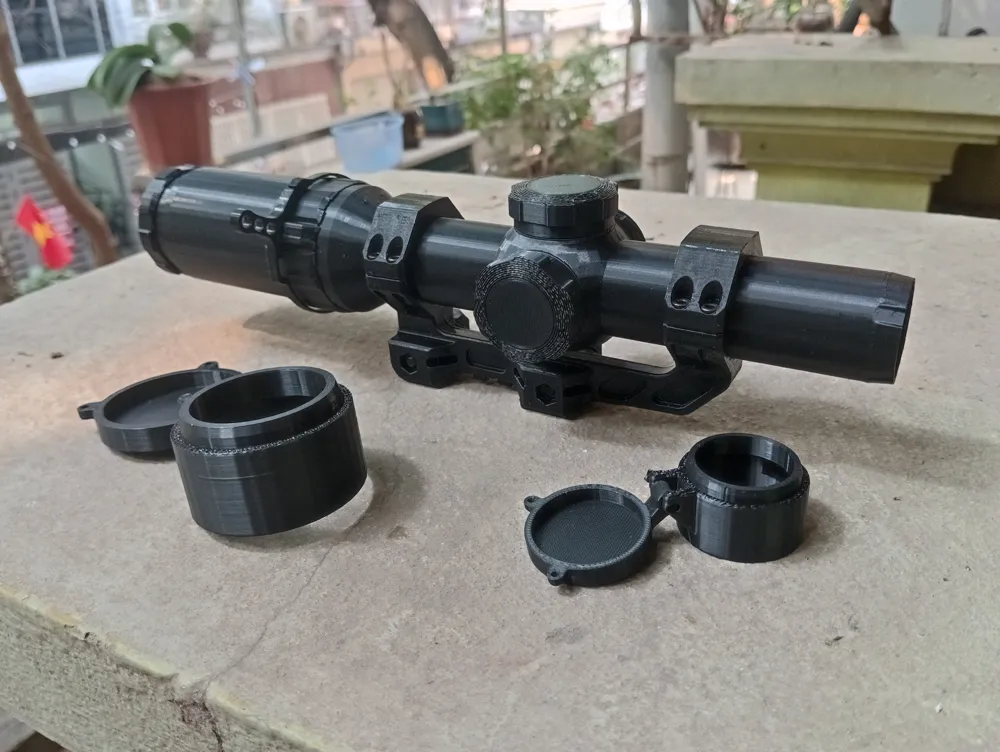

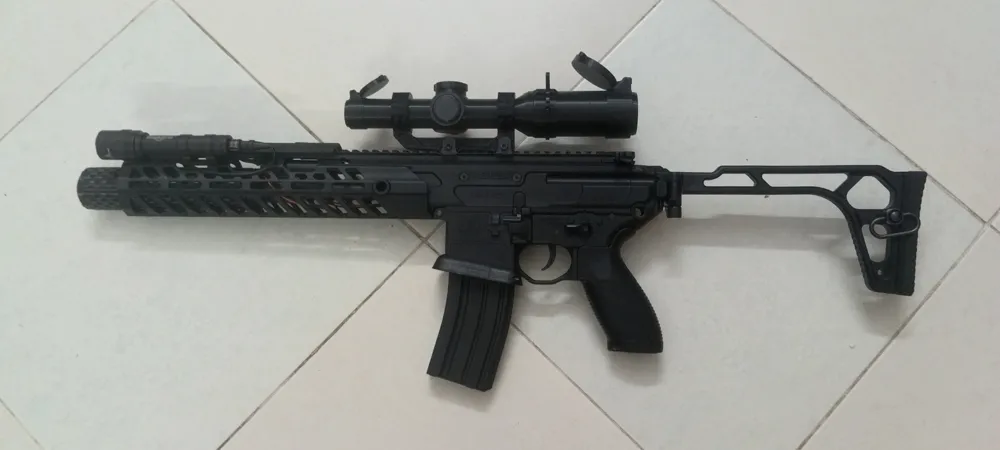

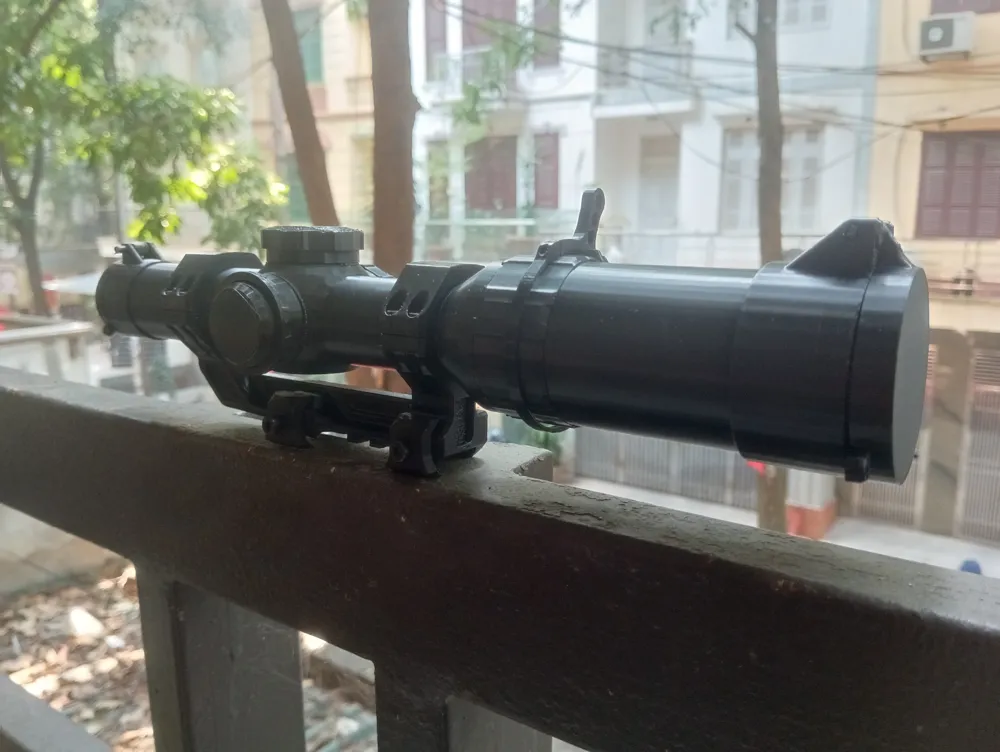

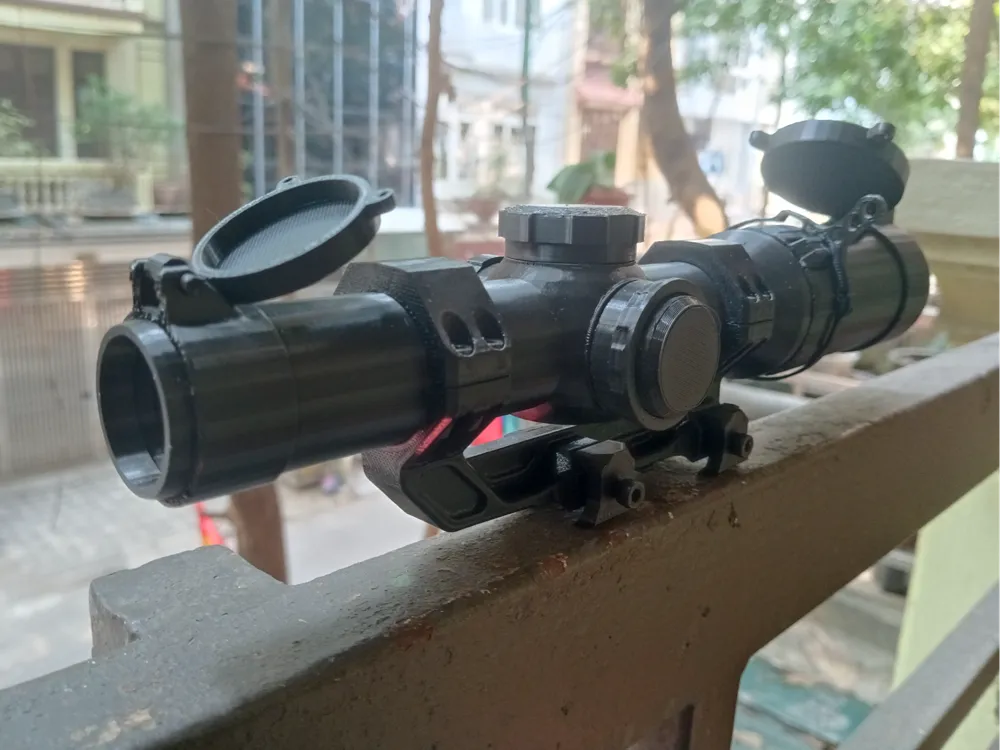

A dummy model meant for decoration on model guns. The lens caps can be flipped up or down and are removable. The adjustment/magnification turrets can be rotated. The cantilever mount can be used with any other 30mm scopes.

Hardware needed:

• 2 M4x30mm screws and 2 M4 nuts to attach the cantilever mount to a picatinny rail.
• 8 M3x6/8mm screws to attach the upper half of the scope rings. If you're new to scope mounts then you can watch the assembly from 4:20s of this video https://www.youtube.com/watch?v=MfGZR_WHRPU

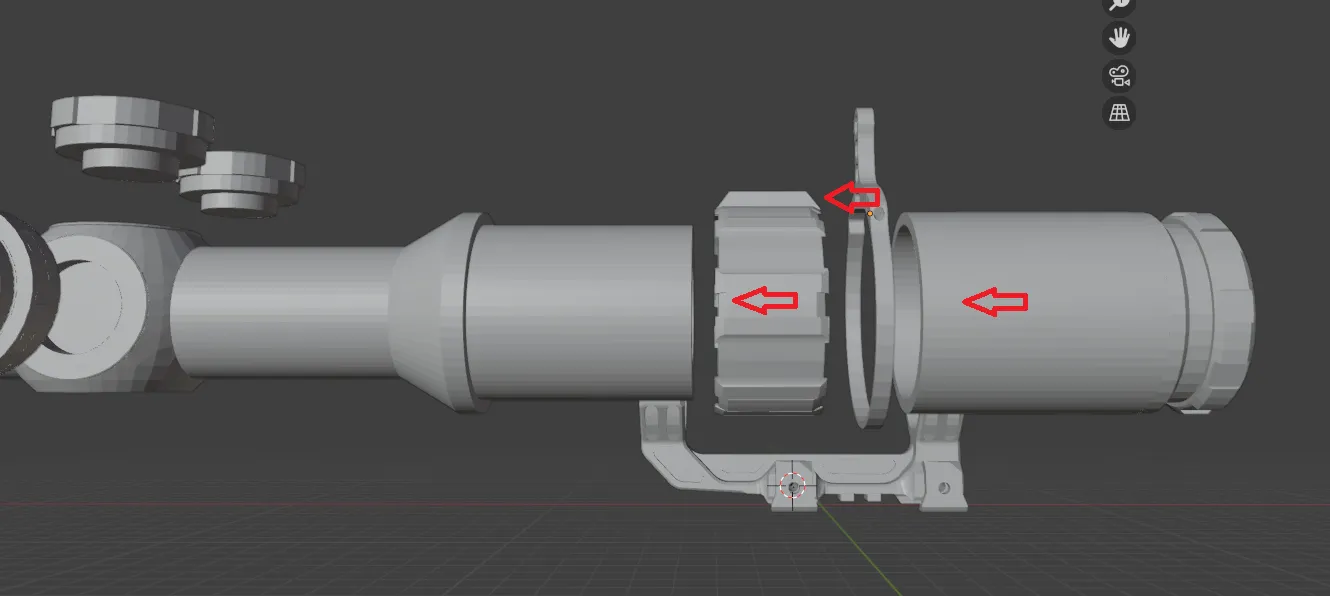

• Superglue to attach the magnification lever to the magnification turret, if you can think of any other solutions please suggest to me.
• You might need something to add friction to the mount (e.g. some tape) if the scope doesn't stay put.

Some printers might struggle to print the cylindrical pins for the lens caps, in which case you can use whatever fits the length and diameter e.g. piece of filament wrapped in tape.

Printing the mount in PETG is recommended.

-------------------------------------------------------------------------

I have a list of prints, mostly dummy optics/optic risers/optic mounts, that I can't really afford to print. If you're interested in testing the prints and sending me showcase photos then feel free to contact me, all files will be free of charge:

• Trijicon MRO + Trijicon 3X Magnifier
• Aimpoint magnifiers with LaRue flip to side mount
• Aimpoint T2 red dot sight v2 (with lens caps that can be removed/rotated)
• ANVL UKON RMR mount for RMR pattern red dot sights
• Unity Tactical RAXIS for B.E Meyers MAWL laser
• Arisaka Low/2.26" Magnifier Mounts
• Geissele 30mm scope mount
• ACR stock for A&K/DS/STS/AKA/JM gel blasters
