I amcontinuously creatinga series ofparameterized customizable tools and items, interested users can click the link to view, and it would be even better if you could give me a follow to show your support.
https://makerworld.com/collections/16520219
Boost Me (for free)
I am continuously creating a series of parametrically customizable utility tools and items. If you are interested, you can click the link to check them out. It would be even better if you could follow and support me.
https://makerworld.com.cn/zh/collections/2488846-can-shu-hua-ke-ding-zhi-shi-yong-ban-gong-gong-ju
Boost Me (for free)
Made purely out of passion, all models are exclusively released on MakerWorld. Your support is appreciated.

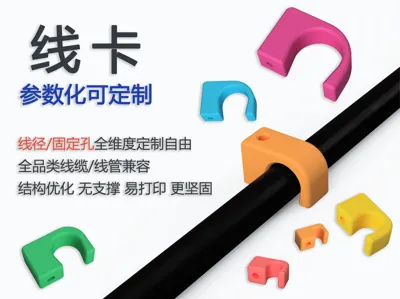

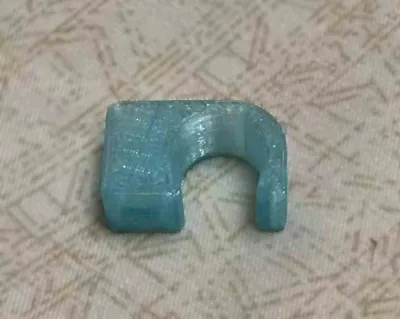

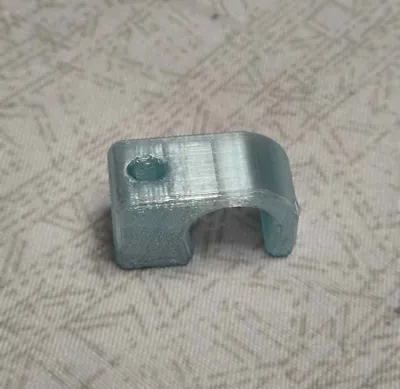

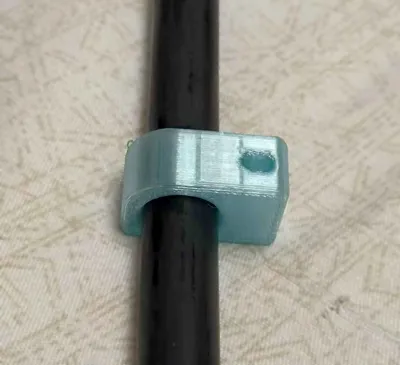

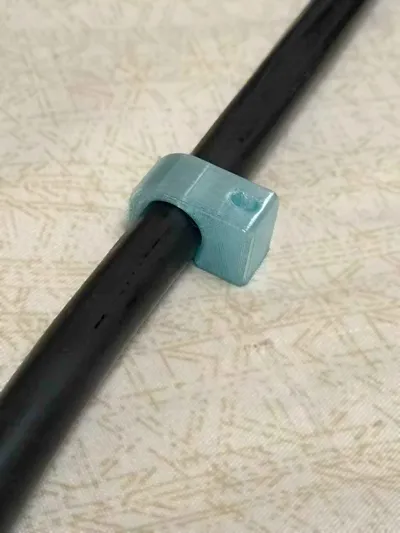

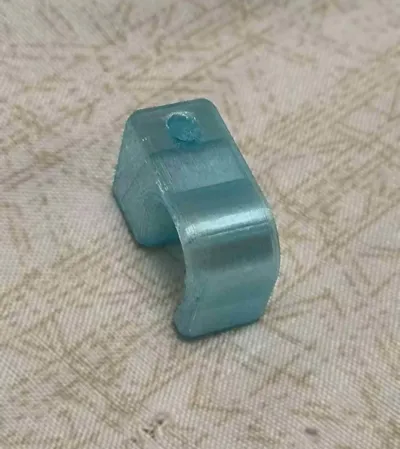

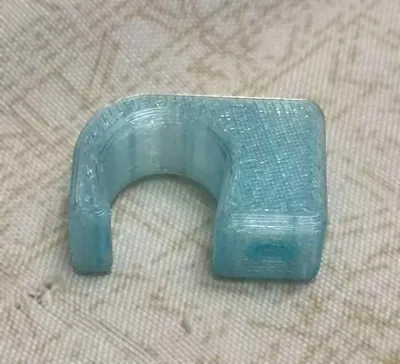

The print profile includes cable clips for six wire diameters: 5/6/8/10/16/20mm. The mounting hole is 3mm, suitable for standard steel nails. If you need other mounting hole diameters and wire diameters, you can customize them yourself.

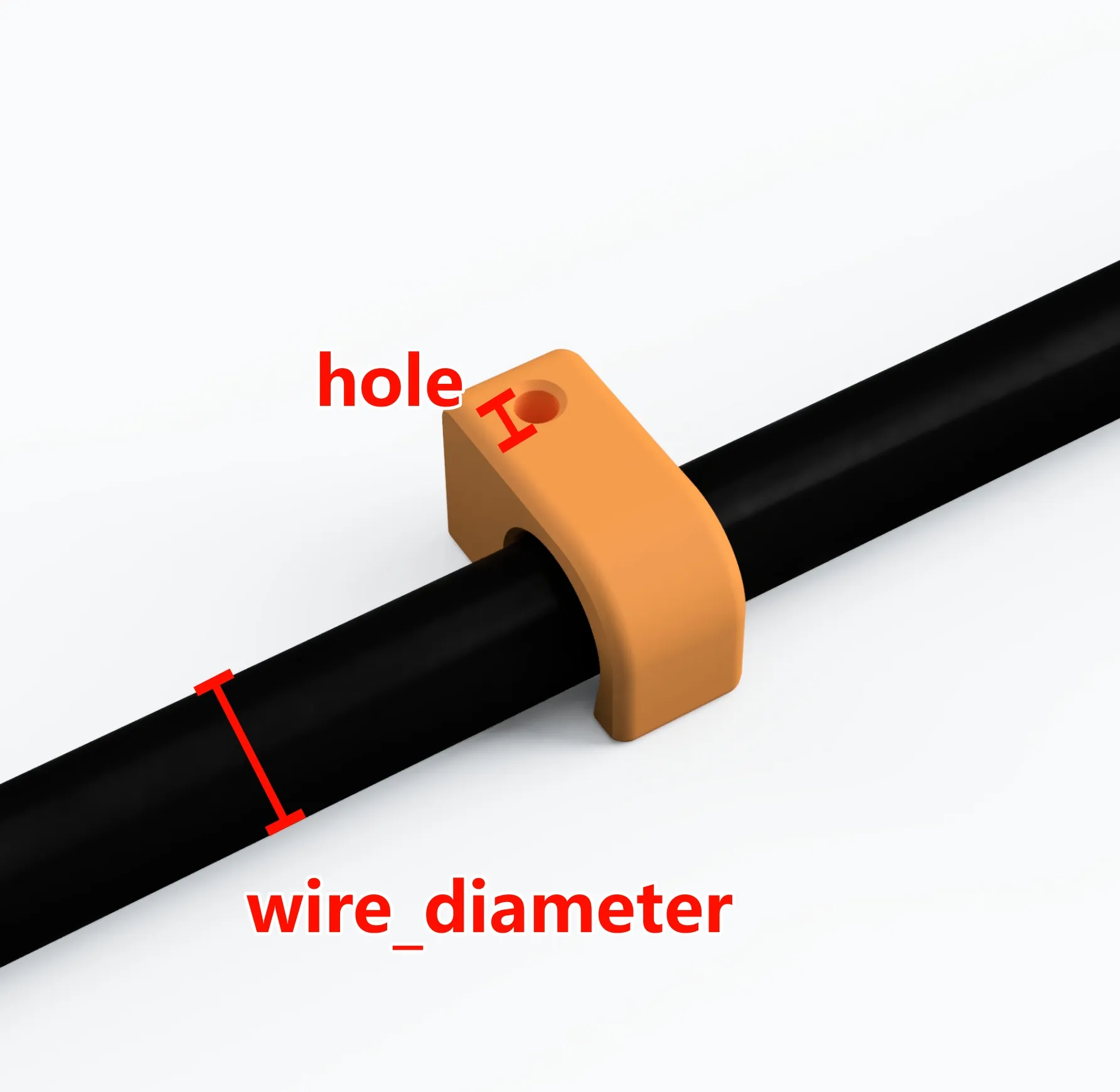

There are only two parameters: wire_diameter and hole_diameter.
The model's wire hole has a built-in tolerance of 0.4. You can directly enter the measured wire_diameter.

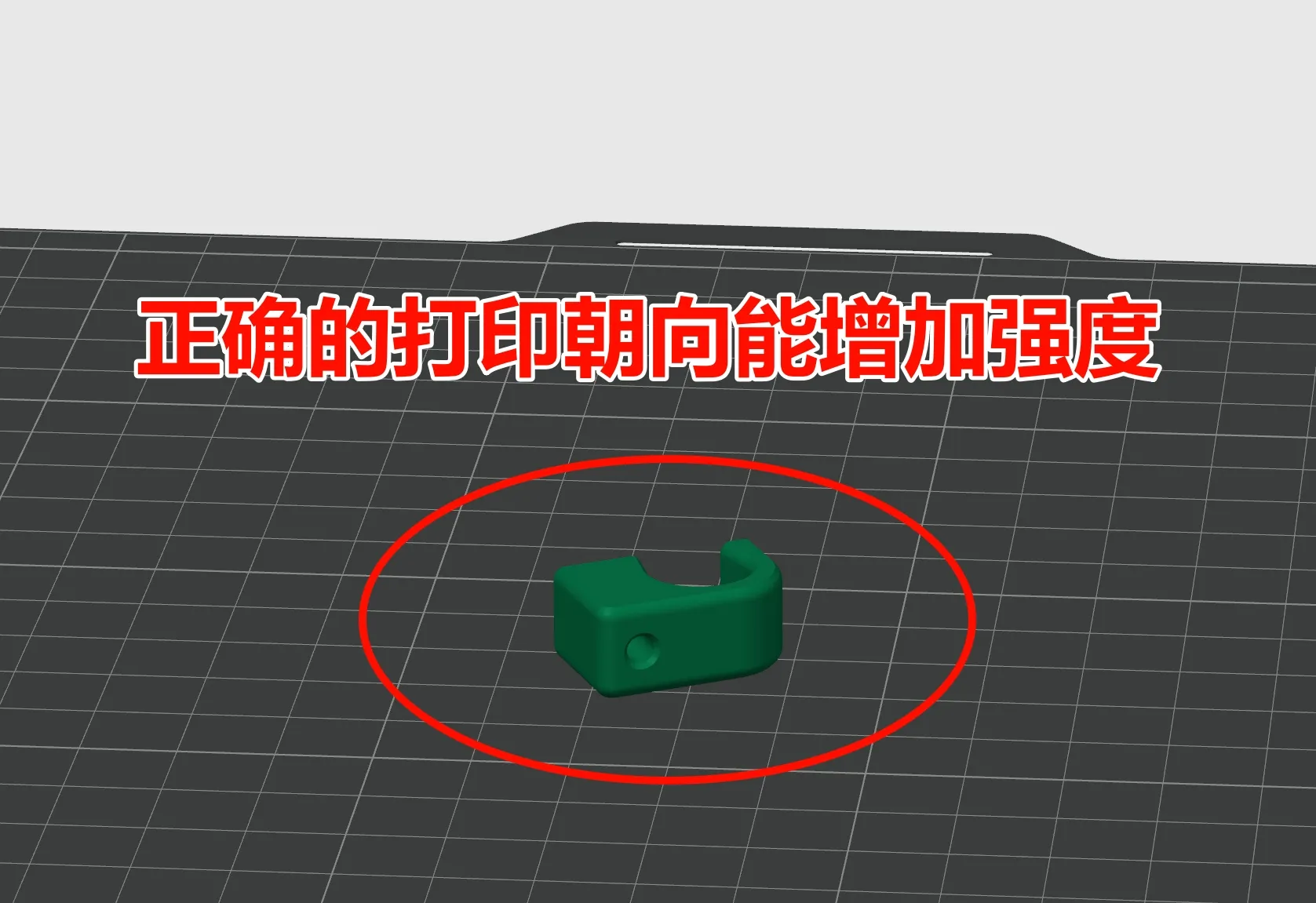

Pay attention to the print orientation

Common specifications and applicable cables (AI result, for reference only)
| Cable clip inner diameter (mm) | Applicable cable type |
|---|---|
5mm | Telephone line, white sheathed wire, standard 8-core network cable (e.g., Cat5e network cable) |
6mm | Router 8-core network cable (Cat6 network cable), USB printer cable |
7mm | 75-5 coaxial cable for cable TV, RVV 2×1 sq mm sheathed wire |
8mm | Extension cord, 16A air conditioner cable, Cat7 network cable, computer power cable |
9-10mm | 3×1 sq mm sheathed wire, 12-24 core fiber optic cable |
12-14mm | 62-72 core fiber optic cable, 3×1.5 sq mm sheathed wire |
16-20mm | 74-84 core fiber optic cable, 4分 warm water pipe (PVC pipe) |
