Bulb Wall Lamp – Retro Style for Bambu LED Kit-001

💡 Bulb Wall Lamp – Retro Style for Bambu LED Kit-001

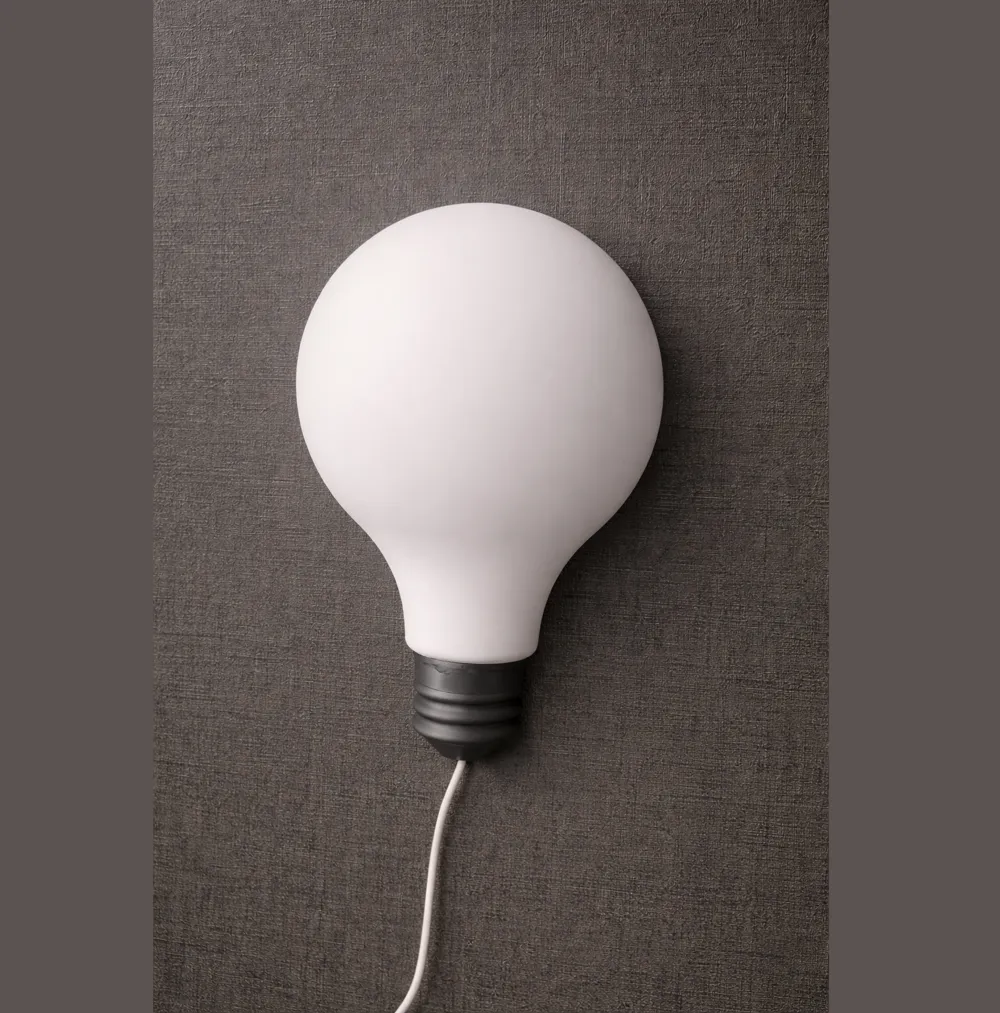

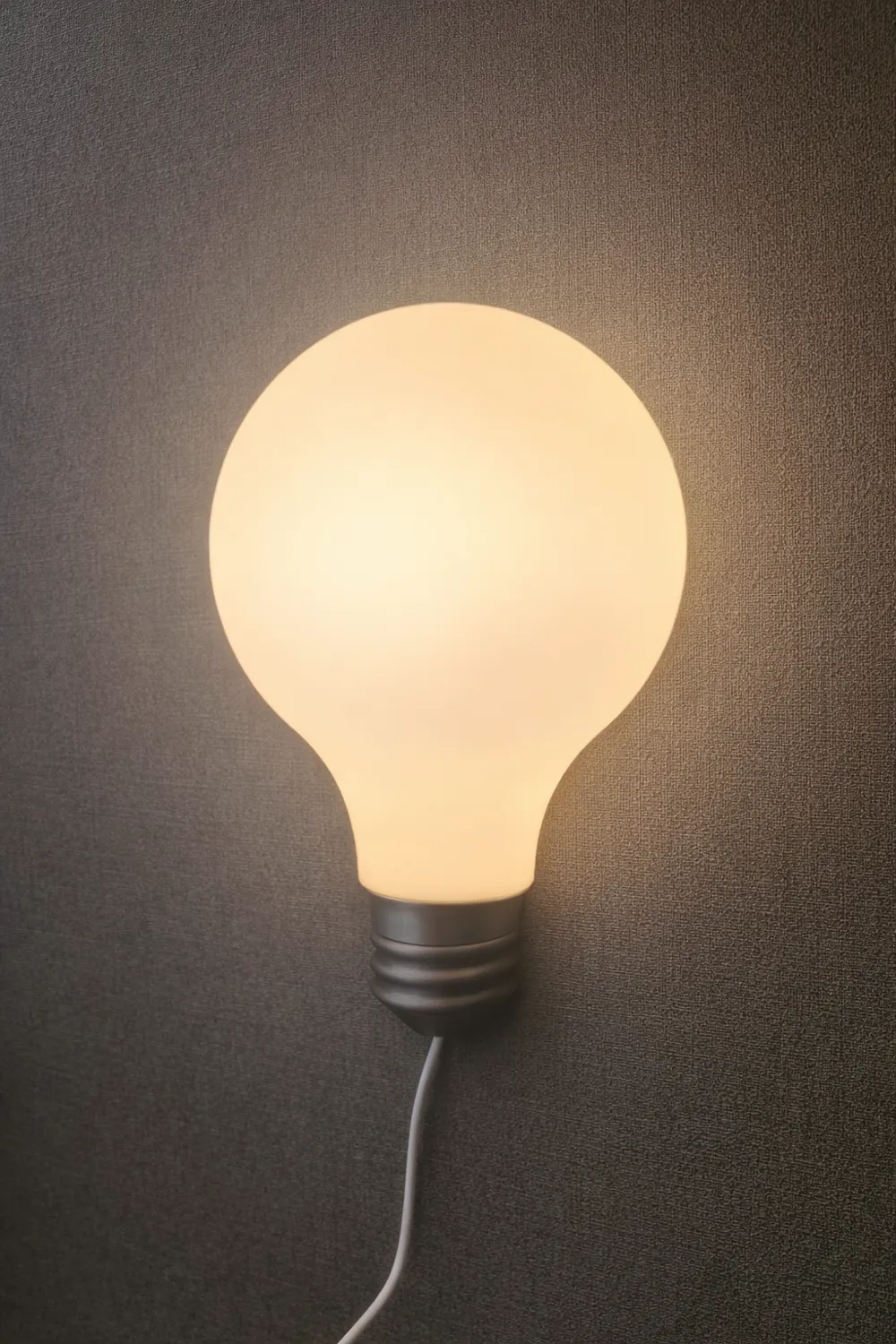

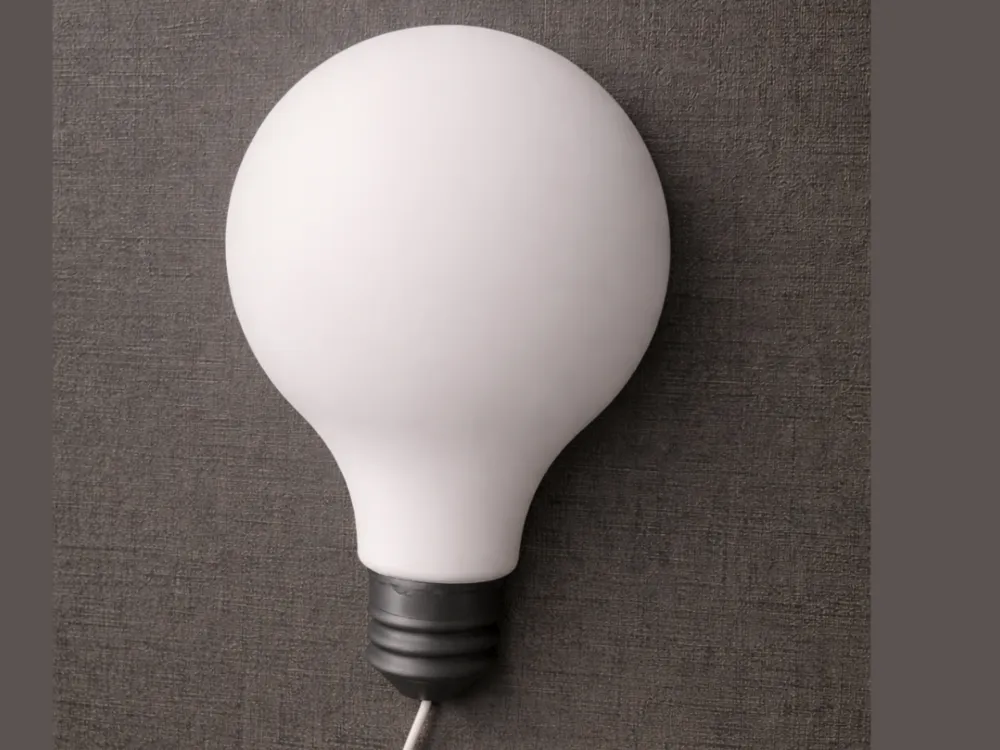

Brighten up your space with this stylish, light-bulb-shaped wall lamp! This project combines timeless design with modern 3D printing technology. It was designed from the ground up to be fully compatible with the Bambu LED Lamp Kit-001.

It’s not just a light source; it’s a unique decorative piece that fits perfectly in an office, bedroom, or workshop. The wall-mounted design saves desk space while adding an eye-catching detail to your interior.

✨ Main Features:

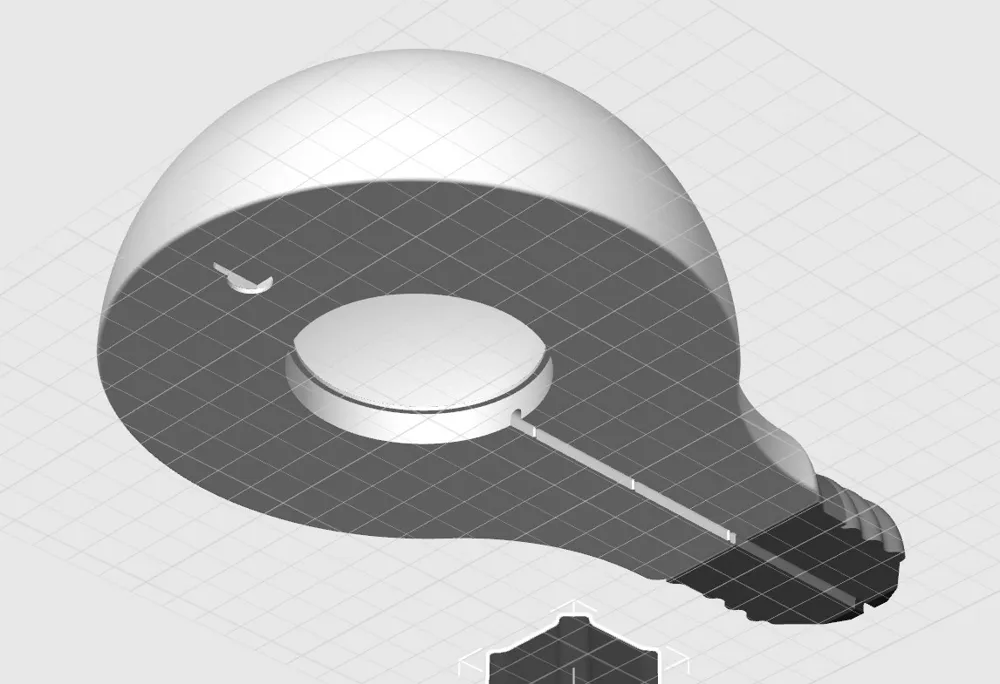

• Tailored for Kit-001: Precision-fit socket for the LED module and integrated cable management for a clean look.
• Optimized Geometry: A Supportless design – you can print it easily without any support structures.
• Smooth Sphere Effect: By using variable layer heights, the top of the bulb is perfectly smooth, eliminating the "staircase" effect.

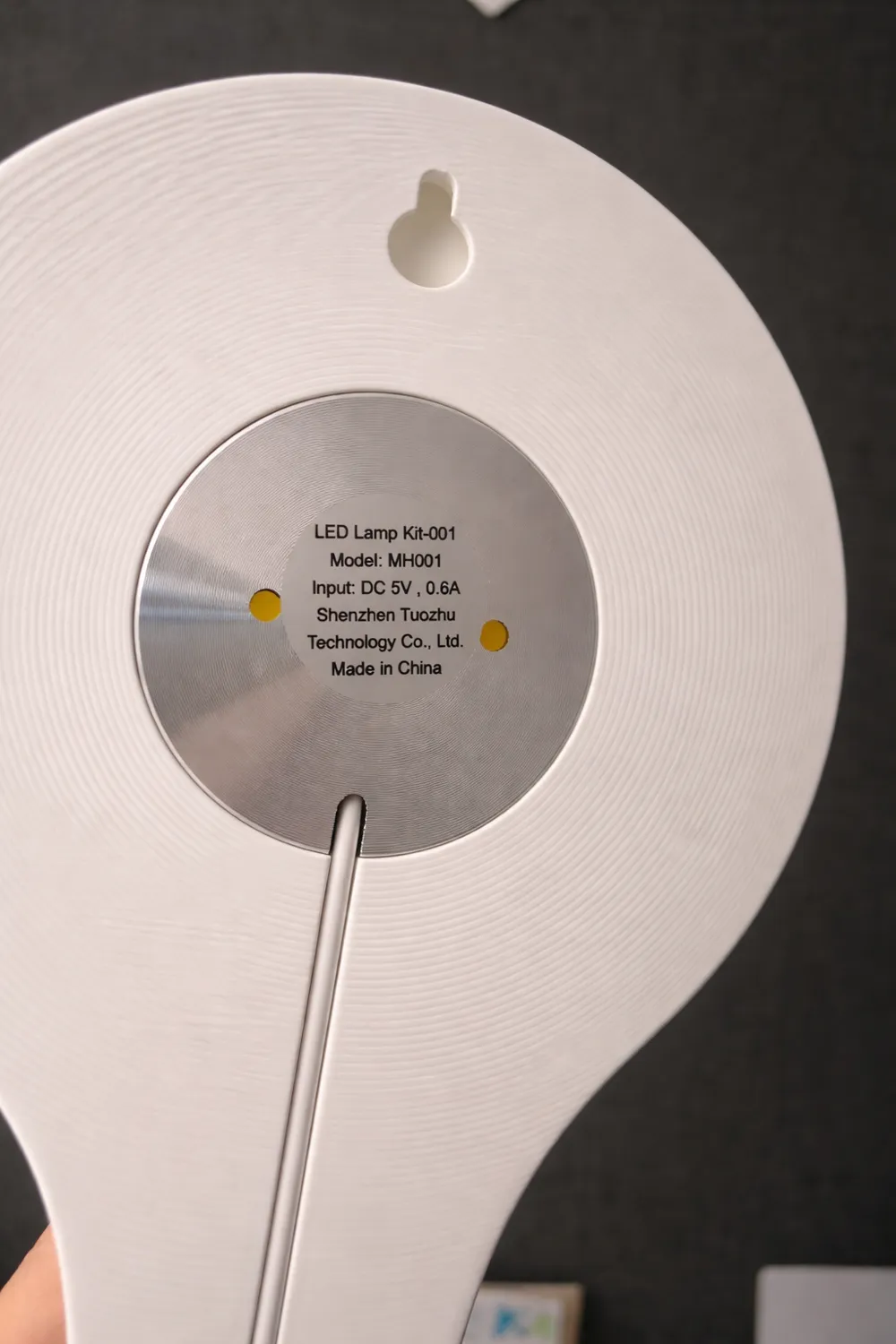

• Easy Mounting: Features a built-in mounting hole on the back for easy wall hanging.

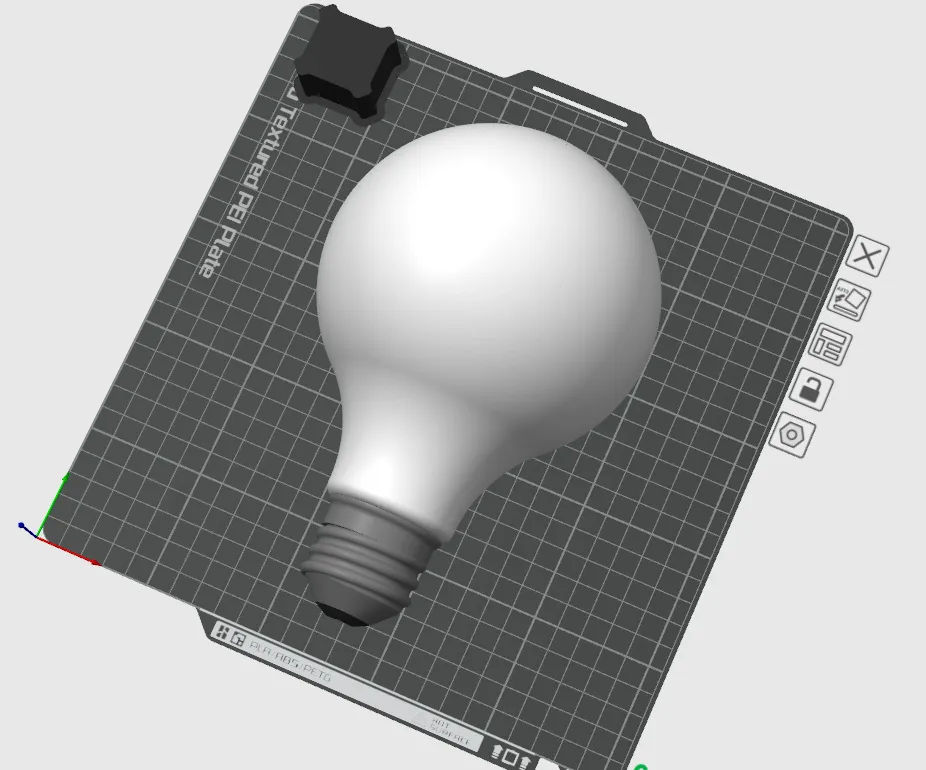

🖨️ Recommended Print Settings:

To achieve the best visual results, use the following parameters:

• Base Layer Height: 0.16 mm.
• Smooth Top (Variable Layer Height): For the top part of the sphere, I recommend decreasing the layer height to 0.08 mm. This ensures a perfect, smooth curve at the peak of the bulb.
• Walls: 2-3 perimeters.
• Infill: 10-15%.
  • Tip: For the bulb cover, I recommend using Concentric infill. This ensures that when the lamp is turned on, the internal structure remains nearly invisible, and the light diffuses evenly.
• Material: PLA or PETG (Cover: White/Translucent, Base/Thread: Silver/Grey).

🛠️ Assembly Instructions:

1. Print the parts: Use a bright or translucent filament for the bulb cover to ensure good light diffusion.
2. Install the LED Kit: Slide the controller and LED module from the Bambu Lab kit into the dedicated slot inside the "thread" base.

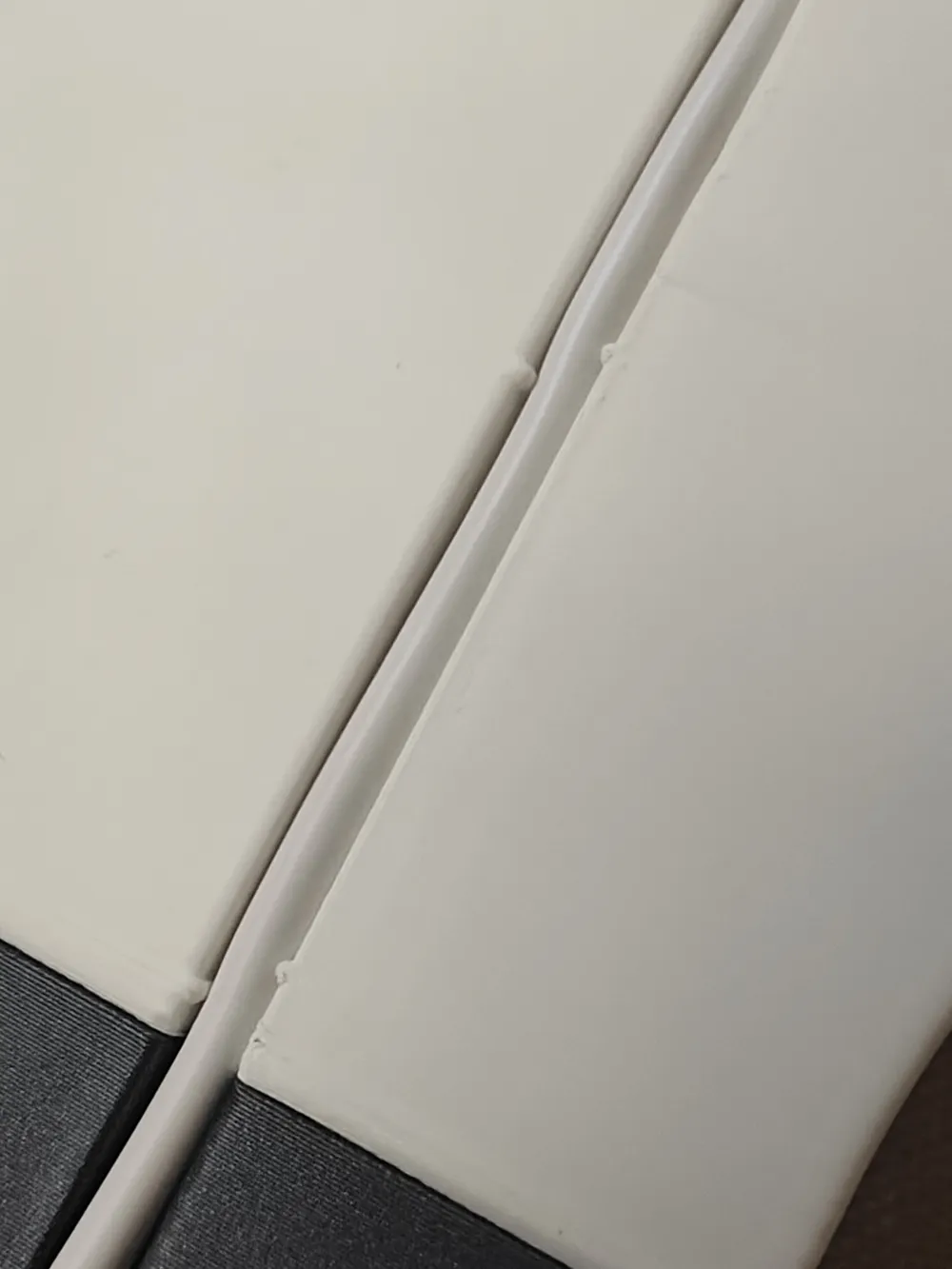

3. Secure the cable: Route the wire through the pre-designed exit channel.
4. Mount it: Hang it on your wall using a standard screw or hook.

Required Hardware: Bambu LED Lamp Kit-001

Do you like this project? If so, please leave a 🚀 and share a photo of your print in the "Makes" section! Your support motivates me to create more models.
