---------- The Dust Buster ----------
POINT | SHOOT | CLEAN
The Tactical Handheld Vacuum Cleaner Gun
Forget tiny plastic desk vacuums that feel disposable. Forget tools that hide in drawers. Welcome to the first tactical-class 3D-printed portable vacuum system ever designed. Dust Buster is a first-of-its-kind, fully 3D-printed, modular handheld vacuum system designed to look, feel, and perform like a precision-engineered instrument. Built with folding mechanical architecture, magnetic quick-release dust handling, and high-capacity internal storage, this is not just a cleaning device, but a purpose-built tool with its own display-worthy identity.
Designed like a machine | Used like a tool | Admired like a weapon
Boost Me (for free)
If you enjoyed this design, consider giving it a Boost. This project required extensive prototyping, testing, and significant material investment to refine the mechanics, fit, and performance. Every Boost directly supports continued development of high-quality functional designs, future upgrades, and new original builds for the maker community. Your support truly helps keep ambitious projects like this moving forward.
Every surface, joint, and compartment in Dust Buster has been purpose-built for:
- Ergonomic handling
- Maximum dust storage
- Fast cleaning cycles
- Compact storage
- Visual and mechanical satisfaction

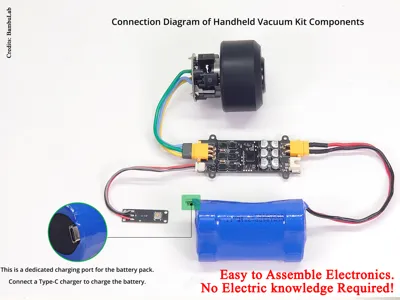

This is not a shell. This is a complete functional product architecture designed to be compatible with BambuLab's Handheld Vacuum Cleaner Kit hardware. For Assembly Instructions, check out the Assembly Guideline Document below.

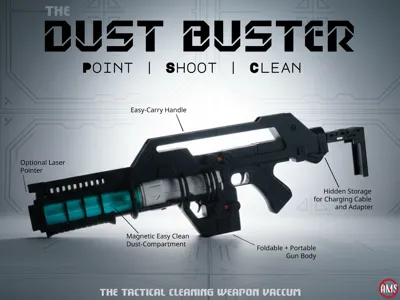

Core Innovations In This Product
Foldable Tactical Architecture

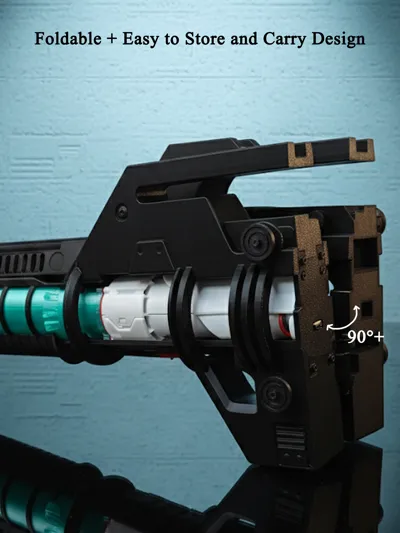

- Rear stock rotates 90°+; Converts instantly between full-length cleaning mode and compact storage mode
- Detachable stock module for travel or wall storage
- Base design inspired from the Aliens M41A Pulse Rifle

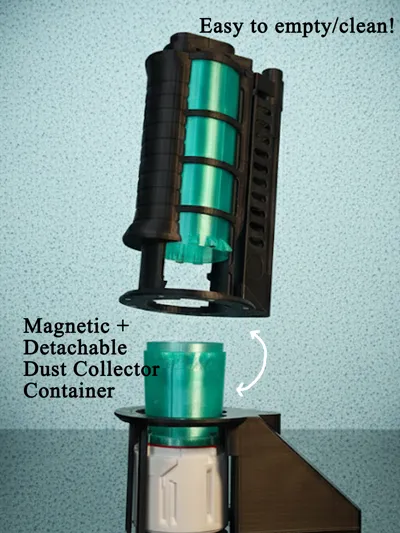

Magnetic Quick-Release Dust Collector
- Large translucent chamber; Visual fill-level monitoring
- Instant magnetic detach system; No threads. No twisting. No mess.

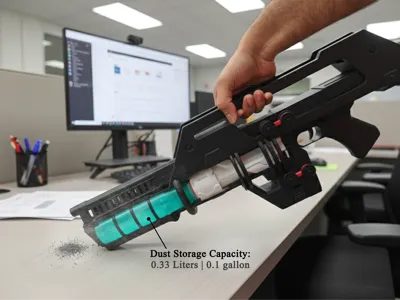

High-Capacity Dust Storage
- 0.33 L / 0.1 gallon internal dust volume; Several times larger than common handheld vacuums

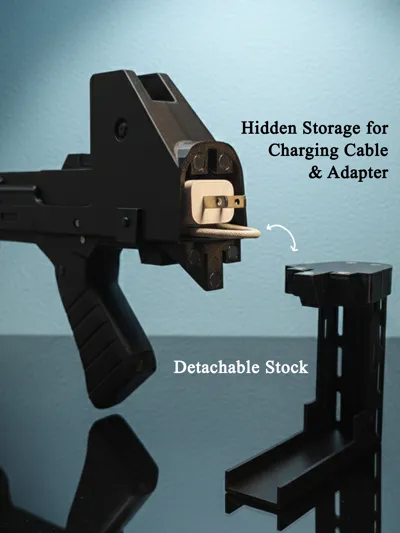

Hidden Utility Storage
- Rear internal bay stores charging cable & adapter; Keeps the entire system self-contained

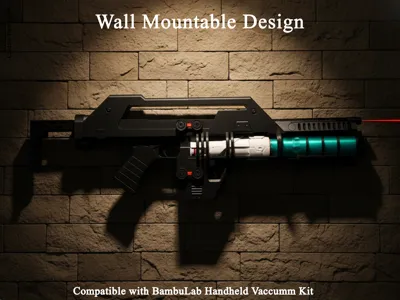

Wall-Mount Dock
- Dedicated vertical wall bracket; Stores Dust Buster like a display piece
Carry-Handle Balance
- Central top handle; Perfect center-of-gravity carry

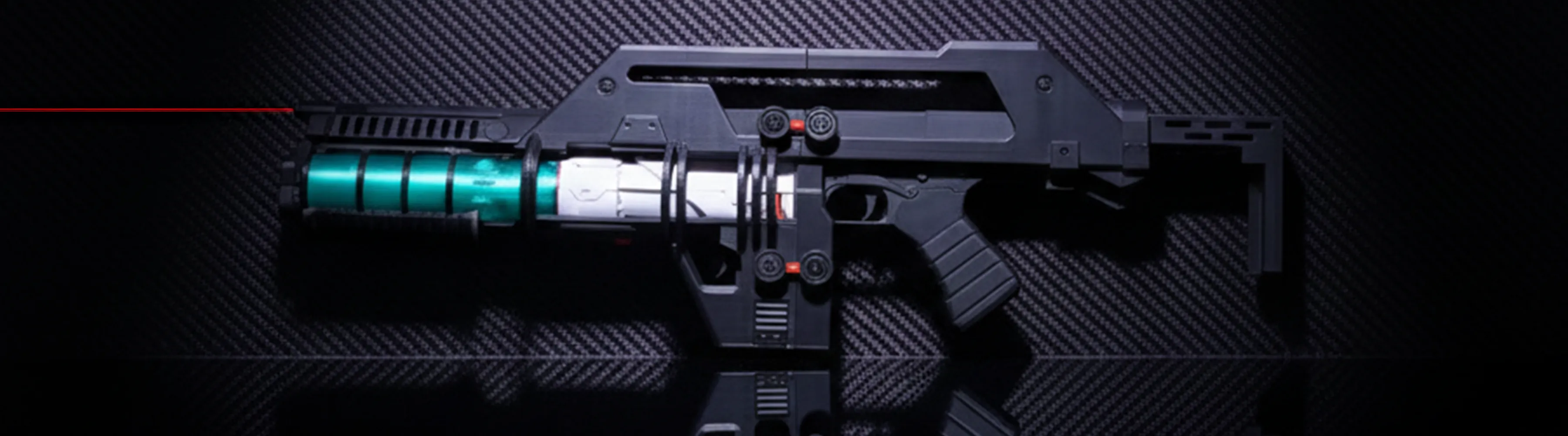

Optional Laser Pointer Rail
- Front rail geometry allows an optional laser or light accessory mount
PRODUCT TECHNICAL SPECIFICATIONS
Attribute | Specification |
|---|---|

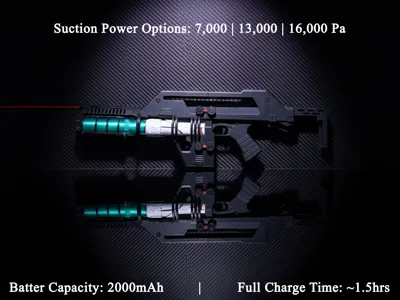

| Suction Modes | 7,000 Pa / 13,000 Pa / 16,000 Pa |
| Motor Type | High-speed brushless DC vacuum motor |
| Battery Capacity | 2000 mAh Li-ion rechargeable |
| Charging Input | 5–9 V DC (USB) |
| Full Charge Time | ~1.5 hours |
| Operation Mode | Cordless portable use |
| Storage Capacity | 0.33 Liters / 0.1 Gallon |
MATERIAL ENGINEERING
Component | Material | Purpose |
|---|---|---|
| Main Structural Body | PLA/ABS* | Heat-resistant, outdoor-capable |
| Dust Chamber | Translucent PETG | Visual dust inspection |
| Air Seals / Gaskets | TPU | Flexible airtight interfaces |

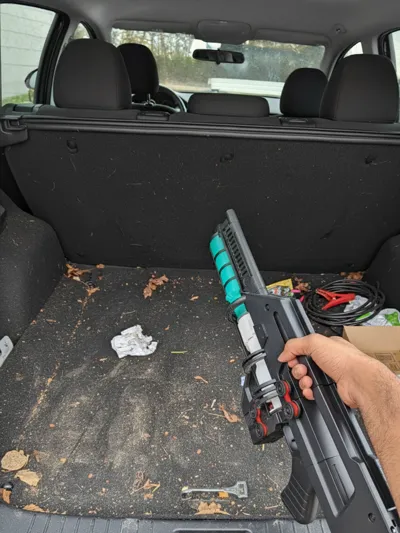

*ABS construction allows outdoor use or storage in a car without softening or deformation.

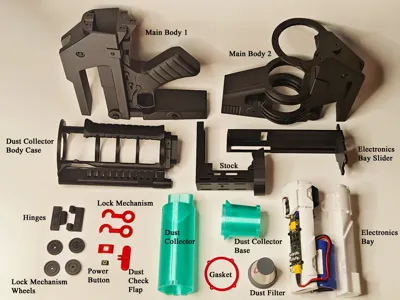

REQUIRED HARDWARE
Magnetic Detach System
- (28x) 4 mm × 2 mm magnets
- (10x) 8 mm × 2 mm magnets
- All magnet slots are dimensioned for precise press-fit; Strong snap alignment for repeatable sealing
- No glue required
Fastener System
- (2x) M3 × 12 mm
- (12x) M3 × 16 mm
- (4x) M2 × 12 mm
- (2x) M3 × 5 x 4 mm stud
All mechanical joints use metal fasteners for ease of assembly, daily usage, and serviceability.
Thank You for selecting DUST BUSTER — a precision-engineered cleaning tactical system designed to perform, built to last, and crafted to be proudly displayed.
