modular Cable Guide for Desk
Print Profile(1)
Description
Modular Cable Guide for Desks

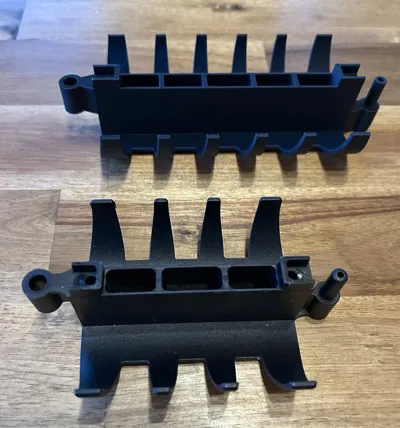

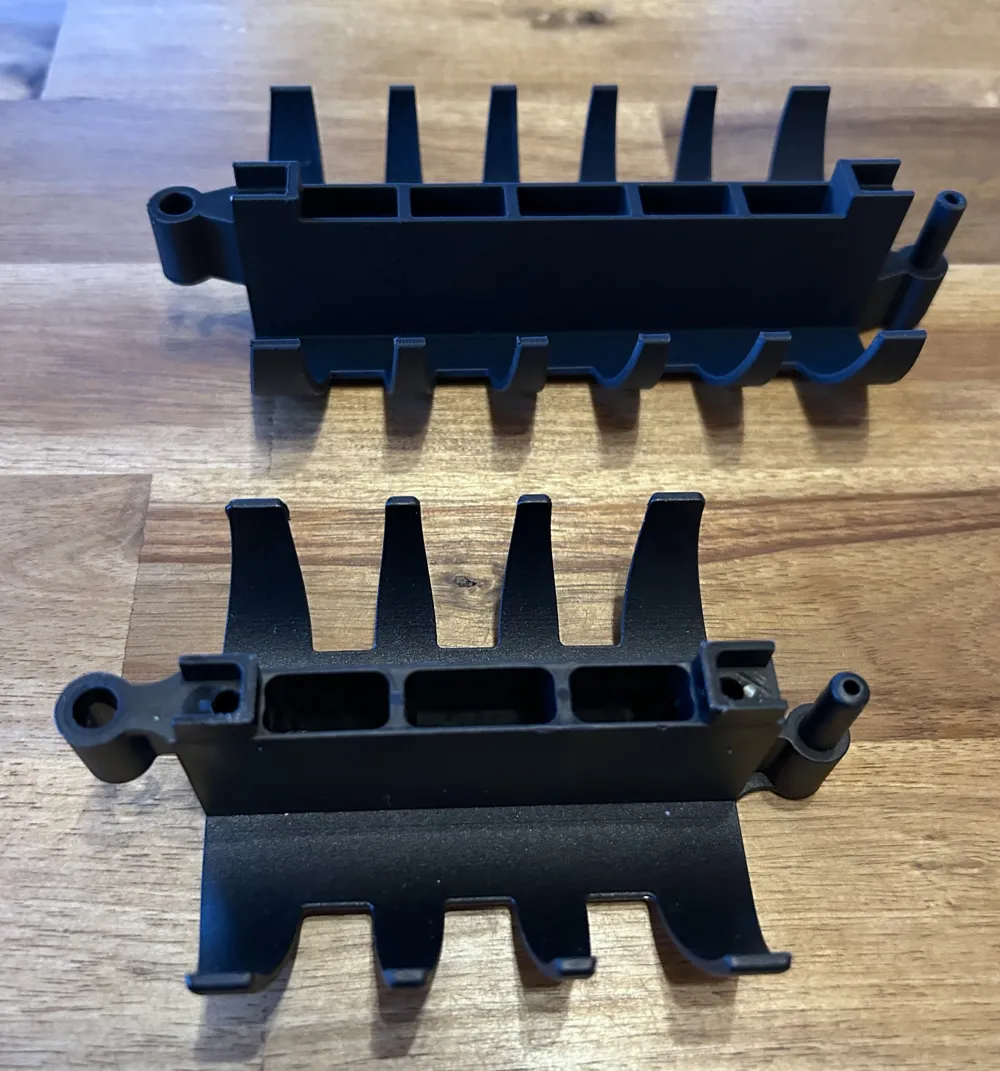

Available in three different lengths (100, 140, 180) and two different styles:
- standard

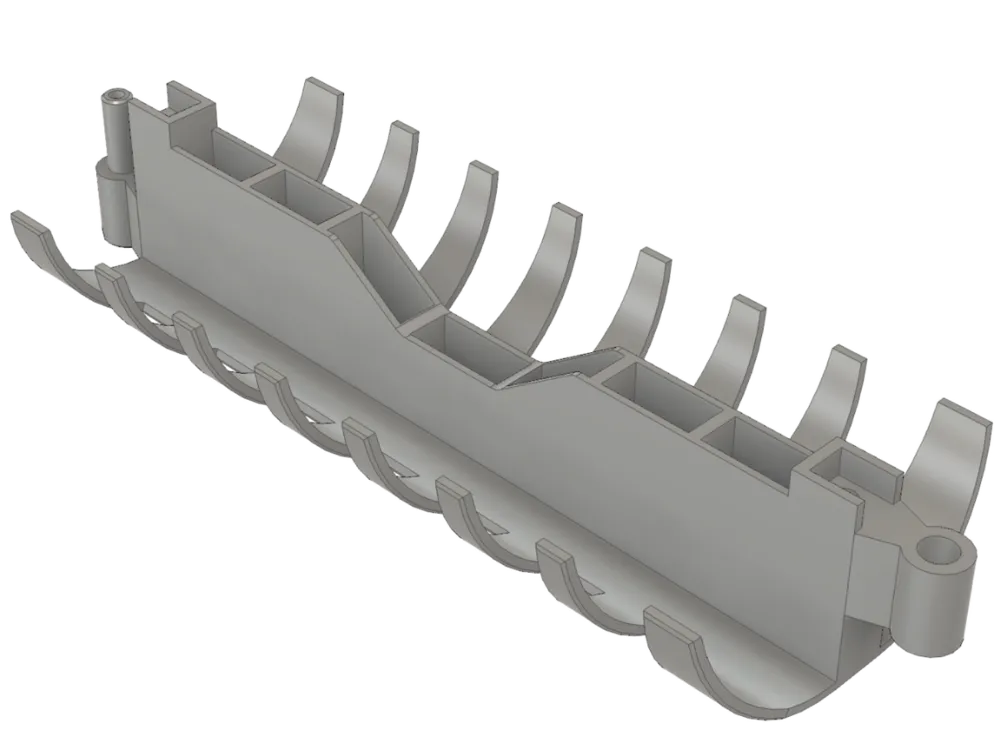

Mk2 with cable pass-through

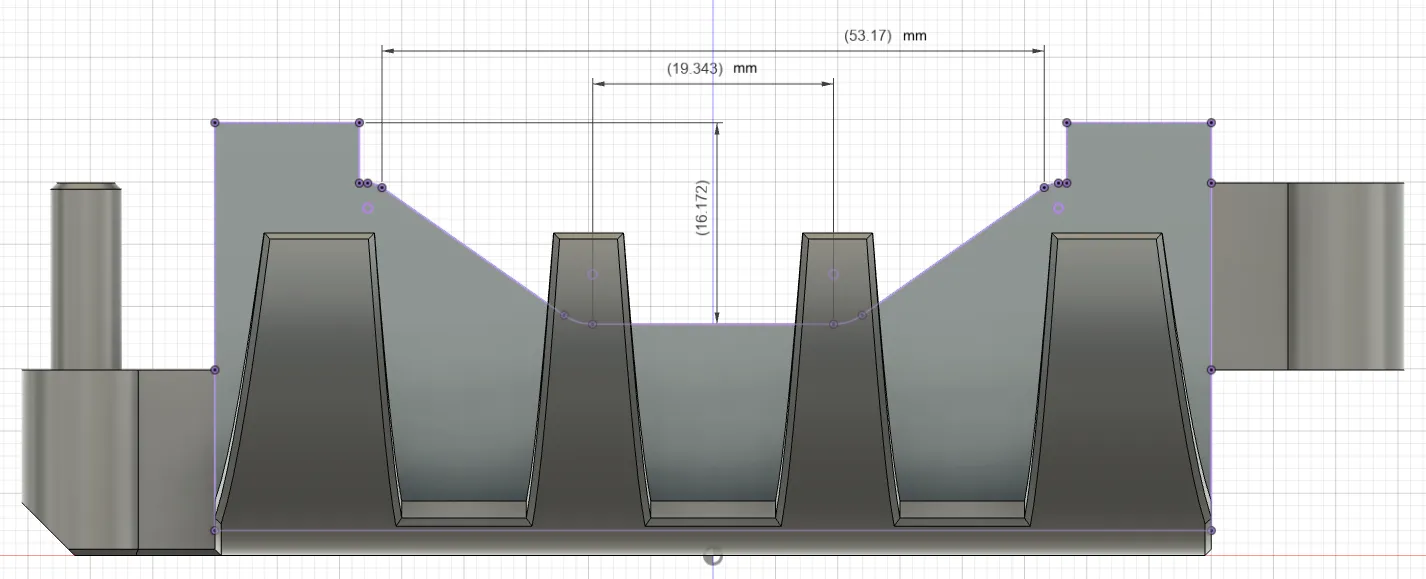

Measurements for the cable pass-though (same for all sizes):
Assembly

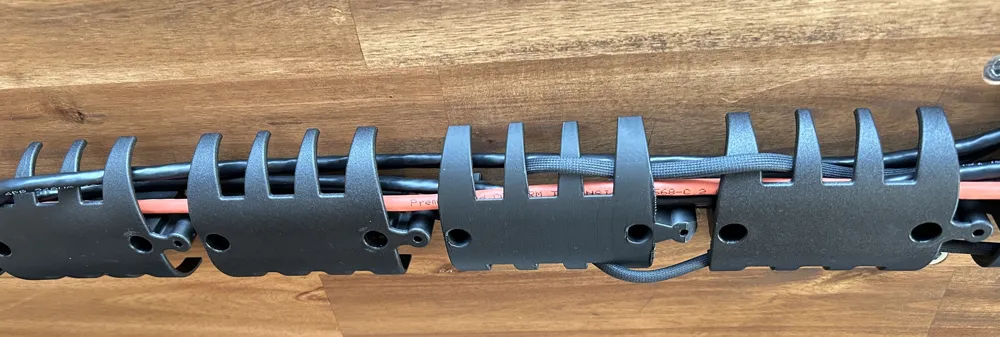

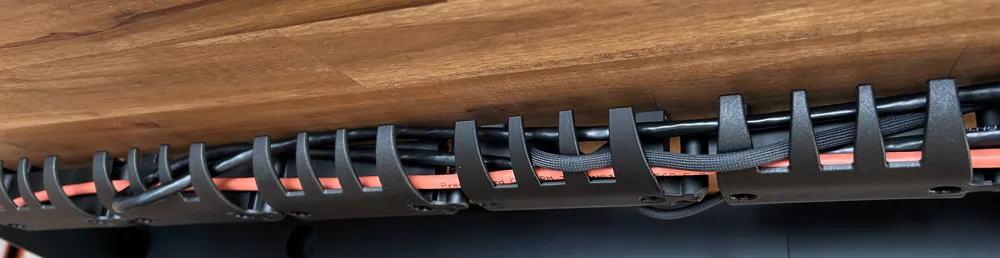

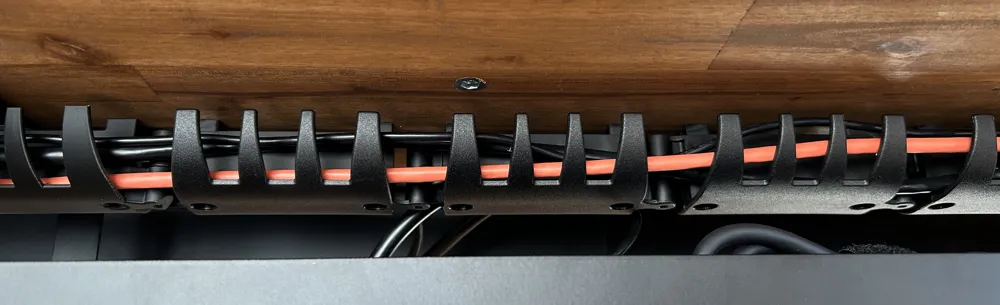

- Mount them with 4x40mm wood screws to the underside of your table.
- 1 screw per module is enough*, only the last piece in the chain needs 2 screws.

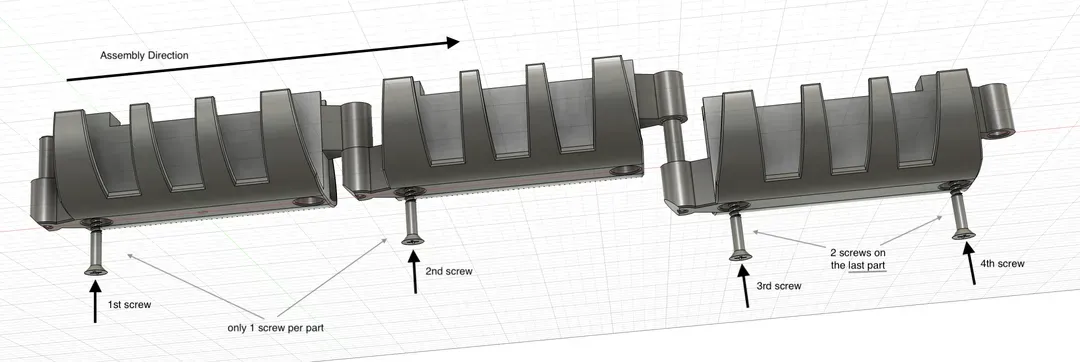

*) If you respect the correct assembly direction (see picture below) the following piece supports the previous one.
Printing

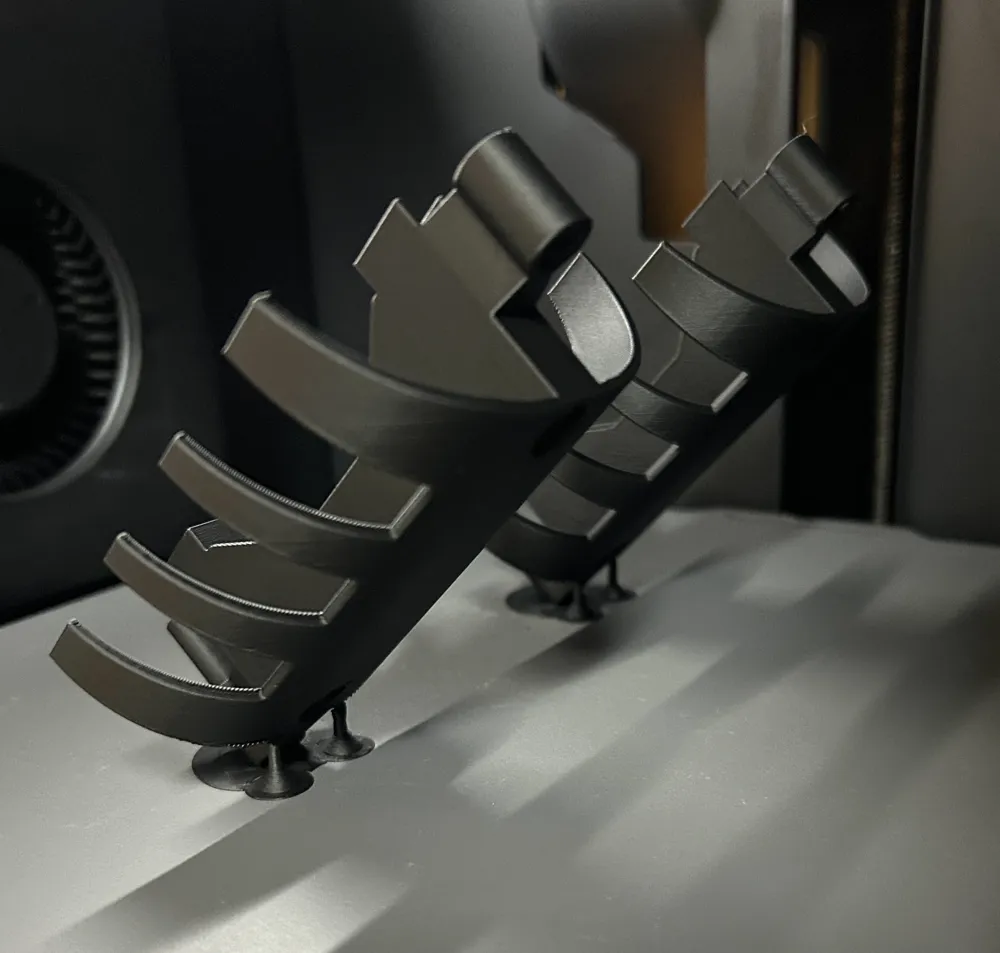

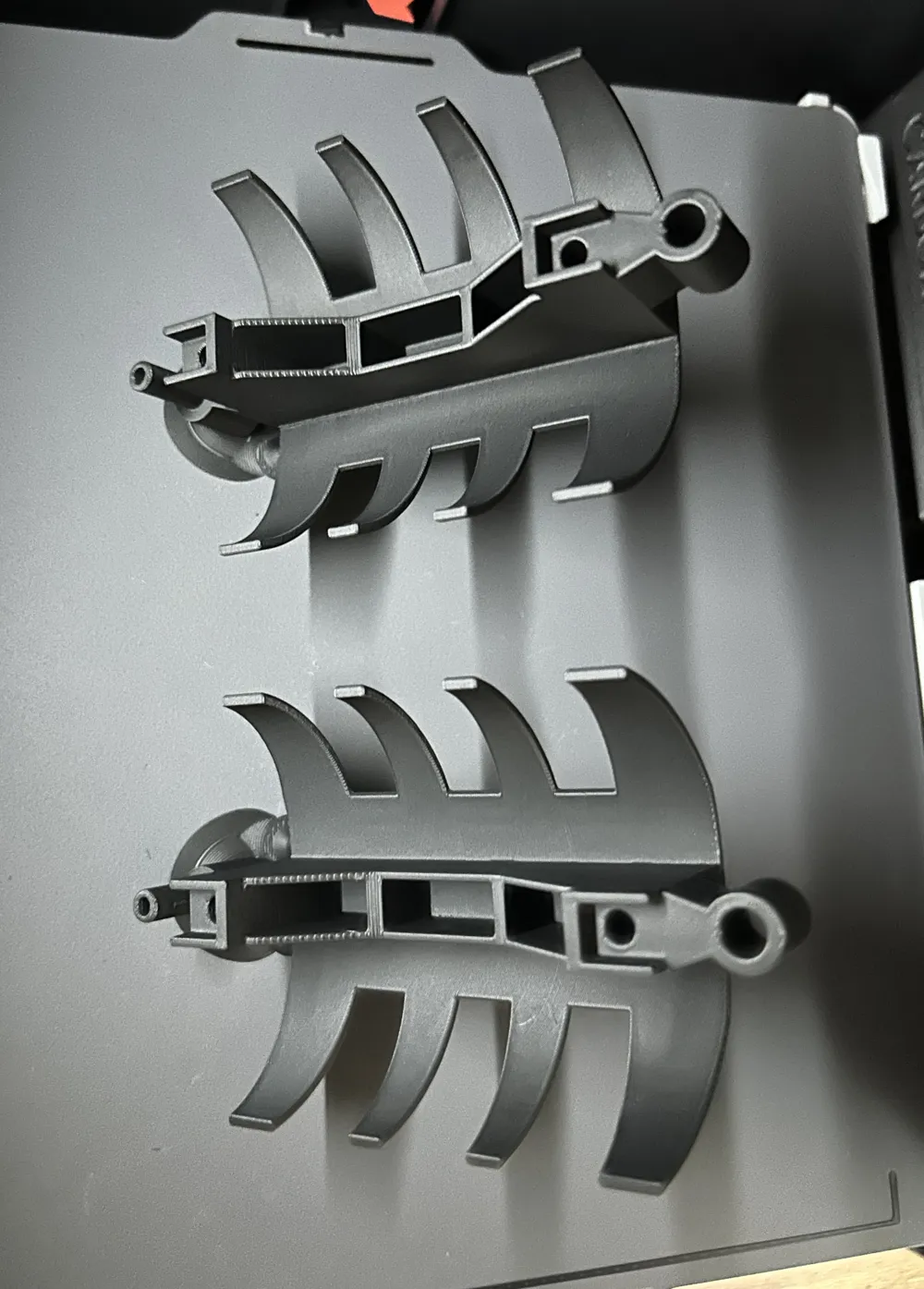

- Print in a 45° angle for better stability of the prongs.
Be aware, that the prongs have to be bent when thicker* cables are installed.
*) The clearance between the prongs and the underside of the table is 9mm shy.
- While PLA works fine for me, you may consider using some filament with better flexibility.
