Description

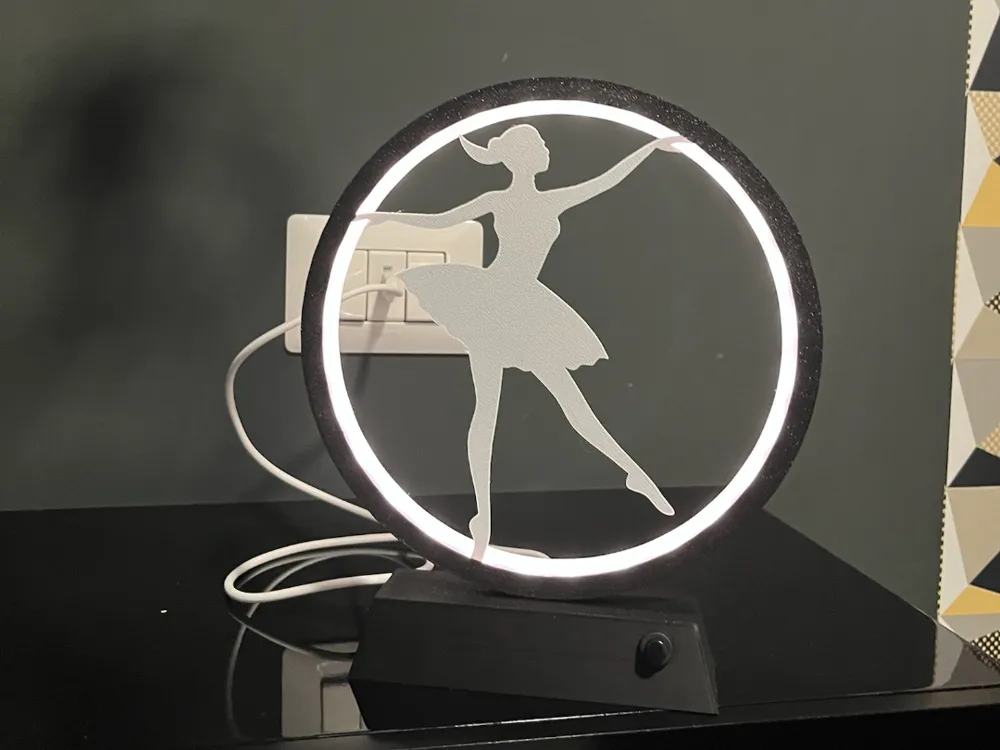

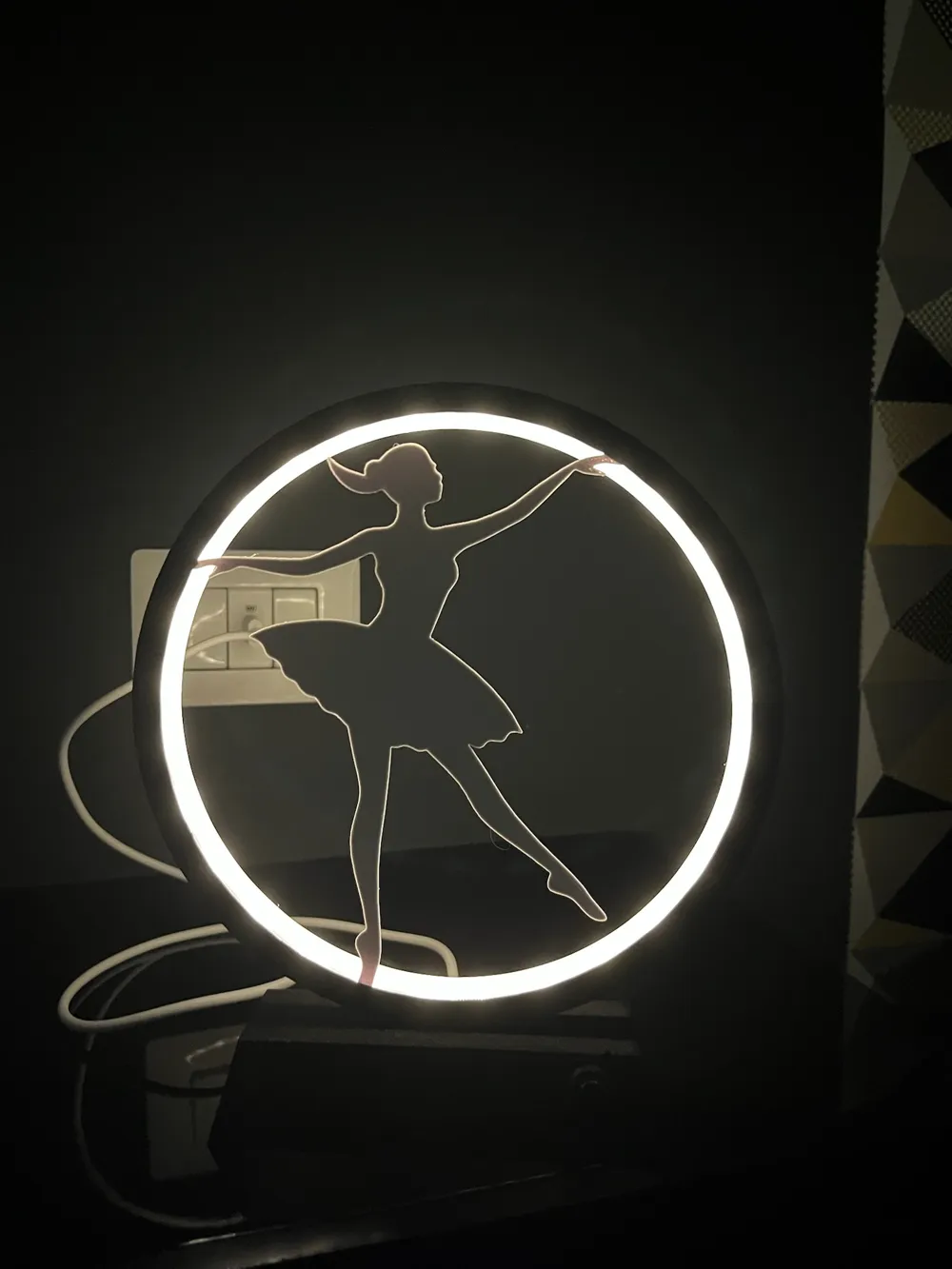

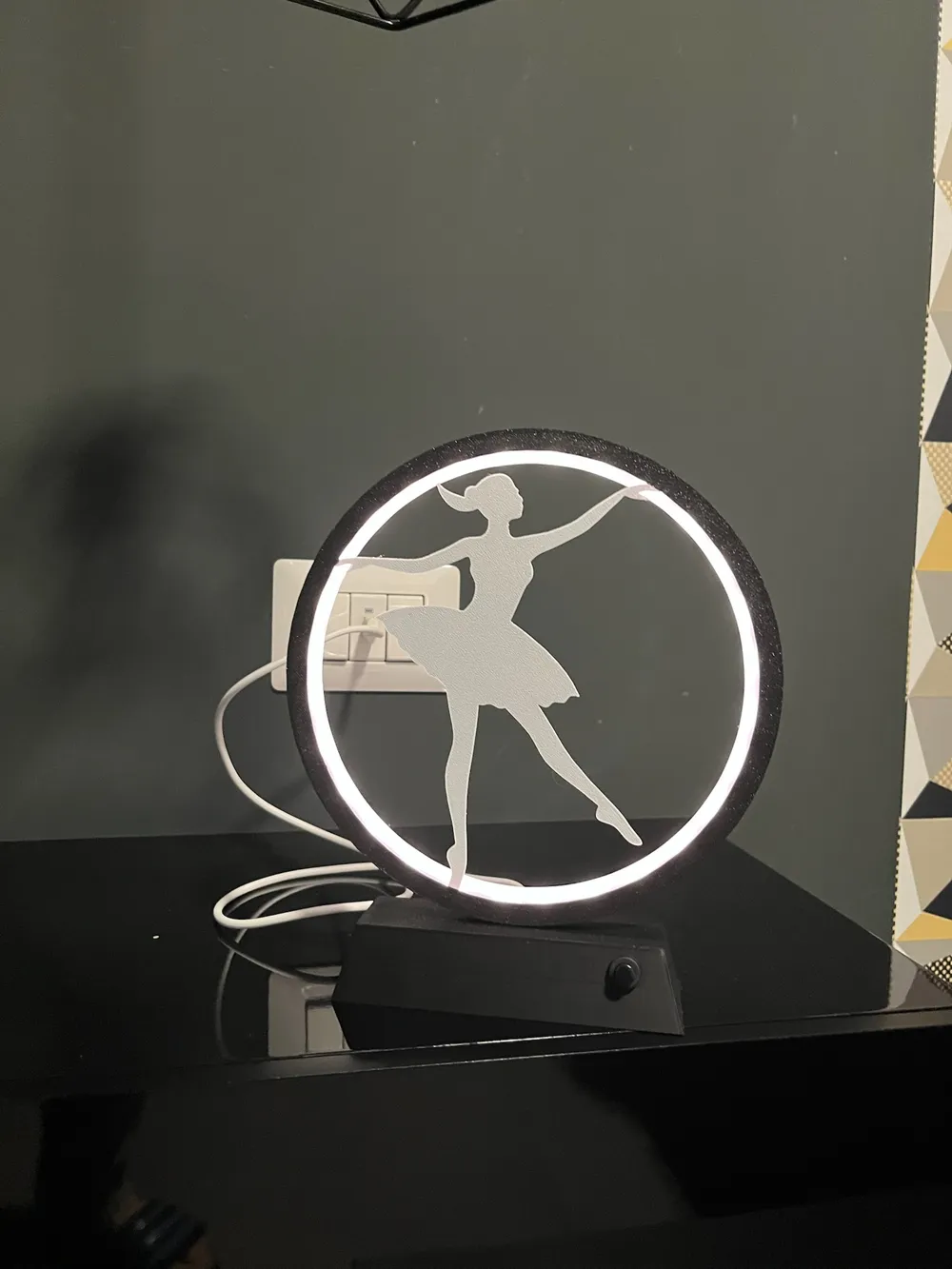

I made this ring lamp dedicated to dance, especially classical ballet.
This model is based on another model of mine dedicated to sacred art, particularly to the Madonna of Lourdes, available at the link:
https://makerworld.com/en/models/2207682-madonna-of-lourdes-lamp#profileId-2399576
In this case, I also added an additional STL for a version with a built-in switch at the base and a USB-C connector.
Assembly is simple and all interlocking.
Additional material:
Adhesive 12V LED strip.
1A, 12V transformer.
On/off switch.
USB-C connector (female)
The electrical part is also very simple.
Let's start:
Print all STLs or simply all files in the print profile.
Glue the LED strip to the main panel starting from the rectangular hole, leaving the initial part with the wires outside.
Fit the main panel into the rectangular base, first inserting the LED strip wires.
Add diffuser and panel with the Madonna.
Electrical part:
After making a small knot in the LED strip wires, pass them through the hole in the inclined base and apply the base closure.
Solder one side of the switch to the positive pole of the LED strip and the other side to the positive of the transformer.
Solder the two negative poles of the switch and the transformer.
For the USB-C variant, it should be connected in a similar way; the USB-C input will replace the transformer.
