Super Mario Mahjong | 144 tiles | Monochromatic or Multicolor Printable

Update Log: 2026.02.13

• Added the traditional Chinese character "東" for "East", which can be replaced or cloned in the print profile (for each individual tile) according to your needs
• Fixed the assembly height issue for single-color printing of Spring Summer Autumn Winter tiles
• Optimized the internal height of the large storage box

Update Log: 2026.02.05

• The storage box for 144 tiles is released!
• The 144-tile box can also be neatly filled, and 4 sets of foldable tile racks have been added (Only one set is arranged on the printing plate, you can clone several sets according to your size for one-time printing)
• The tile rack connections are secured by threading filament of the same color through them
• Added single-color print models for the characters "Red Dragon", "Prosperity" and "Flower Tiles"

Update Log: 2026.01.29

• Flower Tiles released, adding 8 tiles: "Spring, Summer, Autumn, Winter, Plum, Orchid, Chrysanthemum, Bamboo", blue filament is required
• After the update, the Red Dragon and Prosperity tiles are text-based, with Prosperity changed to the more familiar traditional character "發"
• Multi-color printing is divided into 136 and 144 tiles; currently, the box can only hold 136, the 144-tile box will be updated later!
• A1 mini can now print the box for 136 tiles!
• Optimized the multi-color layer height

Update Log: 2026.01.24

• Adjusted the last plate for multi-color printing, splitting 5 colors into two plates for printing
• Supplemented the missing red mushroom part for single-color printing

Update Log: 2026.01.18

• Added single tile print profile
• Fixed the layer shifting issue for the first two rows of Dots in multi-color printing
• P1S, P1P, X1, X1C, and X1E can directly multi-color print using the A1 mini print profile

With every holiday season, it's time for mahjong again!

Now that there are more relatives and children back home, I wanted to use this competition to create a mahjong set I love to take back to play or give as a gift!

Naturally, I thought Super Mario would be very suitable to be transformed into a mahjong style that both adults and children would love, although it might clash

I still want to share ideas that I find interesting for everyone to experience and enjoy!

For better printing results, a better playing experience, and practicality

I spent more time and effort modifying multiple versions of the design and printing parameters, and finally completed a more satisfactory version, I hope you like this work too



First, I hope this mahjong set must allow for tactile identification of tiles, as feeling the tiles is one of the joys of mahjong

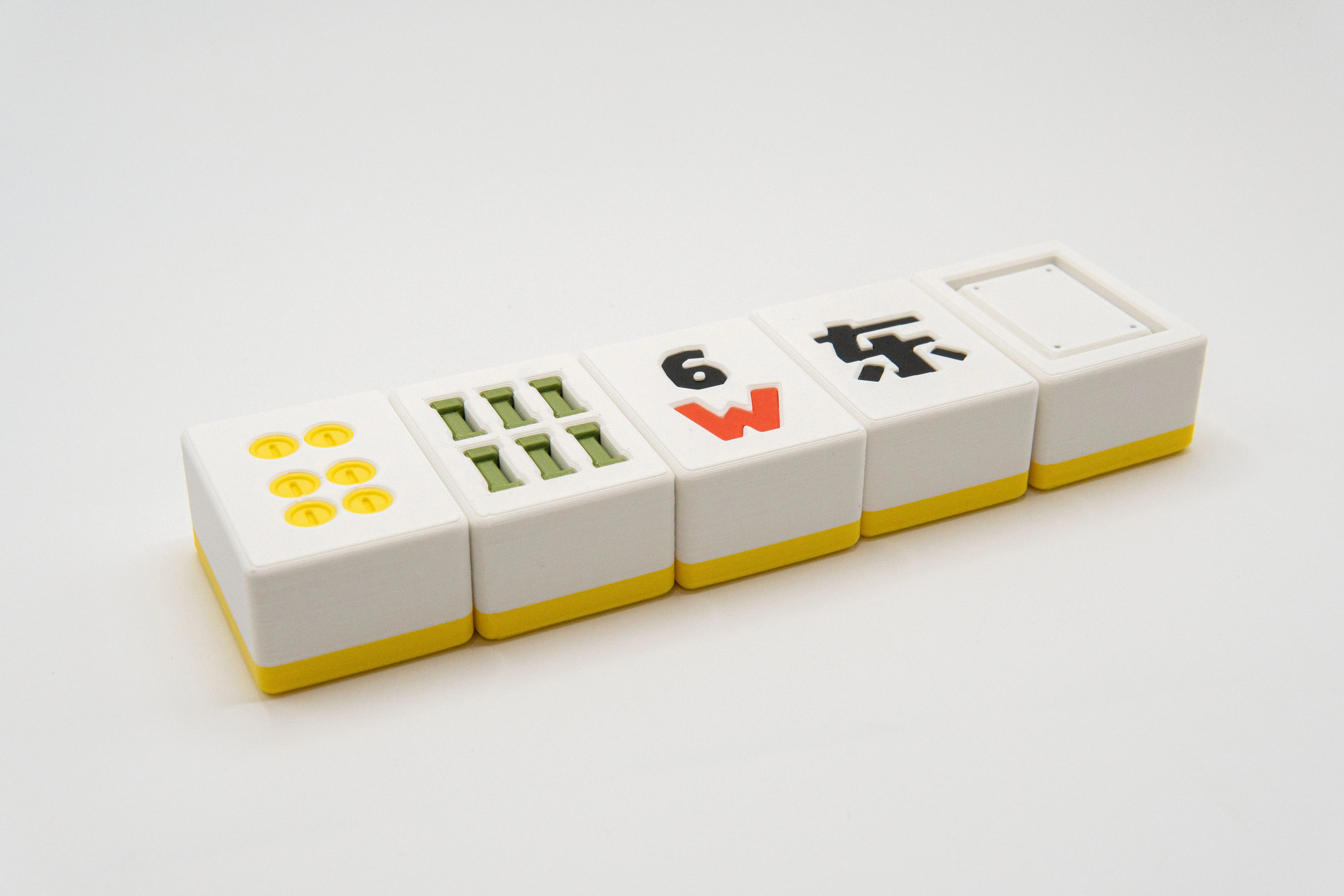

Therefore, I made a distinct concave design on each tile. Even without looking, you can still feel the tiles and win after getting familiar with them

Then, the patterns on the front of the tiles were changed to Super Mario content, but you can still intuitively recognize the original attributes of the tiles

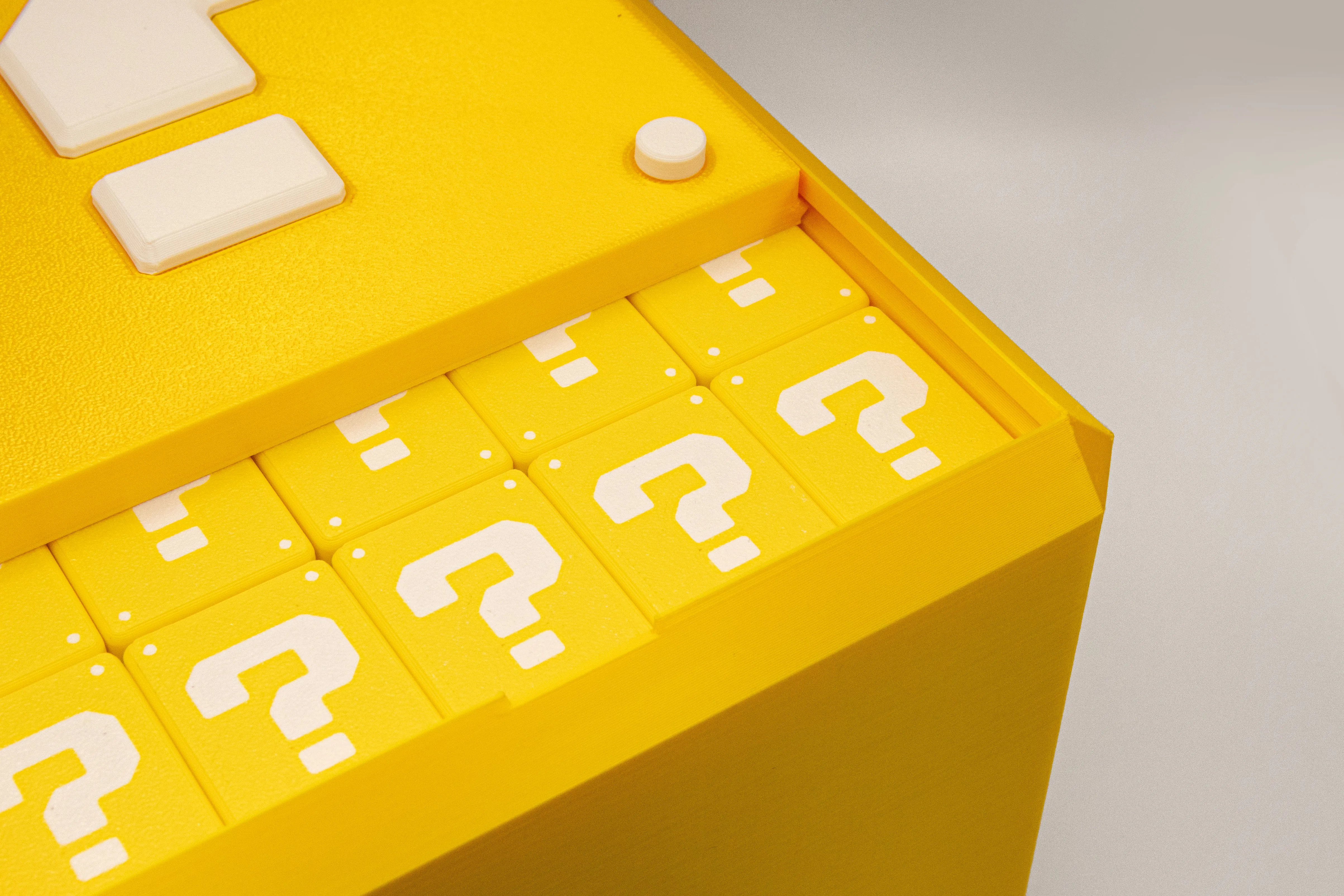

The back features the classic question mark pattern from Super Mario, symbolizing his attempts at unknown outcomes

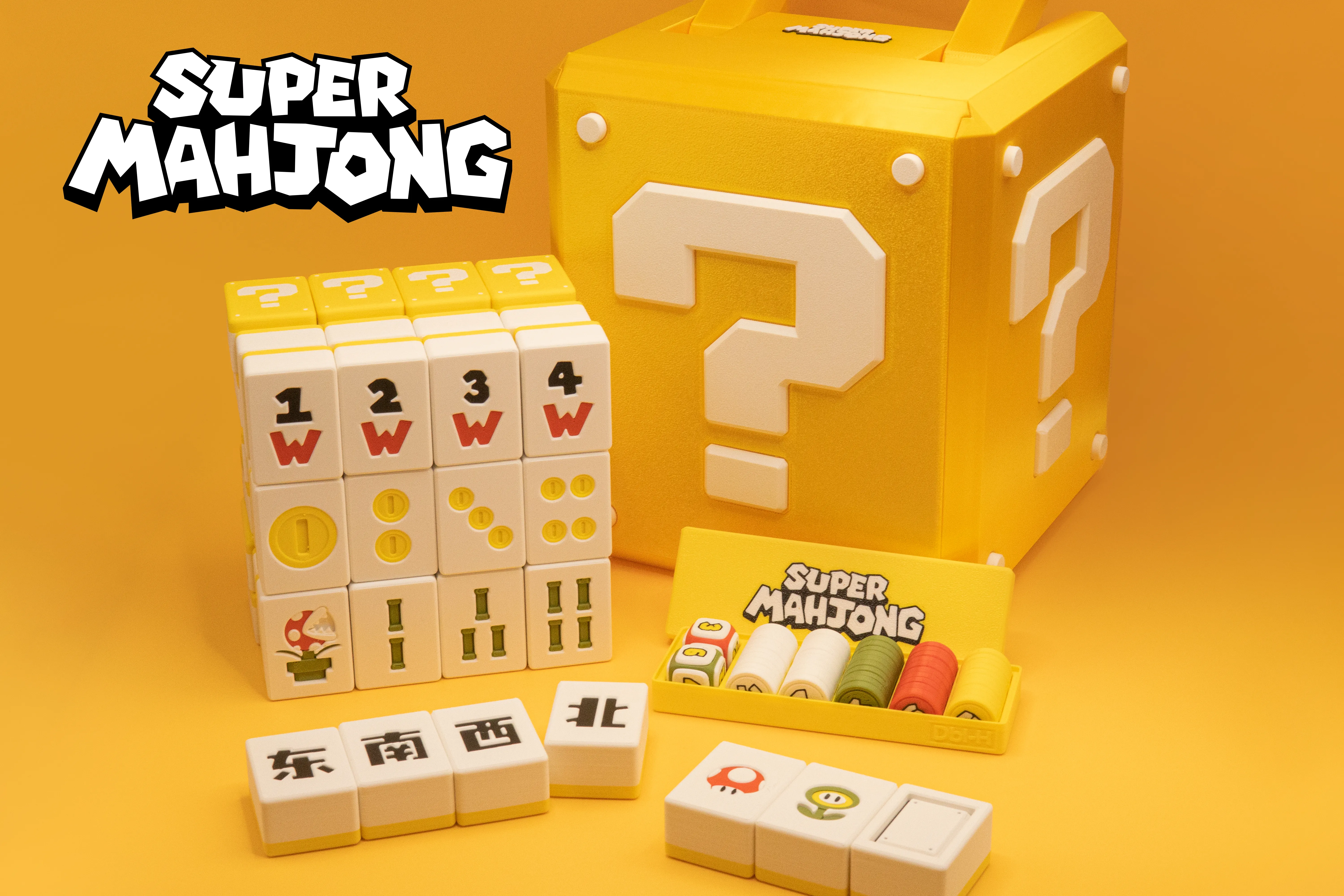

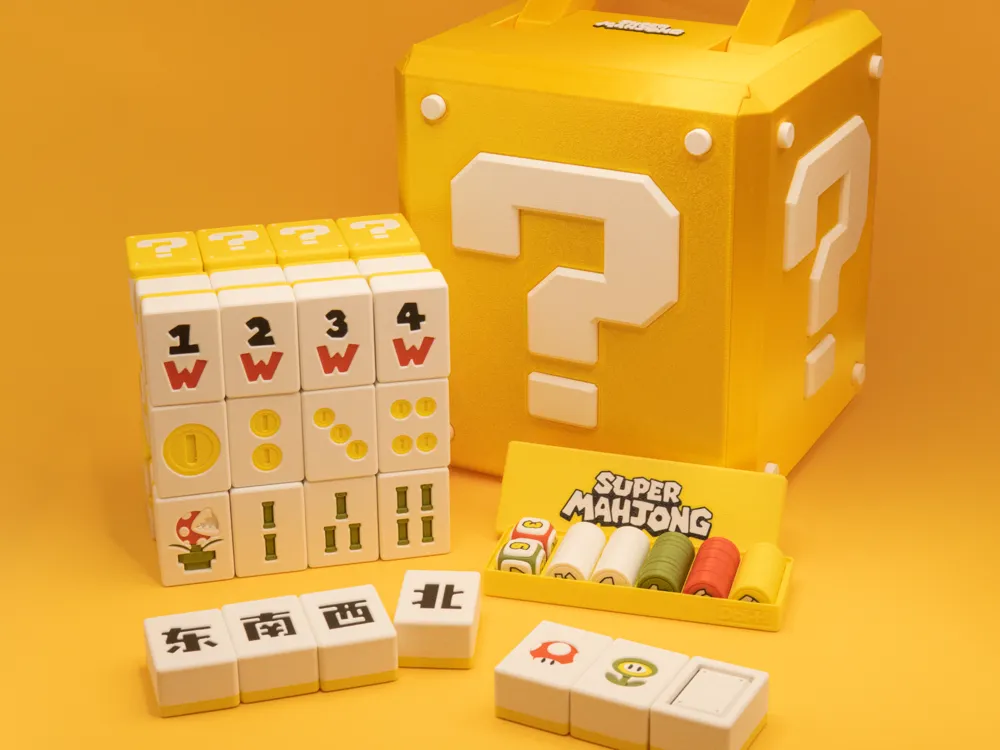

This mahjong set includes a total of 136 tiles, two dice, and several scoring tokens. It also comes with a dedicated storage box kept inside the larger case

(A1 mini print size available)

Each mahjong tile measures 29x39x20mm

After the update, the mahjong tiles are available in 136-tile and 144-tile sets

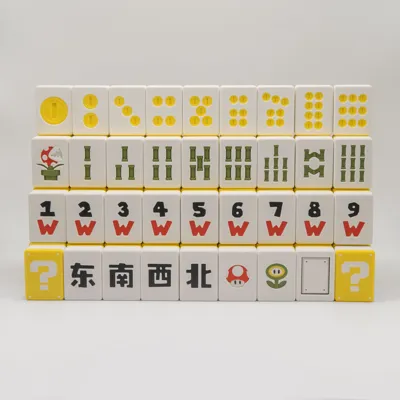

Tile Comparison:

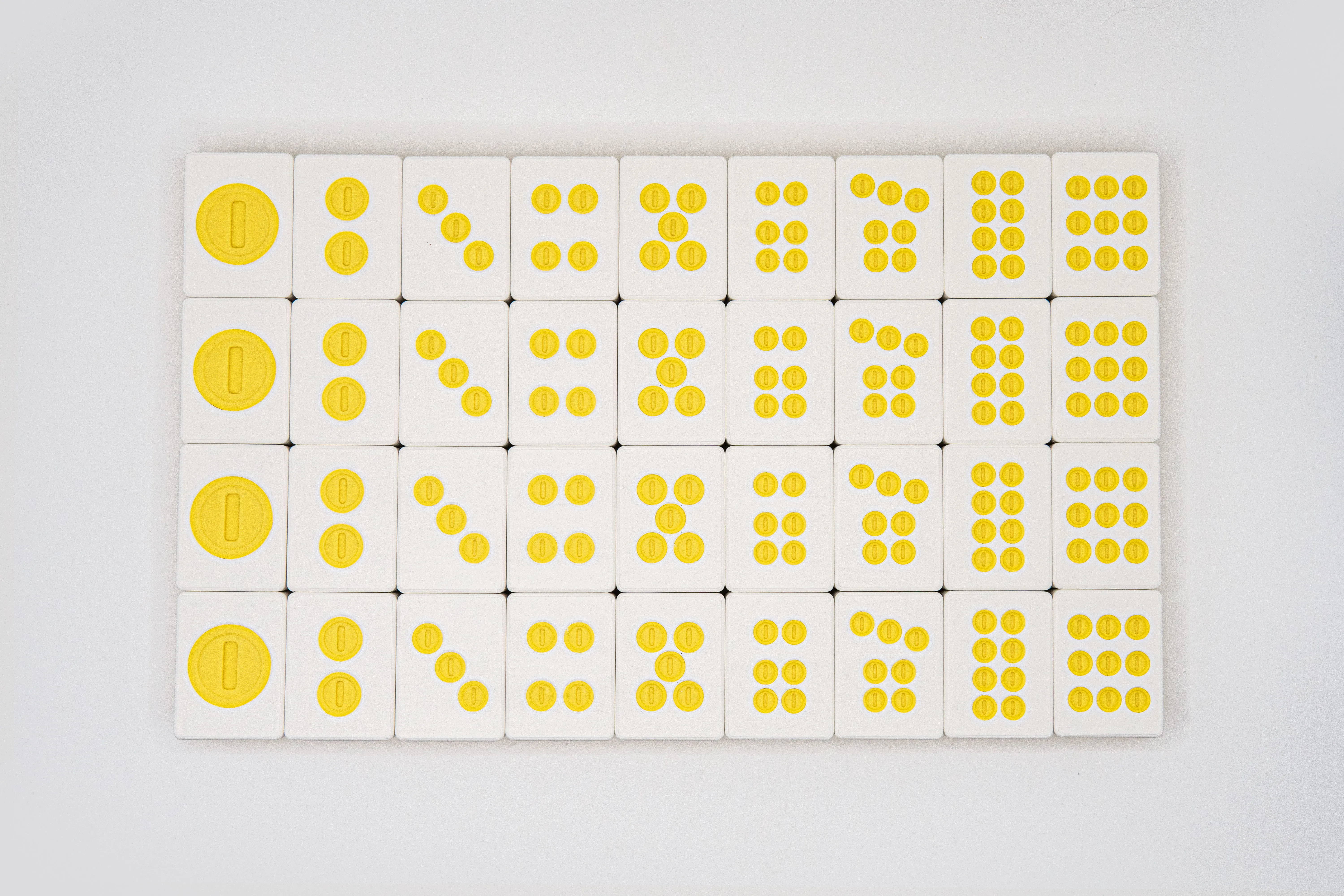

1-9 Dots/Circles

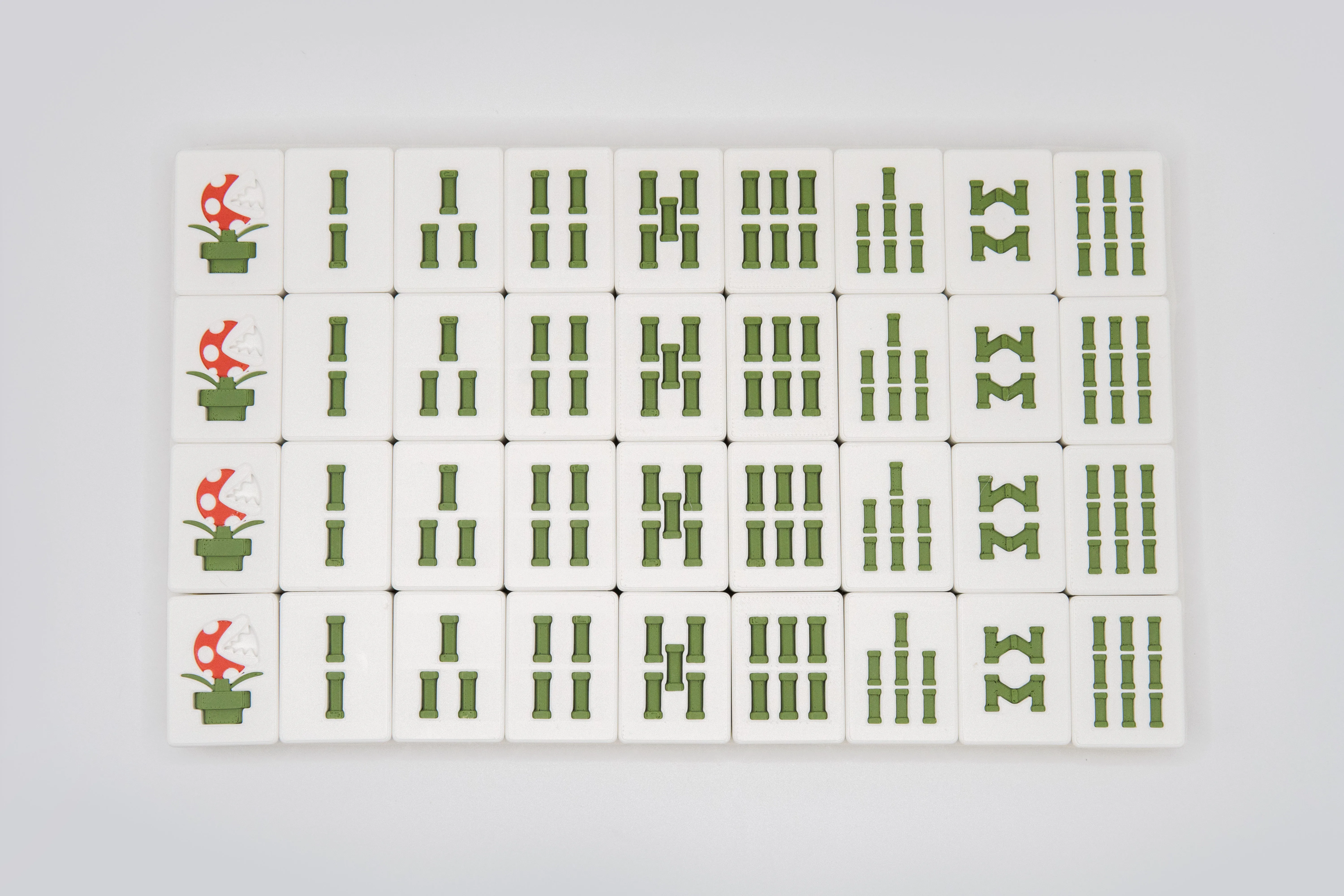

1-9 Bamboos/Strings

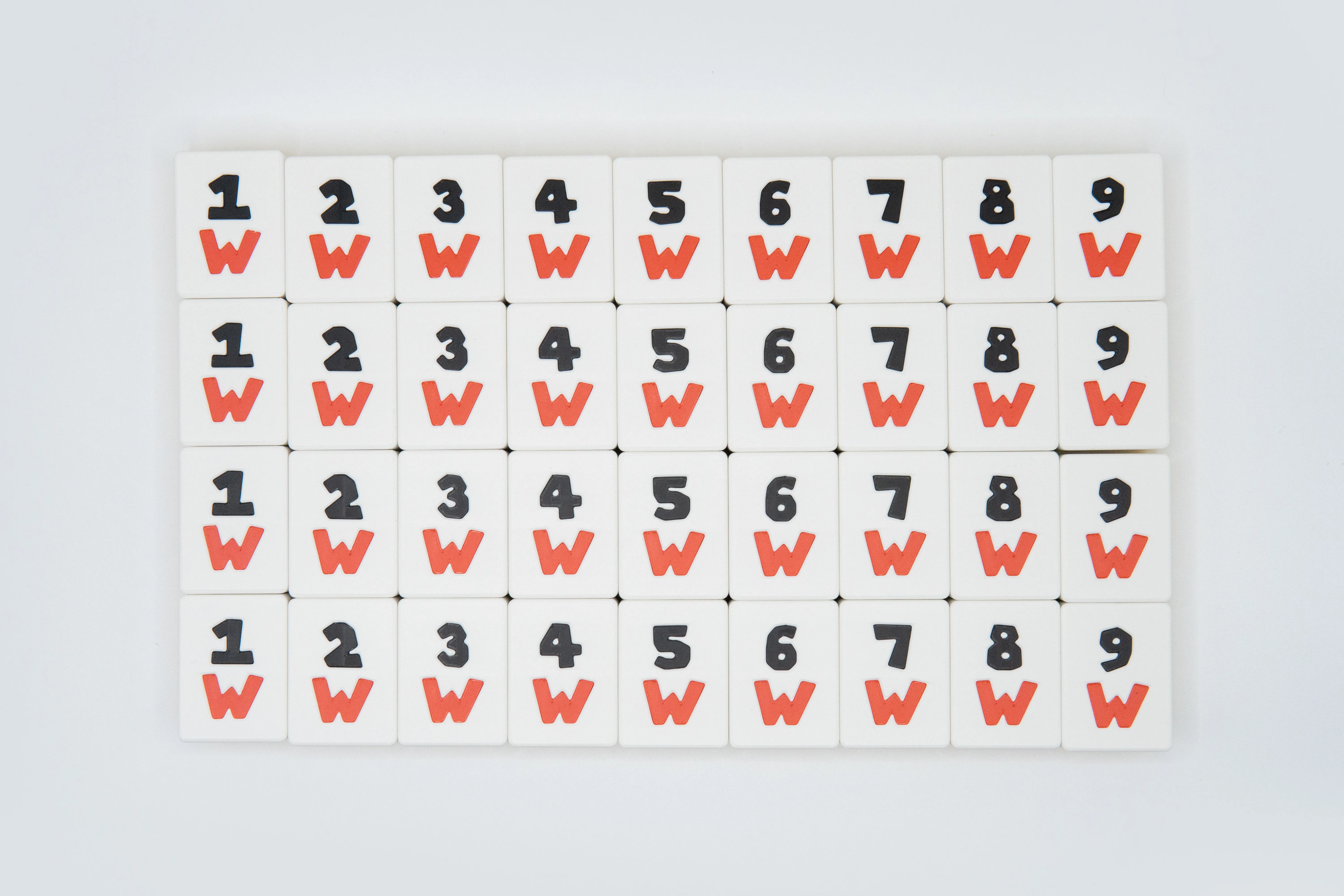

1-9 Characters

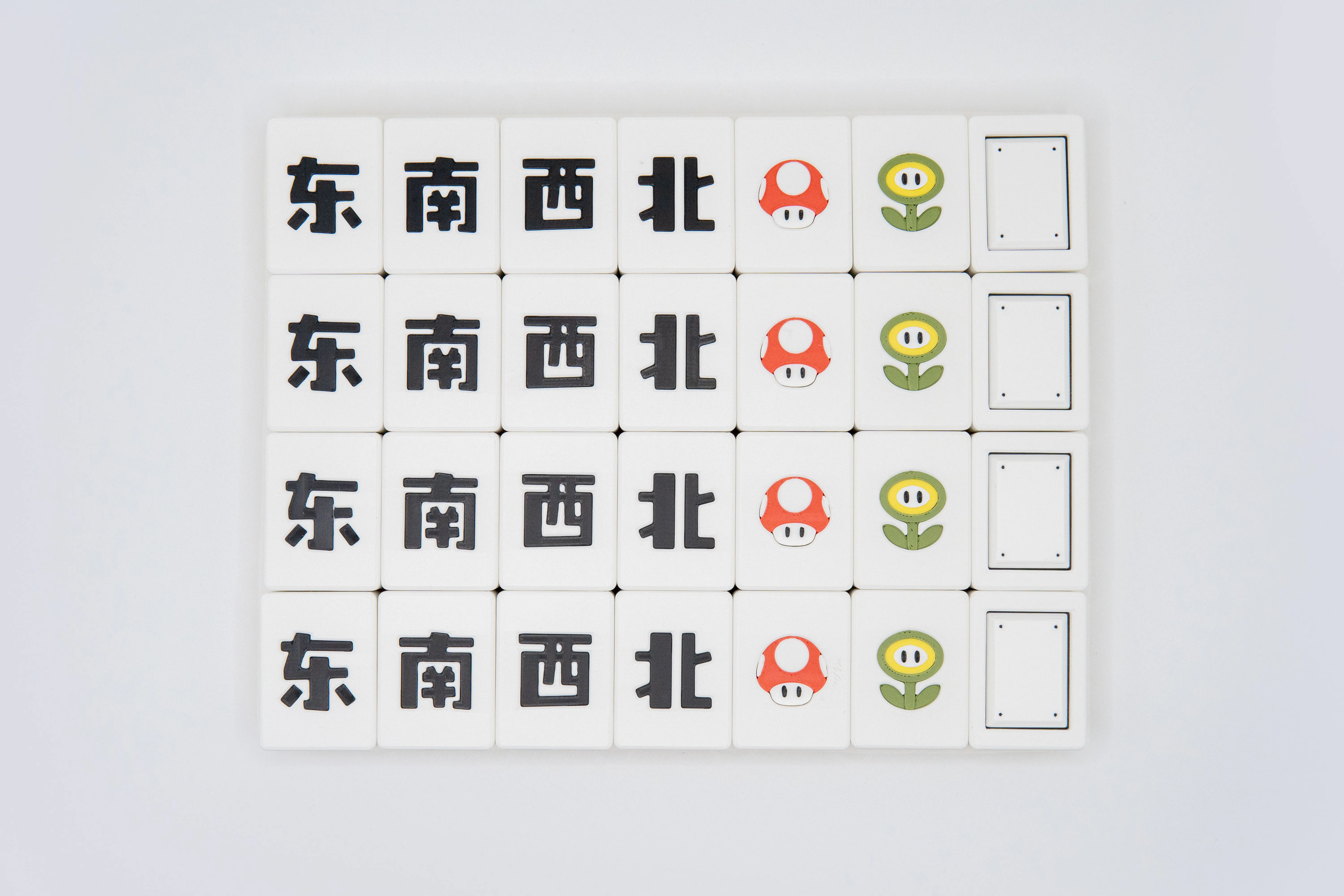

Honor Tiles

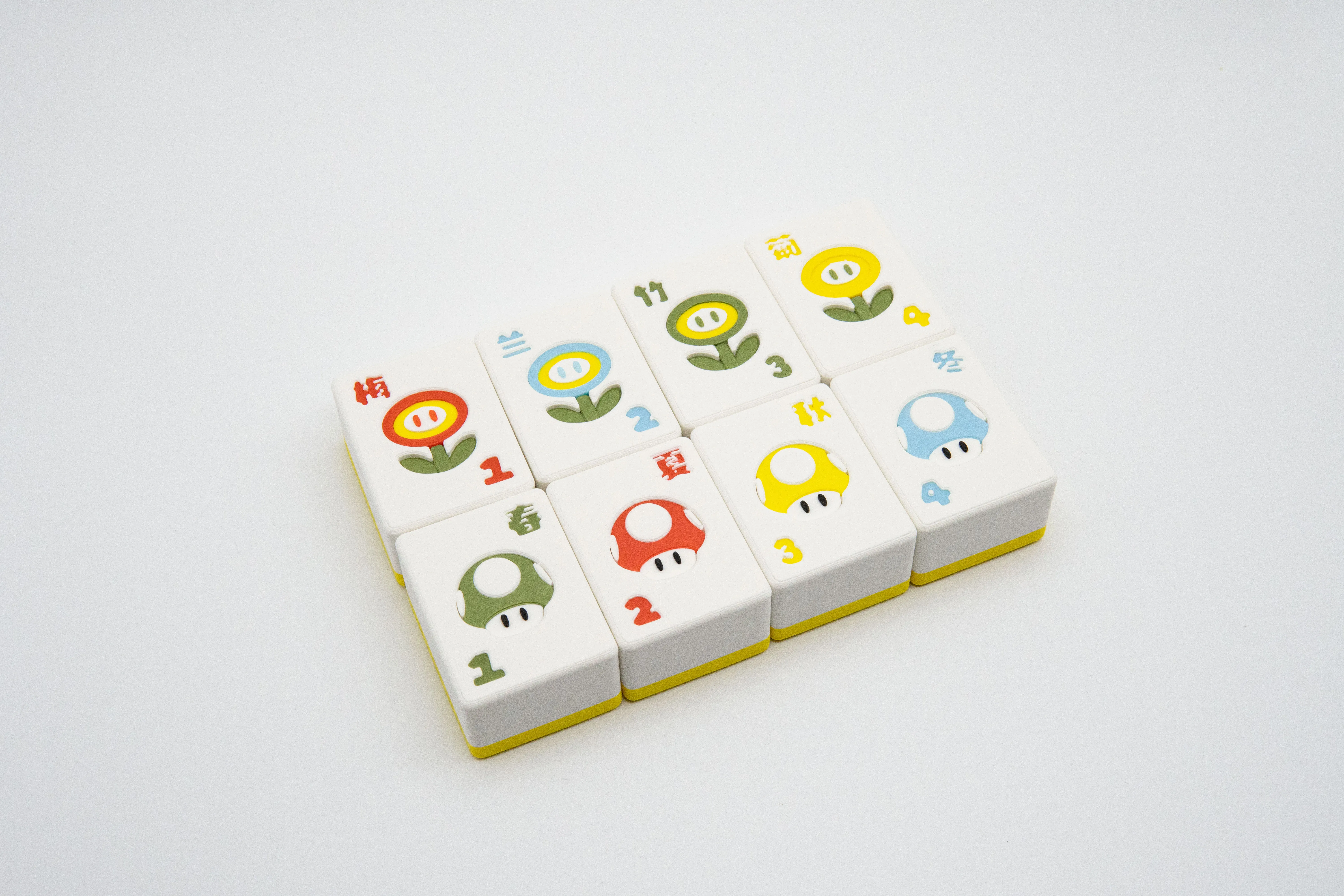

Flower Tiles

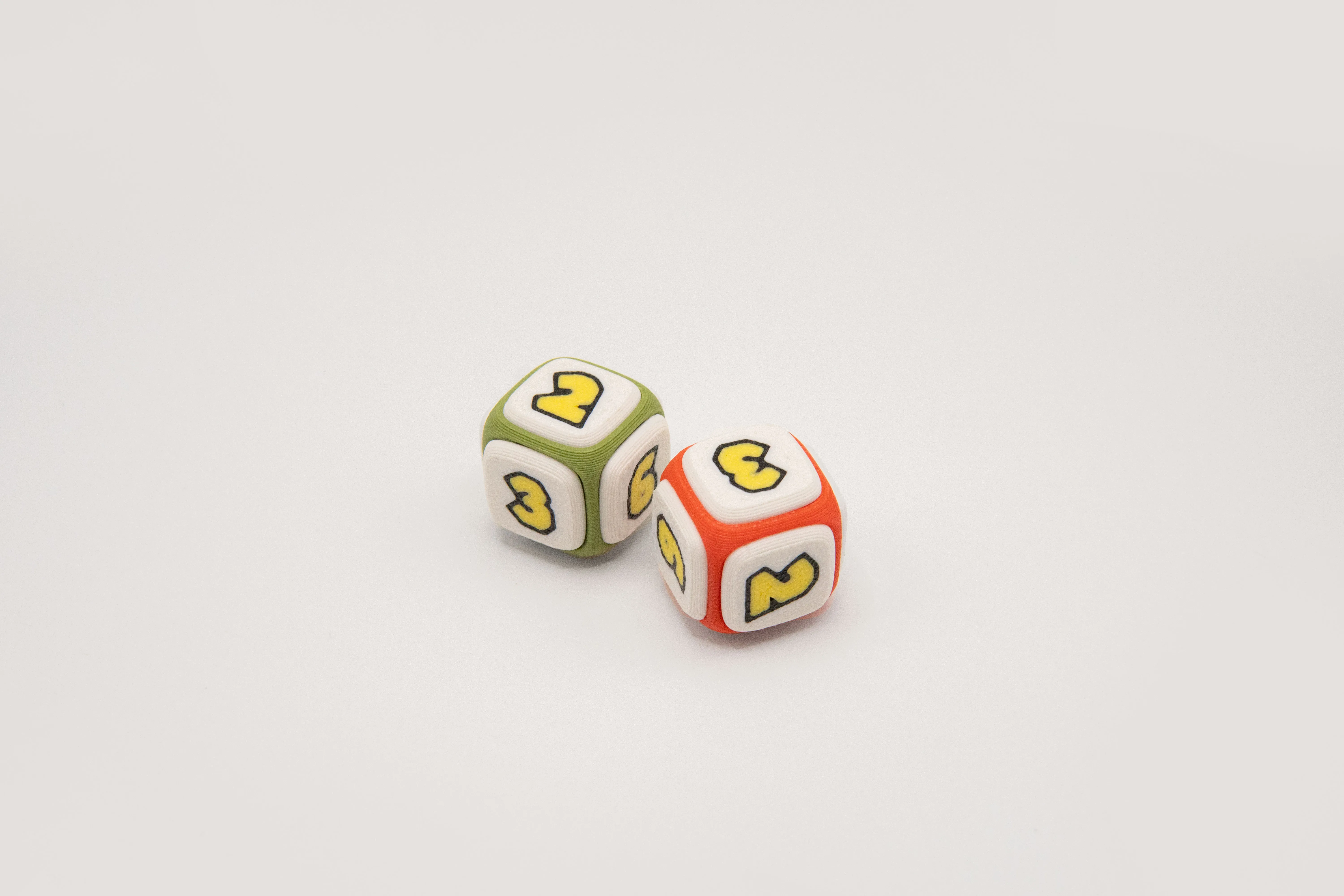

Dice:

The dice have been re-modeled and designed to better fit the Super Mario theme. They come in red and green color schemes, one of each

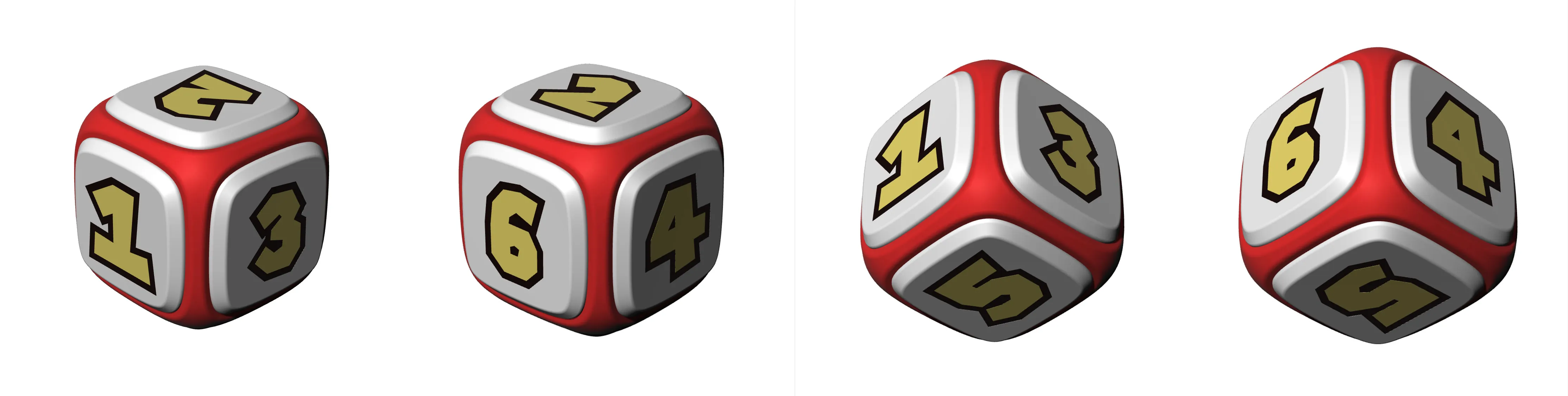

Reference for the corresponding positions of each face of the dice

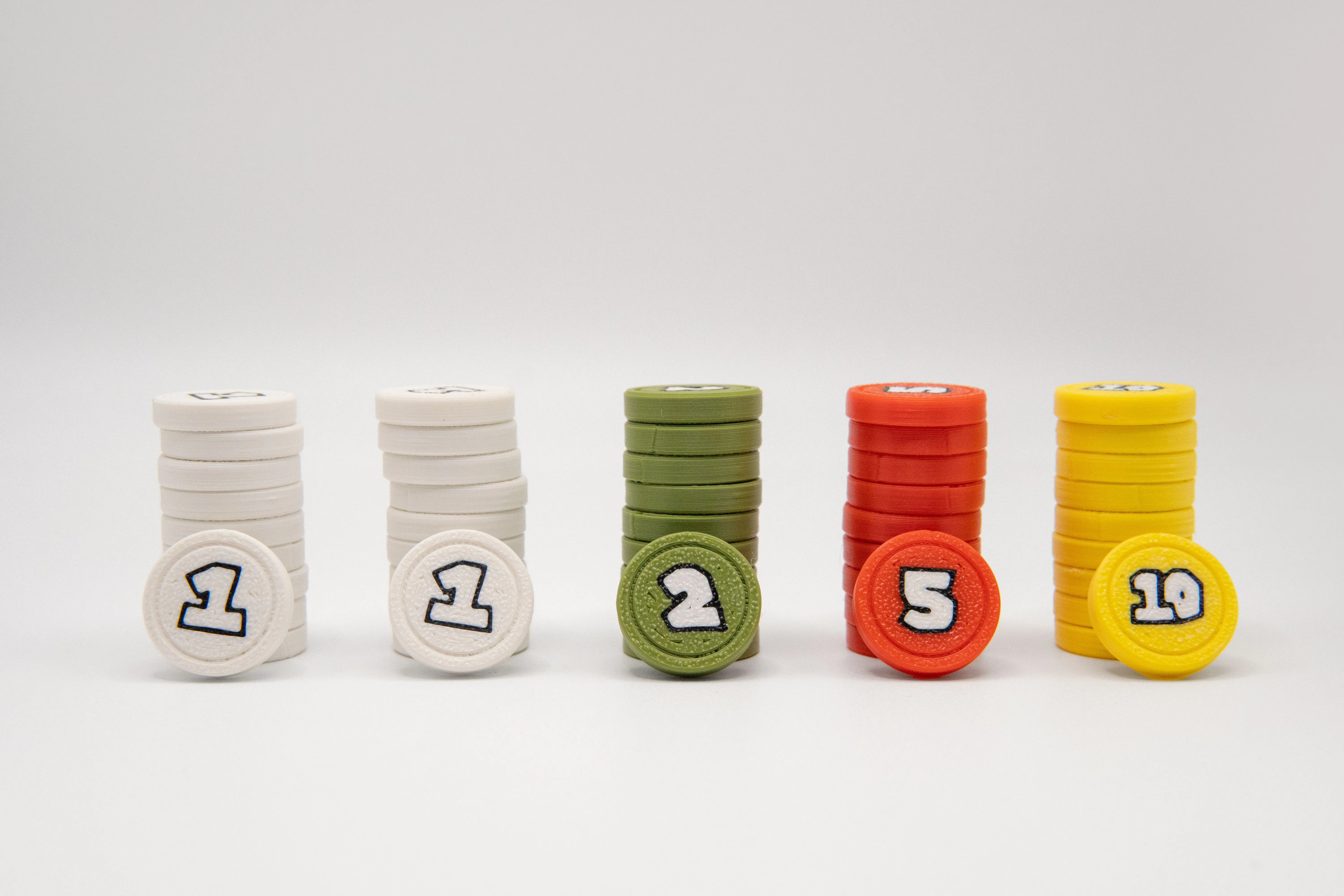

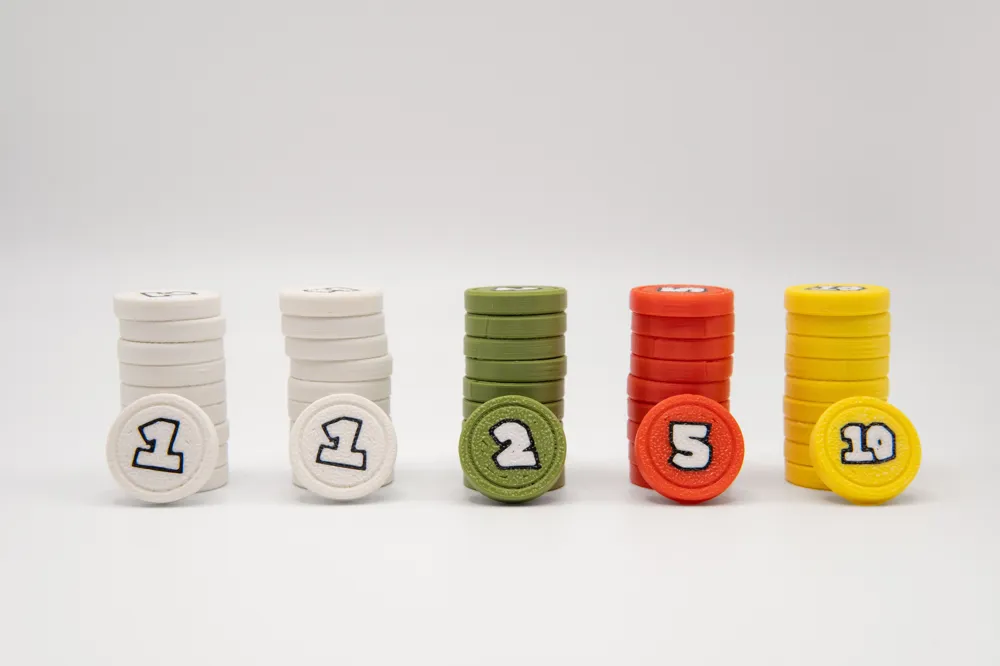

Tokens:

Respectively: 1 point, 2 points, 5 points, 10 points

White = 1 point; Green = 2 points; Red = 5 points; Yellow = 10 points

There are a total of 50 tokens, 20 for 1 point, and 10 each for the rest

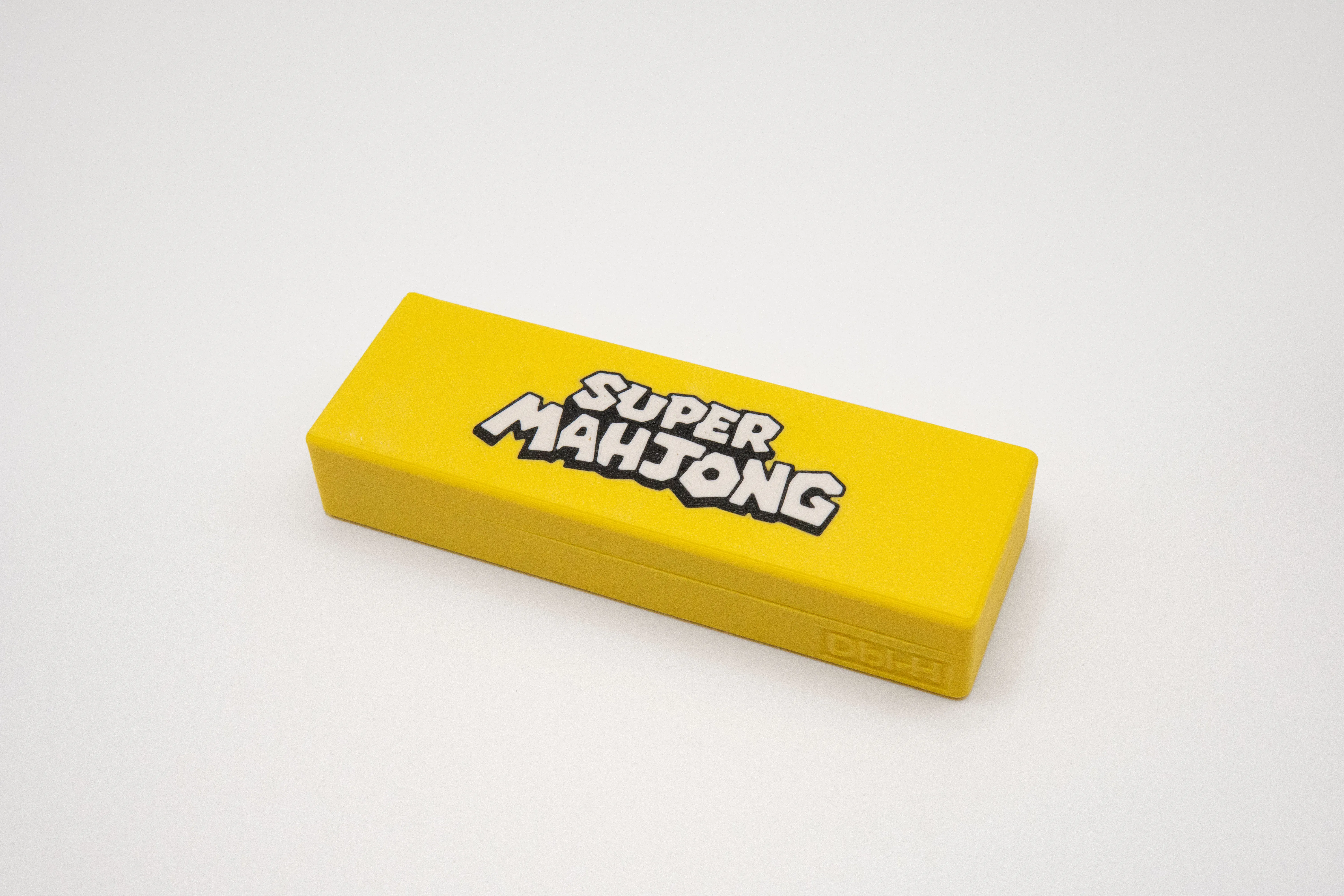

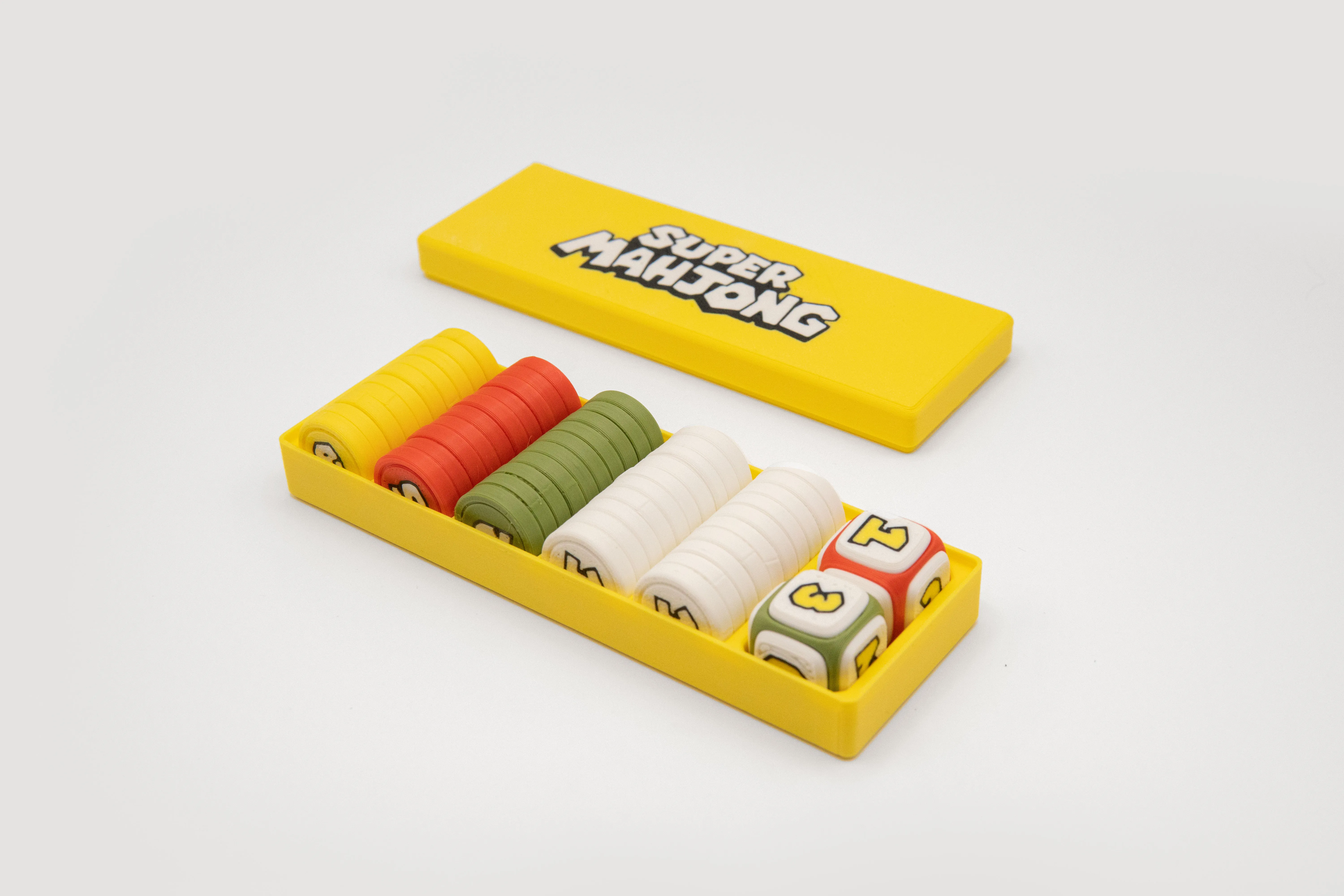

Both the dice and tokens are designed with boxes for storage

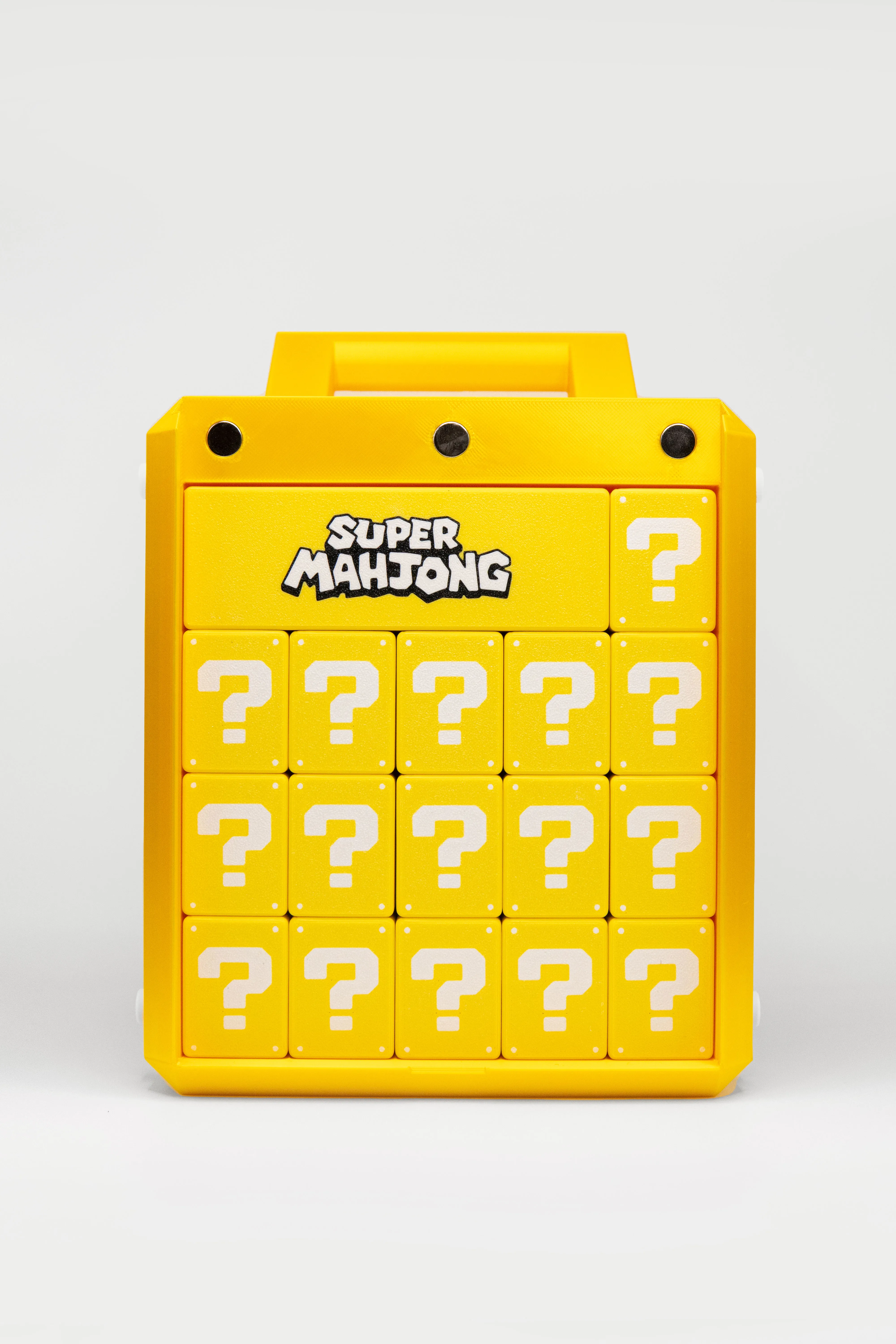

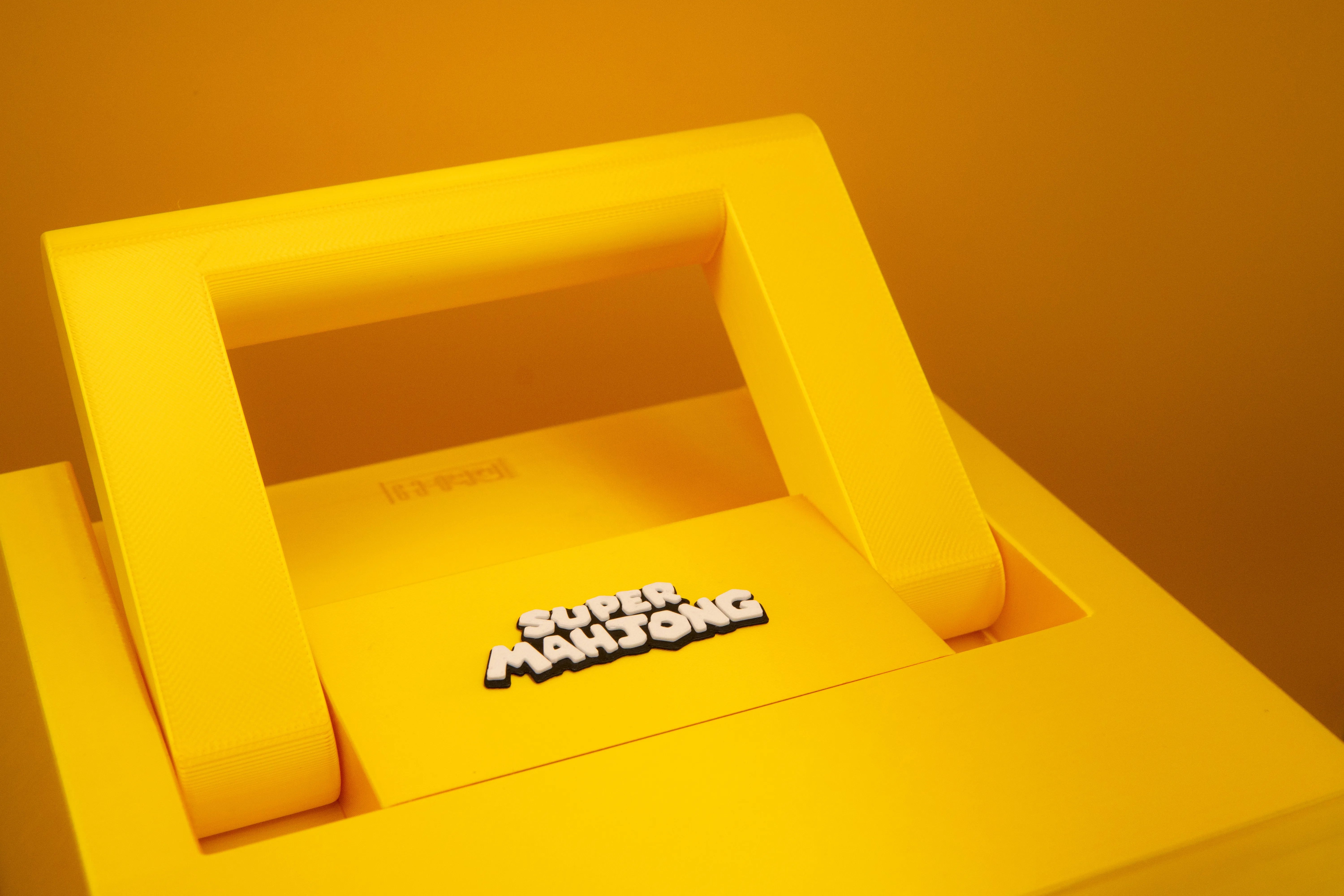

Along with the 136 mahjong tiles, they are stored in a large case. The large case is designed with a handle for easy carrying of the entire set

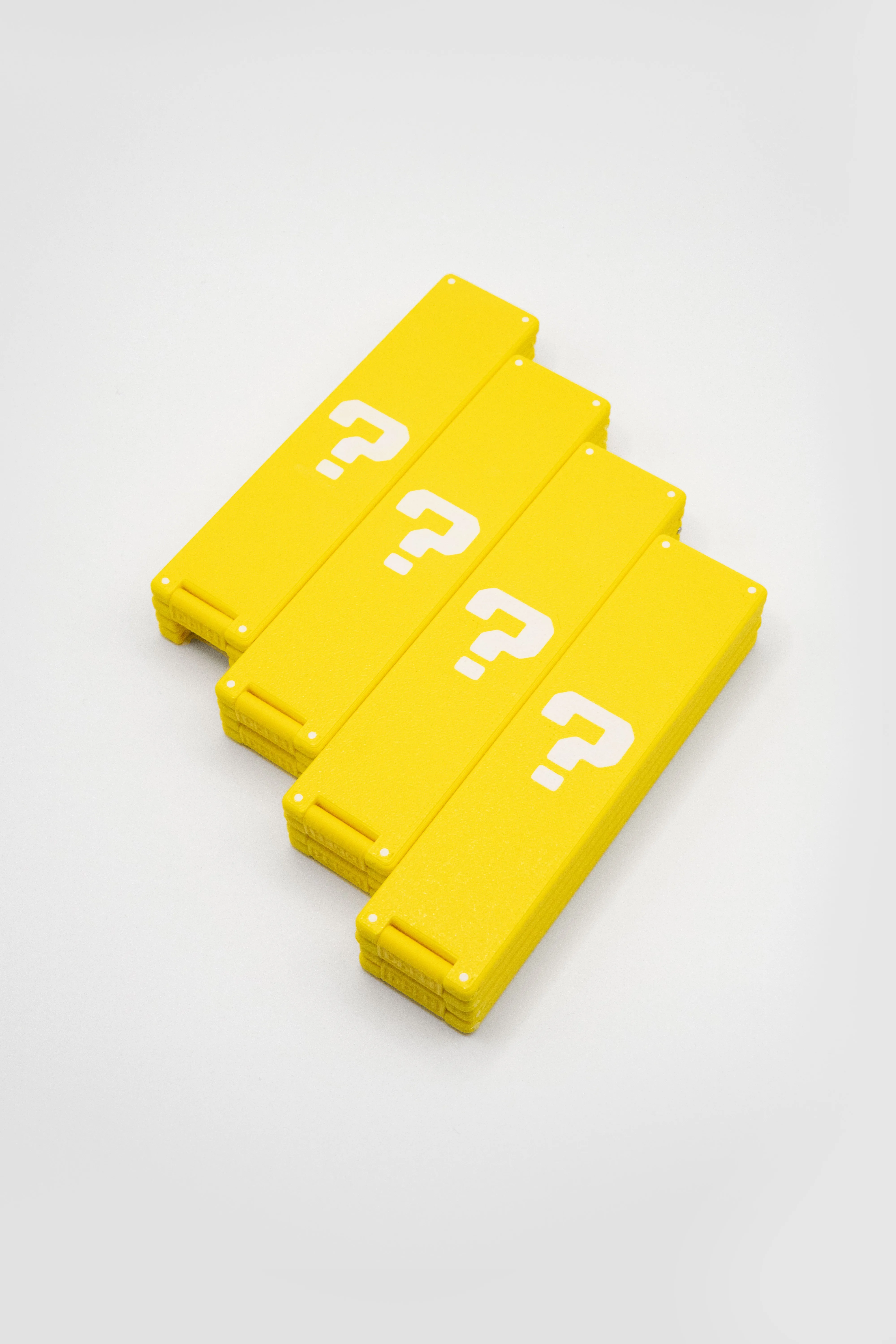

Tile Racks:

4 sets of foldable tile racks that can be stored in the case, only suitable for the 144-tile case

The tile rack connections are secured by threading filament of the same color through them

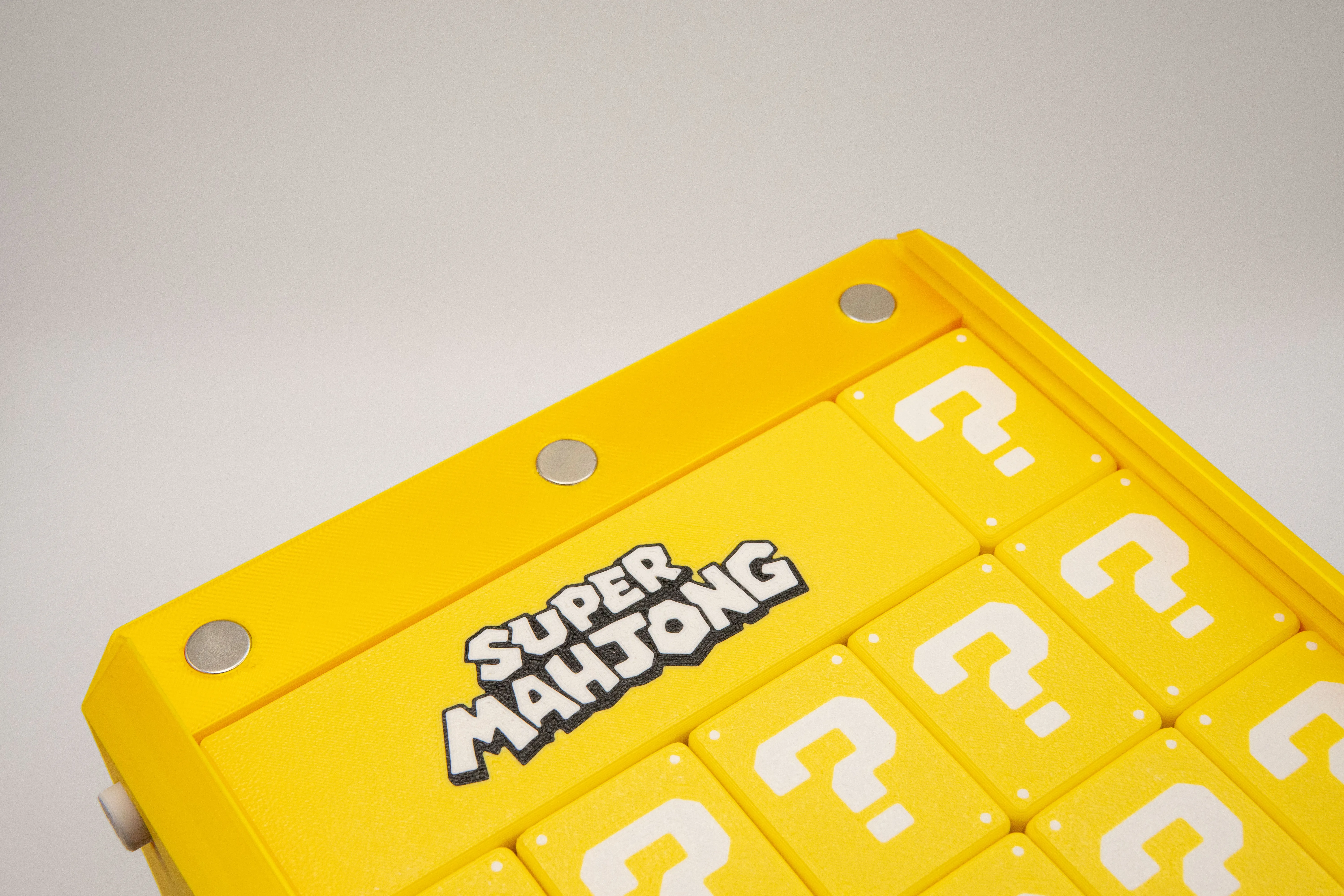

For a better experience and durability, the case requires:

Magnets (10*2) x6

Socket Head Screws (M6*35) x2

Of course, you can also print 3D printed long pins; the case can still close without magnets

To achieve a good feel, infill densities from 15-60% were tested in multi-color printing. Balancing feel and cost,

an infill density of 30% is, in my opinion, the best choice. Of course, higher densities also provide a sense of weight

Filament selection:

Most importantly: for white filament, please choose Bambu PLA Lite texture. After surface ironing, it has a fine and smooth feel!

Filament list:

White Bambu PLA Lite 16103 *2

Yellow Bambu PLA Lite 16400

Dark Green Bambu PLA Matte 11501

Red Bambu PLA Lite 16200

Black Bambu PLA Lite 16100

Blue Bambu PLA Lite 16600

(Case) Silk Gold Bambu PLA Silk+ 13405

This mahjong set can be printed in single color or multi-color with AMS, using different print profiles. Please check carefully before downloading and printing

Single-color requires super glue for adhesion and involves more assembly, multi-color printing is recommended. Multi-color requires no assembly or supports; just collect and play

If you feel the printing time is too long, you can print at 125% speed; my tests show no issues with the results

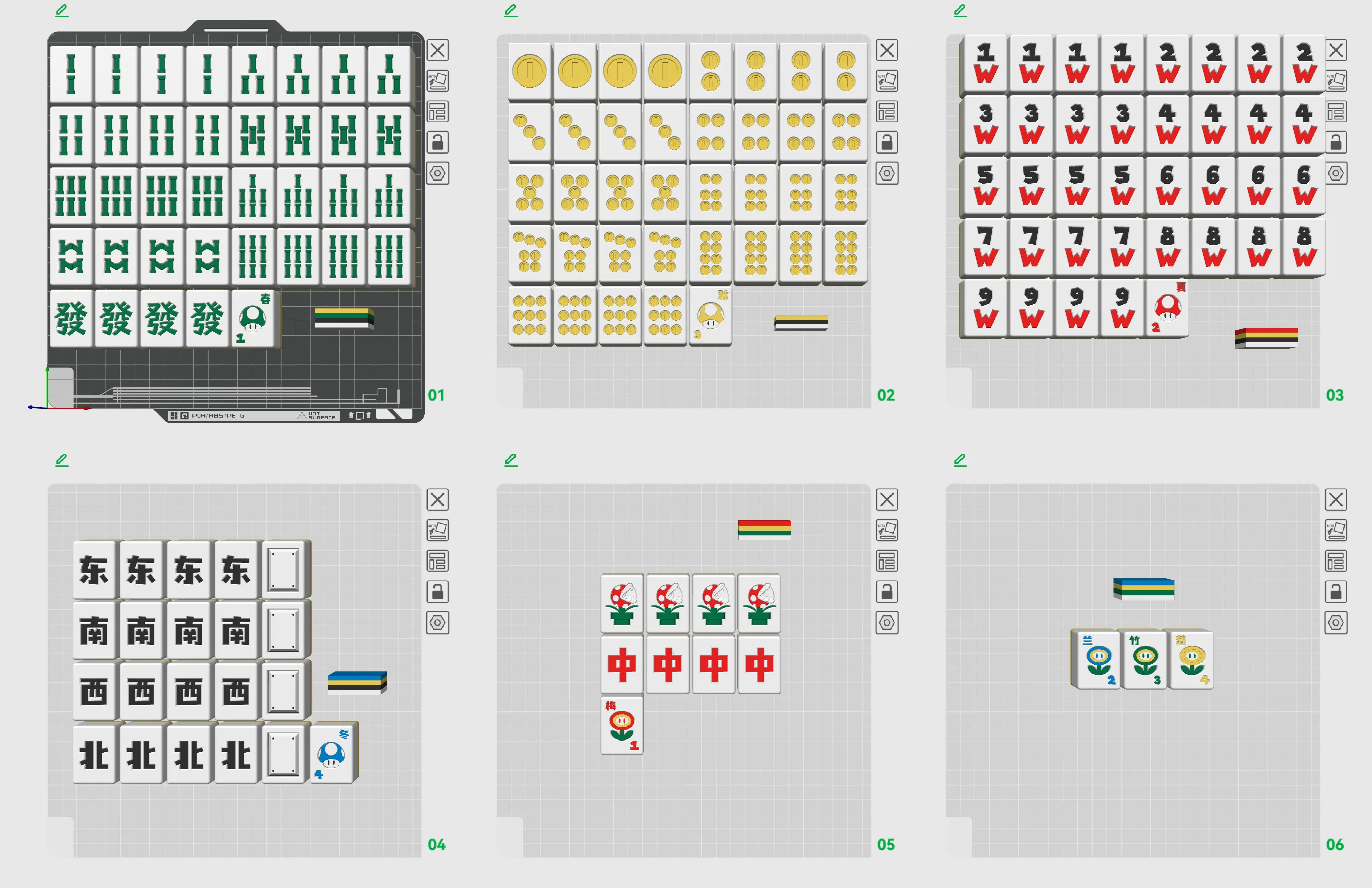

The quantity and positions of 136 tiles are already arranged (including for A1 mini); just download and start printing

Get your filament ready and give your idle 3D Printer a workout😁
