Bolsonaro Urban

READ BEFORE PRINTING:

ANY PROBLEM YOU HAVE WITH THE PART OR SUGGESTION FOR MODIFICATION, PLEASE LET ME KNOW

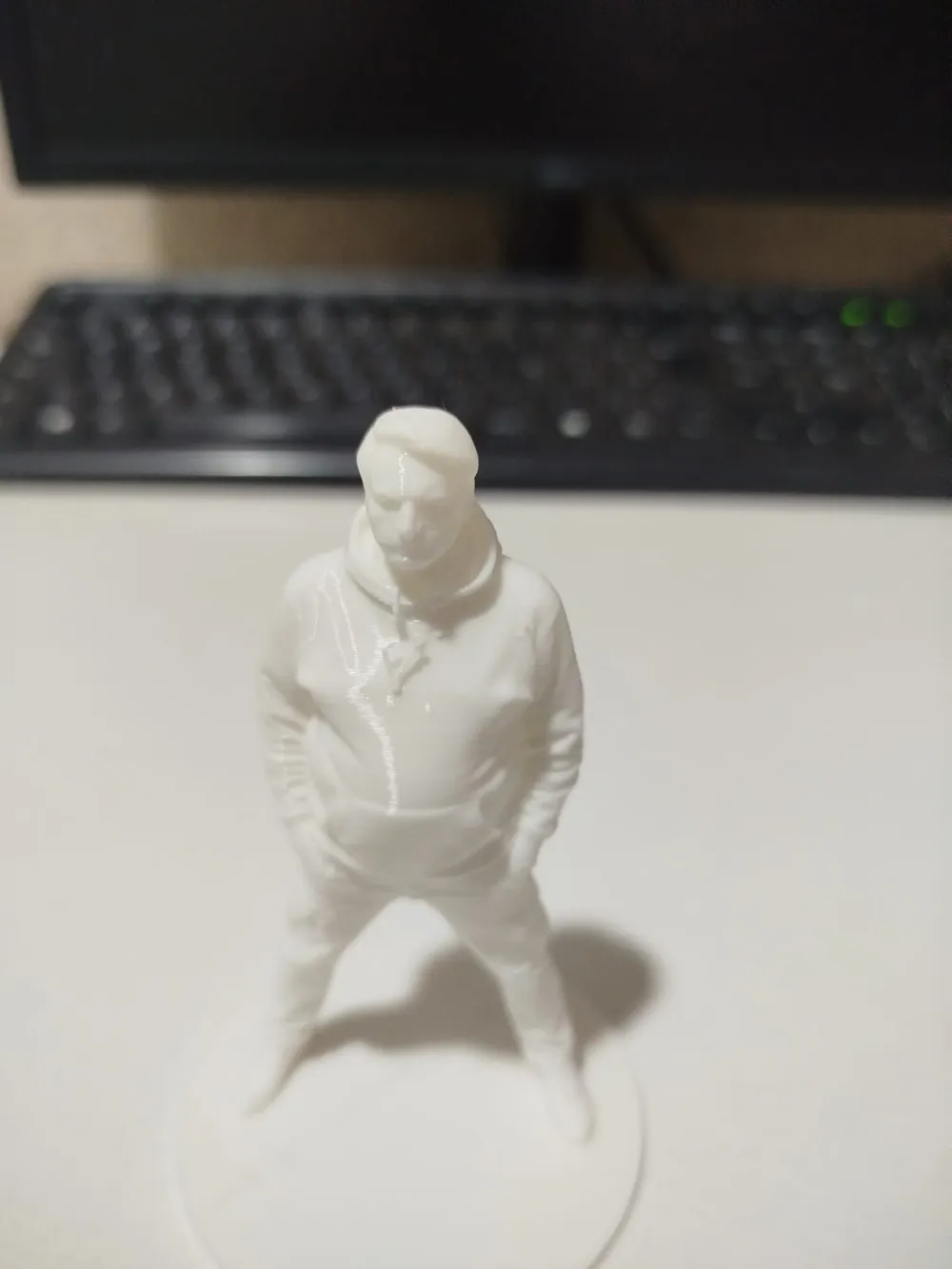

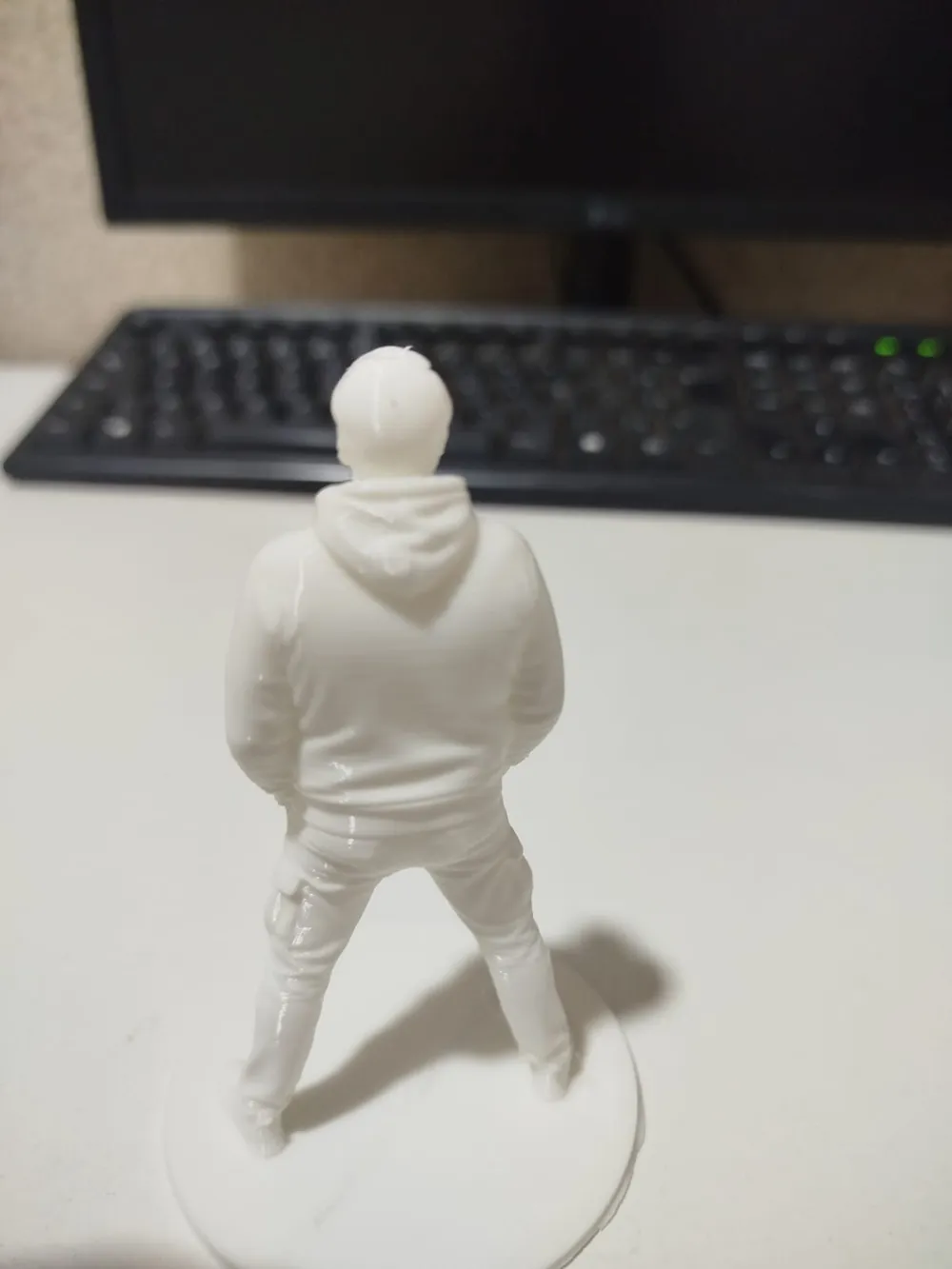

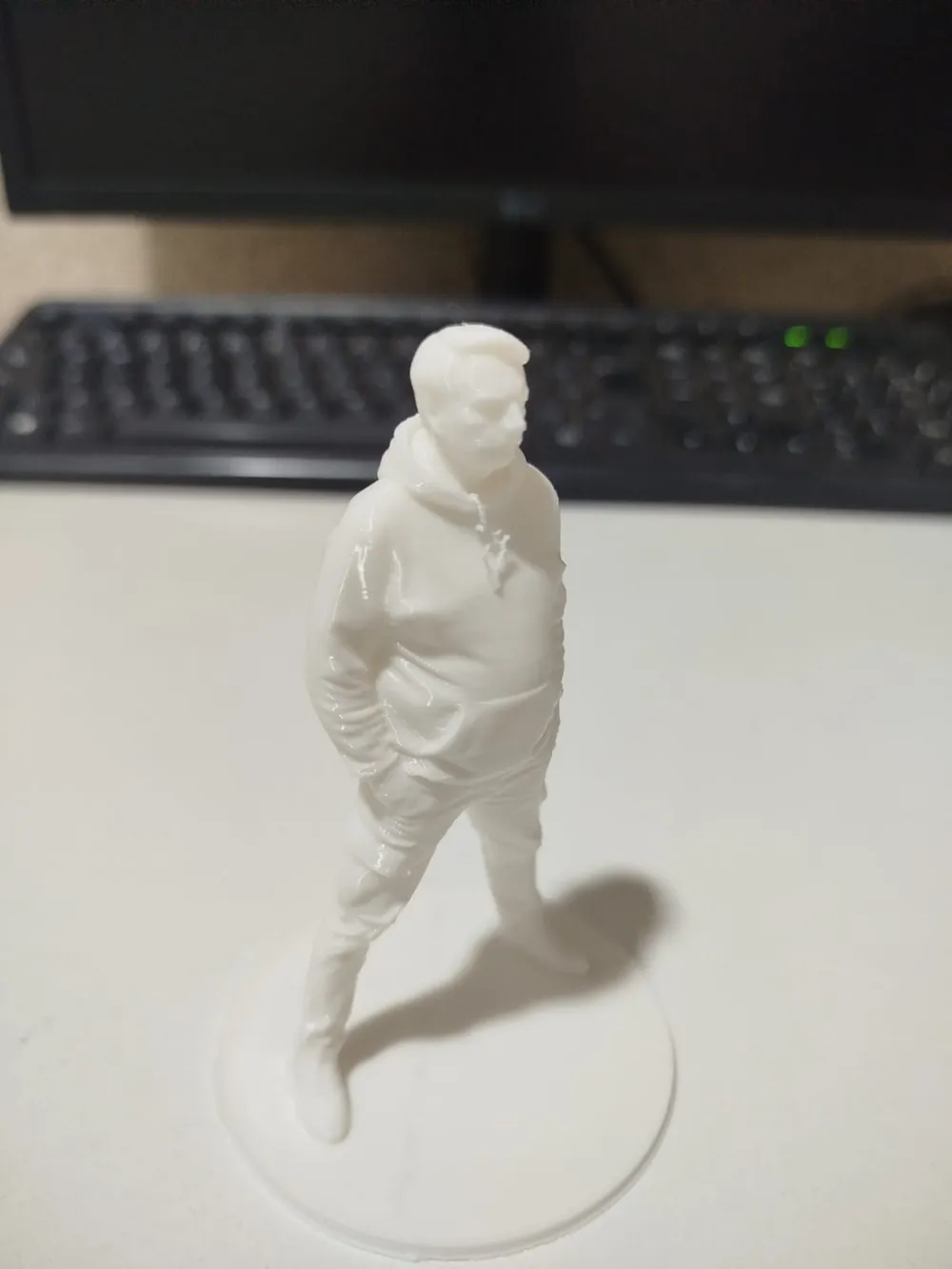

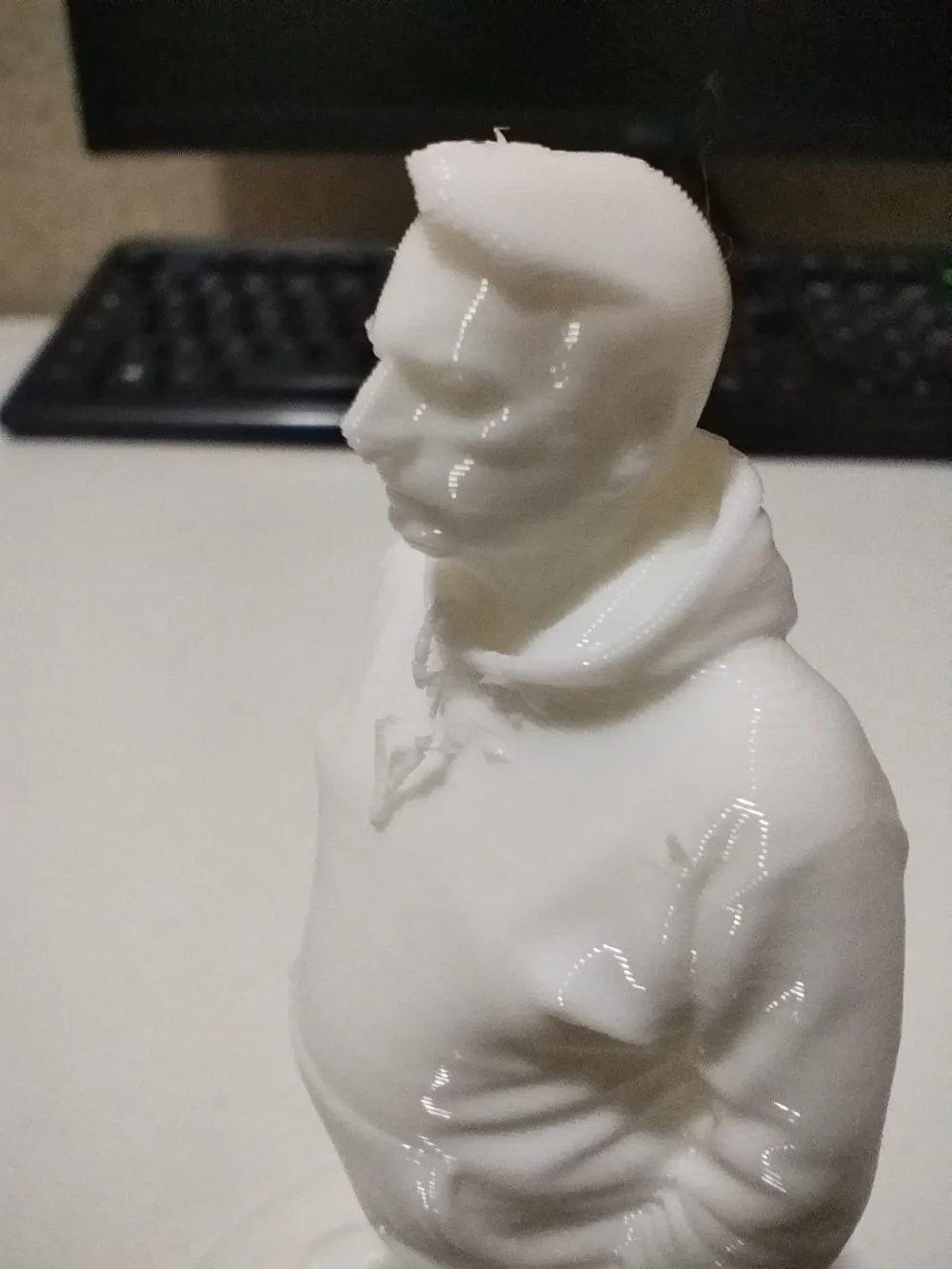

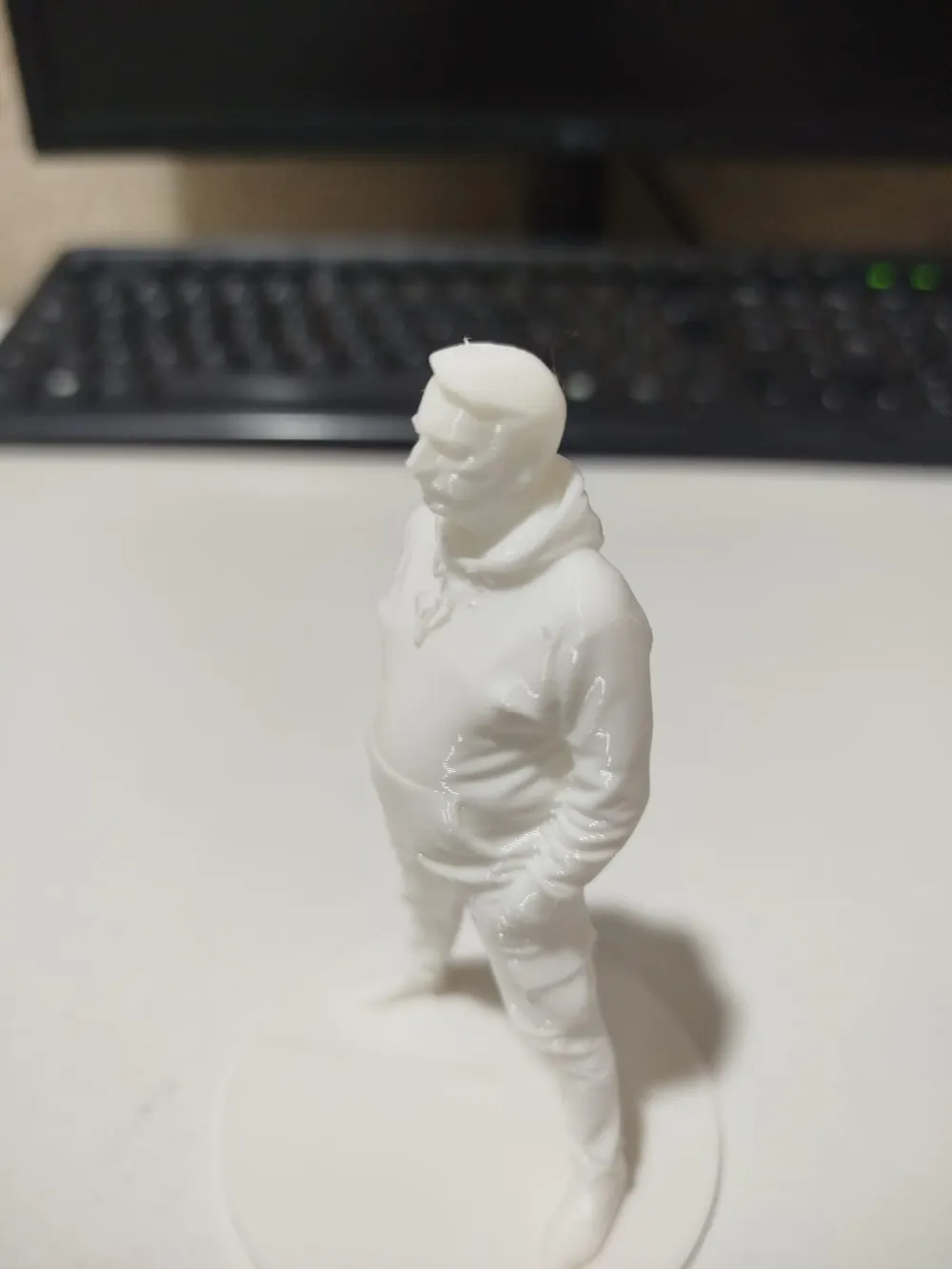

I printed this at a reduced scale for a quick test to upload the file today, I printed it at 10cm tall, about 65% of the original size, the blouse cord did not print correctly, the rest came out as expected although it lost detail due to the size of the piece

Considerations about this print:

Print made to minimize support consumption, however the geometry of the part does not guarantee its stability on the bed with little support or without the base I placed on the second plate, especially using printers with a moving bed (A1, A1 mini and so on) so

If you have difficulty with part adhesion to the bed, increase the number of supports by increasing their angle to 70 or use the disc as a base (I have an A1 and printed using the disc as a base), even if it's just to cut and discard after printing the part

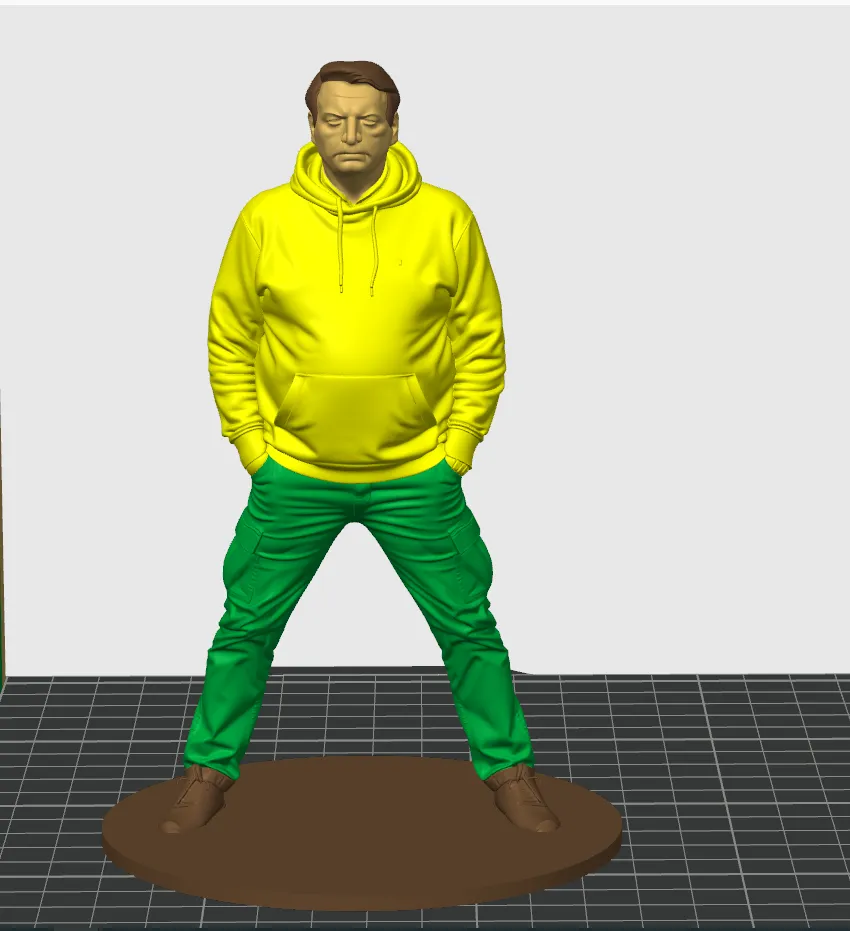

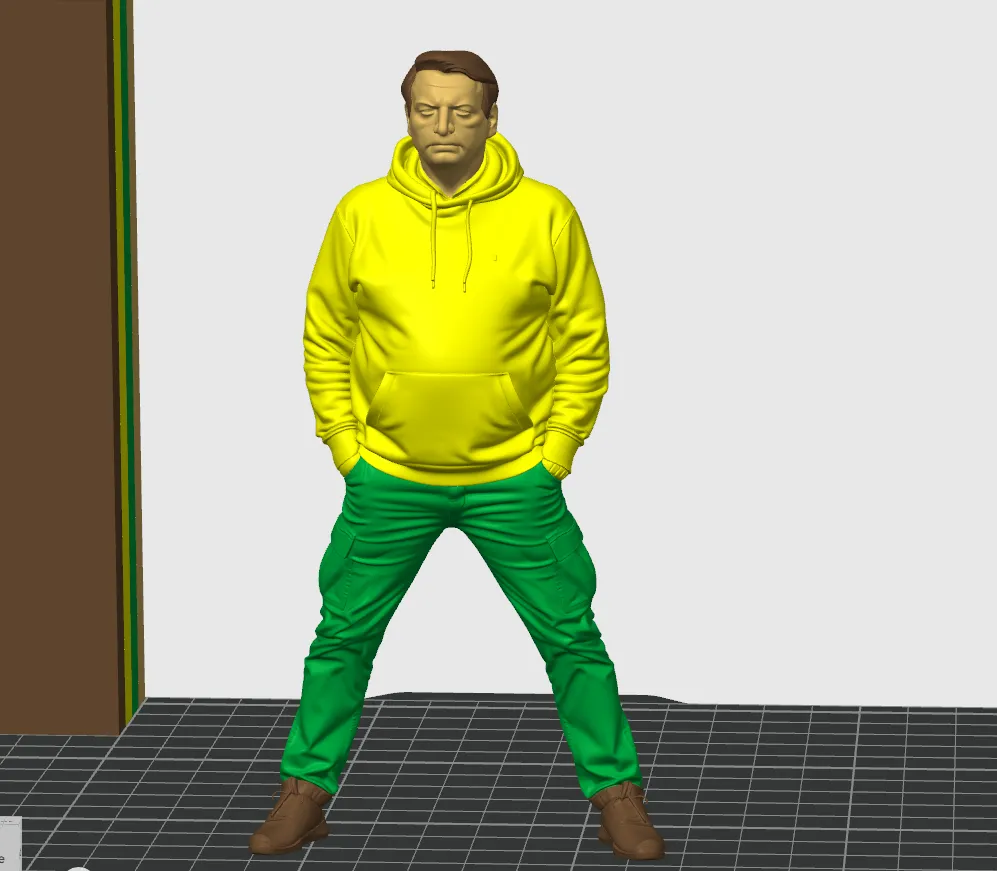

To use the disc as a base:

>Select the part and the disc at the same time

>Right-click and select Merge (in Bambu Studio)

>After the parts are merged, select only the disc in the “objects” panel on the left side of the screen, right-click and click “center” to center the disc on the print bed

>Repeat the procedure above, but with the part selected

>Select the part and press the “M” key on the keyboard to move the part. On the “Z” axis, position the part 1.5mm above the disc

>Review the print settings to ensure they match what you selected

>Print

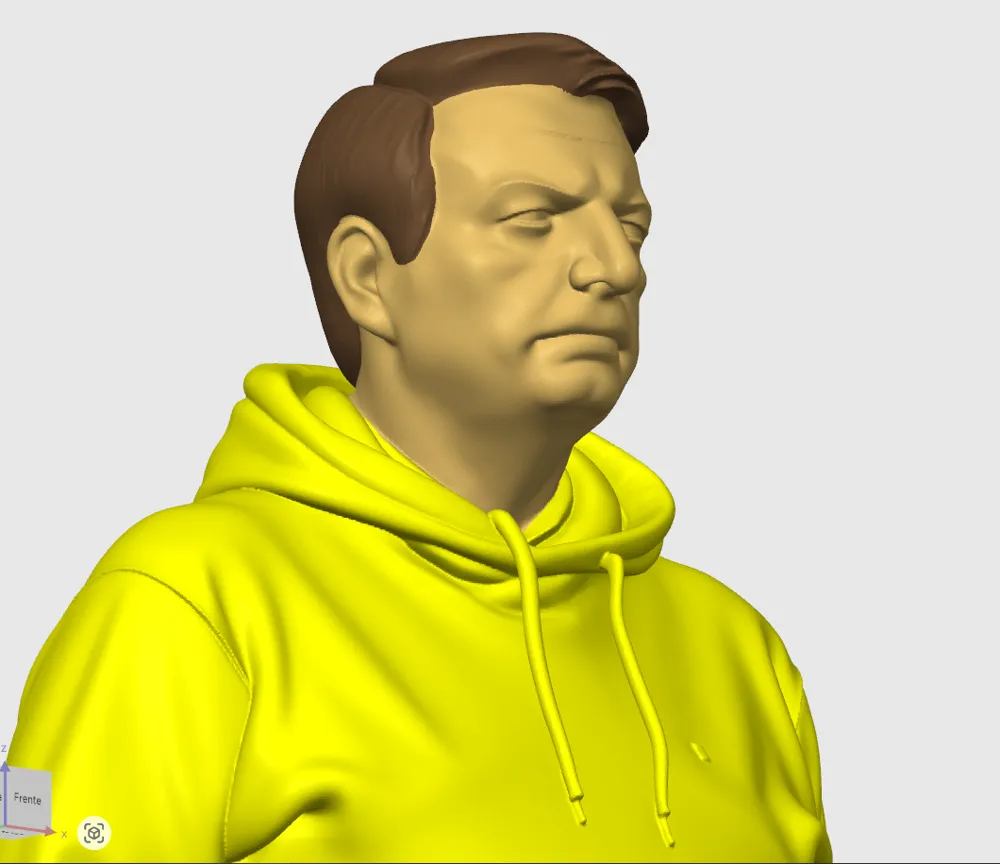

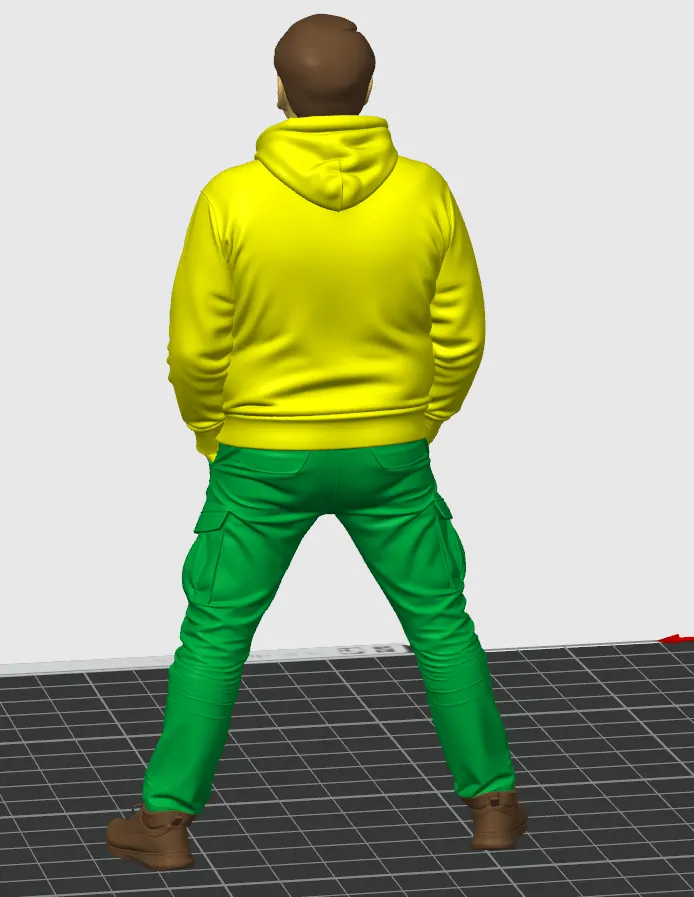

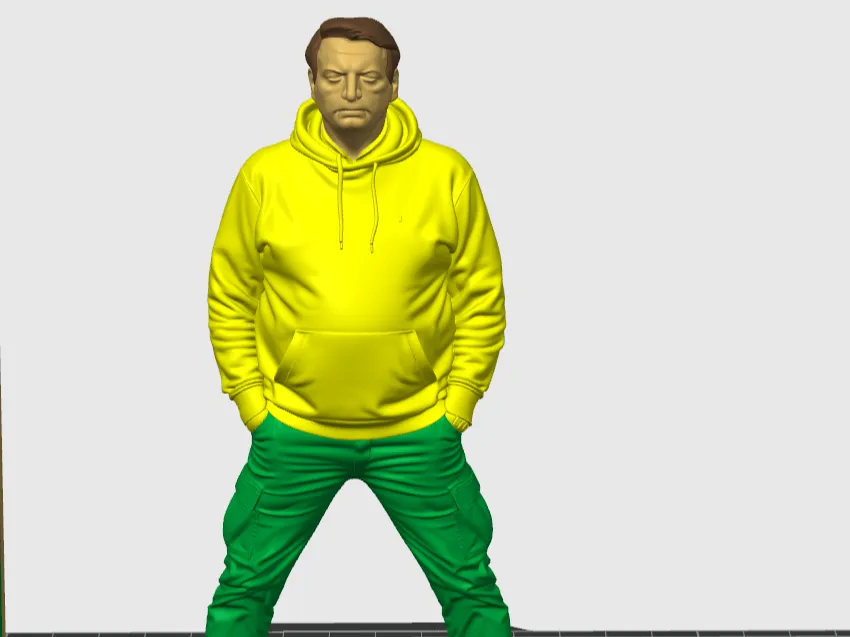

The part was extremely laborious to paint, I don't know if there's an easier way, so if you can help, I'd appreciate it. There are no sides here and I'm not your enemy, I'll make a Lula piece too as soon as I have some free time
