A1 / mini - Minimal Poop Deflector
Print Profile(2)
Description

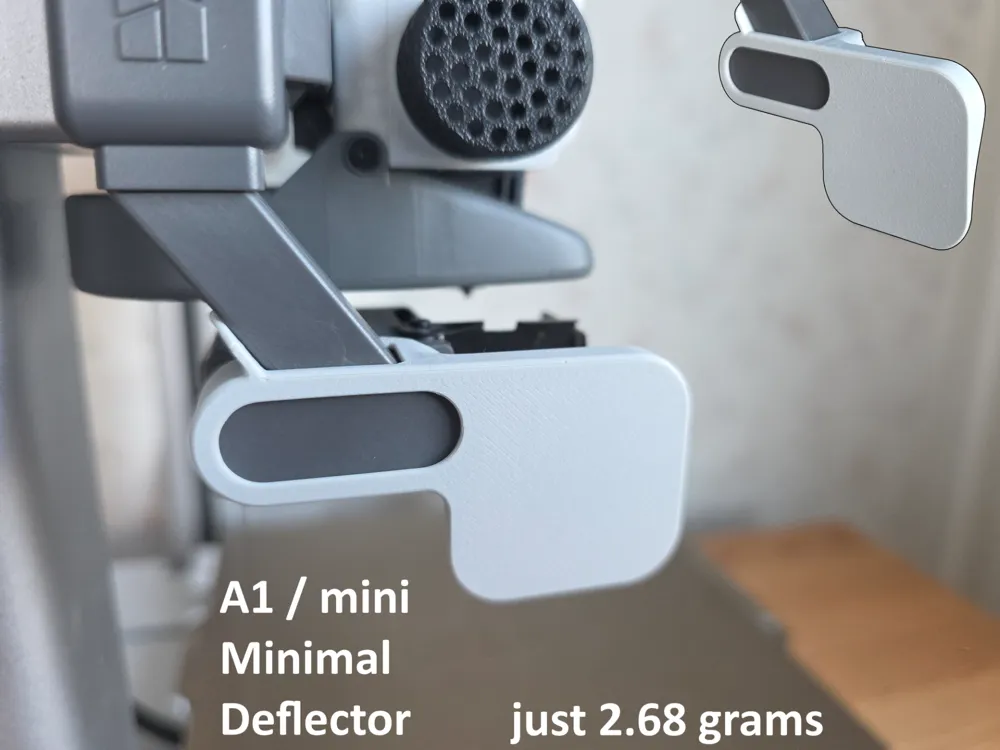

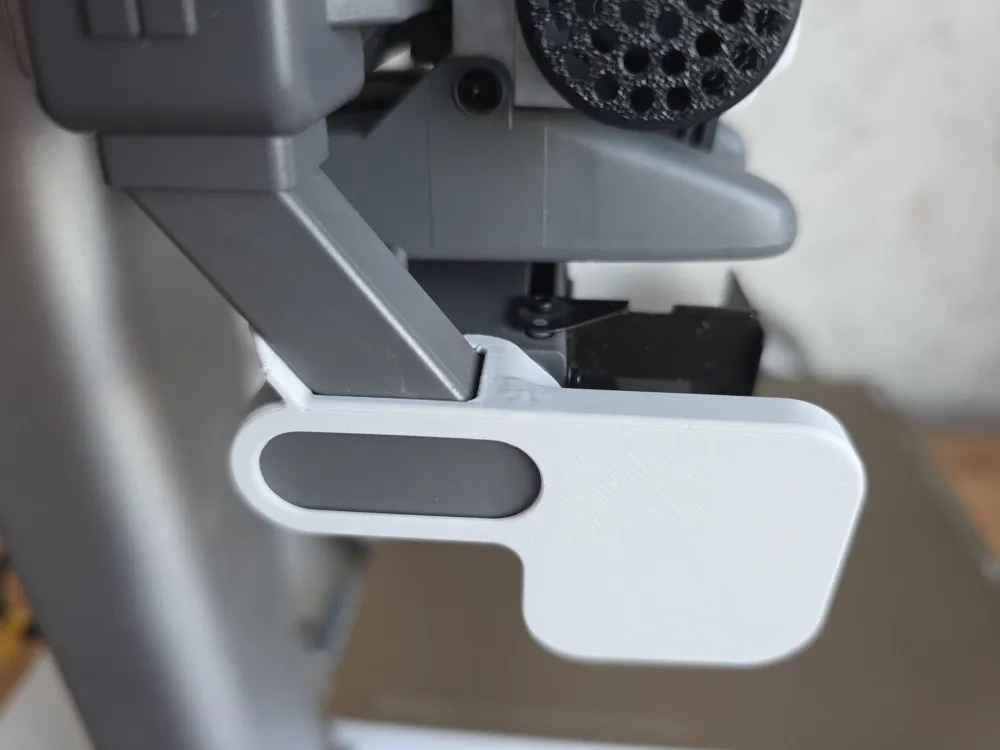

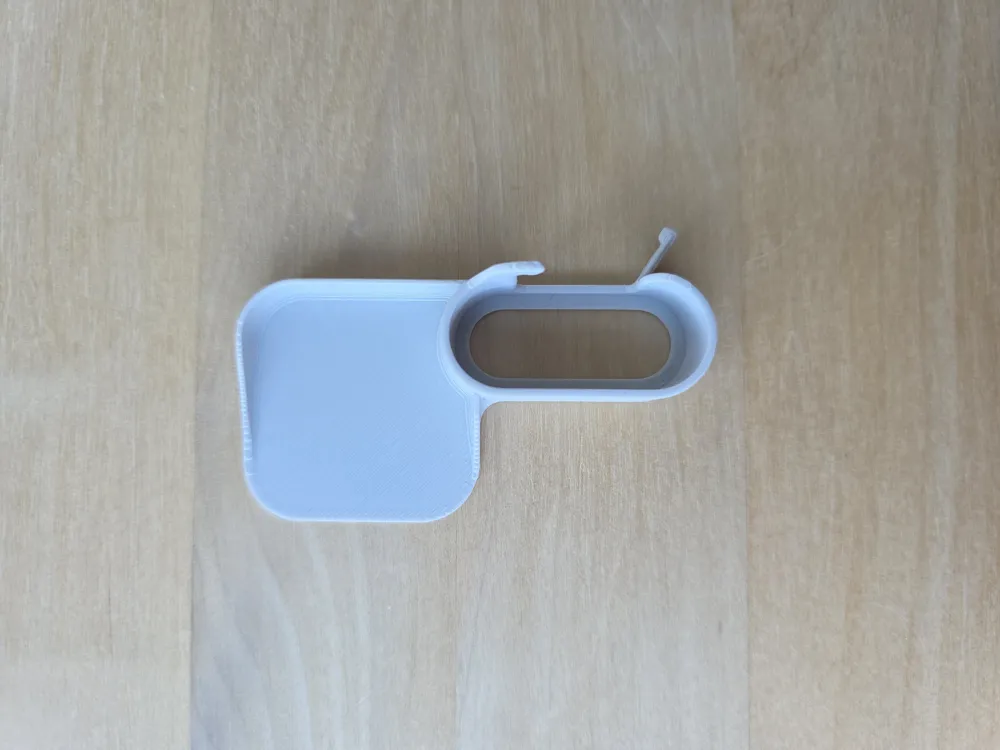

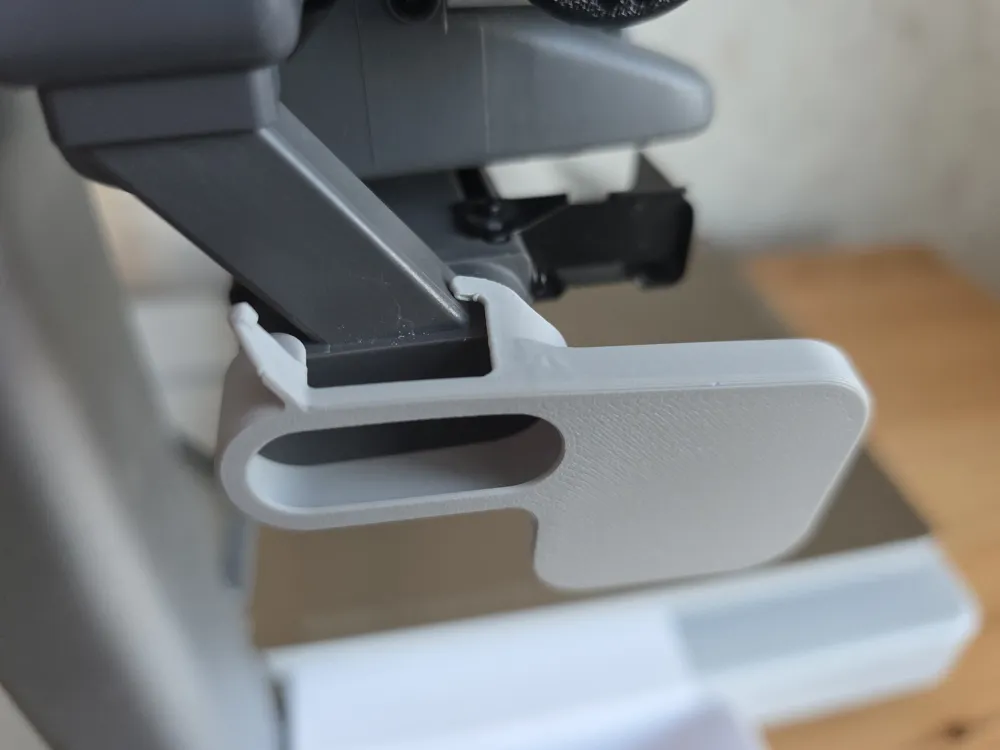

Minimal poop deflector for all A1 series printers. Optimized to have minimal weight, secure vibration free fit and vibration resistant deflector blade. Just 2.68 grams. Minimal weight benefits print quality since it's mounted on a moving part.
Requirement for Version A - 0.6mm but highly recommended for both to avoid stuck poop causing blockage.
Apply a small amount of oil (half a drop) on your finger and apply on the deflector surface. This will prevent any poop from ever sticking to that surface. Did this to my old deflector and it held for at least 9 months with nothing sticking. I used the Bambu printer oil.

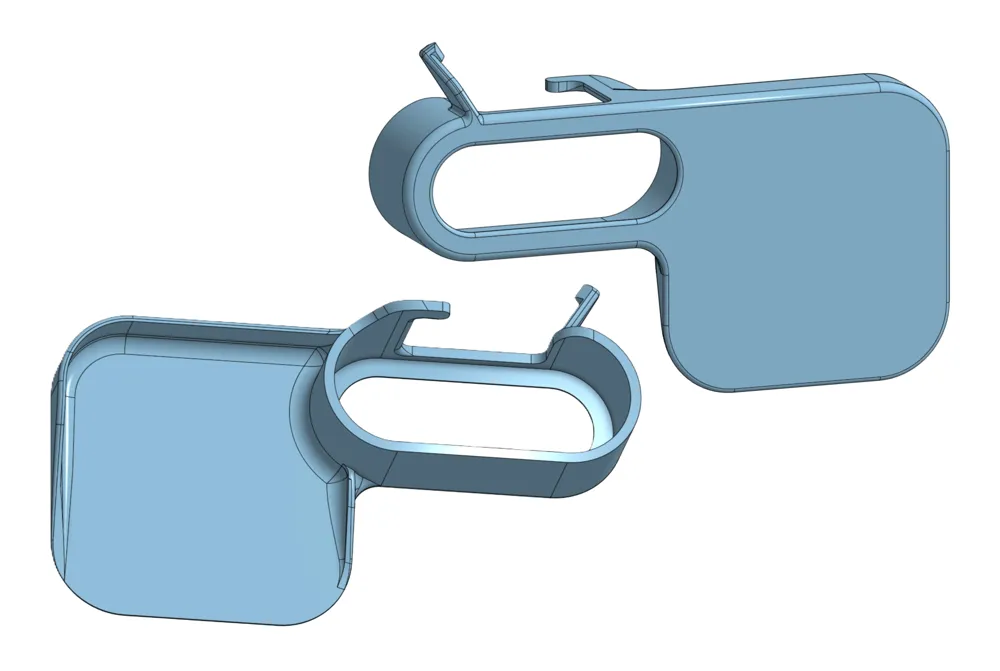

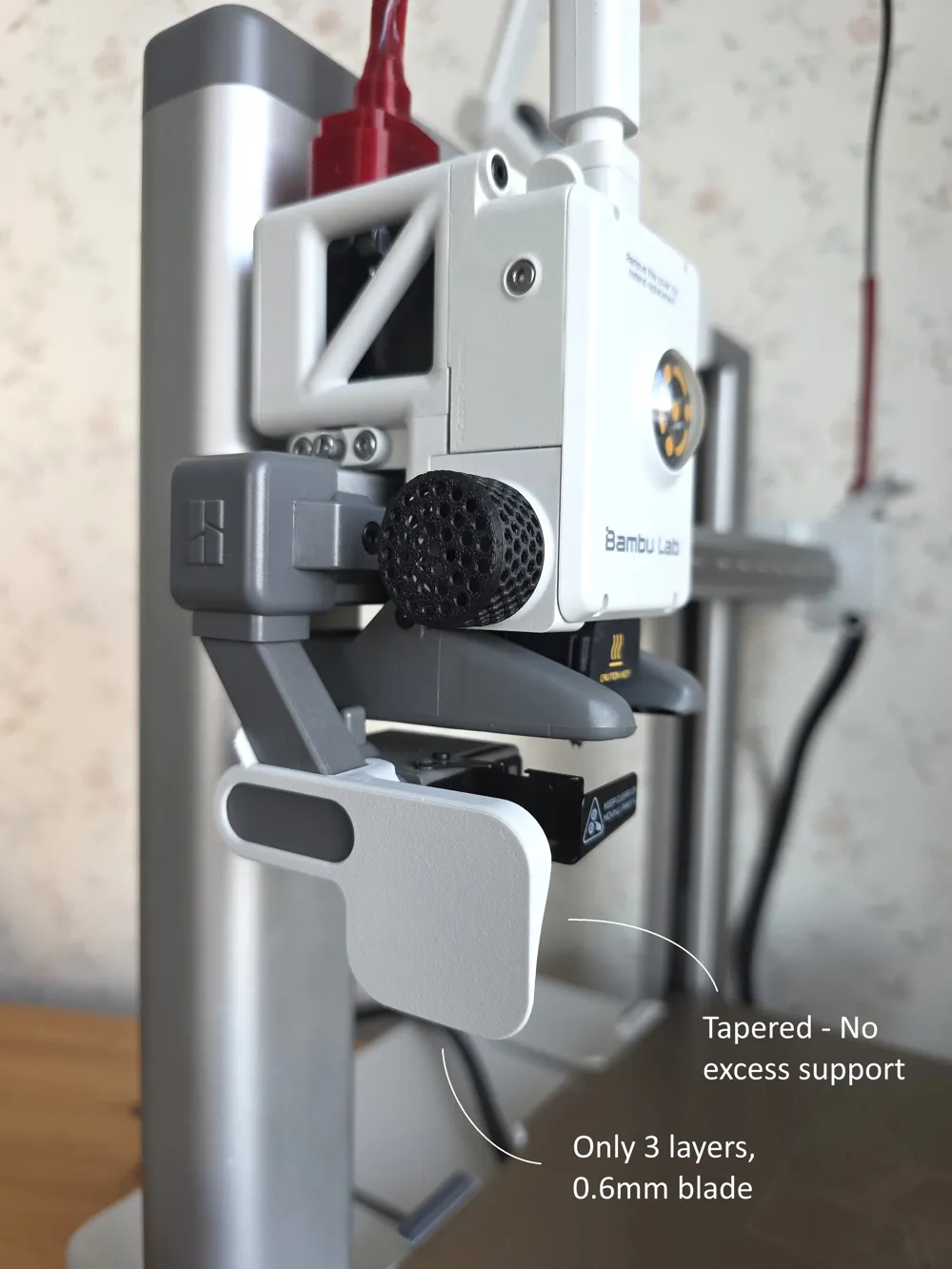

- Version A - 0.6mm blade - 3 layers - 2.68g - Requires oil applied, very thin layer
- Version B - 1mm blade = 5 layers - 3.18g - More heat resistant. May not require oil but recommended anyway.
Printed in Bambu PLA Light Gray - same color as rest of Bambu A1 plastics.
Boost Me (for free)

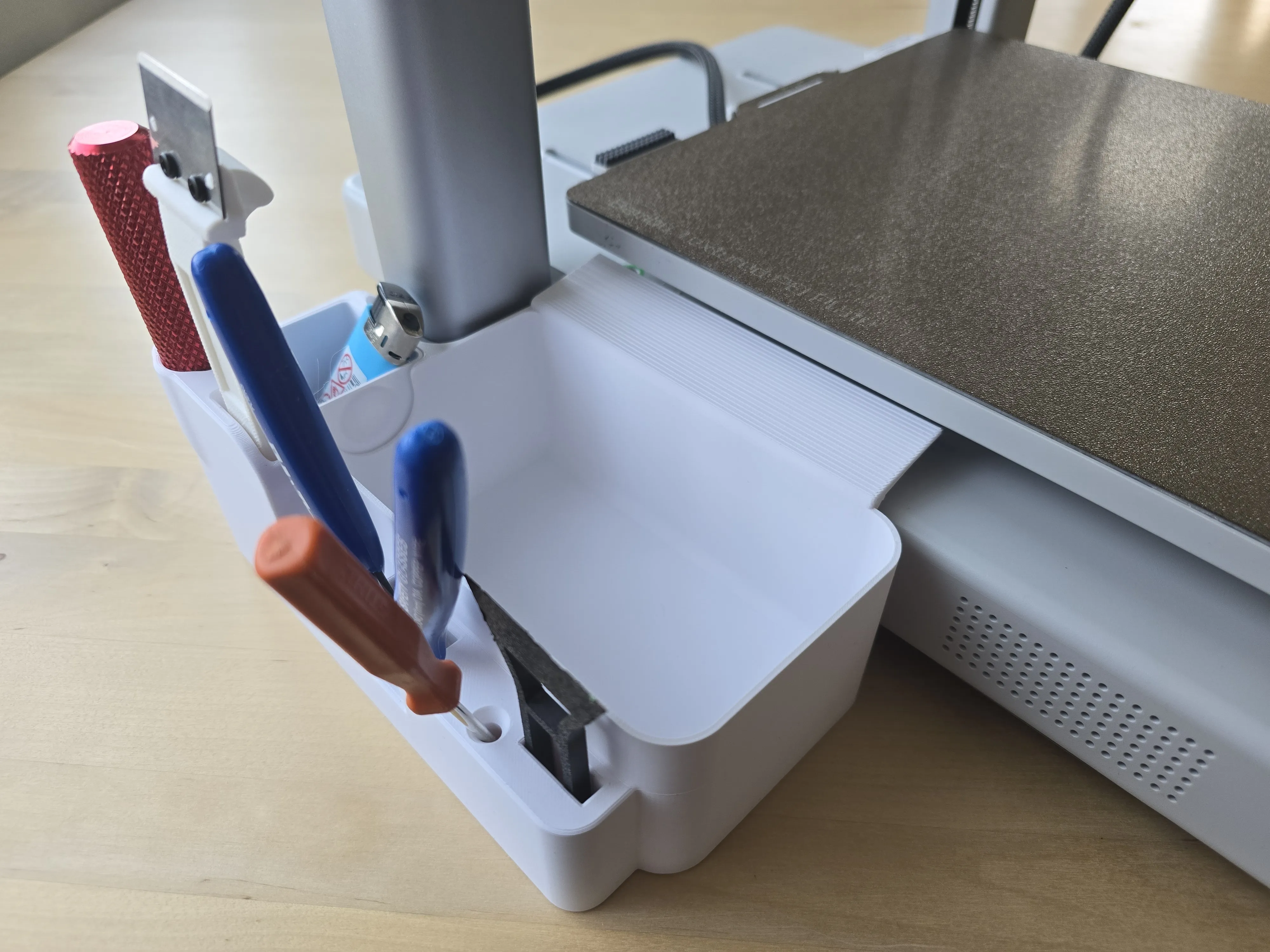

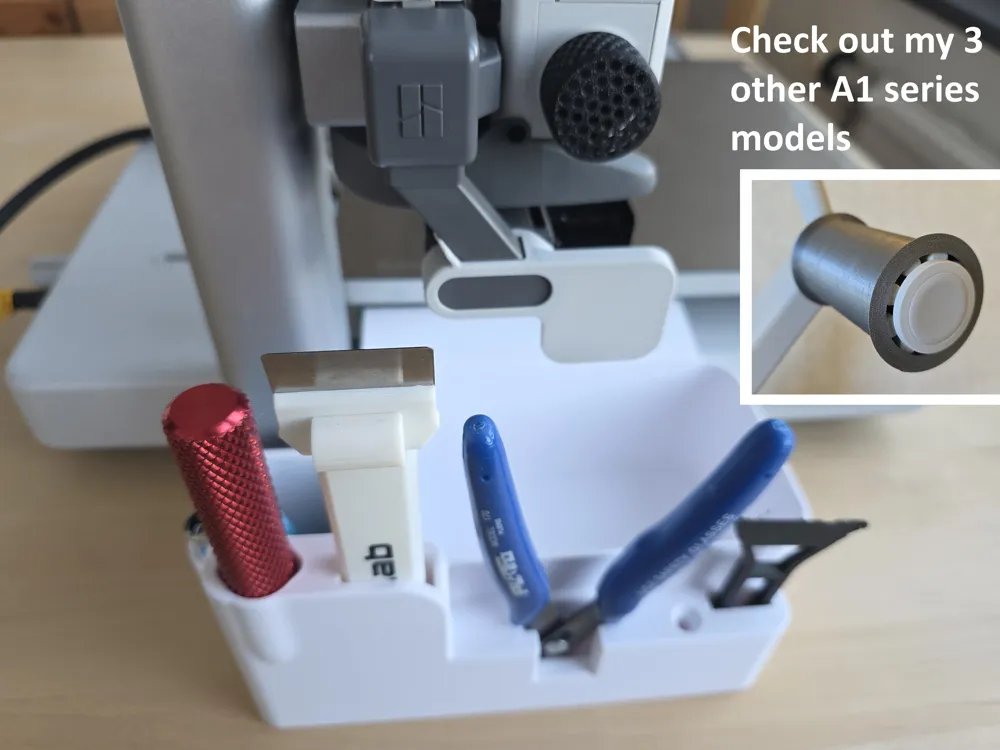

Check out my A1 Poop Tray with toolstand, Low Friction Spool Holder and A1 Hotend Fan Filter Cover.
