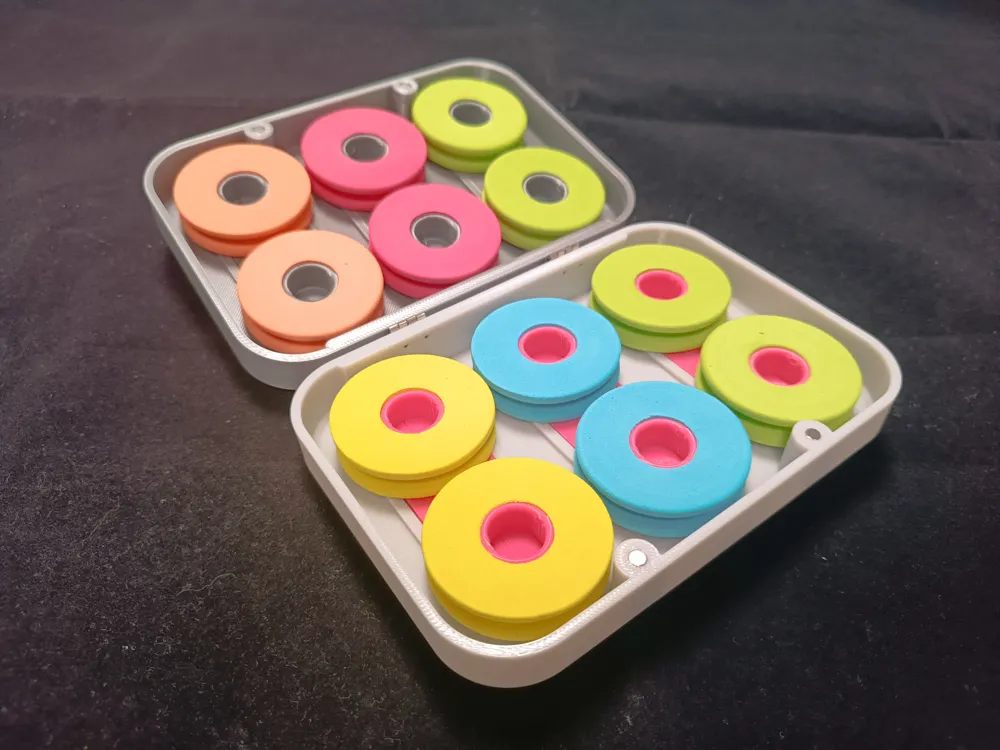

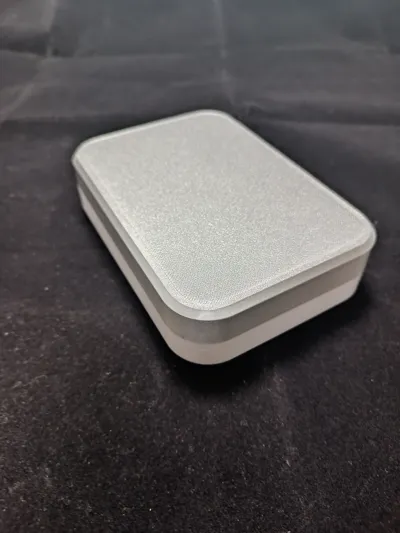

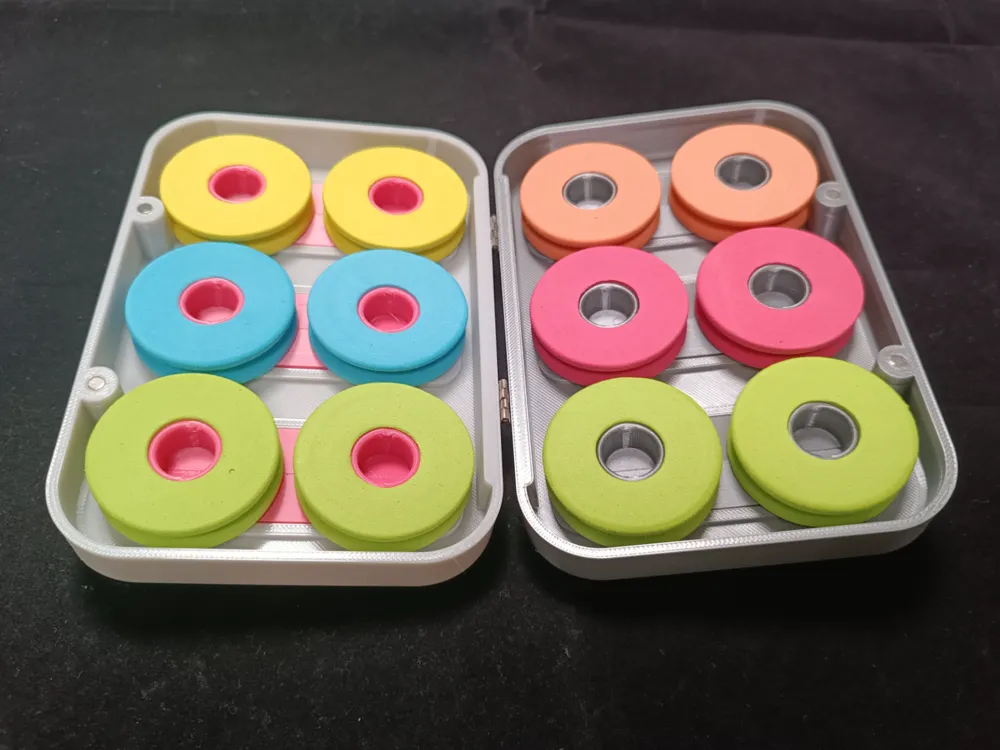

Fishing Rig Storage Box 12 Rig Storage
Print Profile(1)
Description

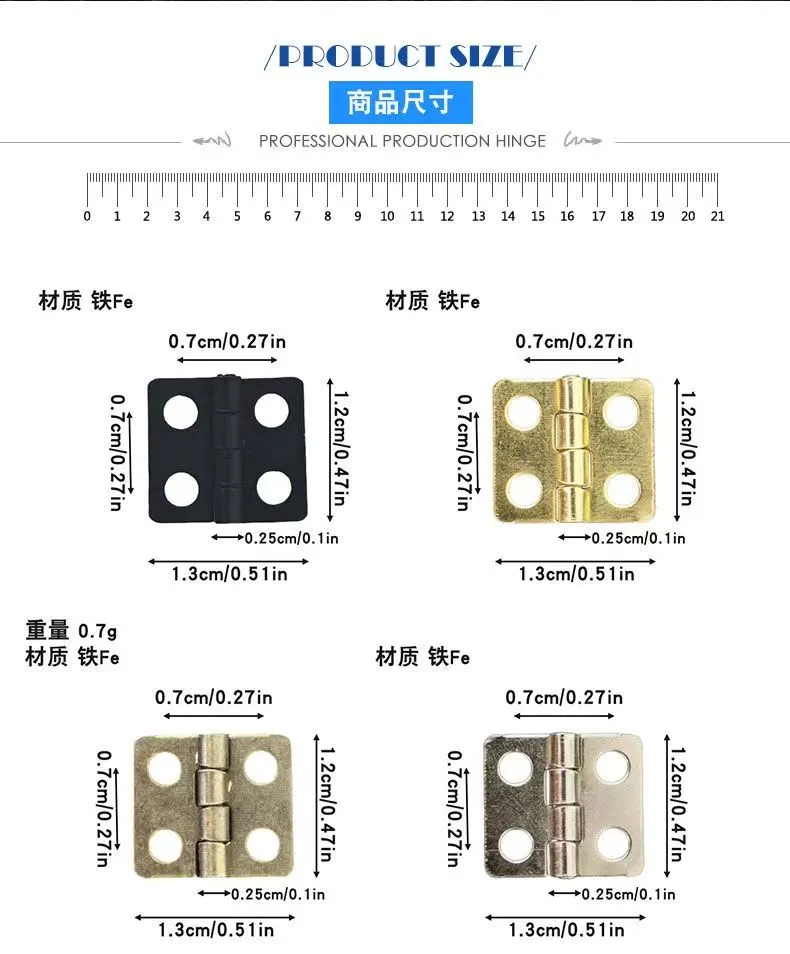

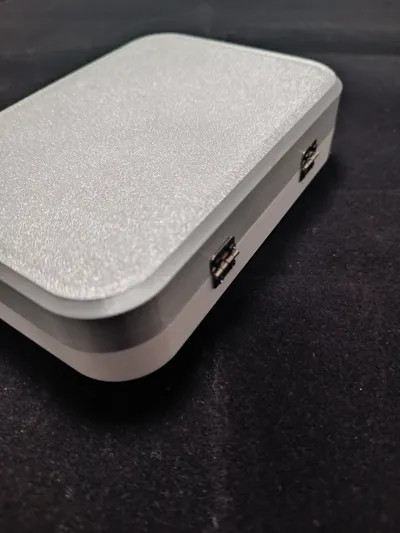

Used to store tied rigs, directly using hinges and magnets purchased online as connectors.
3D printed hinges become loose permanently and are very bulky. Otherwise, you'd need to reserve holes to use filament as shafts or buy metal rods separately for connections.
In that case, it's better to just buy pre-made hinges.
The f3d file has been uploaded. Please download it and use Fusion360 to open and edit the parameters.

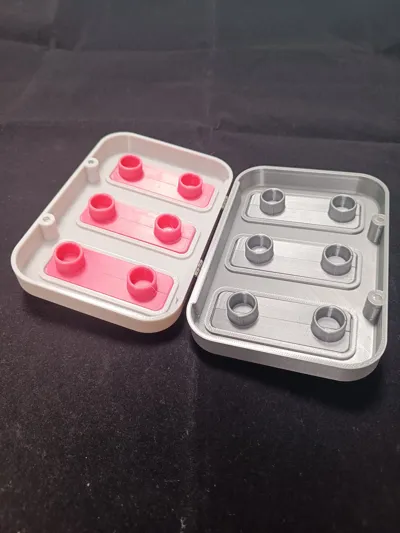

The support shafts are printed separately and then glued with double-sided tape. There are also Print in Place versions on the website, but printing these support shafts horizontally will definitely make them very brittle. If they break, the entire storage box will be unusable.
I print them separately, so if there's a problem, I can just reprint one. Also, I can adjust it according to the size of the rig shafts I buy.
Currently, the results are good.
The magnet part is not ideal, possibly because the magnets I bought are too small. However, there isn't enough space in the box for three magnet positions. When putting it in a bag, I suggest tying a rubber band around it for extra security.
