Bird Seed Husk Separator (Fan Powered)
Print Profile(2)
Bill of Materials
- M4 screew x 5: 4 for fan, 1 for side panel
Description

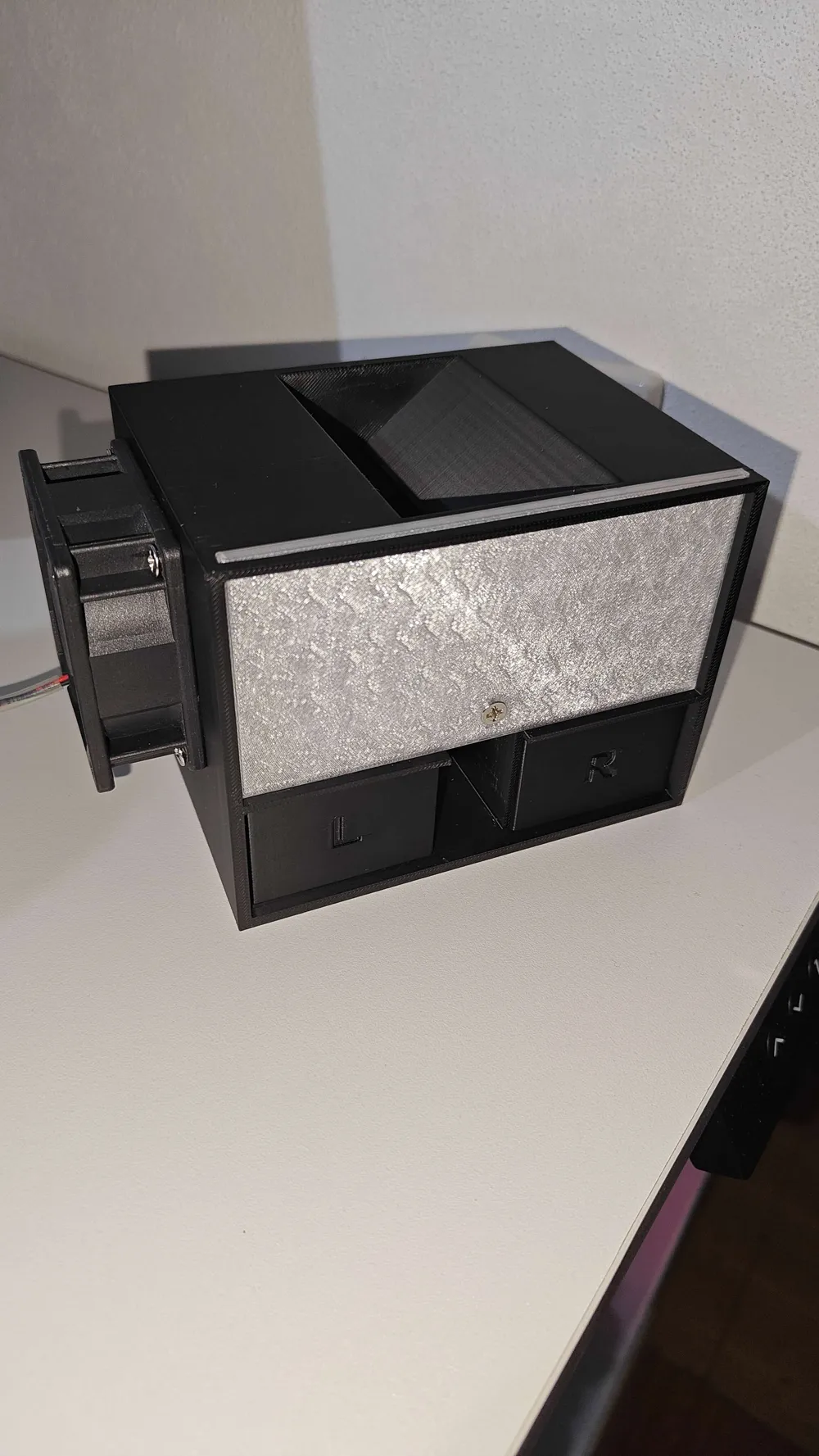

A simple bird seed husk separator that uses airflow and weight to separate good seeds from husks.
How it works

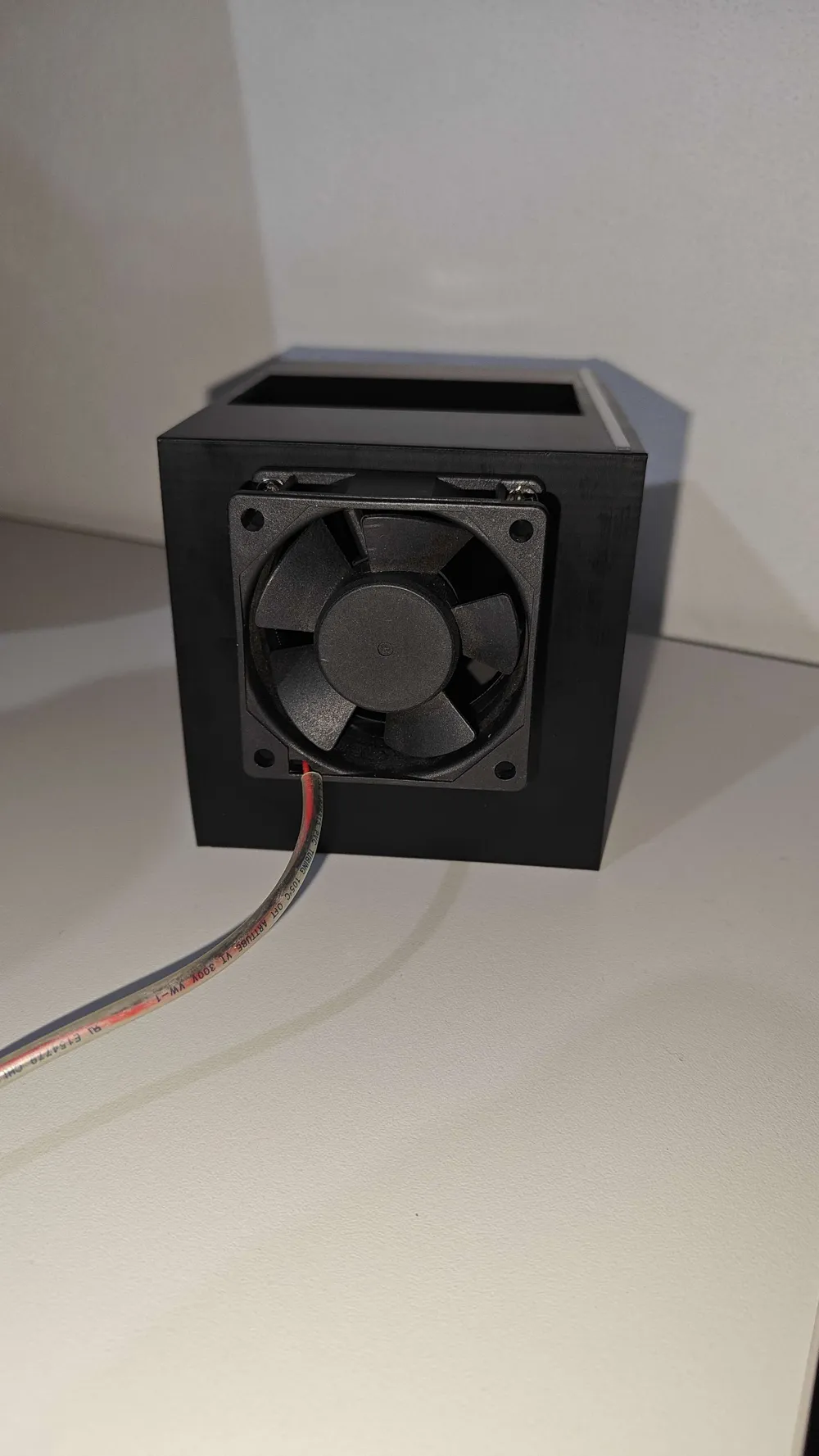

A 60 × 60 mm, 12V fan that mounts on the left side of the box.
- Air flows from left to right
- Light husks are blown to the right
- Heavier seeds fall down on the left

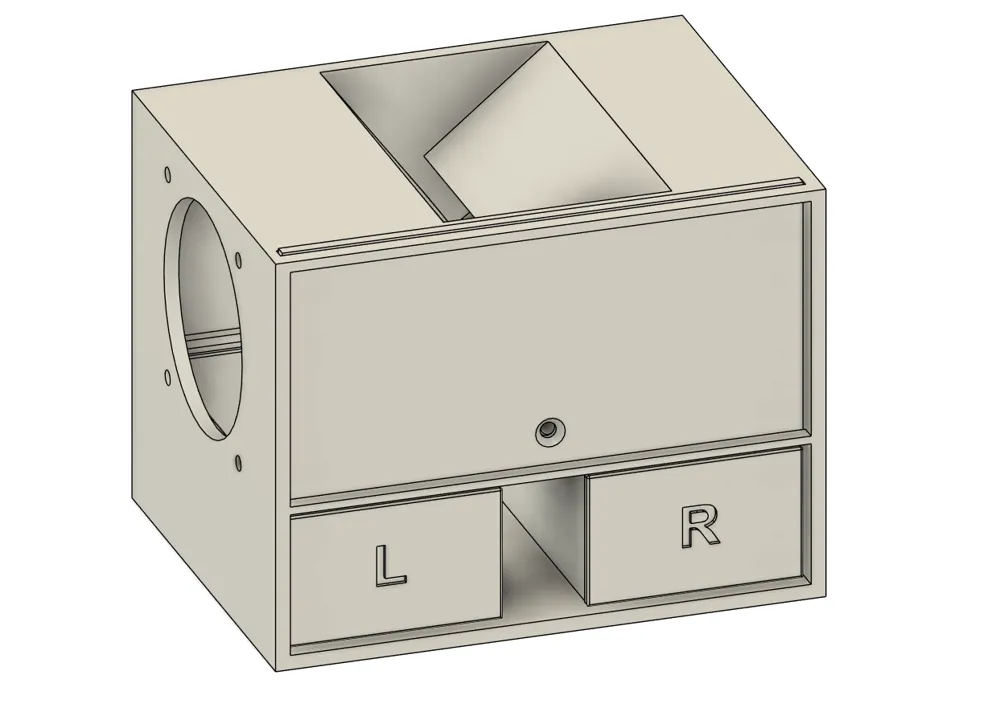

Angled internal plates guide the airflow and improve separation.

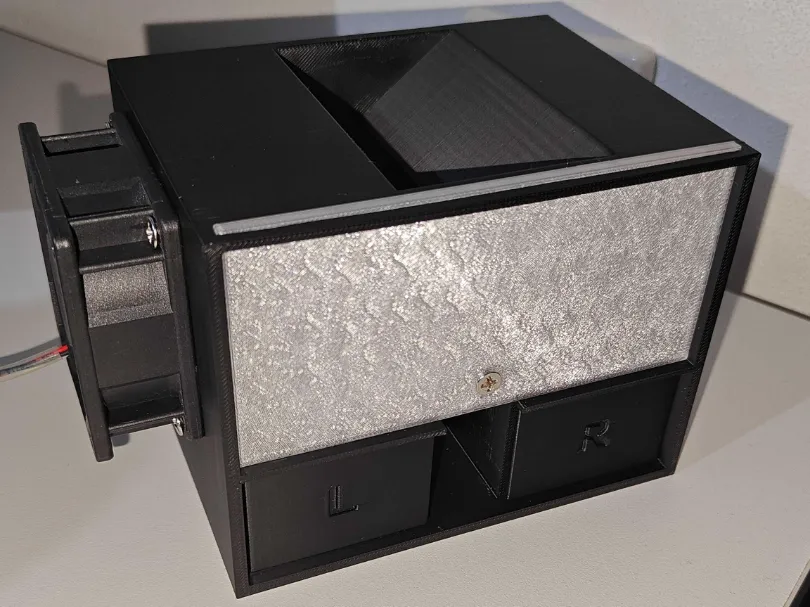

Collection
- Left drawer: good seeds
- Right drawer: husks
Specs
- Model size: 130 × 100 × 100 mm
- Fan: 60 × 60 mm, 12V
Print Settings
- Layer height: 0.2 mm
- Infill: 5%
- Supports: Only needed for the main body
- Material: PLA or PETG
- Other materials may work, but were not tested
Assembly
- Print all parts.
- Mount the 60×60 mm fan on the left side with some M4 Screews
- Install the front closing plate (Can use a M4 screew for better fixation.
- Slide in the left and right drawers.
- Power the fan and use it.
