Carrie - LED Name Lamp

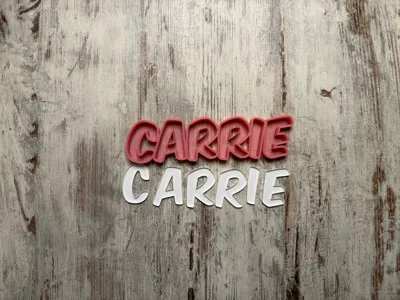

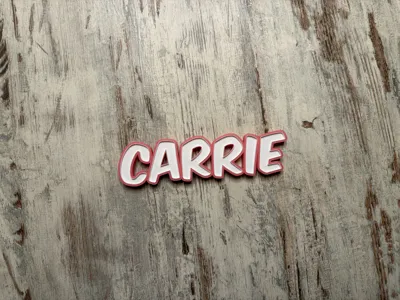

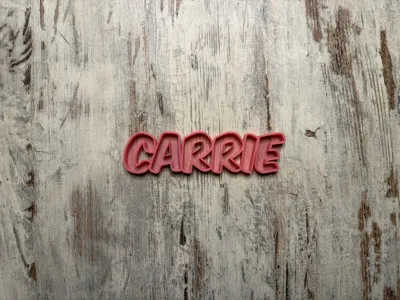

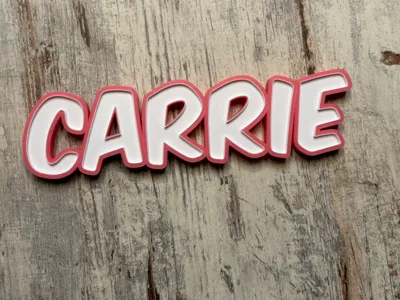

"CARRIE" as a printable LED name lamp


The X and Y axes can also be scaled down slightly. Please remember to scale the covers as well.

ATTENTION:
The completed name is included as an STL. The letters are all pre-arranged. If the print bed is large enough, you can place several letters together on one plate and print them as a single piece. Please do not forget to "merge the letters". Be careful not to let the letters slip, otherwise the pass-throughs will no longer fit and the geometry of the entire name will be altered.


Print settings: 0.2mm with 8% infill is sufficient
For the bodies, I would use "seamless" support for the LED pass-throughs

Please do not scale down significantly. Otherwise, the covers might no longer fit.
ATTENTION: If scaled too small, the letter openings for the LEDs will also become smaller. (Perform a test print beforehand) - And do not forget to scale the covers as well.



I recommend NOT scaling the X and Y axes smaller than 70%. (Pay attention to the size of the LED pass-through)

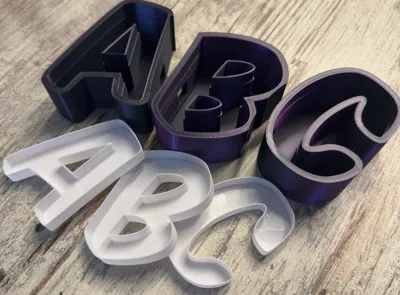

The covers can also be printed mirrored on the X-axis. This way, the covers will sit flush at the front. The disadvantage, however, is that the covers are not as easy to remove. I recommend printing a mirrored cover as a test beforehand

The letter pairs must be glued together. Please ensure that the LED pass-throughs align flush with each other. A special adhesive for PLA/PETG is best suited for this

For LEDs, I recommend inexpensive 1-5m RGB LED strips for 8-15€ or even better, COB-LEDs. Higher-quality RBGIC LEDs, depending on your skill, also allow for individually controllable letters

For this name length, it is better to use 5m

If you have any questions, I am happy to assist


I am happy to create more custom LED names upon request and with a small donation.
