Food Pouch Organizier - Automatic Pusher

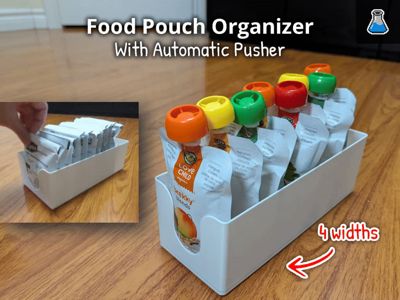

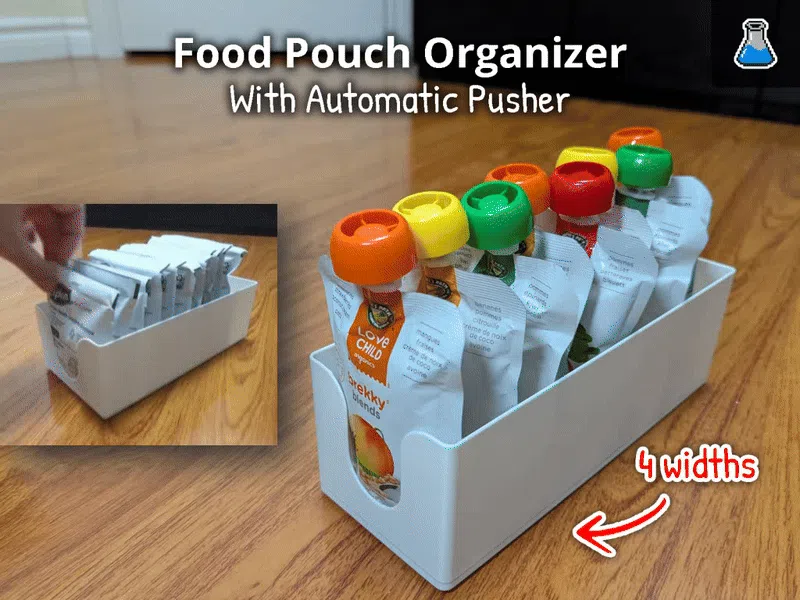

Stop the Food Pouch Chaos: The Ultimate Automatic FIFO Organizer

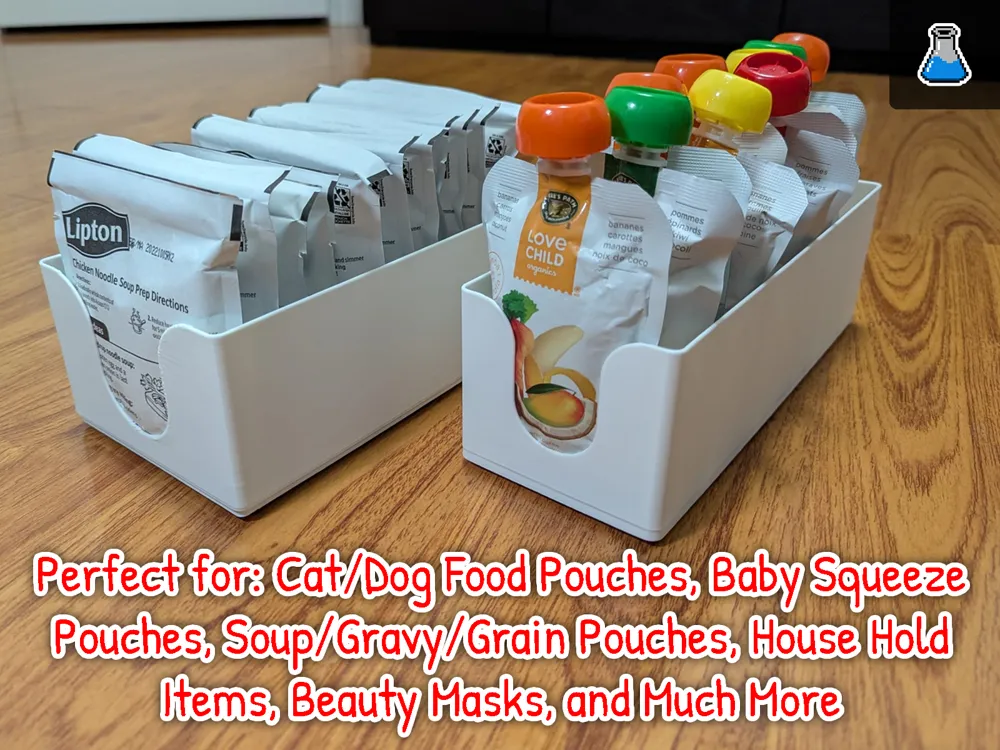

Tired of messy cabinets and slumped-over food pouches? This Automatic Pusher system brings grocery-store efficiency to your home pantry. Using a simple rubber band mechanism, the sled automatically slides your pouches forward as you take one out. The9cm wide version is perfect for kids squeeze food pouches. The 9cm or 11cm is great for cat and dog food pouches depending on your brand.

The only additional hardware needed are 2 rubber bands and 4 anti-slip feet(often listed as cabinet door bumpers).

Support Me!

Features

• Smart FIFO System (First-In, Last-Out): Ensures your oldest stock is always at the front. New pouches go in the back, pushing the oldest to the front to prevent food waste and expired items.
• Simple Parts: Uses a standard household rubber band to create a constant forward force. No more slumped, folded, or hidden pouches at the back of the cabinet!
• Universal Sizing System: Four widths to fit every pantry need.
• Print-In-Place: The 2 parts are Print-in-place. No supports required!
• Premium Aesthetics: Features a 5mm exterior chamfer to hide layer lines and give the organizer a sleek, retail-quality look that looks great in any kitchen.

Specifications

• Dimensions:
  • Height: 8cm
  • Length: 25cm 218 x 20.5 x 35 cm (L x W x H)
  • Widths: 7cm, 9cm, 11cm, 13cm
  • Walls: 1.6mm
• Compatible Rubber Bands:
  • Bambu Store 1.4x50mm Basic (100PCS) - RA007
  • Size #18 rubber band
• Compatible Anti-Slip Feet:
  • 3/8 inch, 1/2 Inch cabinet door bumpers
  • 8mm, 10mm, 12.7mm cabinet door bumpers
• Parts to Print: Container (Print-in-place)

Assembly Instructions

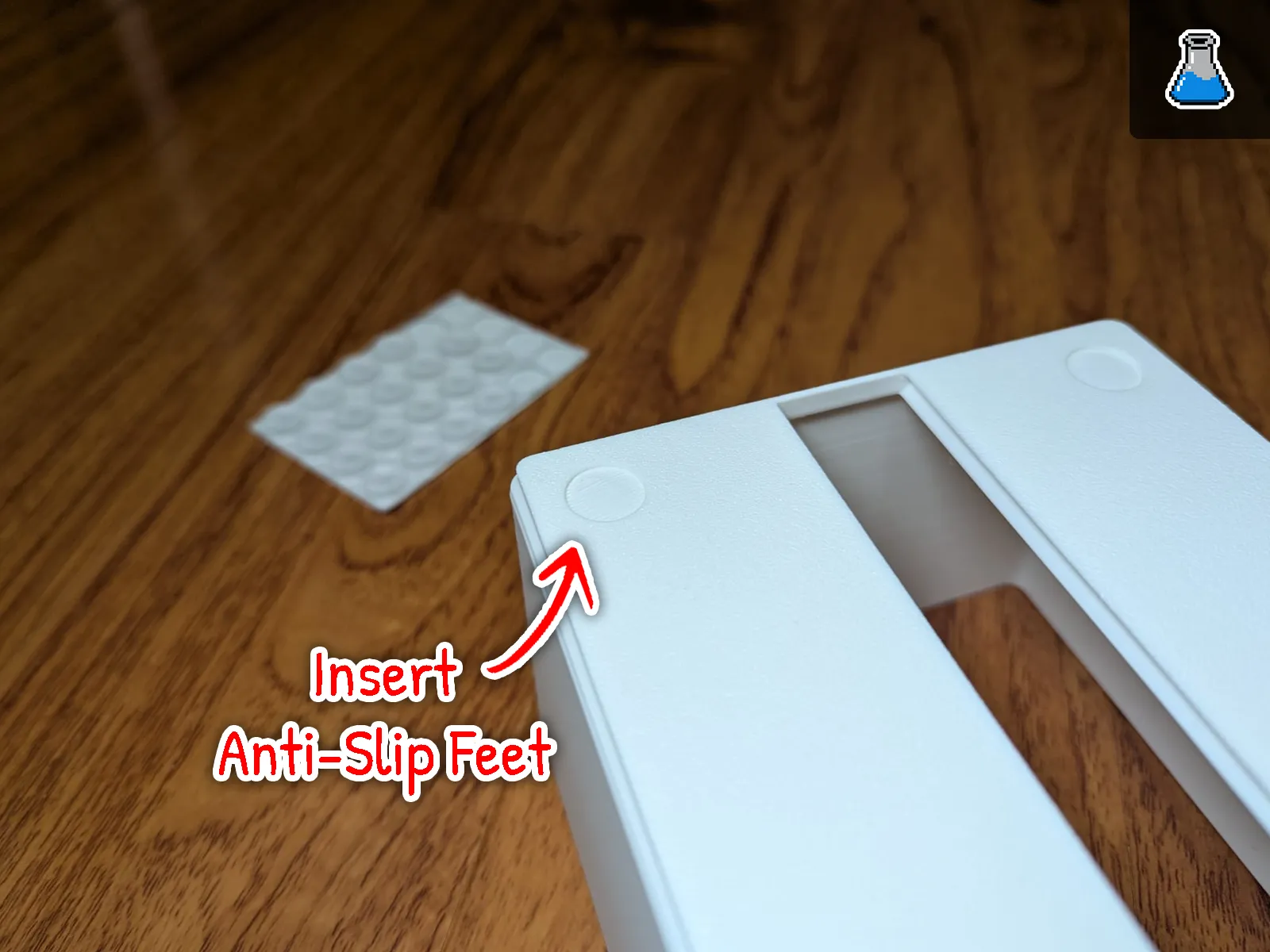

• Step 1 - Insert the 4 anti-slip feet.

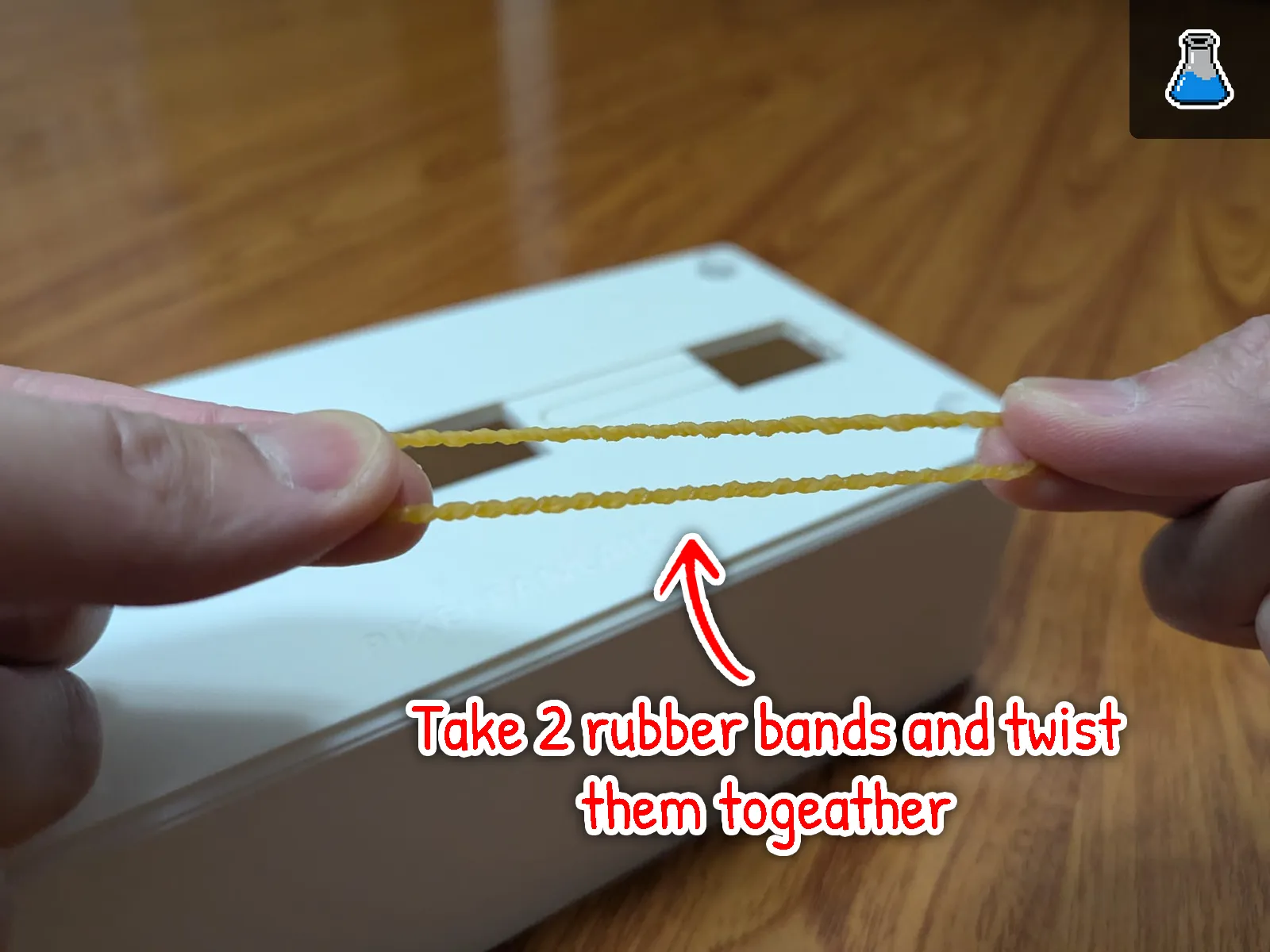

• Step 2 - Twist 2 rubber bands together. This provides the proper tension and helps the bands compress to a tighter length while allowing fill range of motion.

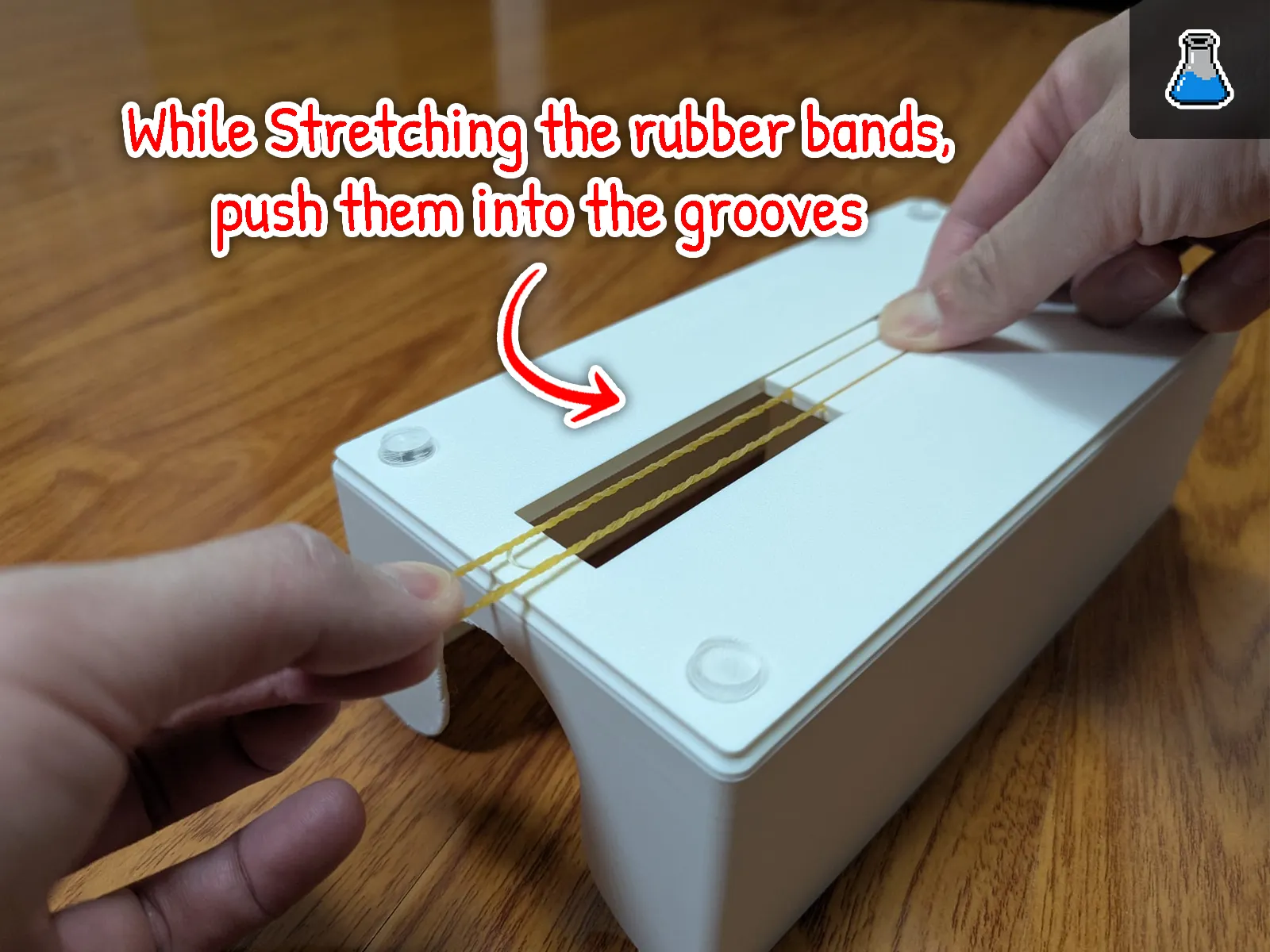

• Step 3 - Stretch the rubber bands to make them thinner. This makes it easier to push the rubber band into the groove.

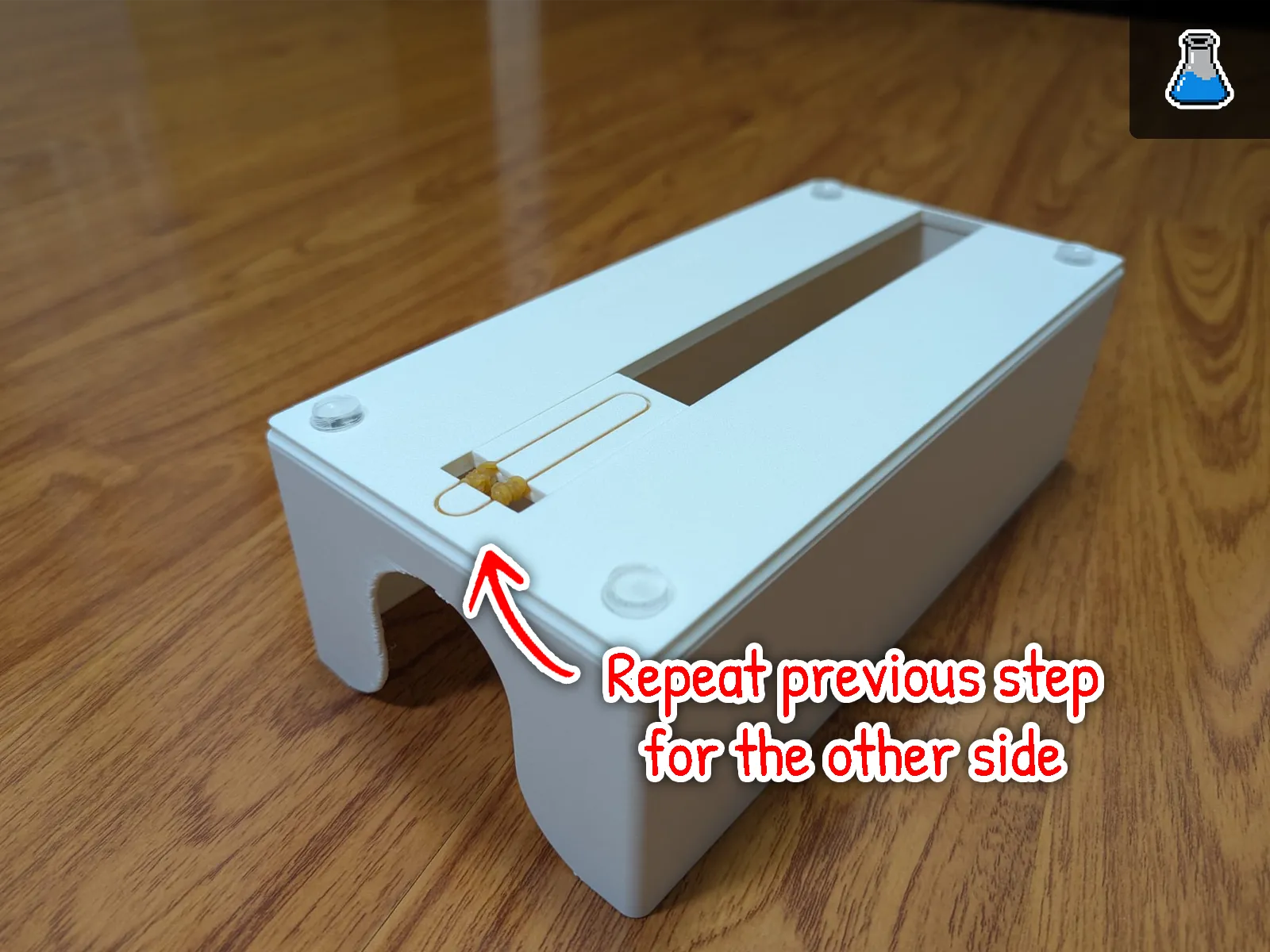

• Step 4 - Continue to stretch the rubber bands and put it into the lower groove.

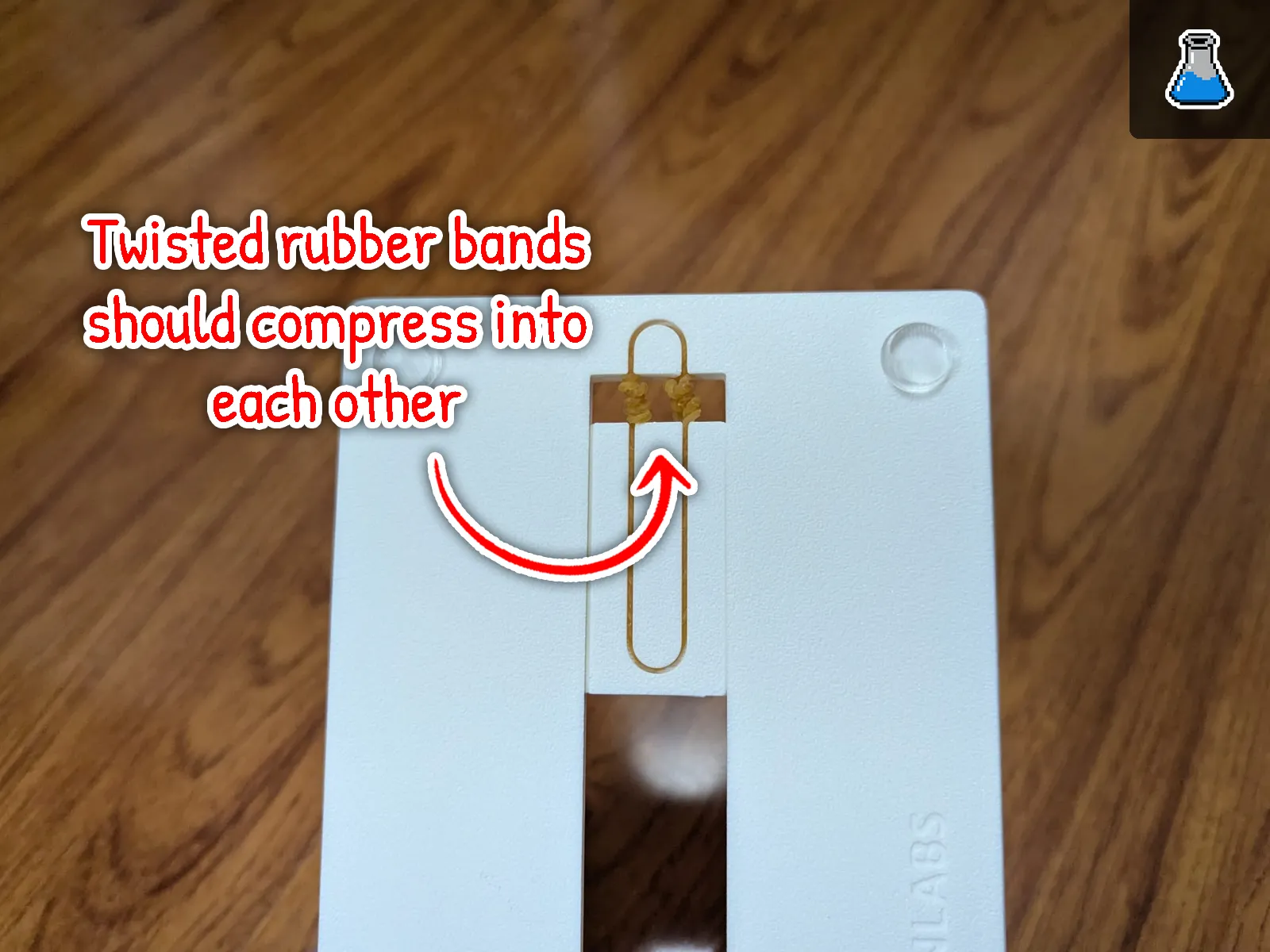

• Step 5 - Once completed it should look like this. The twisting makes the rubber band curl up and compress further.

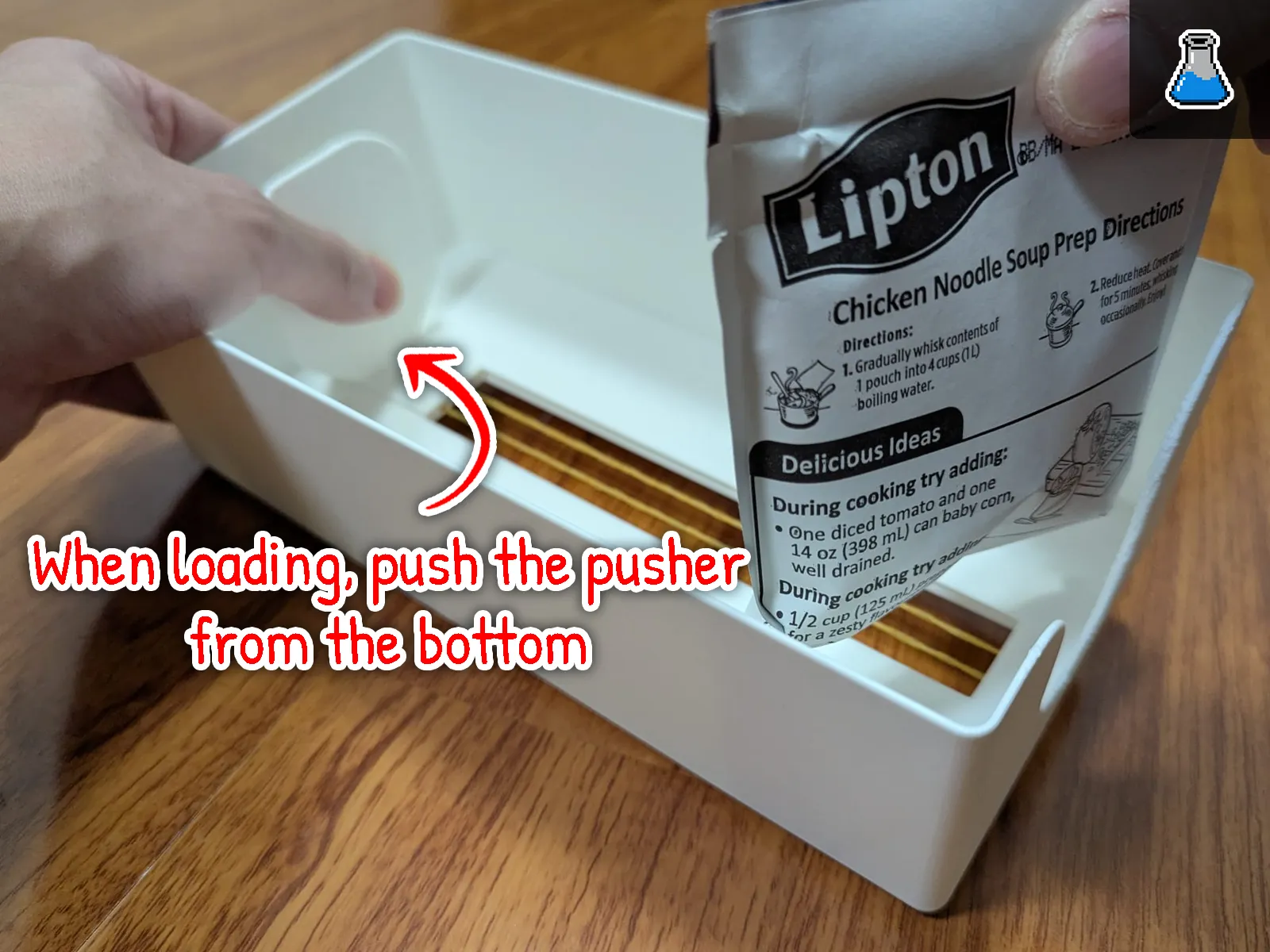

• Step 6 - When loading the organizer, be sure to push on the lower part of the pusher. This allows the slide to move freely.




Credits / Licensing

• Design by PixelFanLabs – With a curious mind, integrity, and your hands in the soil, you can create anything.
• License –  All Rights Reserved
  • Personal Use Only: You may print this for your own use.
  • No Redistribution: Do not re-upload or distribute these digital files on any other platform.
  • No Derivatives: Modification of this design—including the removal of the engraved PixelFanLabs signature—is strictly prohibited.
