Syringe Holder
Print Profile(1)
Description
Syringe Travel & Storage Case (Injekt-F)
This is a custom-designed syringe holder, originally created for a friend. Since it turned out to be very practical, I decided to share it with the community—I hope some of you find it useful!
Technical Specifications

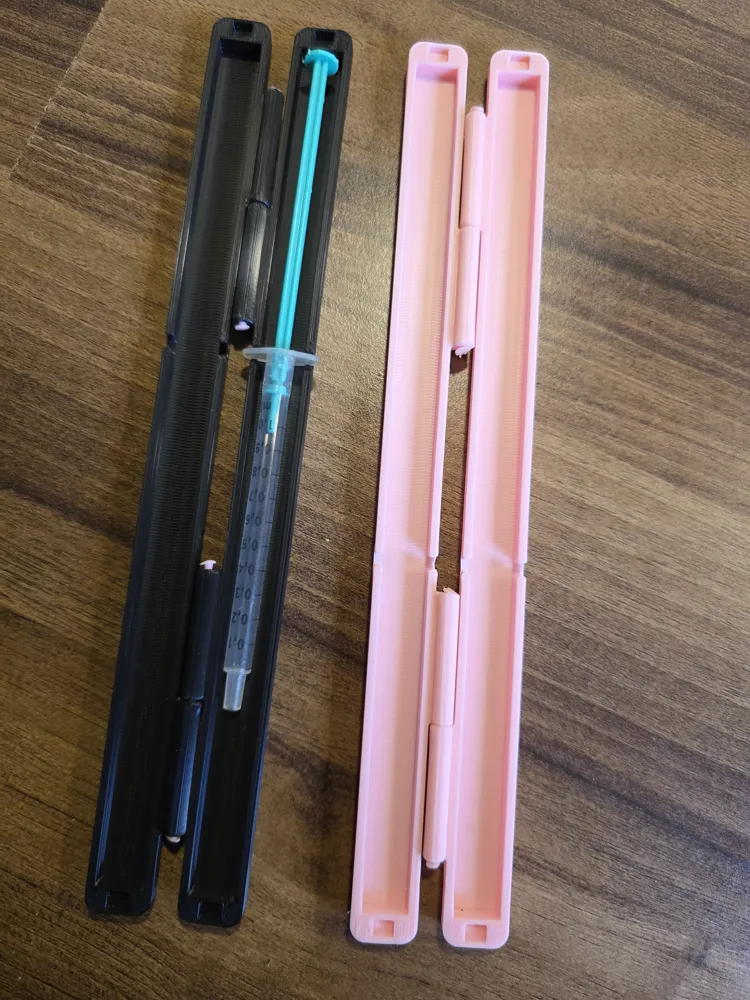

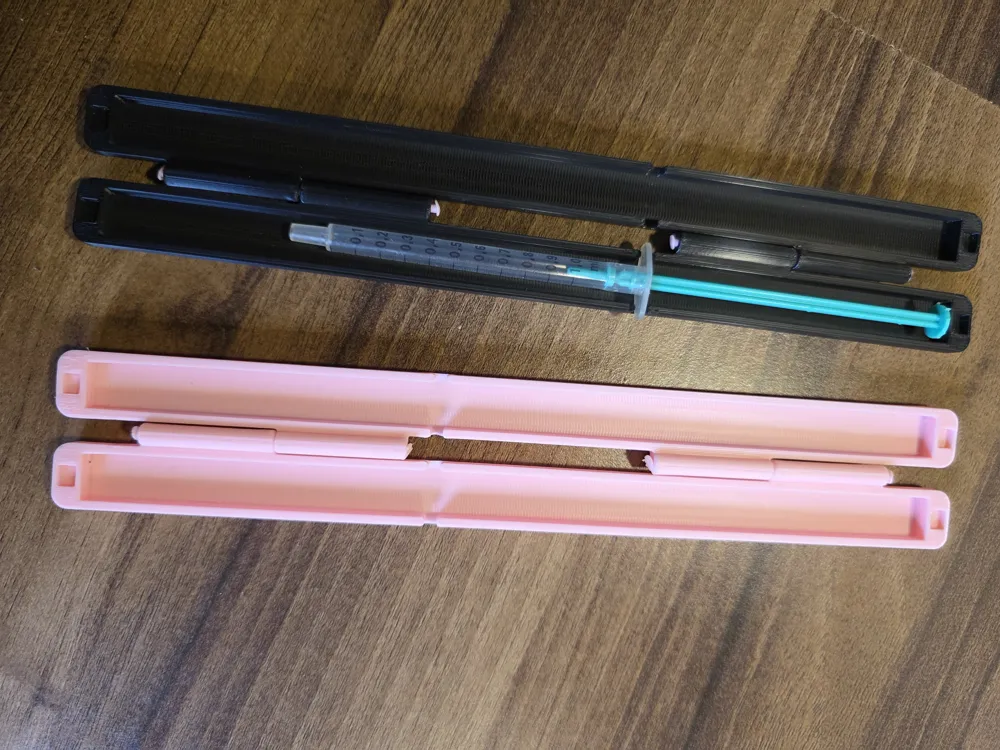

This case is specifically designed to hold a fully pre-filled Injekt-F (0.01–1ml) syringe equipped with a 25G x 1" (0.45 x 25mm) needle. It ensures the syringe is stored securely and remains protected.
Design Features

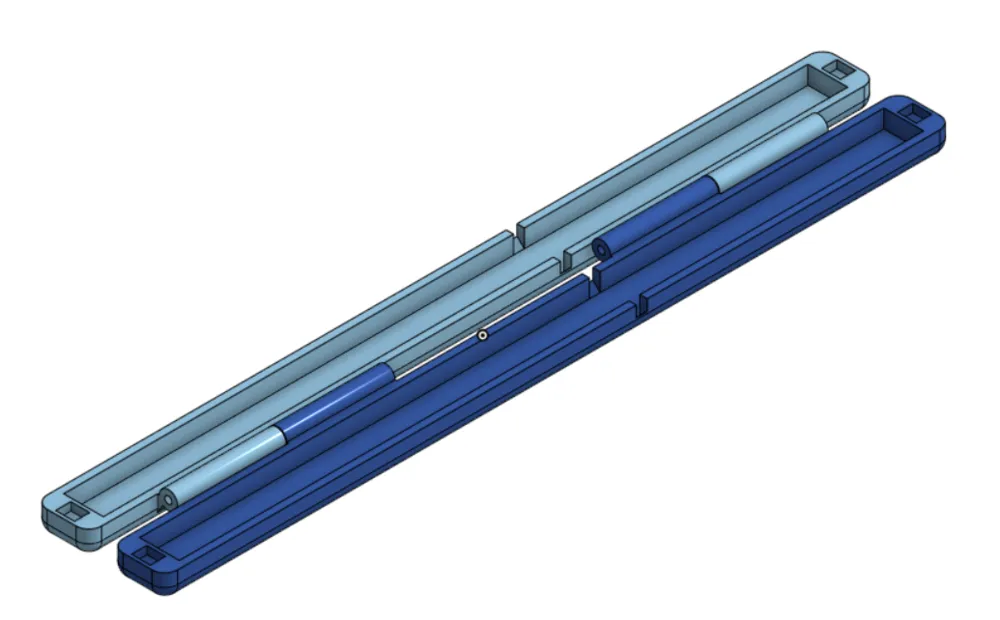

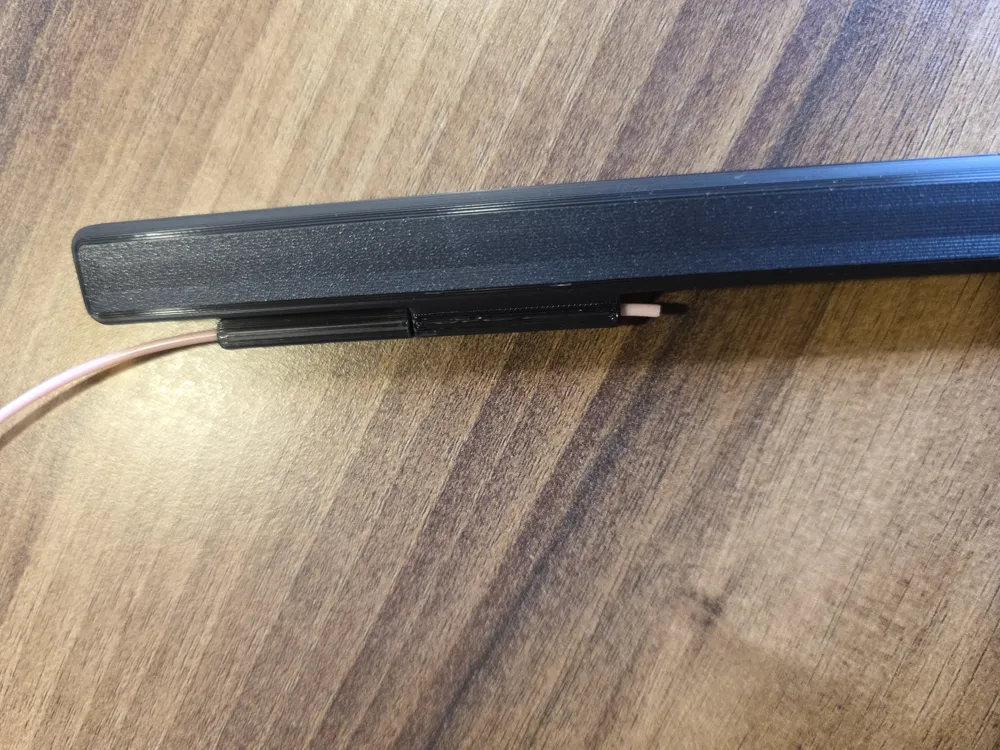

- Filament Hinge: The storage box uses a "filament hinge" design. Simply use a small piece of leftover PLA filament as the hinge pin to connect the two halves.
- Magnetic Closure (Optional): Both halves feature dedicated slots for 5 x 4 x 2 mm magnets. Adding these will ensure the case stays firmly closed during transport.

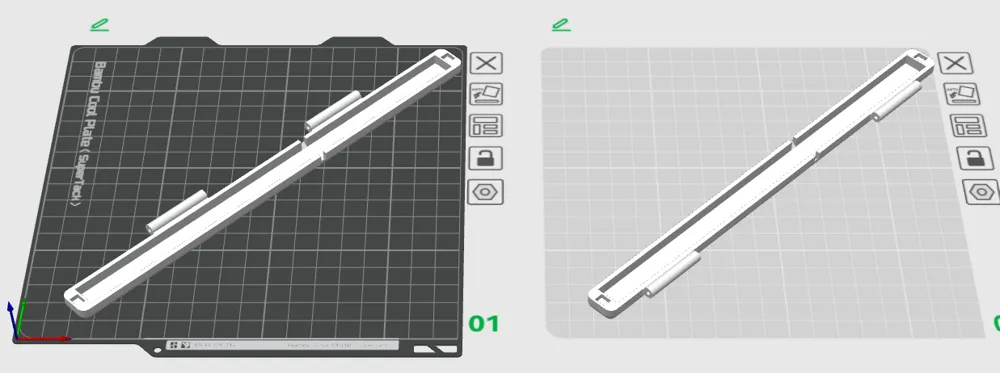

- Print Settings: The model was successfully tested and printed in PLA on a Bambu Lab A1 mini.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
