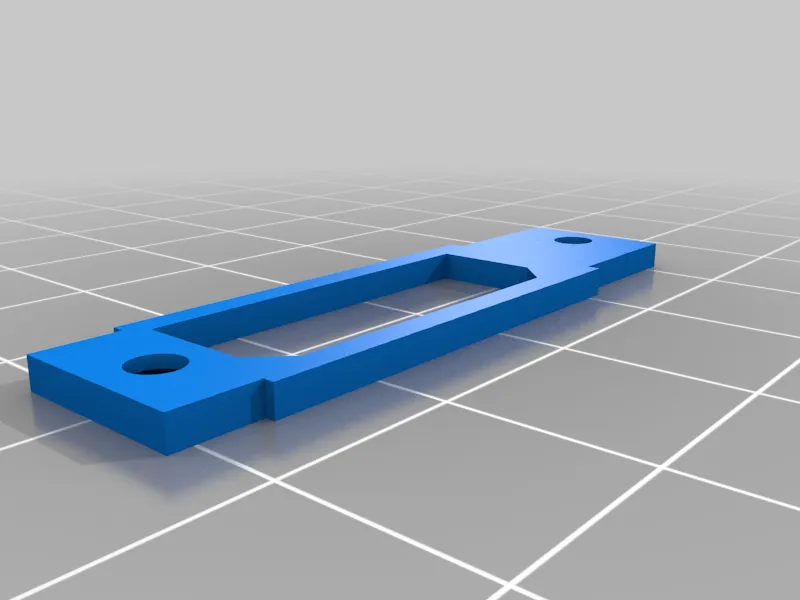

Molex cover/adapter for Lenovo tiny
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
2
5
3
0
1
0
Released
Description

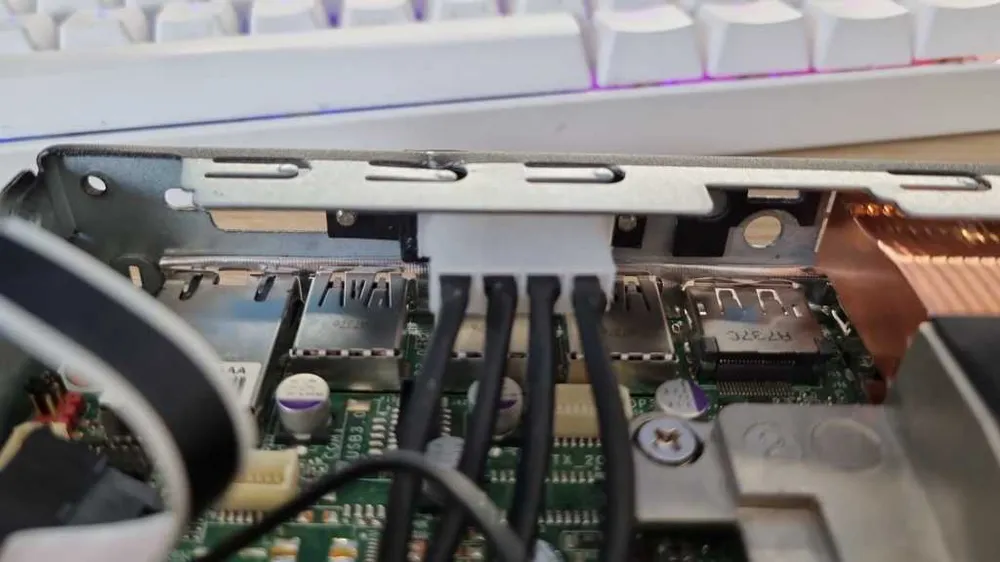

I needed this part to have a molex connector in the M910Q case to power the drives

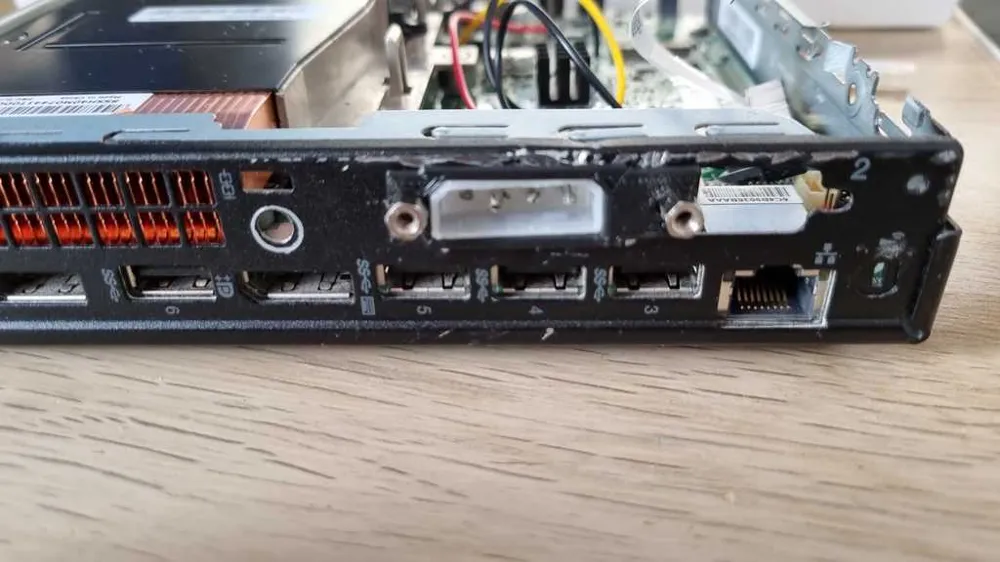

you will have to cut a bit of the tiny case in order to fit and you need to use the screws that came with the serial port

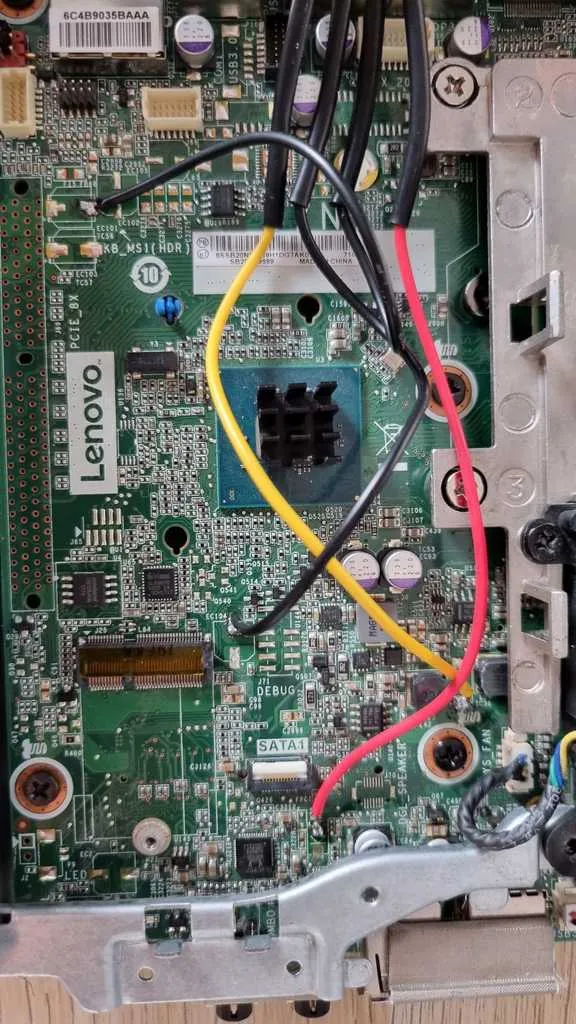

Yellow is 12V
Red is 5V
Black is Ground
The original design came from: https://cults3d.com/en/3d-model/tool/molex-male-support-for-panel-mounting
Category: DIYLicense
This user content is licensed under a
Creative Commons Attribution
