external switch front H2C/H2S/H2D
Print Profile(1)
Description
Inspired by this model:
H2D Front Power Switch – Free 3D Print Model – MakerWorld

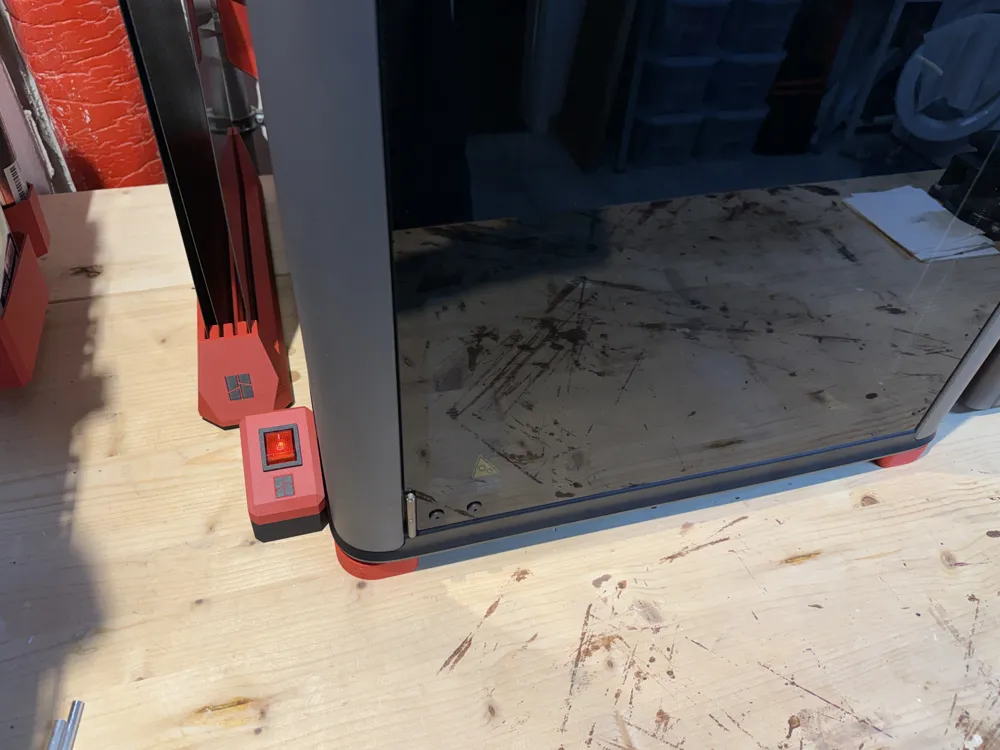

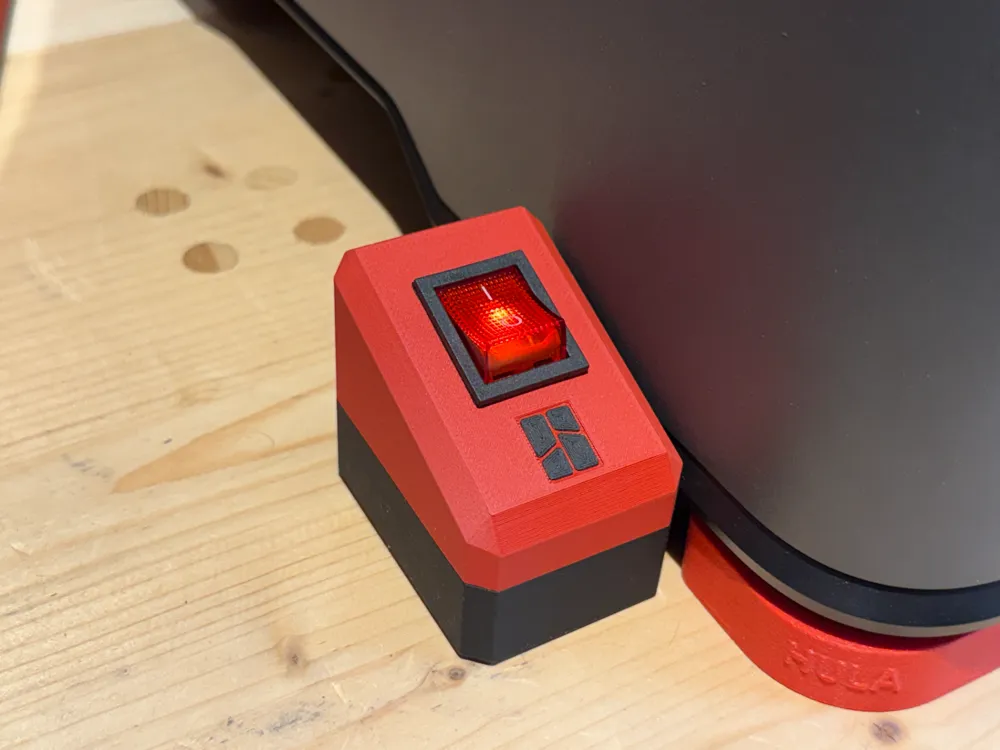

I liked the model, but I wanted an angular design and it needed to fit with the HULA feet. This allows the cables to run under the printer.
If you are not using HULA, a second model is included in the print profile.

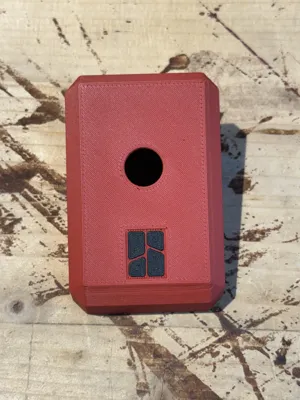

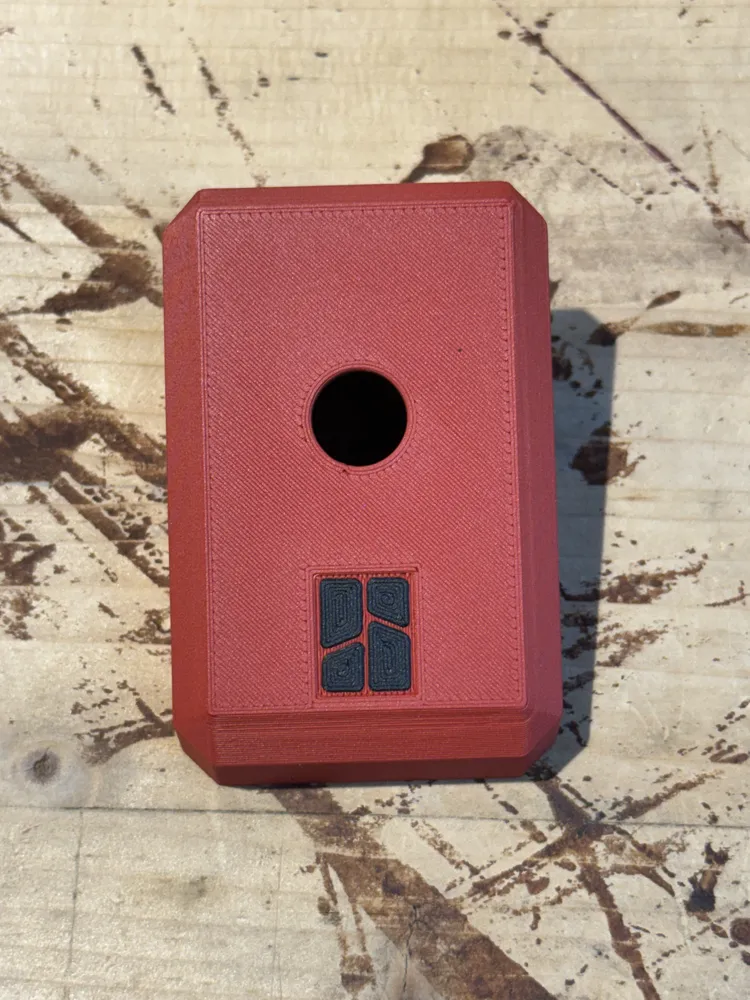

There are three tops for both variants. For square switches (28x22mm), round (12.4mm) and without an opening (here you can simply cut a suitable opening in the slicer with a negative part).
Modifiers are included that print the logo with a concentric surface.
If you need the switch on the right side of the printer, you can simply mirror the bottom in the slicer.
The following materials are required:
4x M3 heat-set inserts
2x M2 heat-set inserts
4x M3x10 cylinder head screw (M3x12 also works)
2x M2x6 cylinder head screw
Optional, as the printer moves and the box could scratch the work surface:
5x Mouse Skates 6mm
1x Switch 230V
e.g.: Xiatiaosann 5 Pcs Toggle Switch AC 16A/250V 20A/125V DPST On/Off 5 Colors (Black/Red/Green/Yellow/Blue) 4 Pin 2 Position LED Light Self-locking Rocker Switch with Crimp Wire : Amazon.de: Car & Motorbike (this one goes through the opening quite tightly, but then won't wobble)
1x Power cable 230V
I cannot explain the electrical connection here, this should only be done by someone familiar with it.
