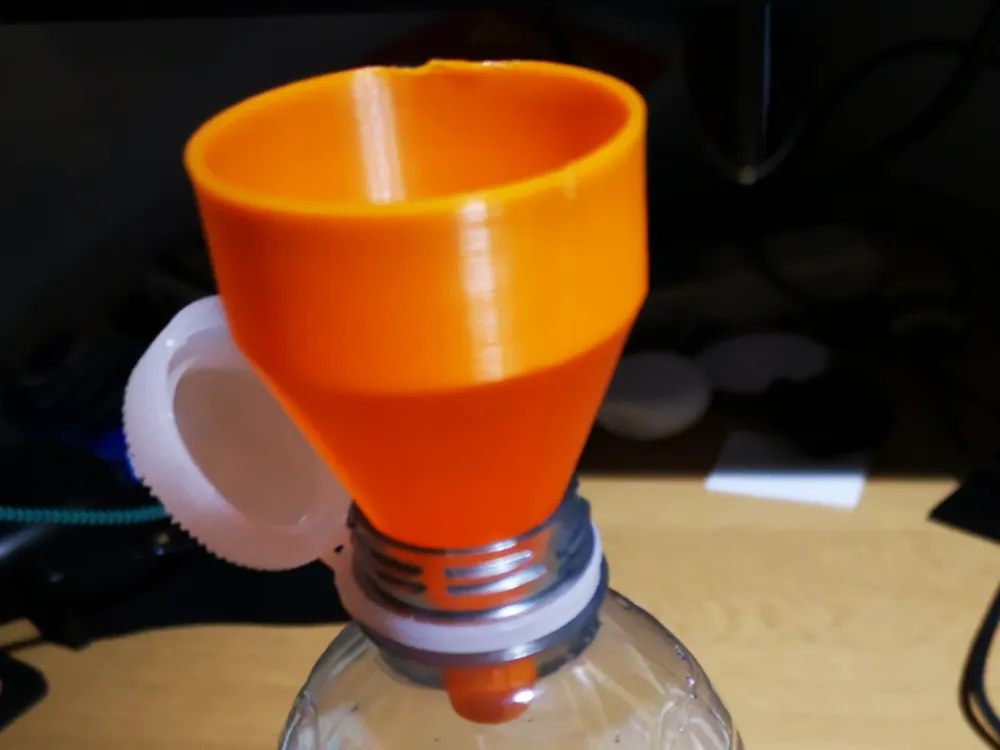

Ultimate Parametric Anti-Glug Funnel

Heavy-Duty, Customizable, and Mess-Free

This is a fully parametric funnel designed to solve the common issues of splashing and air-lock. By using the MakerWorld Customizer, you can generate a funnel tailored to your exact needs, whether it is for the kitchen, the laboratory, or the garage.

Material Recommendations for Heavy-Duty Use

For light household use (dry goods and cool liquids), PLA is sufficient. However, for heavy-duty, automotive, or chemical applications, the following materials are highly recommended:

• ASA (Best Choice): High resistance to UV, weather, and chemicals. It handles heat exceptionally well and is the ideal choice for funnels kept in a garage or used for outdoor equipment.
• ABS: Provides excellent heat resistance and durability for mechanical and shop environments.
• PETG: A great middle-ground that offers chemical resistance and higher heat tolerance than PLA, without the printing complexity of ASA/ABS.

Note: If printing with ABS or ASA, an enclosed printer is recommended to prevent warping, and ensure your workspace is well-ventilated.

Key Design Features

• Anti-Glug Air Ribs: Integrated channels on the outer spout allow air to exit the container as you pour. This prevents the vacuum effect that causes splashing and glugging.
• Vertical Splash Guard: A vertical rim extension at the top provides extra volume and catches sloshing liquid, allowing for faster, safer pours.
• Centered Hanging Handle: The ergonomic handle includes a perfectly centered hole, ensuring the funnel hangs straight on a pegboard or hook.
• Support-Free Geometry: All angles are optimized for 3D printing. No supports are required for any part of this model, including the handle.

Printing Instructions

• Watertight Walls: To ensure the funnel is leak-proof, use at least 3 or 4 perimeters (walls).
• Overhang Safety: For a support-free print, ensure the Cone Height is at least 50% of the Top Diameter.
• Orientation: Always print with the wide mouth facing down on the build plate for the best adhesion and stability.

Customizable Parameters

You have full control over:

• Spout Dimensions: Length and diameter.
• Body Geometry: Cone height and top width.
• Rim Height: Depth of the vertical splash guard.
• Handle Settings: Width, length, thickness, and hole diameter.
• Features: Toggle air ribs and handle on or off.

Recommended Dimensions:

• Application	Top Diameter	Rim Height	Spout Bottom
  Precision/Kitchen	40mm	10mm	8mm
  Standard Utility	90mm	20mm	12mm
  Automotive/Garage	160mm	45mm	22mm

Safety Disclaimer

Chemical Safety: If you use this funnel for automotive fluids, oils, or harsh chemicals, clearly mark the funnel and do not use it for food or drink preparation afterward. Even thorough washing may not remove all chemical residues from the porous surface of a 3D print.

Food Safety: While some filaments are marketed as food-safe, the 3D printing process creates small ridges (layer lines) that can harbor bacteria. If using for food, consider using a food-safe epoxy coating or treat the funnel as a single-use item for dry goods.
