<ul><li>altura de capa 0.16 mm</li><li>3 paredes</li><li>10% infill</li><li>giroide</li></ul>

<ul><li>0.16 mm layer height</li><li>3 walls</li><li>10% infill</li><li>gyroid</li></ul>

0.16mm layer, 3 walls, 10% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>¡GRACIAS A TU APOYO PODRE SEGUIR DESARROLLANDO ROBOTS AVANZADOS PARA LA COMUNIDAD!</boostcontent></boostme>¡Por favor sígueme en mis redes sociales para estar al día de los avances más nuevos en la robótica de competencia! Me vas a encontrar como Neutron Robotics Academy en YouTube y PATREON.&nbsp;Dato curioso: ATS significa “Augmented Traction Sistem”, o “Sistema de Tracción Aumentada” en español.El esperado ventilador centrifugo esta aquí! ¡utilízalo libremente en tus robots de competencia! esta diseñado especialmente para uso en seguidores de línea velocistas.&nbsp;<figure class="image image_resized image-style-side" style="width: 31.42%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002251630/design/2026-01-15_21a202c9c56578.png"></figure>Monta el motor con los tornillos que vienen con el, para los pilares vas a requerir de 8 tornillos m1.6 de 6 mm de largo.&nbsp;La distancia entre agujeros es de 30 mm y son simétricos en los ejes X y Y.&nbsp;Para girar el ventilador, utilice un motor Brushless de la marca Ysido tamaño 1404 aunque otros pudieran funcionar, dicho eso, asegúrate de que el espacio entre el ventilador y la base no sea muy grande pues por ahí se puede fugar el aire, para contrarrestar esto, si utilizas un motor diferente al mío, puedes simplemente recortar los pilares.&nbsp;Si quieres utilizar otro tamaño de tornillo para los pilares eres libre de hacerlo, pudiendo incluso los pilares ser de otro material.&nbsp;Recomiendo imprimir en PETG pero debe funcionar en PLA tambien.&nbsp;<img class="image_resized" style="width: 38.38%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000002251630/design/2026-01-15_7b61ade66b7ba.png">

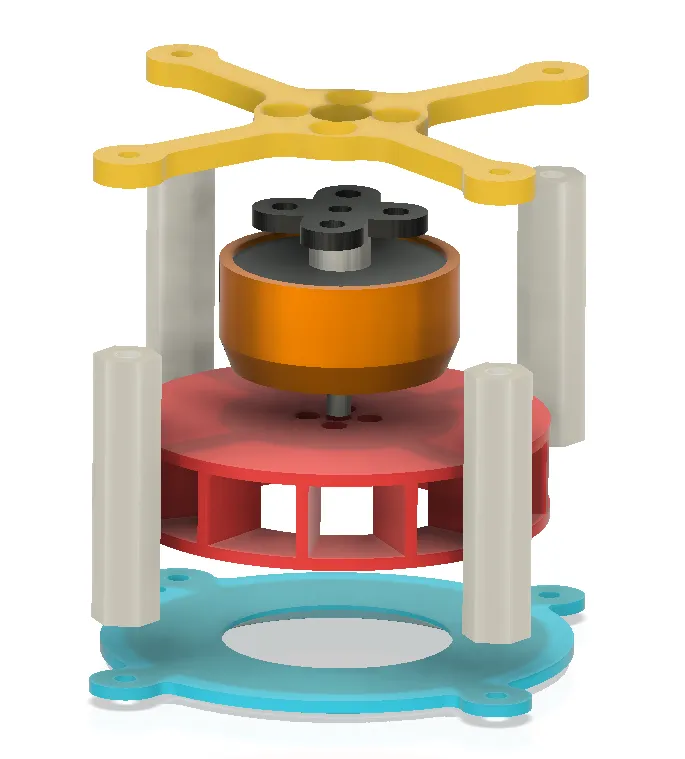

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>THANKS TO YOUR SUPPORT I WILL BE ABLE TO CONTINUE DEVELOPING ADVANCED ROBOTS FOR THE COMMUNITY!</boostcontent></boostme>Please follow me on my social media to stay updated on the newest advancements in competition robotics! You can find me as Neutron Robotics Academy on YouTube and PATREON.&nbsp;Fun fact: ATS stands for “Augmented Traction System”, or “Sistema de Tracción Aumentada” in Spanish.The long-awaited centrifugal fan is here! Use it freely in your competition robots! It is specially designed for use in speed line followers.&nbsp;<figure class="image image_resized image-style-side" style="width: 31.42%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002251630/design/2026-01-15_21a202c9c56578.png"></figure>Mount the motor with the screws that come with it, for the pillars you will need 8 M1.6 screws 6 mm long.&nbsp;The distance between holes is 30 mm and they are symmetrical on the X and Y axes.&nbsp;To spin the fan, use a Ysido brand 1404 size brushless motor although others might work, that said, make sure that the space between the fan and the base is not too large as air can escape through there, to counteract this, if you use a different motor than mine, you can simply trim the pillars.&nbsp;If you want to use a different screw size for the pillars you are free to do so, and the pillars can even be made of another material.&nbsp;I recommend printing in PETG but it should also work with PLA.&nbsp;<img class="image_resized" style="width: 38.38%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000002251630/design/2026-01-15_7b61ade66b7ba.png">
