Floor Mounted Sliding Door Guide (8mm door)
Print Profile(1)
Description

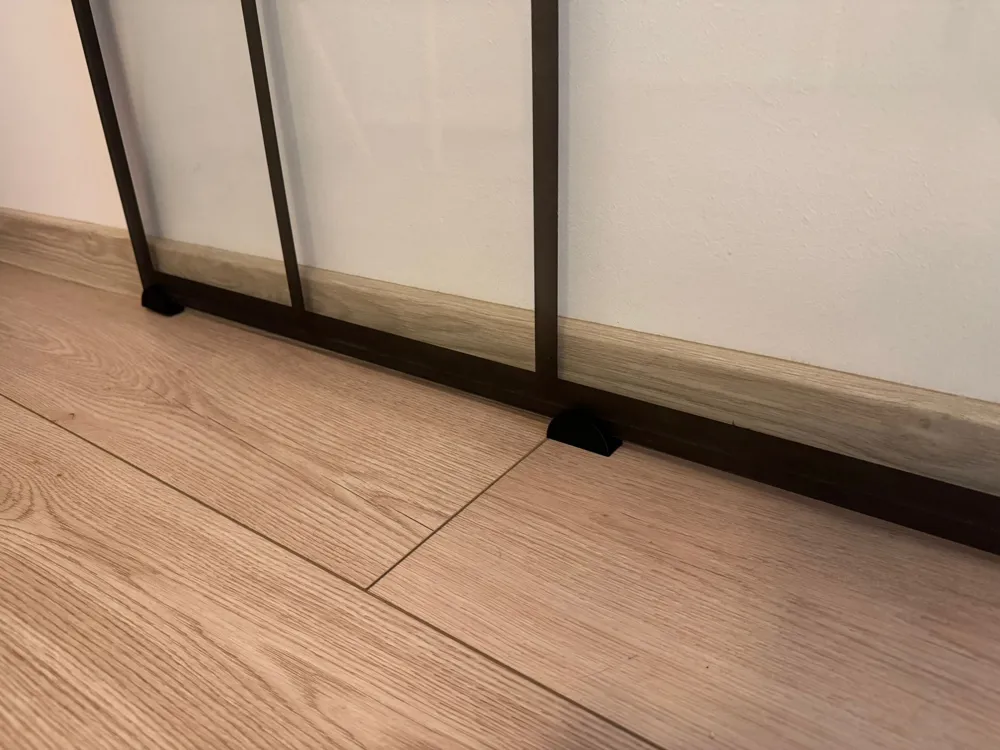

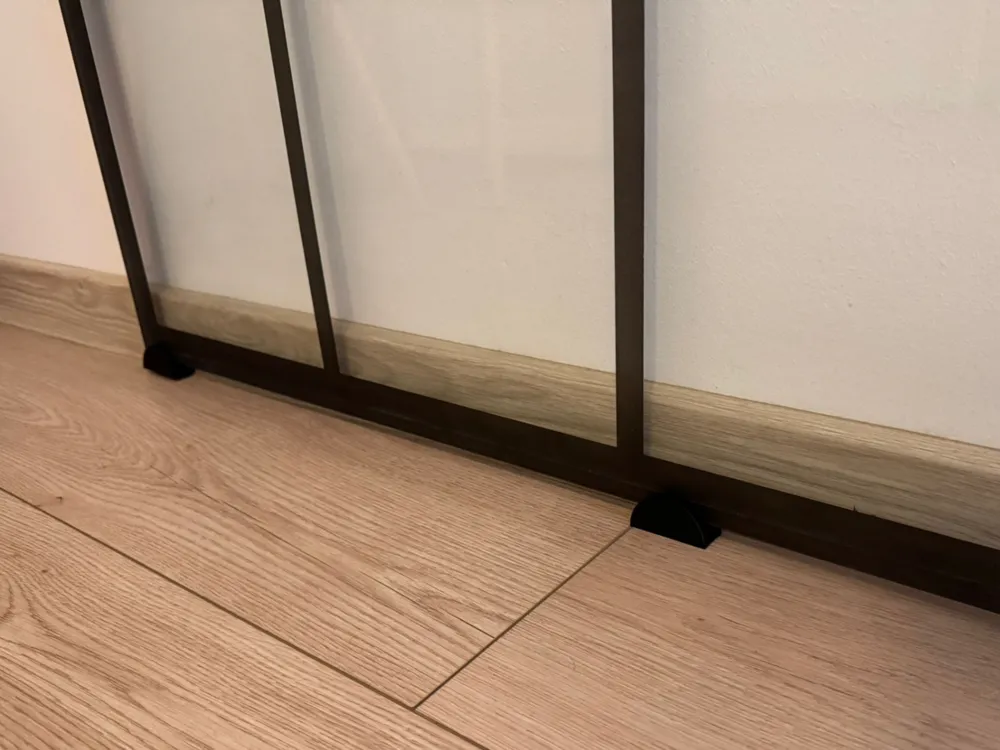

Floor-mounted sliding door guide designed for glass or wooden sliding doors.

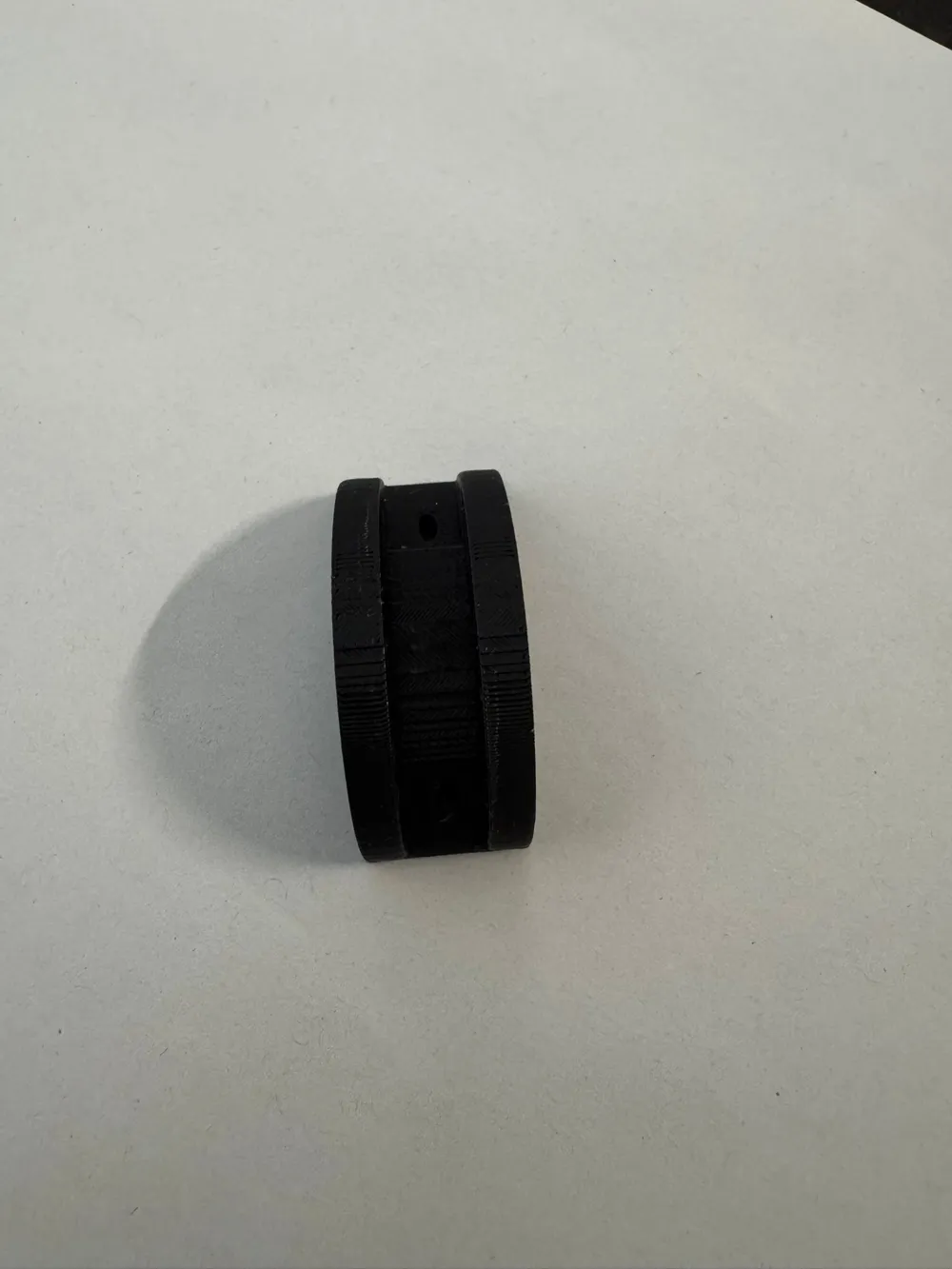

The inner channel follows the same curved profile as the outer walls, ensuring smooth, silent sliding and reduced wear on the door edge.

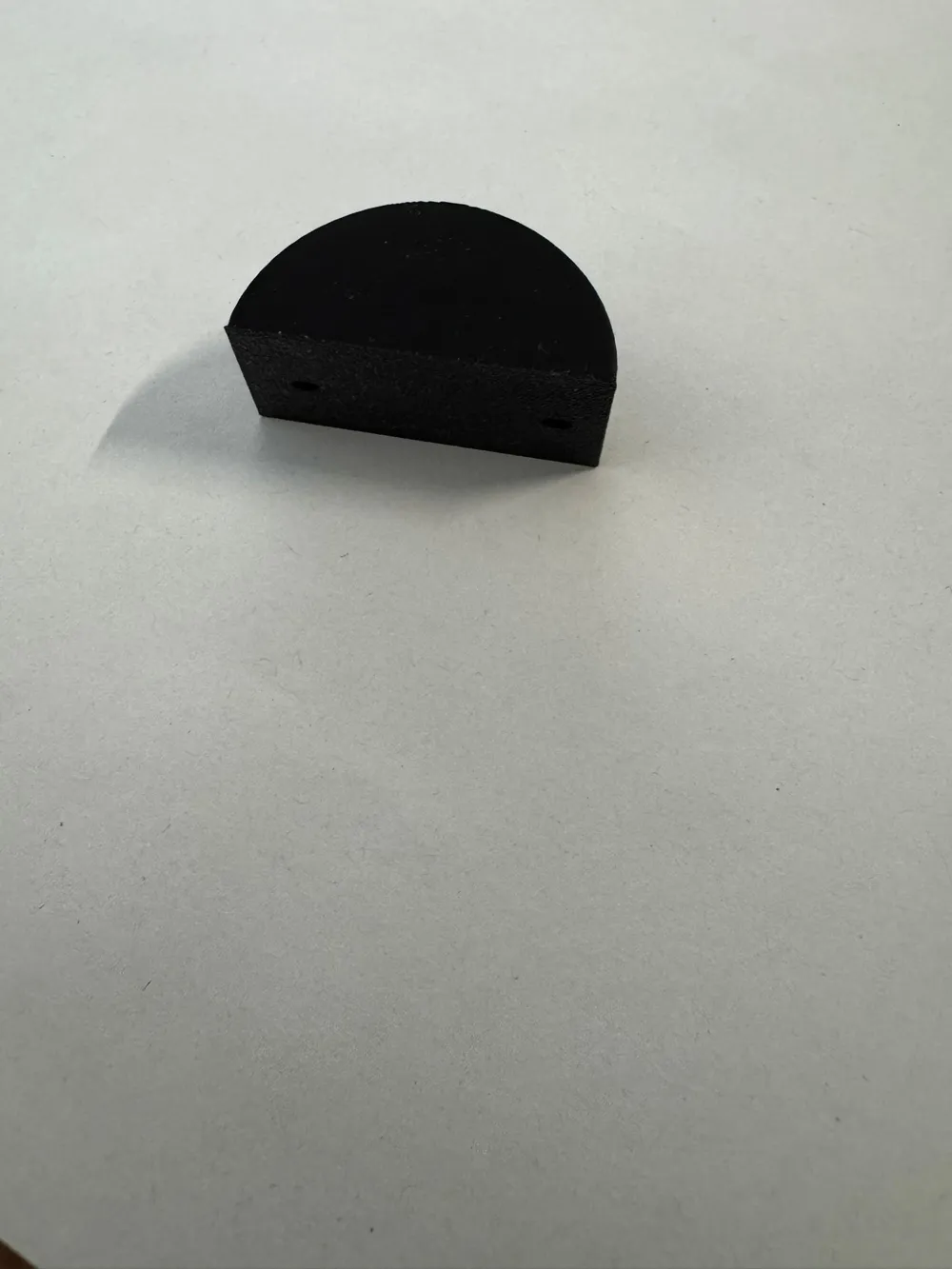

Side-mounted screw holes prevent any contact between fasteners and the door.
Technical details
- Inner channel width: 9 mm
- Tested door thickness: 8 mm (glass)
- Total width: 19 mm
- Length: 45 mm
- Inner channel height: 10 mm
- Total height: 23 mm
- Side screw holes: 4 mm
Mounting options
- Screws (recommended for permanent installation)
- Silicone adhesive (tested, no drilling required)
Print recommendations
- Material: PETG or PLA+
- Layer height: 0.2 mm
- Walls: 3–4
- Infill: 25–30%
- Supports: NO
Notes
Designed for light to medium-weight sliding doors.
Test fit before permanent installation.
