Ikea Skadis Drill Bit Carousel (Customizable!)

Summary

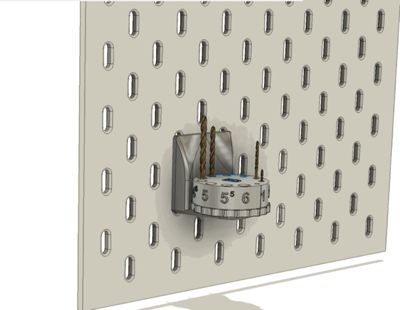

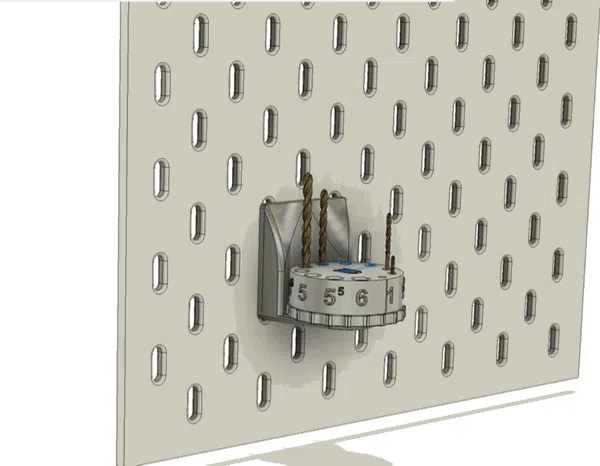

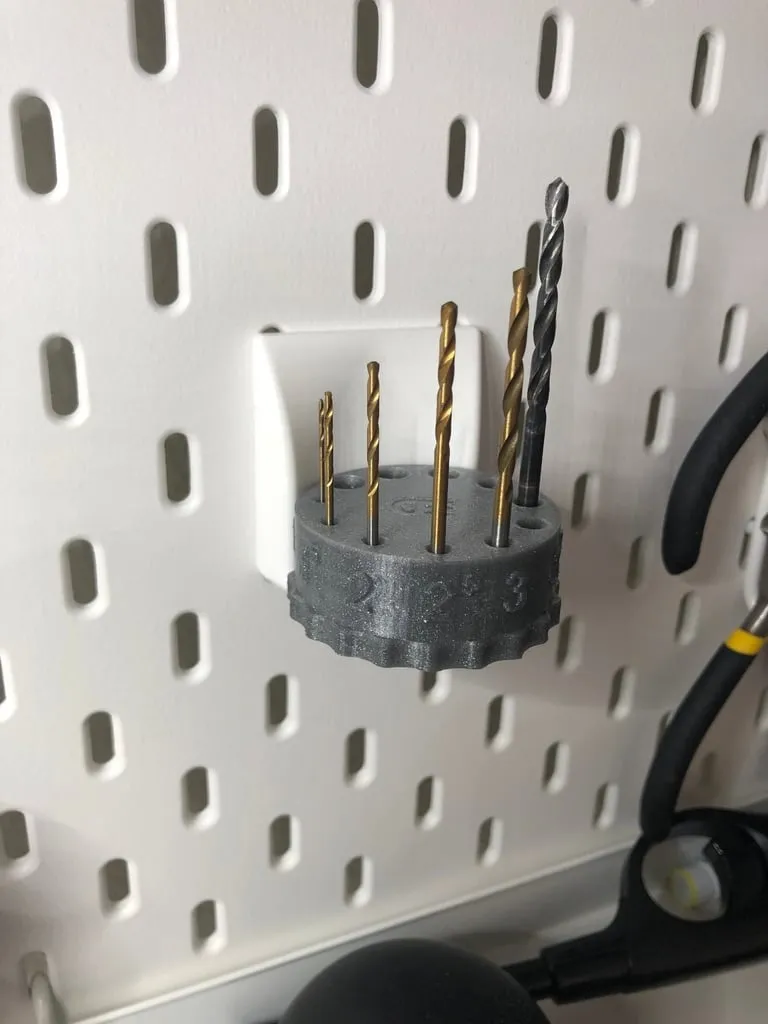

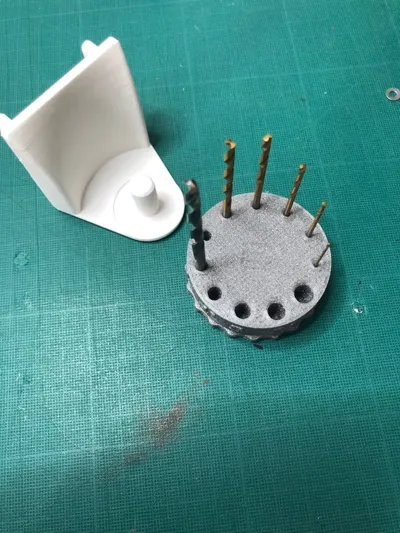

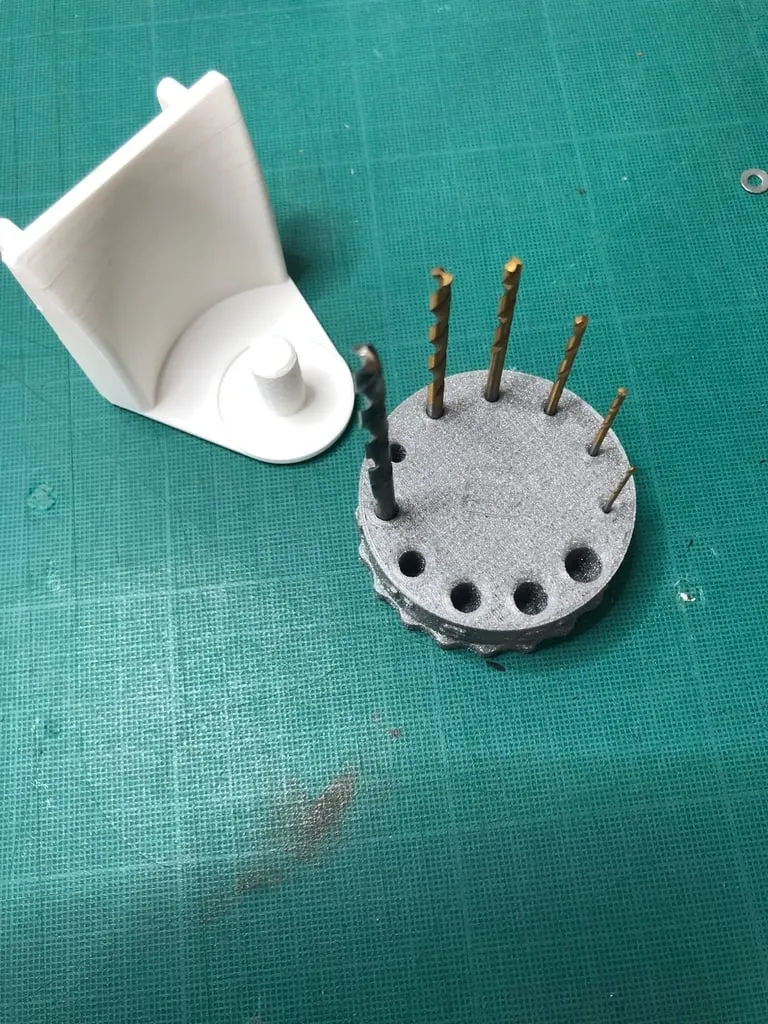

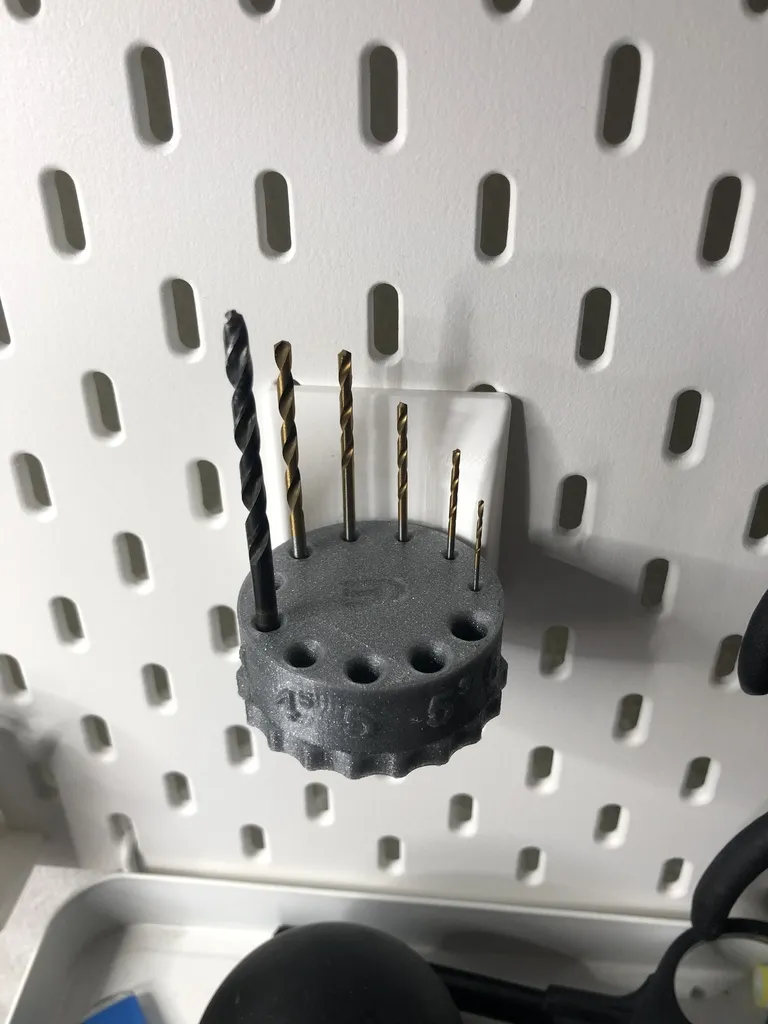

Like to have my tiny drill bits organized this way. On my Skadis Peg Board. The carousel can easily picked off the holder if you need all the drill somewhere els.

Have fun making, like it? LIKE it!

NOW with OpenSCAD opensource model.

Parametric Ikea Skadis Drill Bit Carousel

This is a parametric Ikea Skadis Drill Bit Carousel designed in OpenSCAD, offering some parameters for customization.

The attached STL-file (Skadis Drill Bit Carousel.stl) has been rendered using this settings.

The customization options include:

• number of drills
• size of drills
• form of drills (round and hexagon)
• custom text on top (embossed or embedded)
• show/hide drill sizes

Parameter Overview

Body Parameters

• Radius: The radius of the carousel in [mm]. The default value (25mm) fits on Drill Bit Carousel holder.
• Height: The height of the carousel including grip in [mm].

Grip Parameters

• Freq: Frequency of the grip "waves". Higher is more.
• Amp: Size of the grip "waves".
• Grip Height: Height of the grip in [mm].

Drill Holes Parameters

• Drill Style: Round for drills and hexagon for bits.
• Drill Sizes: Array of drill sizes.
• Drill Labels: Array of labels (side). This value is optional, drill size is used as label by default.
• Drill Edge: Width of the drill hole edges [mm].
• Drill Edge Height: Height of the drill hole edges [mm].
• Drill Inner Spacing: Inner spacing for drill holes.
• Drill Outer Spacing: Distance to the outer edge of the carousel.

Drill Labels Parameters

• Drill Label: Show drill labels on the side of the carousel.
• Drill Label Font: Font for drill labels.
• Drill Label Size: Font size for drill labels.
• Drill Label Height: Emboss height of the drill labels in [mm].

Holder Parameters

• Holder Height: Height of the holder inlet in [mm]. The default value (18mm) fits on Drill Bit Carousel holder.
• Holder Radius: Radius of the holder inlet in [mm]. The default value (4,825mm) fits on Drill Bit Carousel holder.
• Holder Edge: Width of the holder inlet edges [mm].
• Holder Edge Height: Height of the holder inlet edges [mm].

Top Label Parameters

• Top Label: Show top label.
• Top Label Type: Circular or straight font for the label.
• Top Label Style: Embossed or embedded label.
• Top Label Text: Text of the top label.
• Top Label Font: Font for the top label.
• Top Label Size: Font size of the top label.
• Top Label Height: Height of embossed or embedded top label in [mm].
• Top Label Degree: Span of embossed or embedded top label in [°].
