Ryobi Stick Vacuum Wheel Replacement
Print Profile(1)
Description

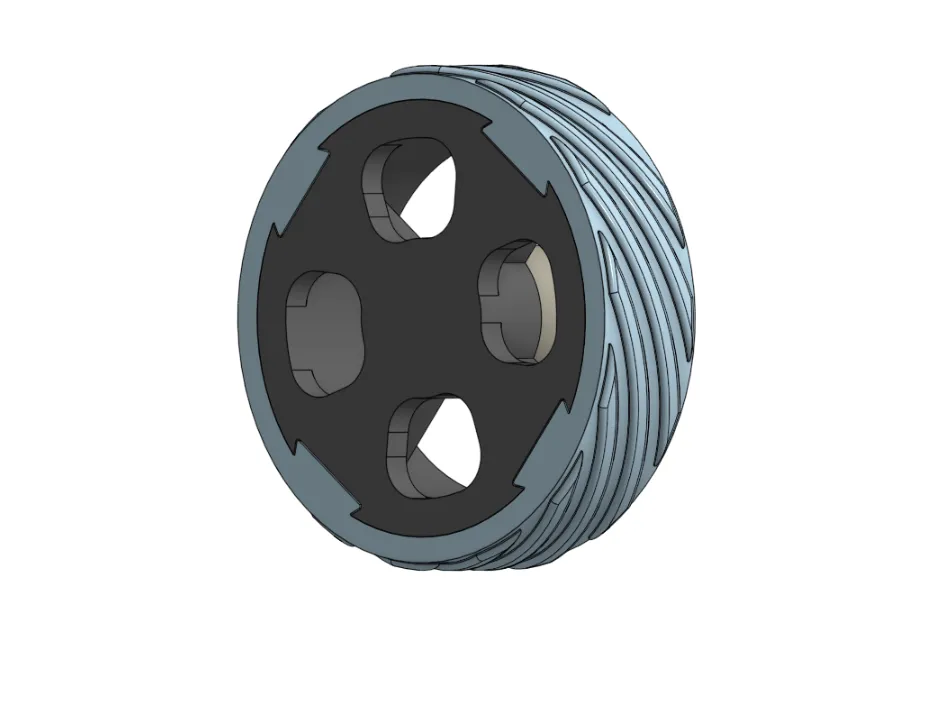

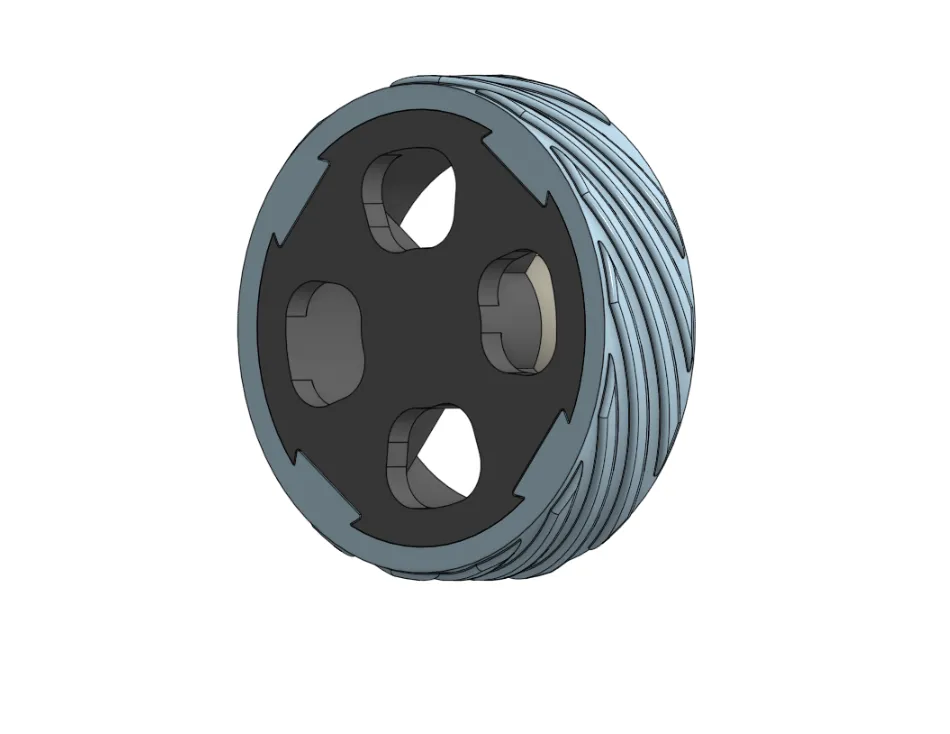

This is my Ryobi Stick Vacuum (R18XSV9/R18SV5/PBLSV716K) wheel replacement.

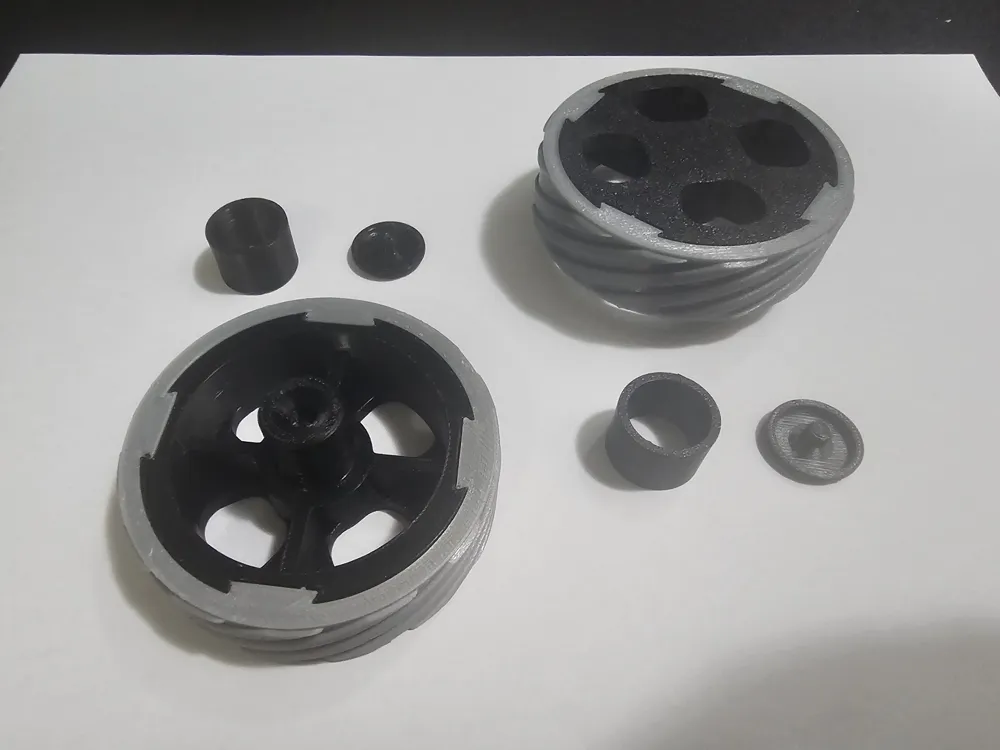

In the print file there is multiple outer shaft sizes. I recommend dry fitting each to see which will best suit your vacuum inner wheel shaft size.

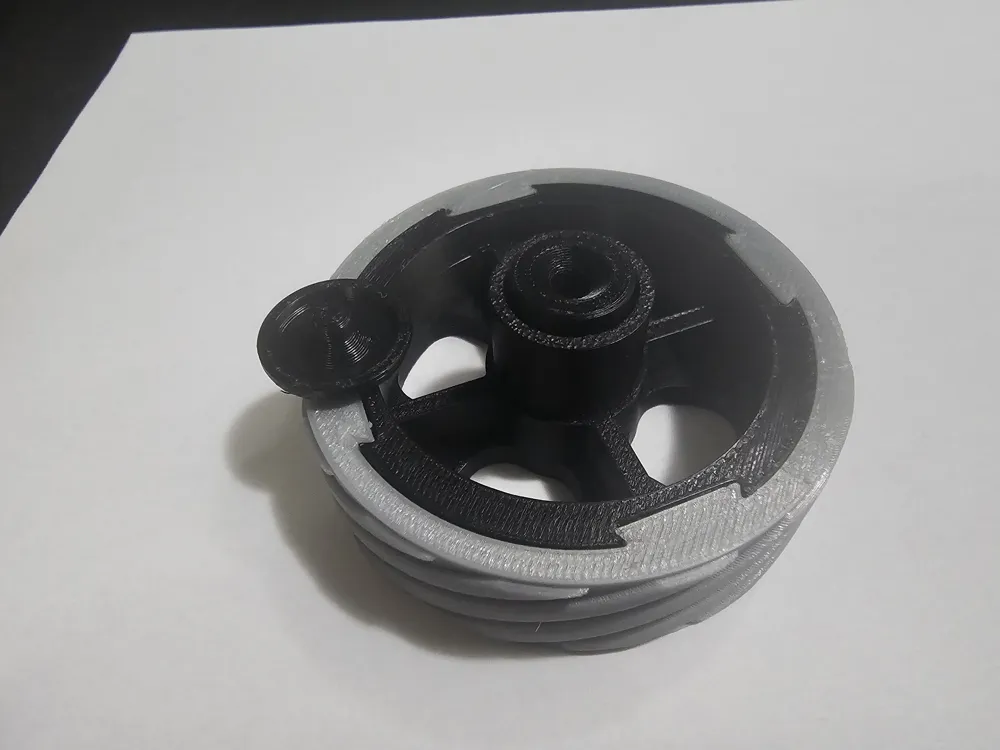

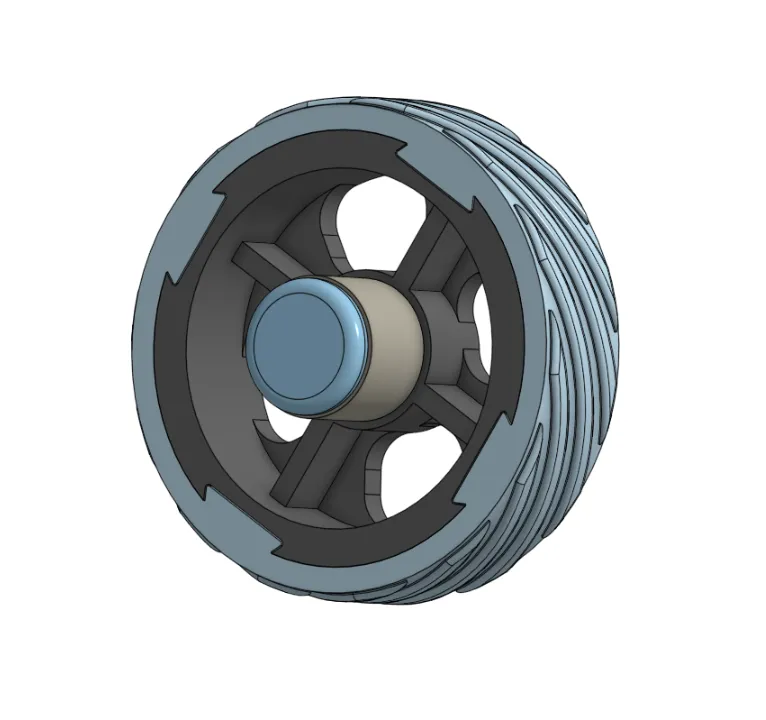

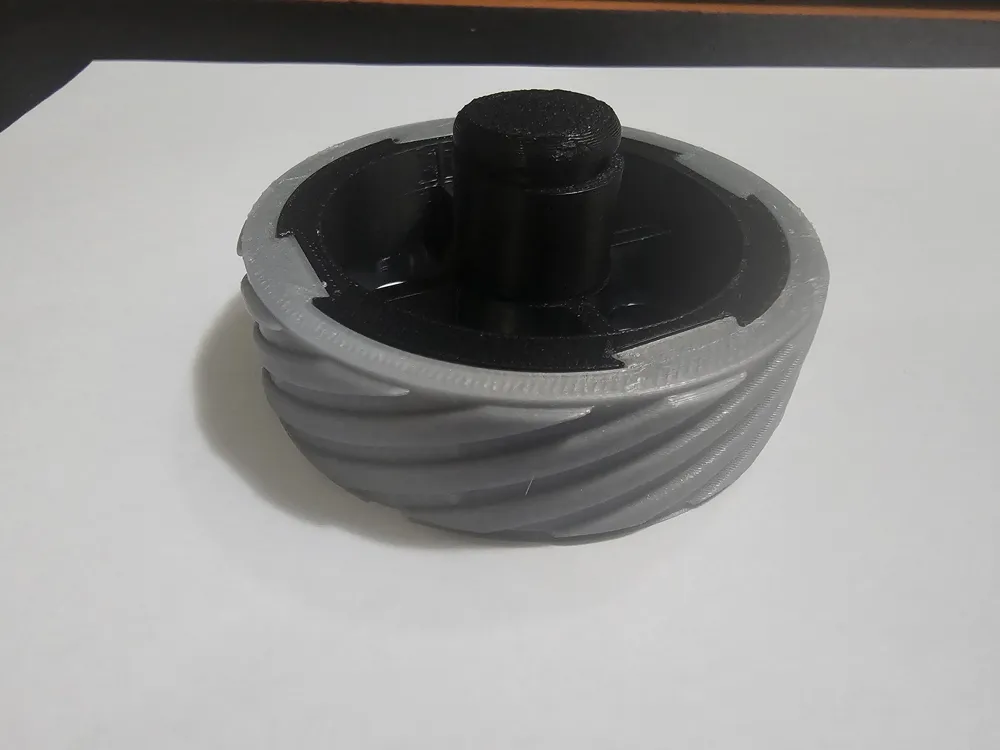

Once printed, it goes together as you see it. First the correctly sized outer shaft over the wheel shaft. Then the cap well press fit on the wheel shaft. I would recommend CA gluing the cap on the wheel shaft with a tiny dab of glue (ONCE YOU KNOW IT FITS CORRECTLY). Then slide on the TPU tyre it has a 0.2mm tolerance so it should fit nicely, once again a dab of CA glue so it doesn't slide off mid vacuum.
Fitting the wheel unit to the vacuum is a press fit, it should be in there nice and firm and not easily removed.
