Stackable SFP / SFP+ Transceiver Storage Tray

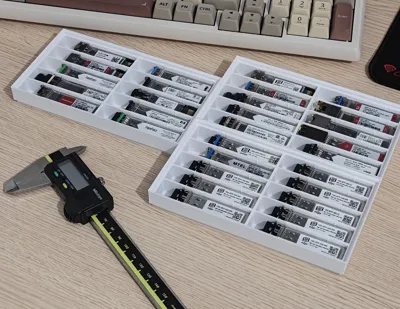

This model is a compact, stackable storage tray for SFP and SFP+ transceivers, available in 10 and 20 version. It is designed for clean organization, quick access, and efficient 3D printing, making it ideal for data centers, network labs, ISP's, WISP's, workshops, homelab-ers. It can used for field tech's but it's not recommended due to the trays no been able to close securely.

The tray uses a spring-style holding design that securely grips transceivers of varying sizes and tolerances. This ensures a reliable fit across a wide range of SFP/SFP+ modules while still allowing easy insertion and removal, regardless of vendor or housing differences.

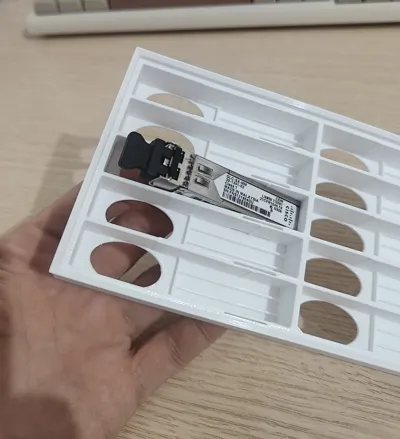

To improve usability, removal holes on the underside allow transceivers to be pushed out from below. The design is optimized to use minimal filament while maintaining rigidity and durability.

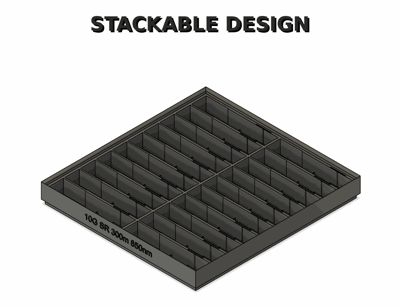

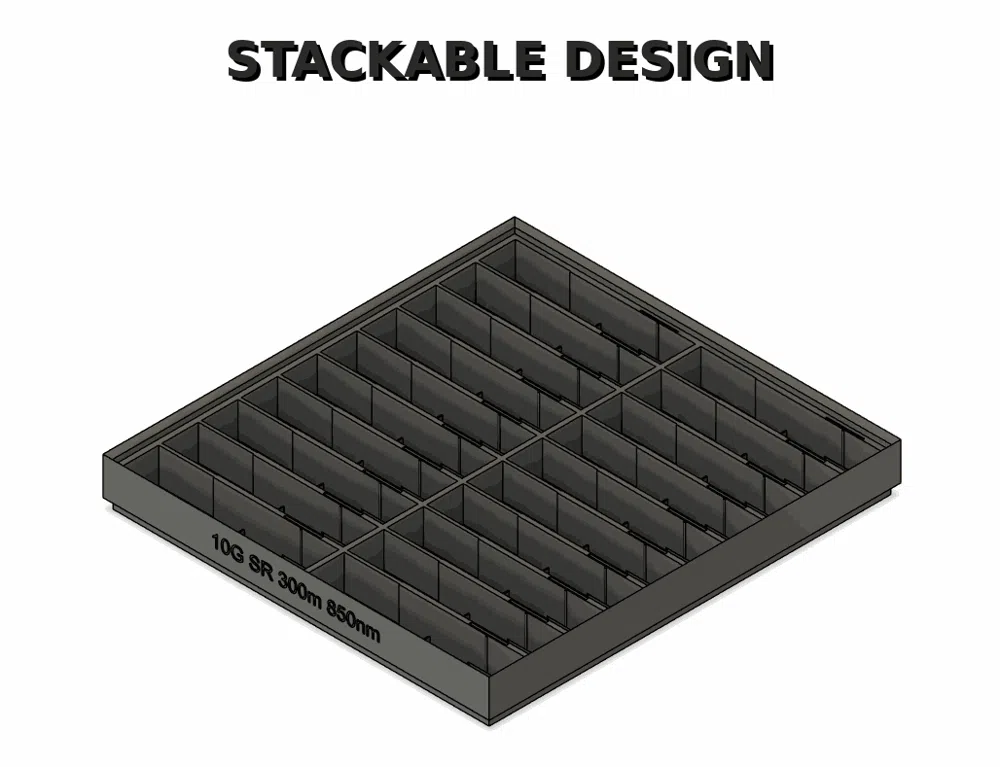

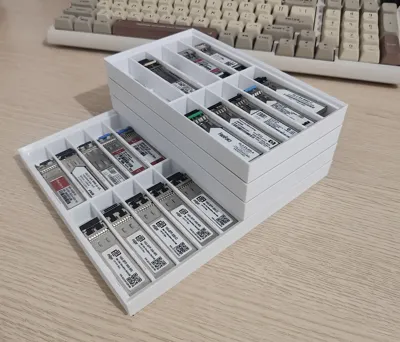

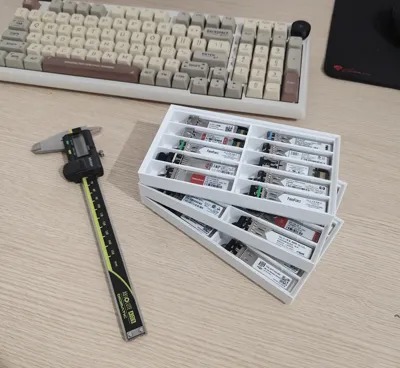

Multiple trays can be stacked, making it easy to scale storage vertically and keep optics organized in limited space.

For inventory management and fast identification, the print pofile's have custom text added using the slicer, allowing you to label trays by speed, type, or application.

Features

• Available in 10 slot and 20 slot variants
• Compatible with SFP and SFP+ transceivers
• Spring-style retention adapts to different SFP sizes and manufacturers
• Bottom access holes for easy, safe removal of transceivers
• Support for Base T RJ45 transceivers
• Stackable design for compact, scalable storage
• Minimal filament usage for fast, efficient printing

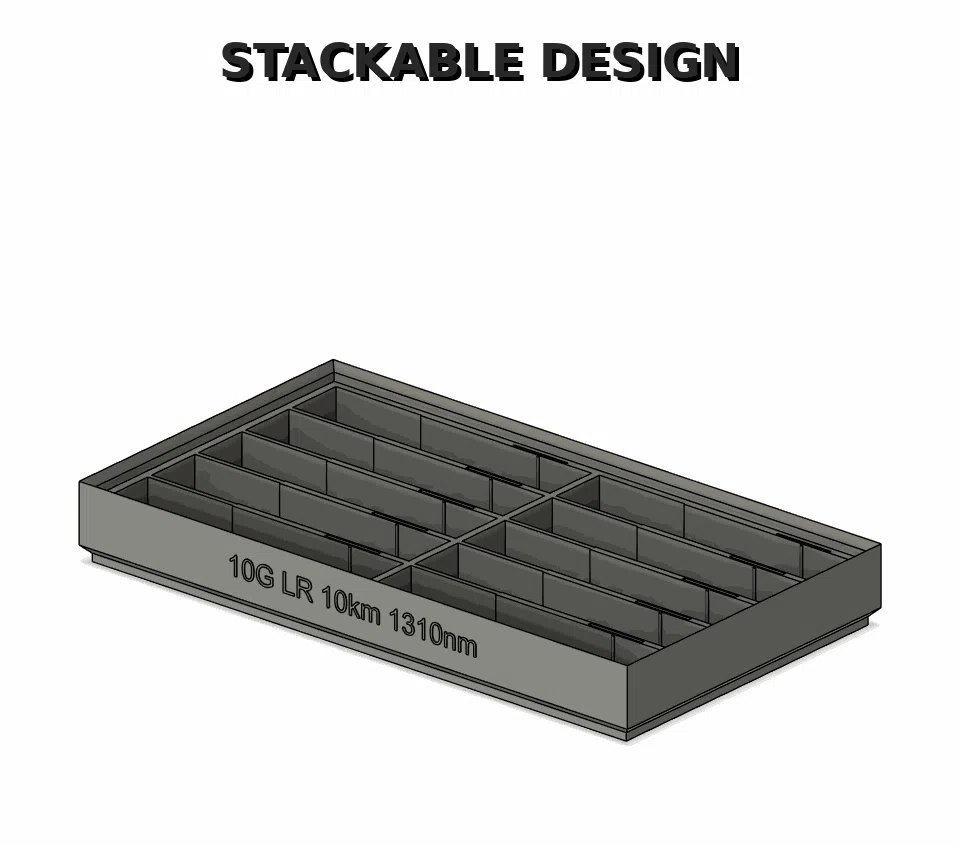

• Combability between 20 slot and 10 slot version, the 10 slot can be placed on top of the 20 slot tray
• Side surface supports custom slicer-added text or labels, (use slicer to update the text!)

Ideal for Organizing

• 1G / 2.5G / 5G / 10G transceivers
• SR / LR / ER / ZR etc optics
• BIDI modules
• CWDM optics
• RJ45-T copper SFPs
• Fibre Channel transceivers
• and any SFP+ based form factor

Labeling

• [SPEED] [TYPE] [DISTANCE] [WAVELENGTH]

Labeling Examples

• 1G LX 10KM 1310NM
• 1G T RJ45
• 10G SR 300M 850NM
• 10G ER 40KM 1550NM
• 10G BIDI 20KM
• 10G FC BROCADE 850NM

Printing / Slicing tips / Warping

My printing examples are with the A1 mini and the open frame deign tends to cause the corners to lift, to mitigate this I have apply mouse ears around the print profiles that can easily trimmed after print. If you have a heated chamber printer you can remove the discs on the slicer for less hassle.

This tray is perfect for anyone managing a large variety of optics who wants a printable, space-efficient, and professional-looking storage solution. If you like my work consider a boost
