<p>ohne Stützmaterial zu drucken.</p><p>PLA eignet sich hervorragend hierfür.</p>

<p>to print without support material.</p><p>PLA is excellently suited for this.</p>

Axis Cleaning Tool 0.2mm optimized


<p>mit Druckbetthaftung</p><p>PLA oder PETG eignet sich hervorragend.</p>

<p>with print bed adhesion</p><p>PLA or PETG works perfectly.</p>

Axis Cleaning Aid 0.24mm extra fast

IMG_4477 2.jpeg

Extra wide axis cleaning aid optimized for 0.2mm


Wide Axis Cleaning Aid 0.24mm Extra Fast

Gameknight9997


<p>SUPER SPEED Optimized temp 1 wall FLEXIBLE a1 series compatible!</p>

SUPER SPEED, OPTIMIZED, FLEXIBLE 1 Wall 0.28mm

Haru


<p>This profile includes targeted adjustments to accommodate the thin and elongated geometry of the model.</p><ul><li>Layer height reduced to 0.16mm: ensures adequate detail resolution for such a fine component, maintaining precision along the entire stem.</li><li>Ironing on upper surfaces with a concentric pattern: the combination of these two parameters generates a smooth finish that fluidly follows the circular and longitudinal lines of the part, refining its visual appearance.</li><li>100% infill density with a concentric pattern: provides maximum structural rigidity to the object, preventing bending or breaking of the elongated body during use.</li><li>Initial layer and initial layer infill speeds halved (25mm/s and 50mm/s): ensure extremely firm bed adhesion, a critical factor given the minimal contact perimeter of the model with the build plate.</li><li>Painted brim with a 0.2mm gap: allows the adhesion support to be applied only where most needed, while the increased distance facilitates clean removal without risking snapping the delicate edges of the print.</li></ul><p>This technical setup is designed to deliver a solid and visually refined component.</p>

0.16mm layer, 100% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<h3 style="text-align: center"><strong>Einfaches Reinigungstool für die X-Achse des X2D, P2S, P1S, X1C sowie die Y und Z Achsen der H2 Serie oder andere 10mm Rundführungen.</strong></h3><h3 style="text-align: center"><strong>Für sekundenschnelles reinigen und rückstandsloses entfernen von altem Öl</strong></h3><boostme><boosttitle>Boost Me</boosttitle><boostcontent>Freude daran? Dann würde ich mich über einen Boost freuen.</boostcontent></boostme><p style="text-align: center"><strong>Einfach mit einem Fusselfreien Tuch verwenden.</strong></p><p style="text-align: center"><strong>Erleichtert den Reinigungsvorgang erheblich, da man sonst nicht so gut unter den Riemen kommt.</strong></p><h3 style="text-align: center"><span style="color: #E14747">WICHTIG! Nach dem reinigen unbedingt die Führungsstangen wieder ölen, außer die Carbonstangen.</span></h3><p style="text-align: center"><strong>Sehr leicht und einfach zu drucken.</strong></p><p style="text-align: center"><strong>Es werden lediglich nur 4g Filament benötigt.</strong></p><p style="text-align: center"> </p><h3 style="text-align: center"><span style="color: #E14747"><i><strong>Siehe auch das Werkzeug für die Z-Achse und meine anderen Bambu Wartungshelfer:</strong></i></span></h3><figure class="image image_resized" style="width: 71.58%"><a href="https://makerworld.com/de/collections/7631785-bambu-lab-accessories" target="_blank" rel="noopener noreferrer ugc"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002263510/design/a97cece79ffd0e20.jpeg"></a></figure><h3 style="text-align: center"><span style="color: rgb(225,71,71)"><i><strong>Liken, bewerten und folgen nicht vergessen um keine neuen Projekte zu verpassen.</strong></i></span></h3><h2 style="text-align: center"><a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/de/@practical3D"><strong>Seht auch meine anderen nützlichen und praktischen Alltagshelfer!</strong></a></h2><p style="text-align: center"><strong>Postet gerne eure Bilder von euren Drucken in den Kommentaren</strong></p><boostme><boosttitle>Boost Me</boosttitle><boostcontent>Freude daran? Dann würde ich mich über einen Boost freuen.</boostcontent></boostme><p>&nbsp;</p>

<h3 style="text-align: center"><strong>Simple cleaning tool for the X-axis of the X2D, P2S, P1S, X1C, as well as the Y and Z axes of the H2 series or other 10mm round guides.</strong></h3><h3 style="text-align: center"><strong>For cleaning in seconds and residue-free removal of old oil</strong></h3><boostme><boosttitle>Boost Me</boosttitle><boostcontent>Enjoy it? Then I would appreciate a boost.</boostcontent></boostme><p style="text-align: center"><strong>Simply use with a lint-free cloth.</strong></p><p style="text-align: center"><strong>Greatly simplifies the cleaning process, as it's otherwise difficult to reach under the belts.</strong></p><h3 style="text-align: center"><span style="color: #E14747">IMPORTANT! After cleaning, be sure to re-lubricate the guide rods, except for the carbon rods.</span></h3><p style="text-align: center"><strong>Very light and easy to print.</strong></p><p style="text-align: center"><strong>Only 4g of filament is needed.</strong></p><p style="text-align: center"> </p><h3 style="text-align: center"><span style="color: #E14747"><i><strong>See also the tool for the Z-axis and my other Bambu maintenance helpers:</strong></i></span></h3><figure class="image image_resized" style="width: 71.58%"><a href="https://makerworld.com/en/collections/7631785-bambu-lab-accessories" target="_blank" rel="noopener noreferrer ugc"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002263510/design/a97cece79ffd0e20.jpeg"></a></figure><h3 style="text-align: center"><span style="color: rgb(225,71,71)"><i><strong>Don't forget to like, rate, and follow so you don't miss any new projects.</strong></i></span></h3><h2 style="text-align: center"><a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/@practical3D"><strong>Also check out my other useful and practical everyday helpers!</strong></a></h2><p style="text-align: center"><strong>Feel free to post pictures of your prints in the comments</strong></p><boostme><boosttitle>Boost Me</boosttitle><boostcontent>Enjoy it? Then I would appreciate a boost.</boostcontent></boostme><p>&nbsp;</p>

Print Profile(6)

Description

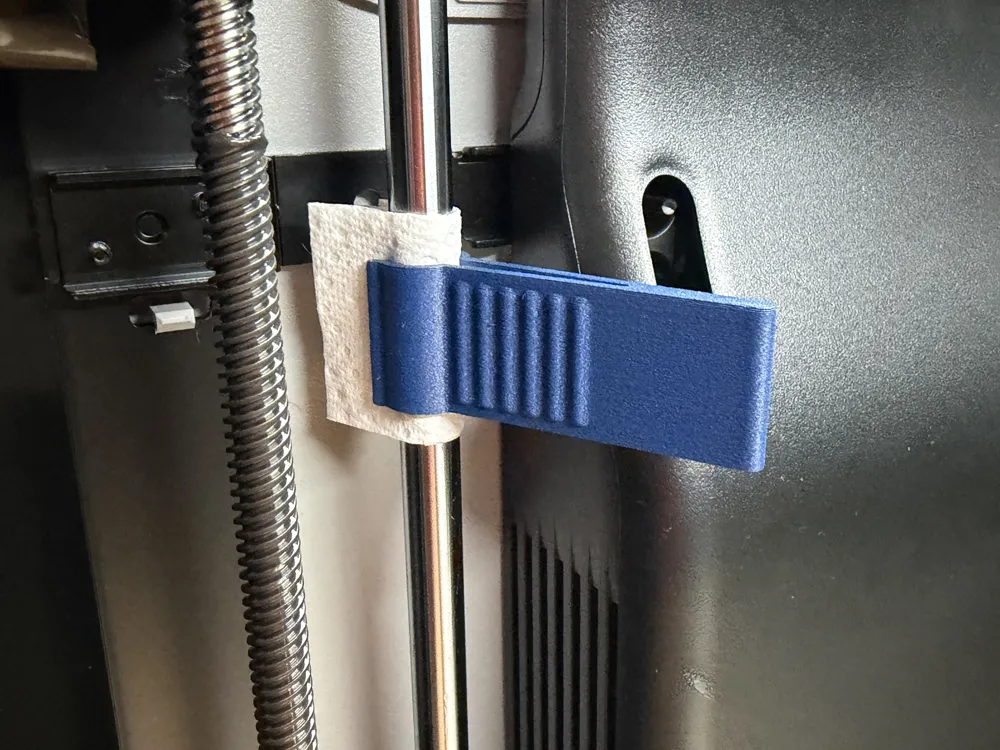

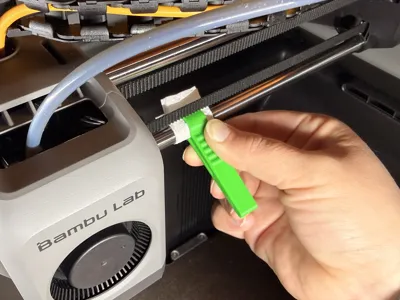

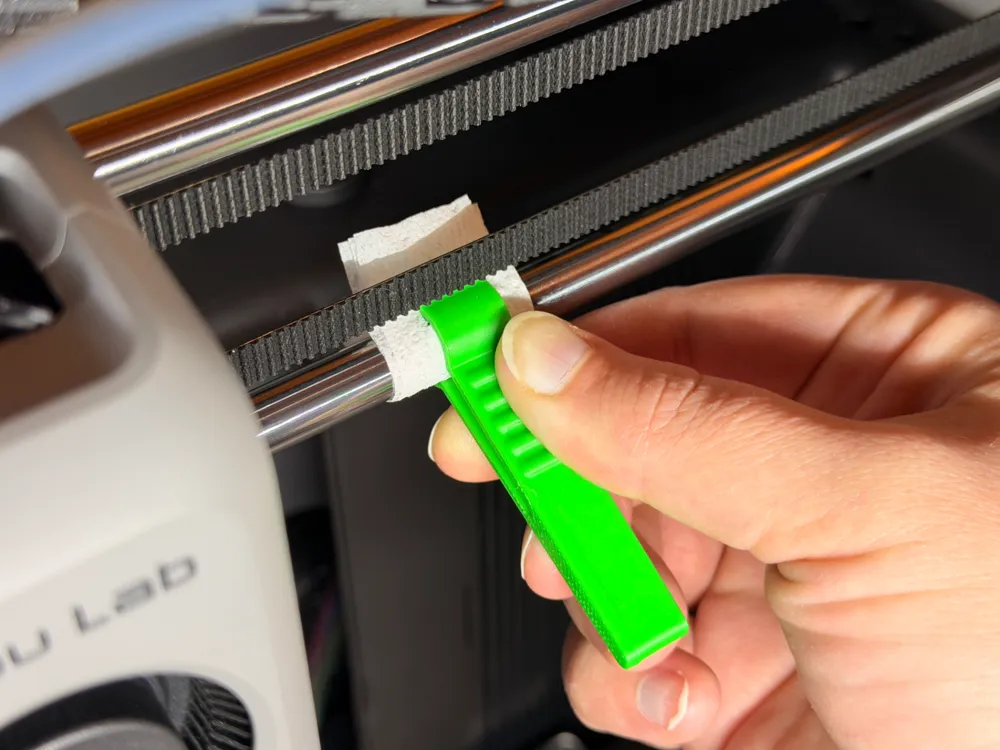

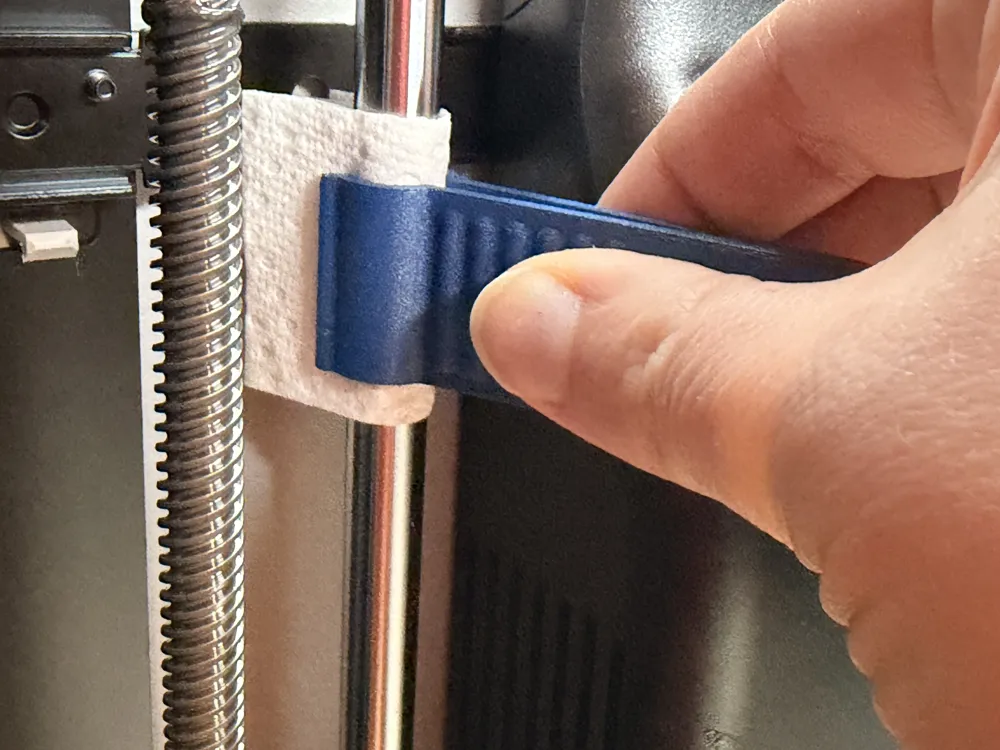

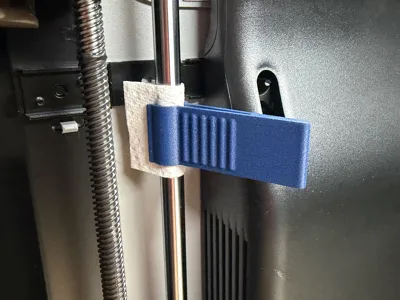

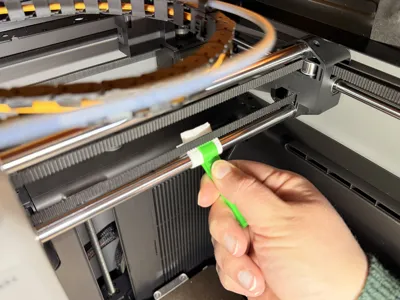

Simple cleaning tool for the X-axis of the X2D, P2S, P1S, X1C, as well as the Y and Z axes of the H2 series or other 10mm round guides.

For cleaning in seconds and residue-free removal of old oil

IMPORTANT! After cleaning, be sure to re-lubricate the guide rods, except for the carbon rods.

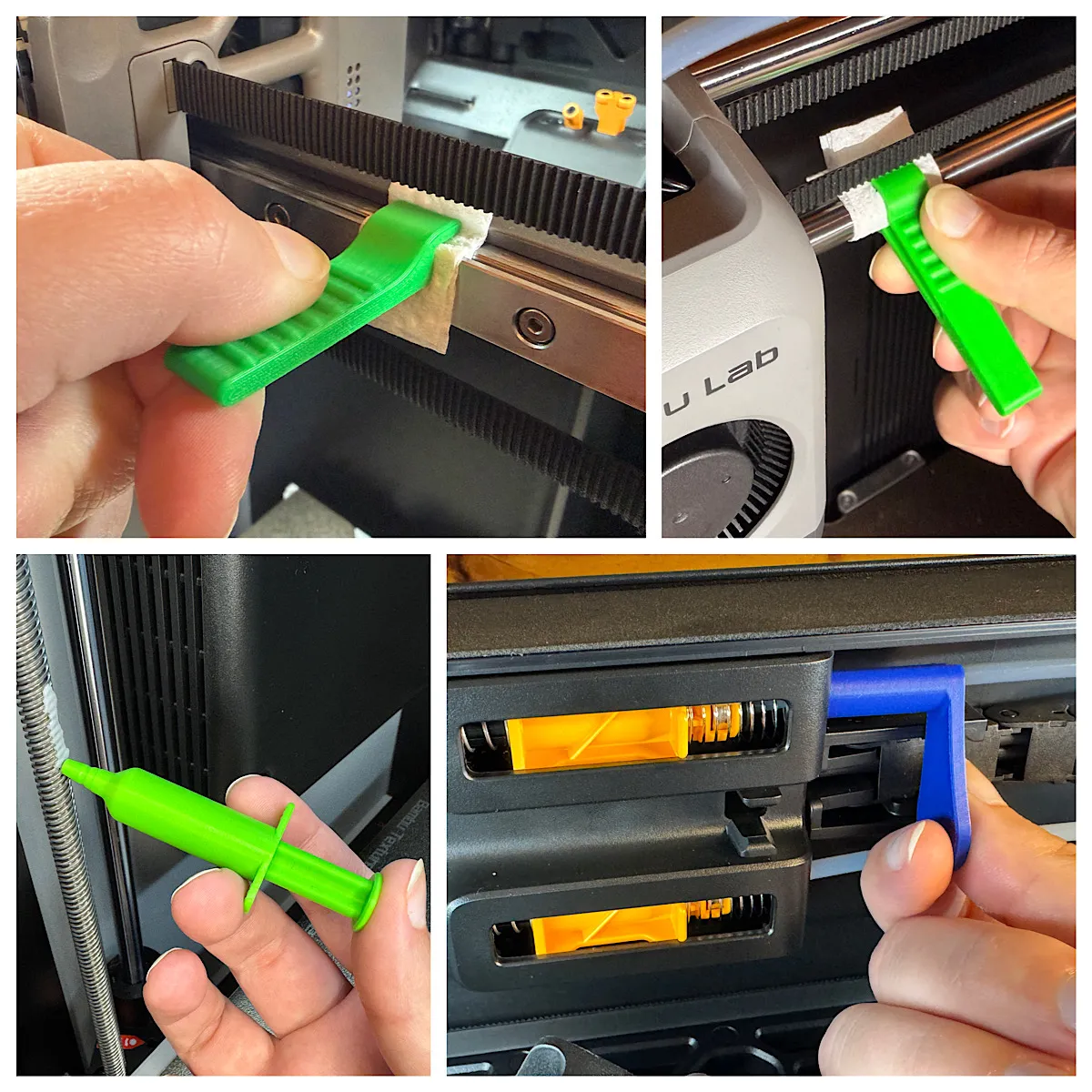

See also the tool for the Z-axis and my other Bambu maintenance helpers:

Don't forget to like, rate, and follow so you don't miss any new projects.

Also check out my other useful and practical everyday helpers!
