Mixer for PCB etching

GIF
GIF

Print Profile(1)

All
X1 Carbon
X1E
H2S
H2D Pro
H2D
P2S
A1
P1S
P1P
X1
H2C
X2D
A2L

0.2mm layer, 3 walls, 25% infill
0.2mm layer, 3 walls, 25% infill
Designer
4.8 h
2 plates

Open in Bambu Studio
Boost
7
2
0
0
4
1
Released

Description

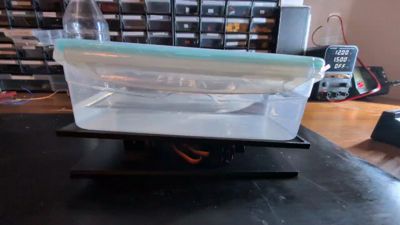

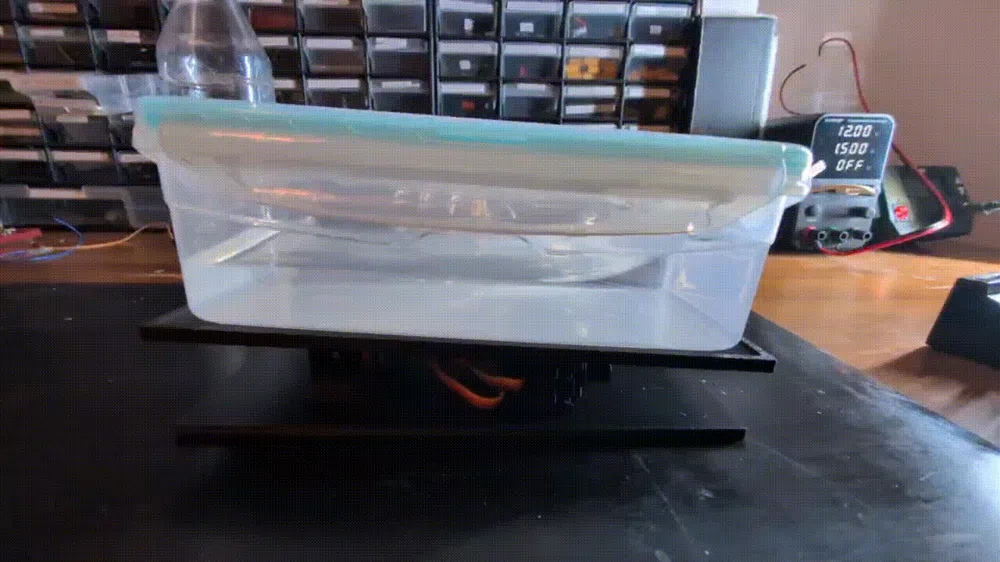

I needed a very simple shaker that I could make at home with what I had.

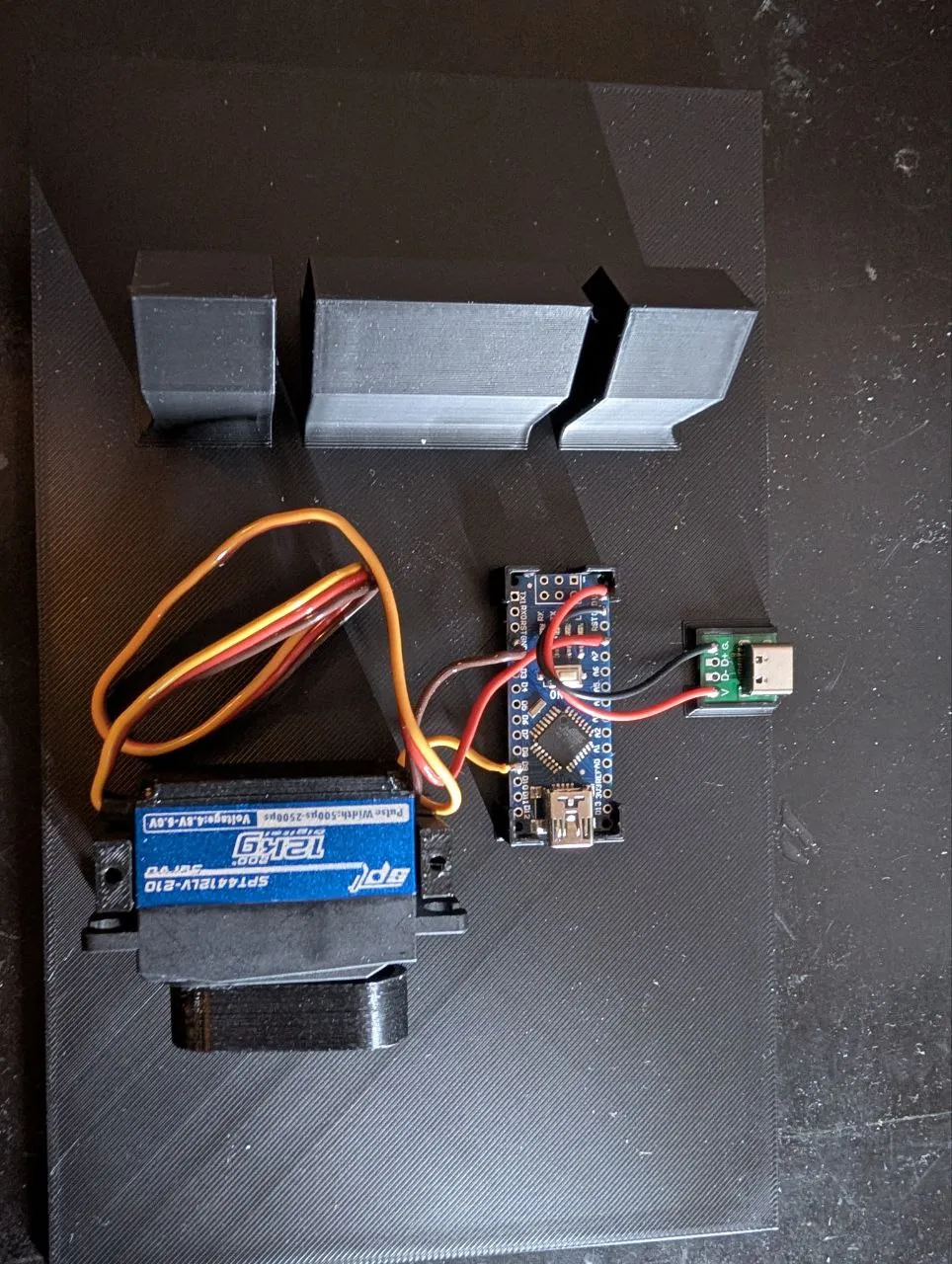

I used a servo motor (SPT4412LV-210), Arduino nano, a type C port and an aluminum bar found inside a CD player that I disassembled, 85cm long with a 3mm diameter.

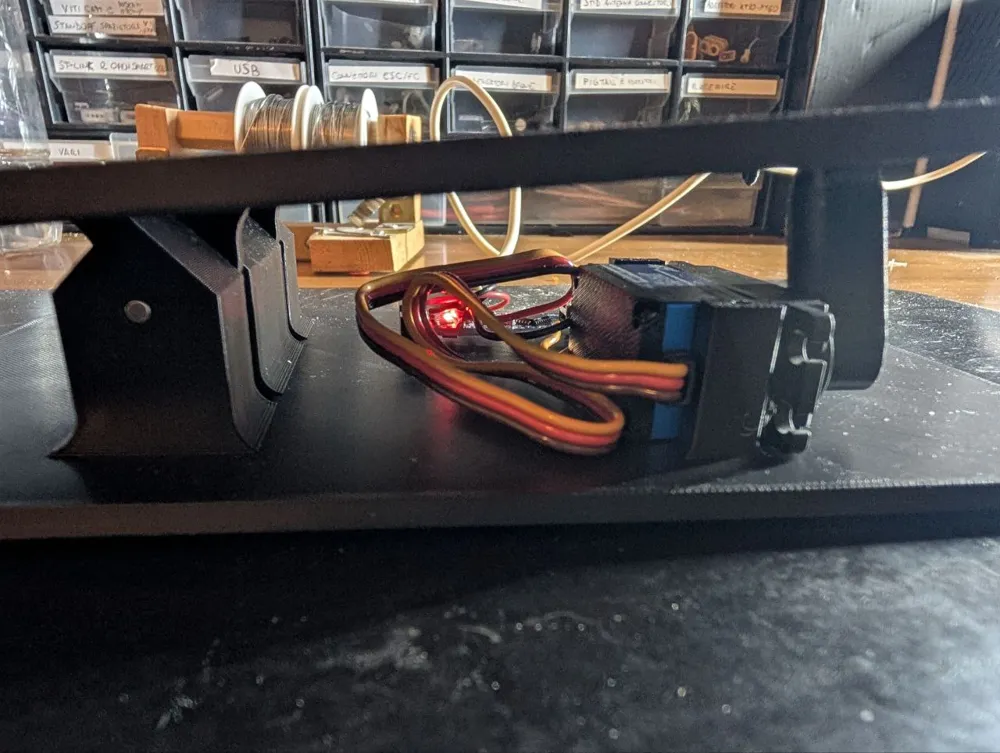

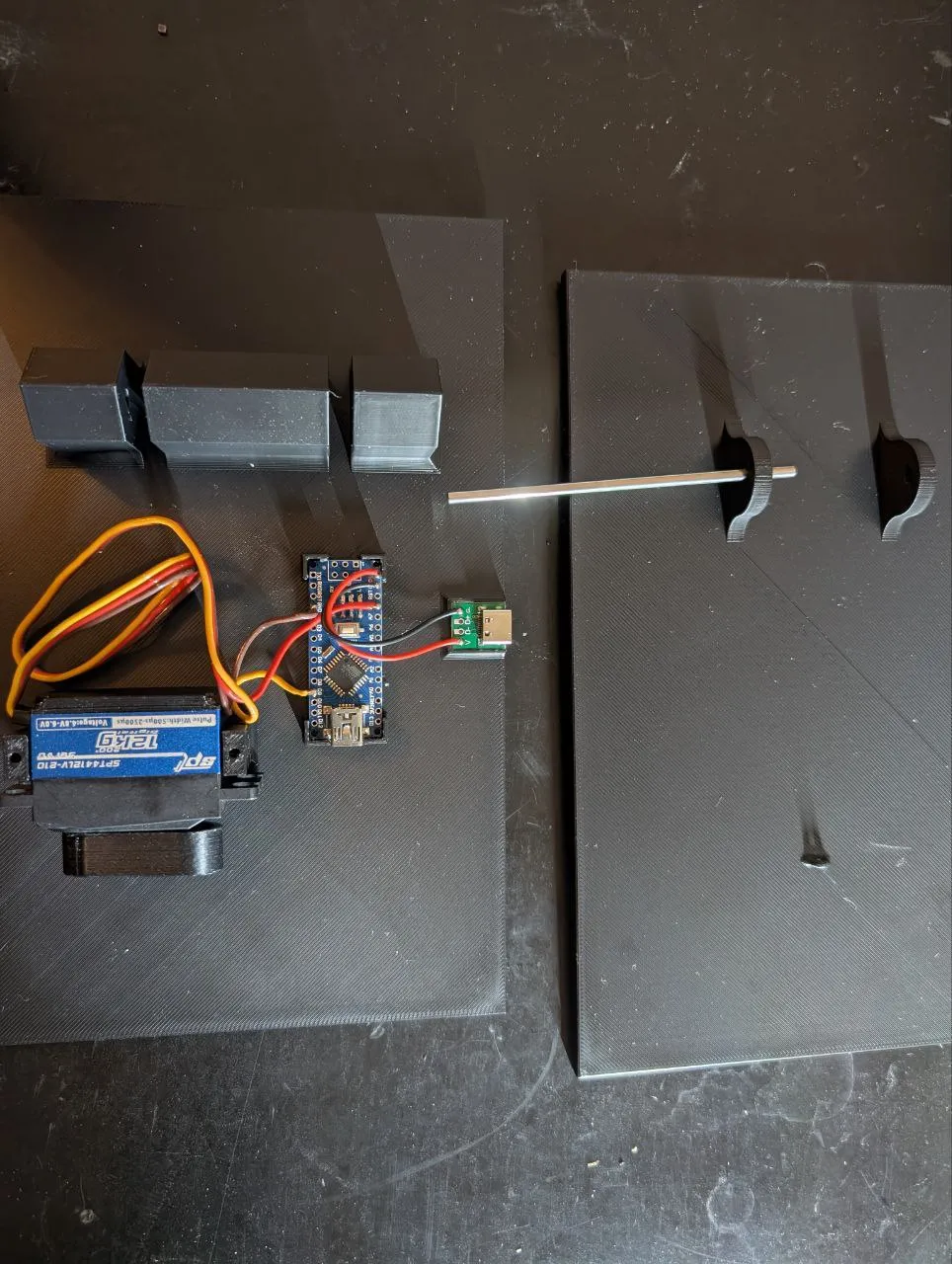

Assembly is very simple. just insert the aluminum bar while aligning the top with the bottom. The motor needed can be fitted between the side rods and then closed using the horizontal bar.
