FFBeast Hoverboard Wheel Cover Drilling Template
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 15% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
16
32
0
0
21
4
Released
Description

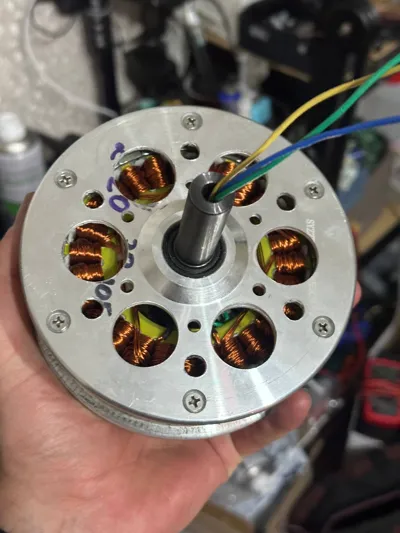

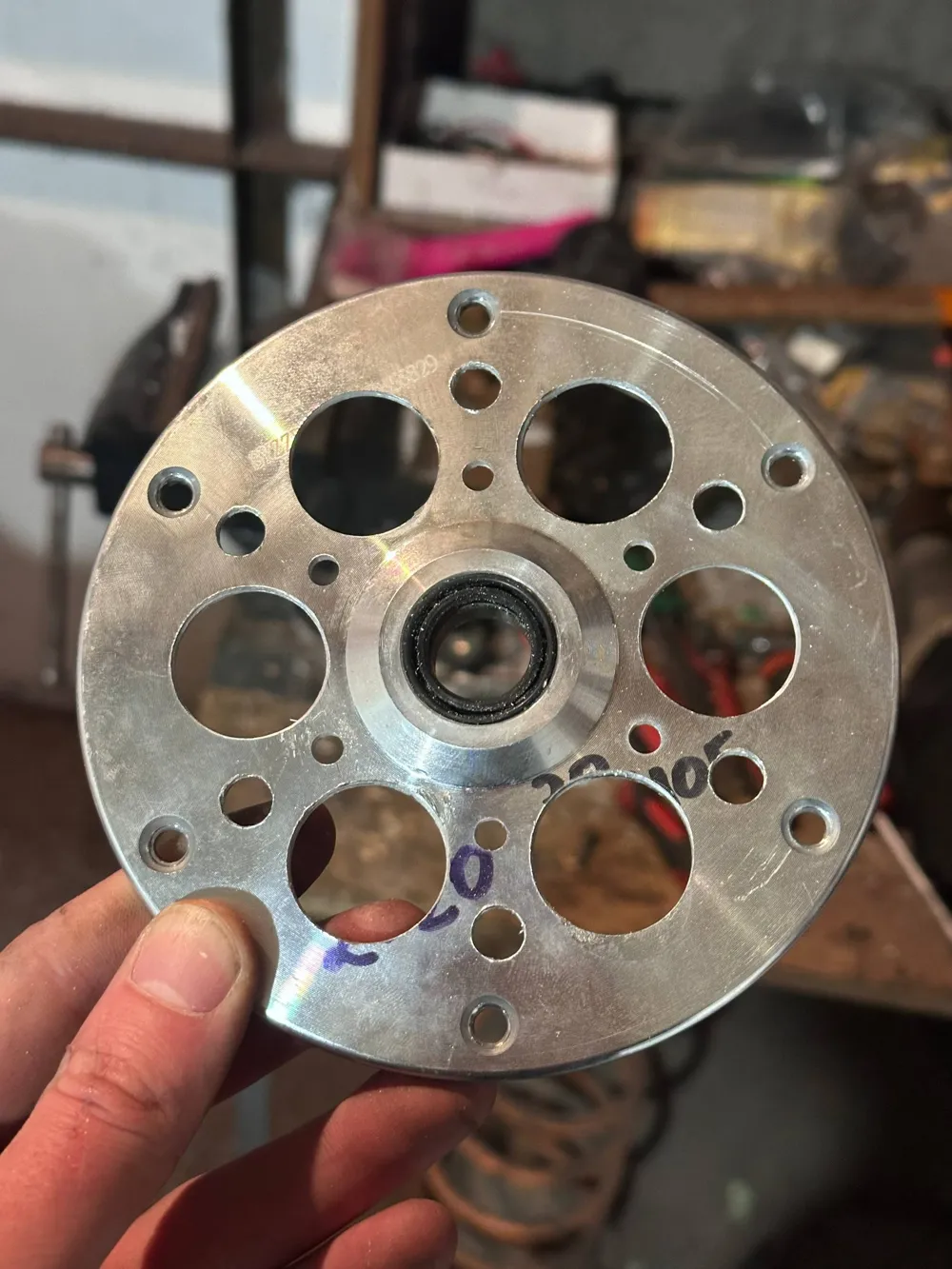

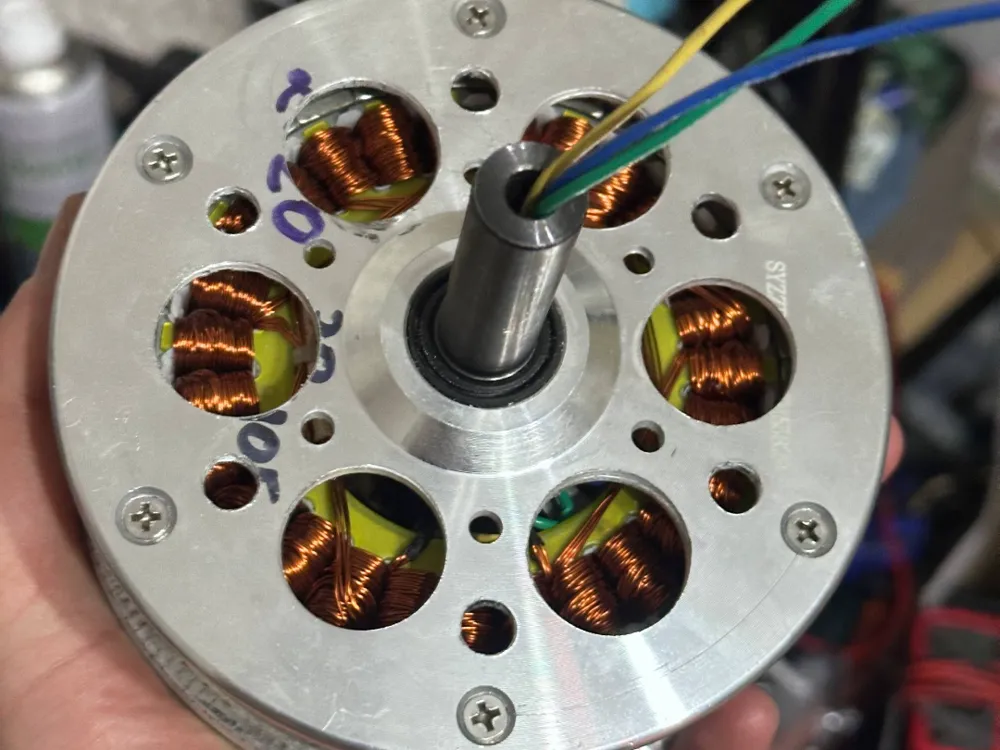

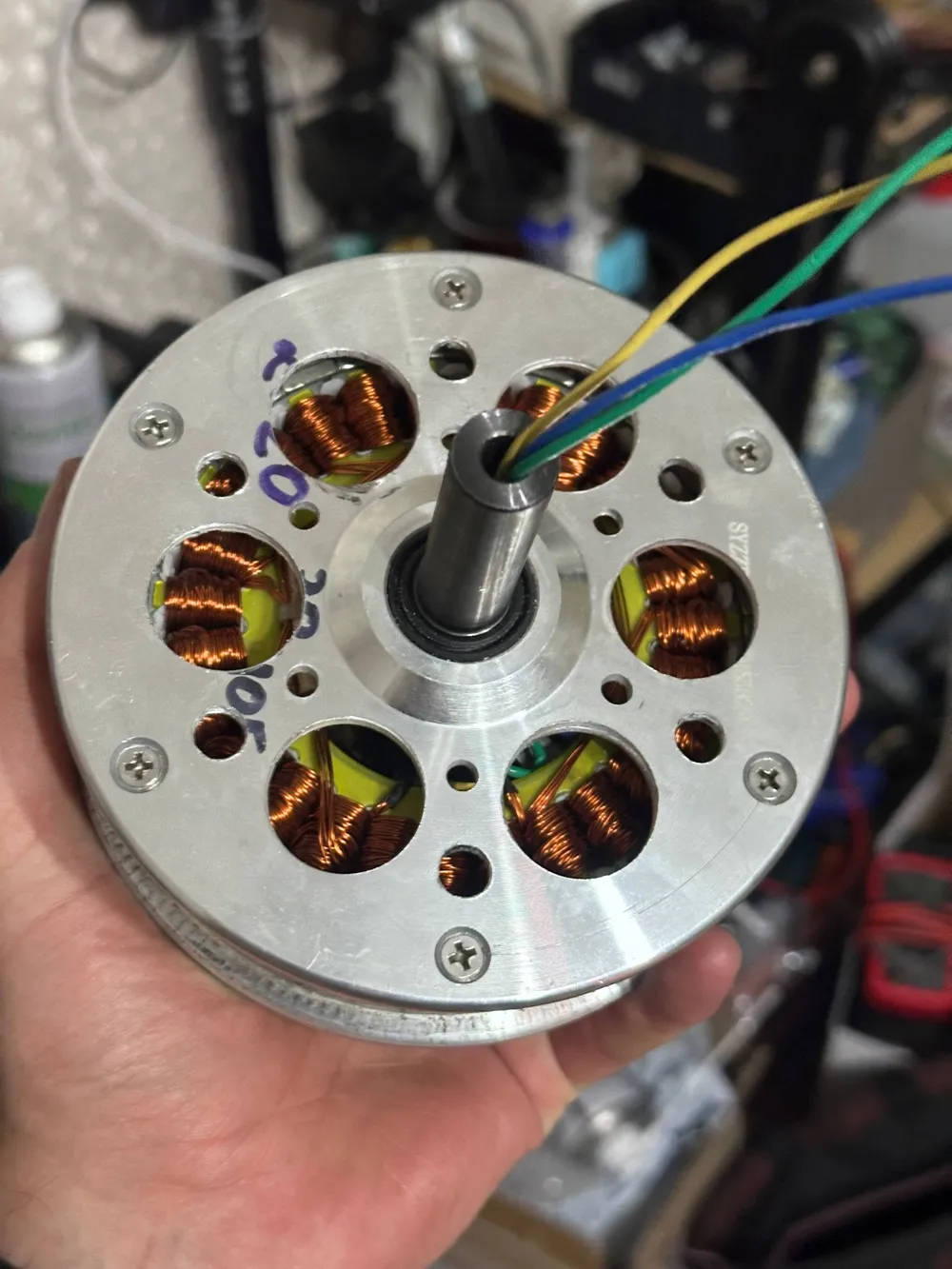

This 3D model is a drilling template designed to modify a hoverboard wheel motor cover by adding ventilation holes for improved cooling.
Purpose
- Serves as a guide for drilling evenly spaced holes
- Improves airflow and heat dissipation of the motor
- Ensures accurate, symmetrical hole placement
Important
⚠️ This is a template only
- Not a structural or functional motor part
- Not intended to be installed permanently
- Remove after drilling is complete
Features
- Matches the geometry of the hoverboard wheel cover
- Predefined hole pattern for consistent results
- Helps avoid misalignment and uneven drilling
Usage

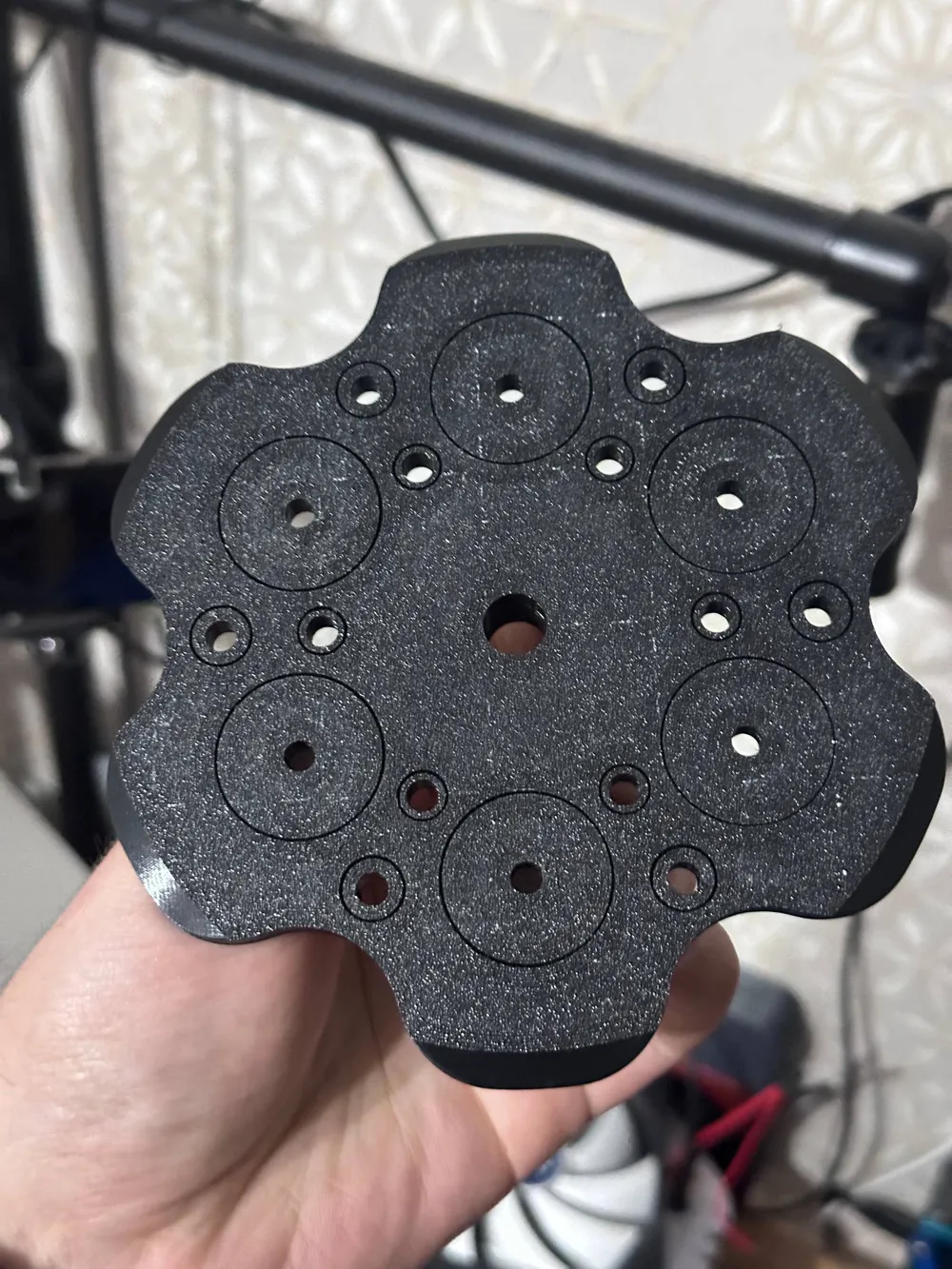

- Place the template onto the wheel cover
- Align it with the center shaft / reference holes
- Secure temporarily (by hand or light clamps)
- Drill through the guide holes (using 5mm drill bit)
- Remove the template after drilling
Printing Notes
- No supports required
- Recommended layer height: 0.2 mm
- PLA or PETG recommended
Use Cases
- Hoverboard motor cooling mods
- Direct Drive sim-racing bases
- Robotics and DIY motor projects
