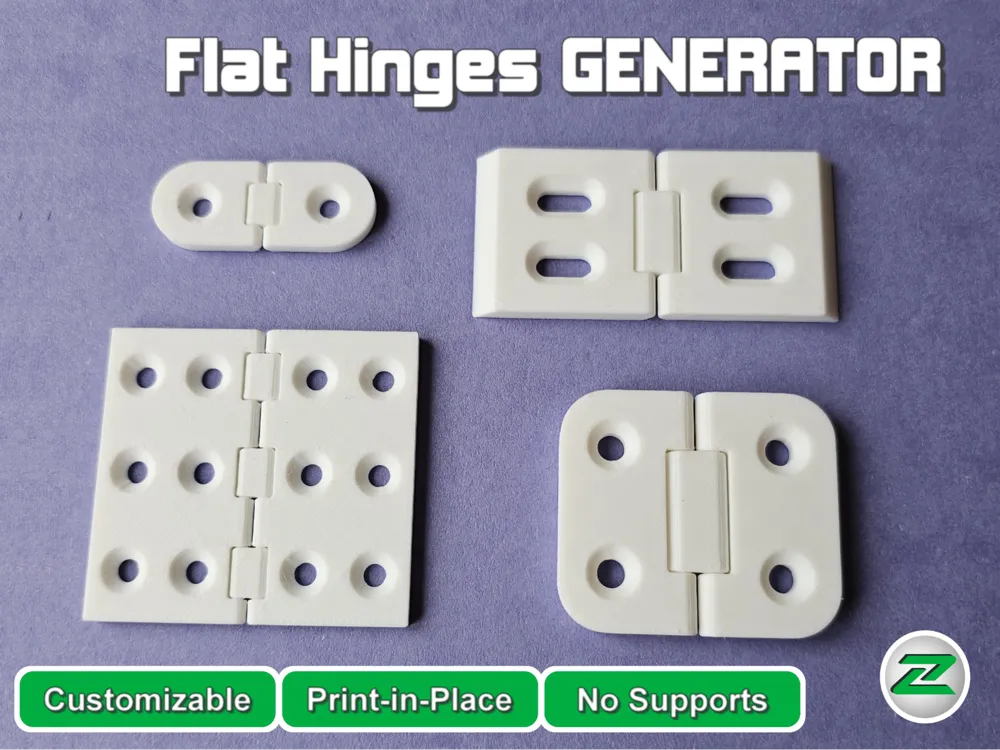

Flat Hinges GENERATOR - just another kind of hinge

This is just another type of hinges. You can create it as needed, the model is fully customizable.

If you are just looking for another kind of hinges or connectors, you will find it here:

The Toothbrush Travel Case Generator is my first model, wich uses my proven hinge design:

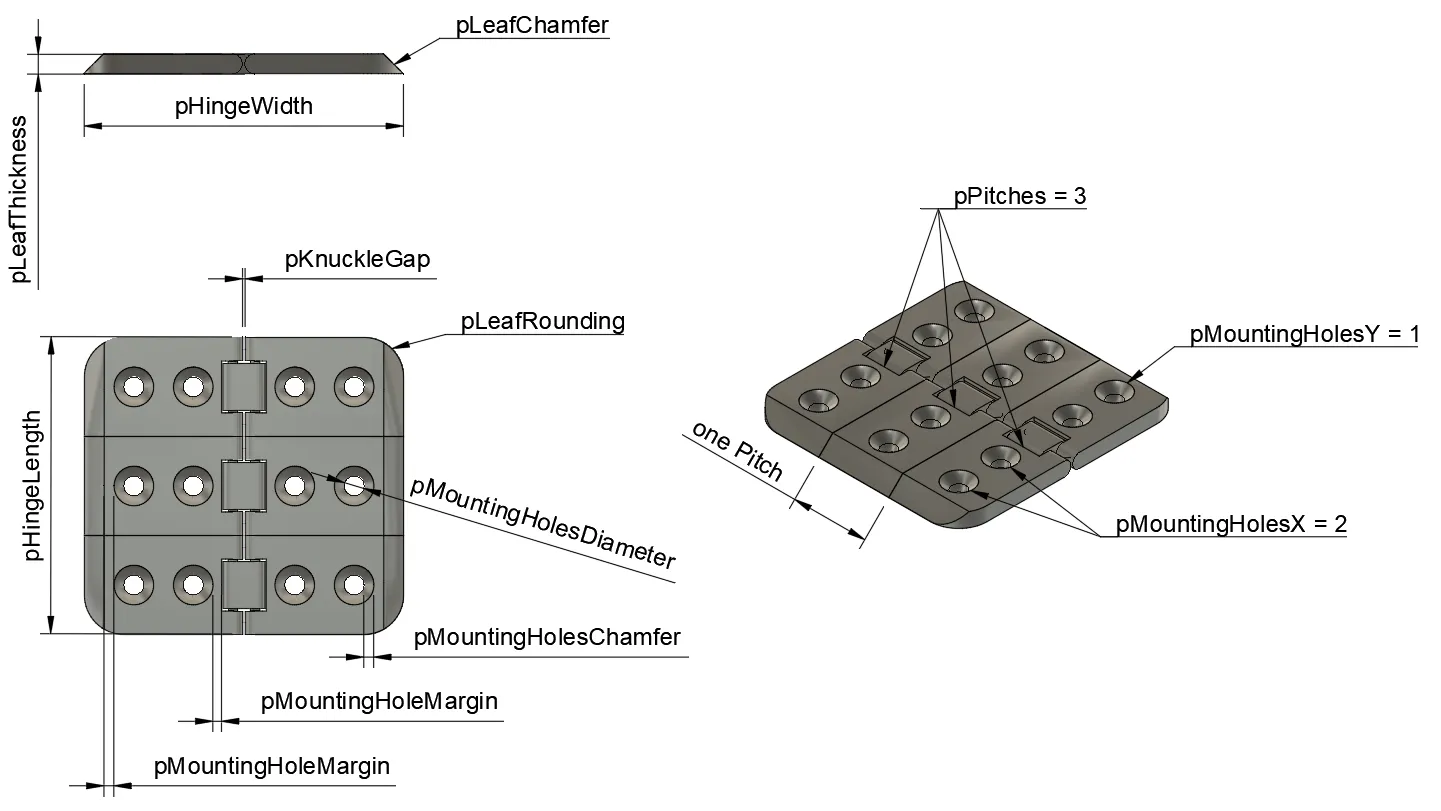

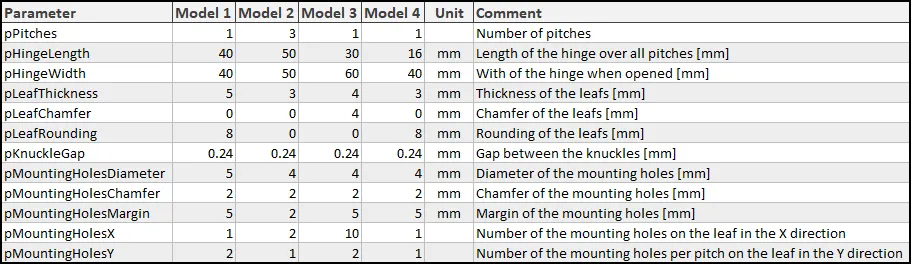

There are following parameters available, the table contains also the values for the uploaded print profiles of the models:

All the generated hinges can be opened up to 360°.

A tolerance test is recommended to determine printing accuracy.  This is a simple and quick test that only requires 2g of filament  and will help to check out the tolerance of your printer: https://makerworld.com/models/1828996

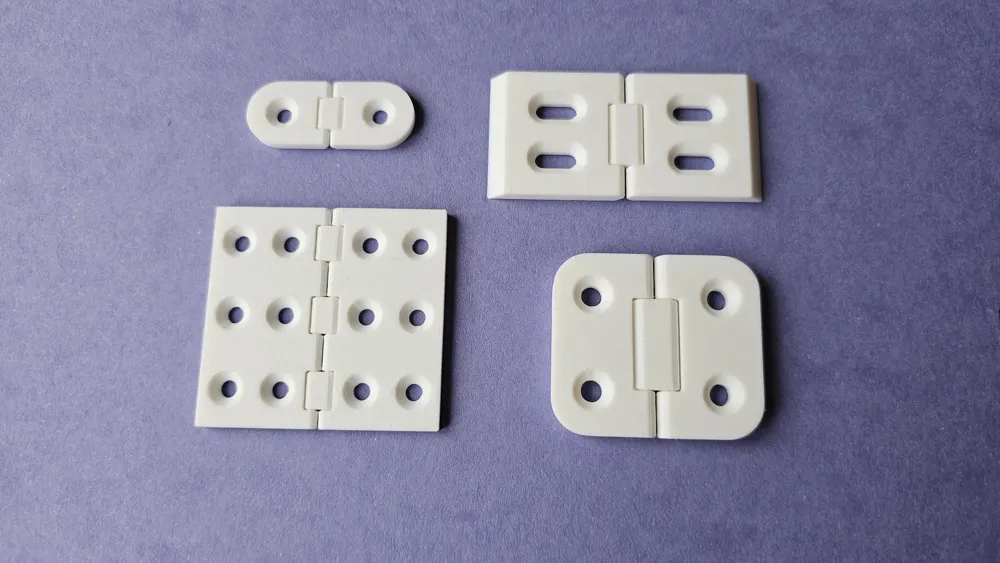

The attached Print Profile contains the following samples to show what's possible.

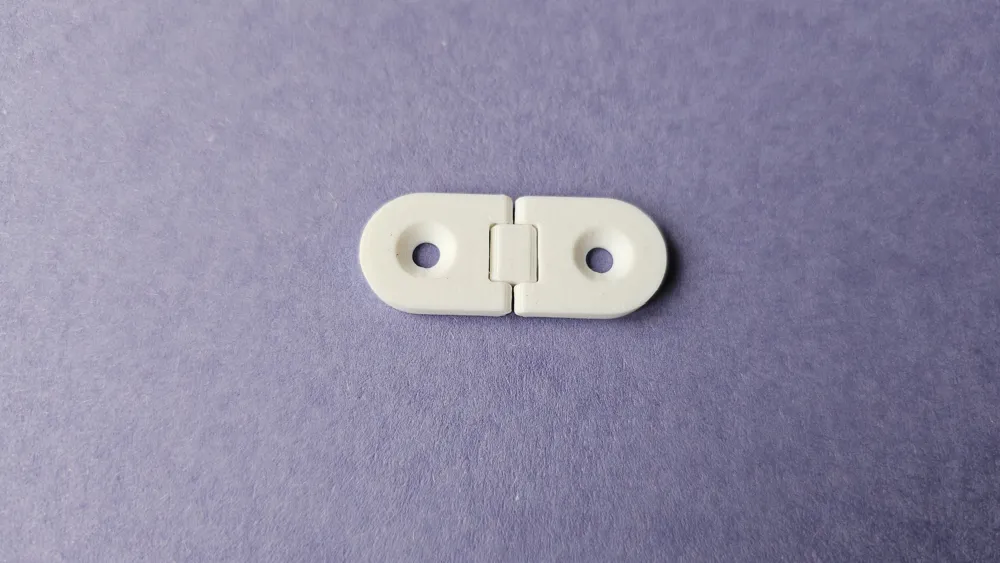

Model 1:

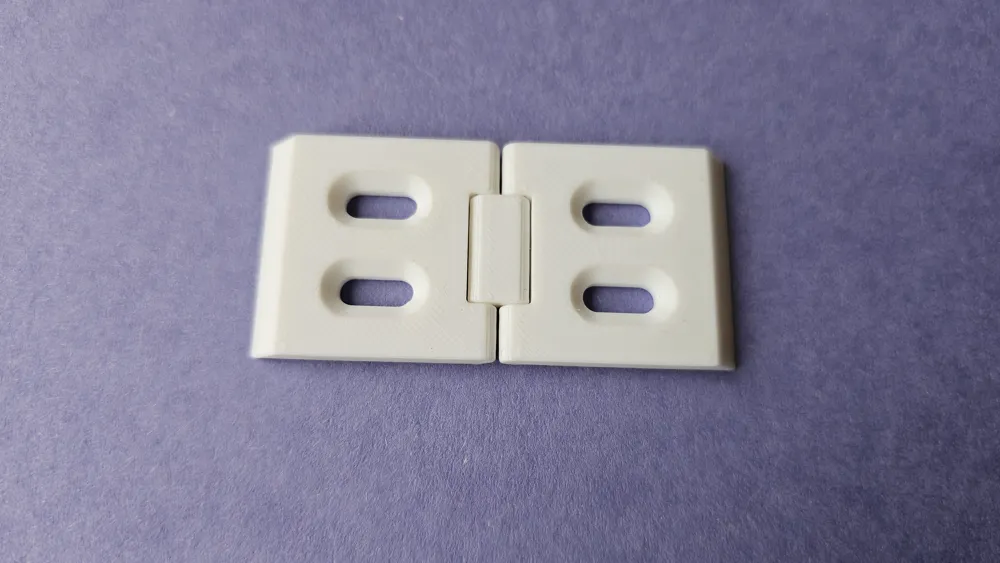

Model 2:

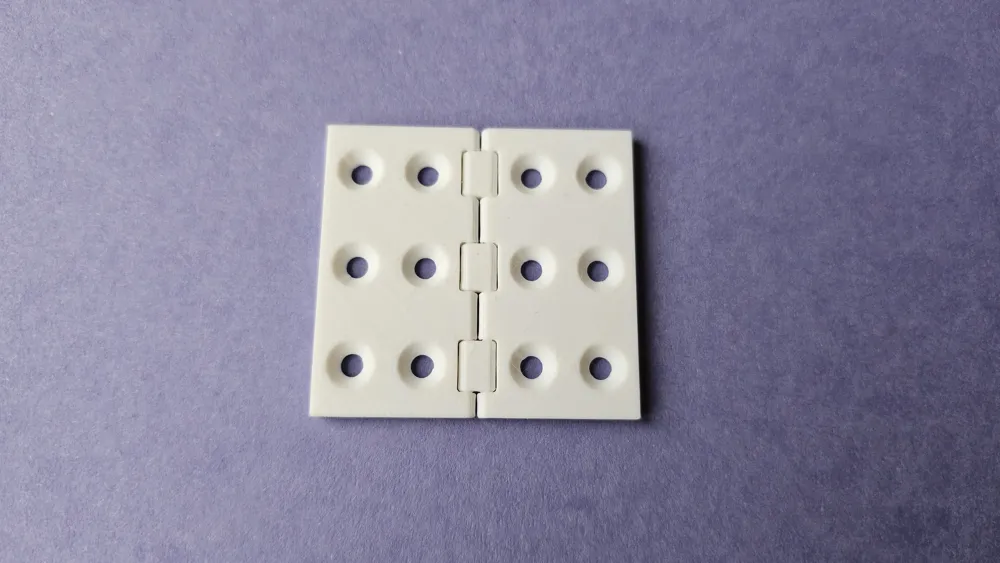

Model 3:

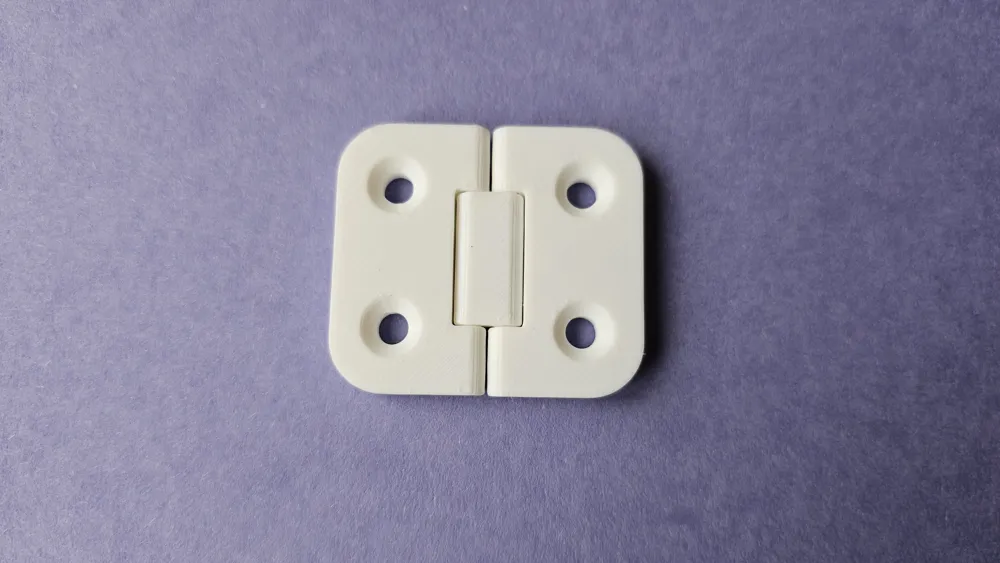

Model 4:

Recommendations for printing:

• For durable versions of the hinges, printing with PETG, ABS or ASA is recommended.
• For havy duty applications, printing with a fiber-reinforced filament such as PETG-CF, ASA-CF or PA6-CF is strongly recommended.
• The model can be printed without any support structure and brim. If there are adhesion problems, brim should be adjusted accordingly.

Last but not least:

• Please have a look to my other customizable models
• Feel free to contact me, if it is not possible to create a model that meets your requirements.
