Ferris Wheel

Make sure your machine is dialed in… this model definitely tests your bridging settings!

This ferris wheel model is inspired by the model by Juniper.

FERRIS WHEEL MODEL RAILROAD HO SCALE by Juniper | Download free STL model | Printables.com

This model is not a remix, I designed it myself in Fusion360.

You will need 5 M3x10 screws and 1 M3x6 screw to assemble the manual version of the model.  The motorized version is designed to fit a Nema17 stepper motor, you will also need a belt and other hardware for the setup of that, as well as printing the Base_Motor_Mount.stl and the Wheel_motor_version.stl.

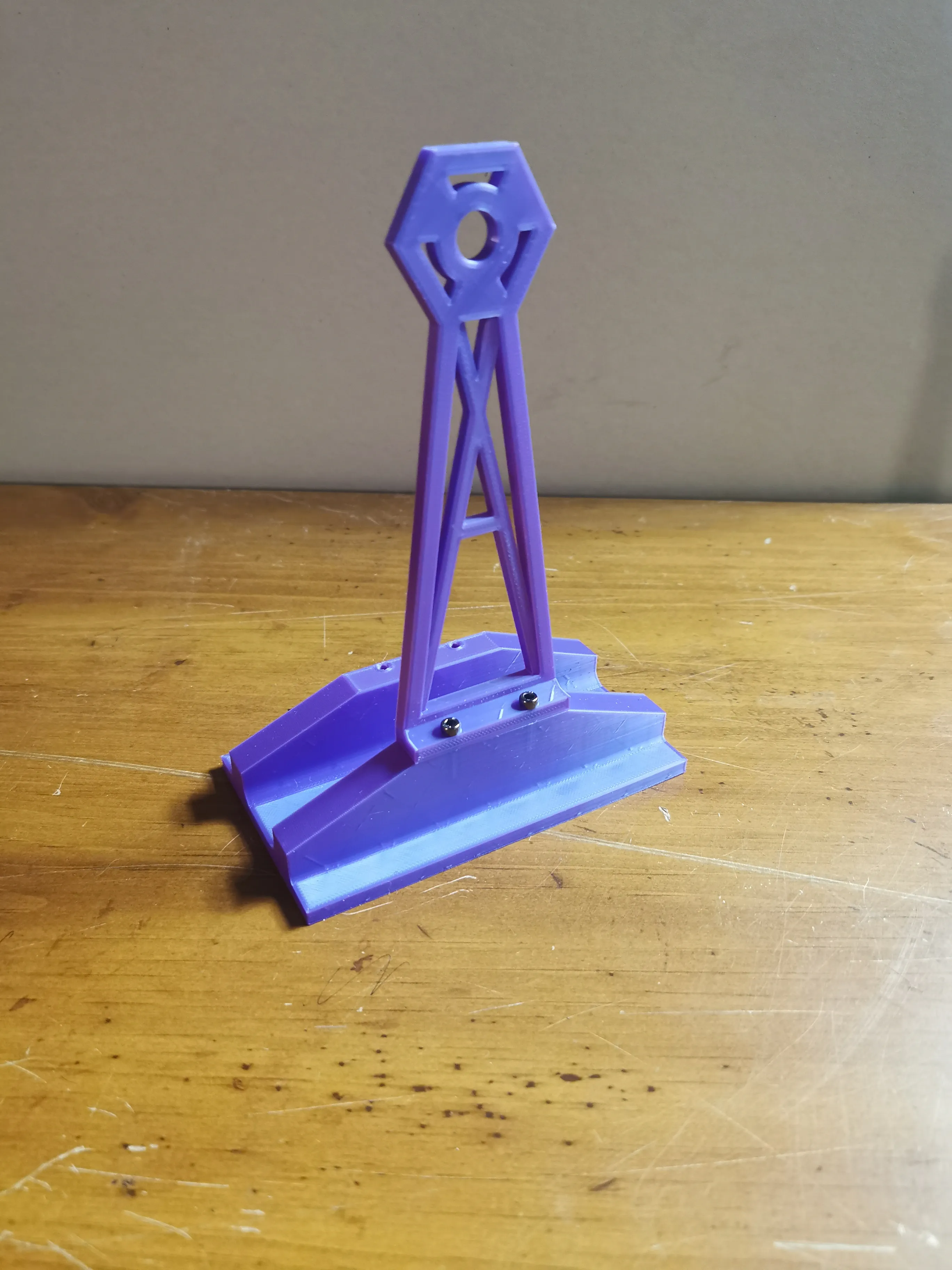

1.  Mount the bolt arm using two of the M3x10 screws.

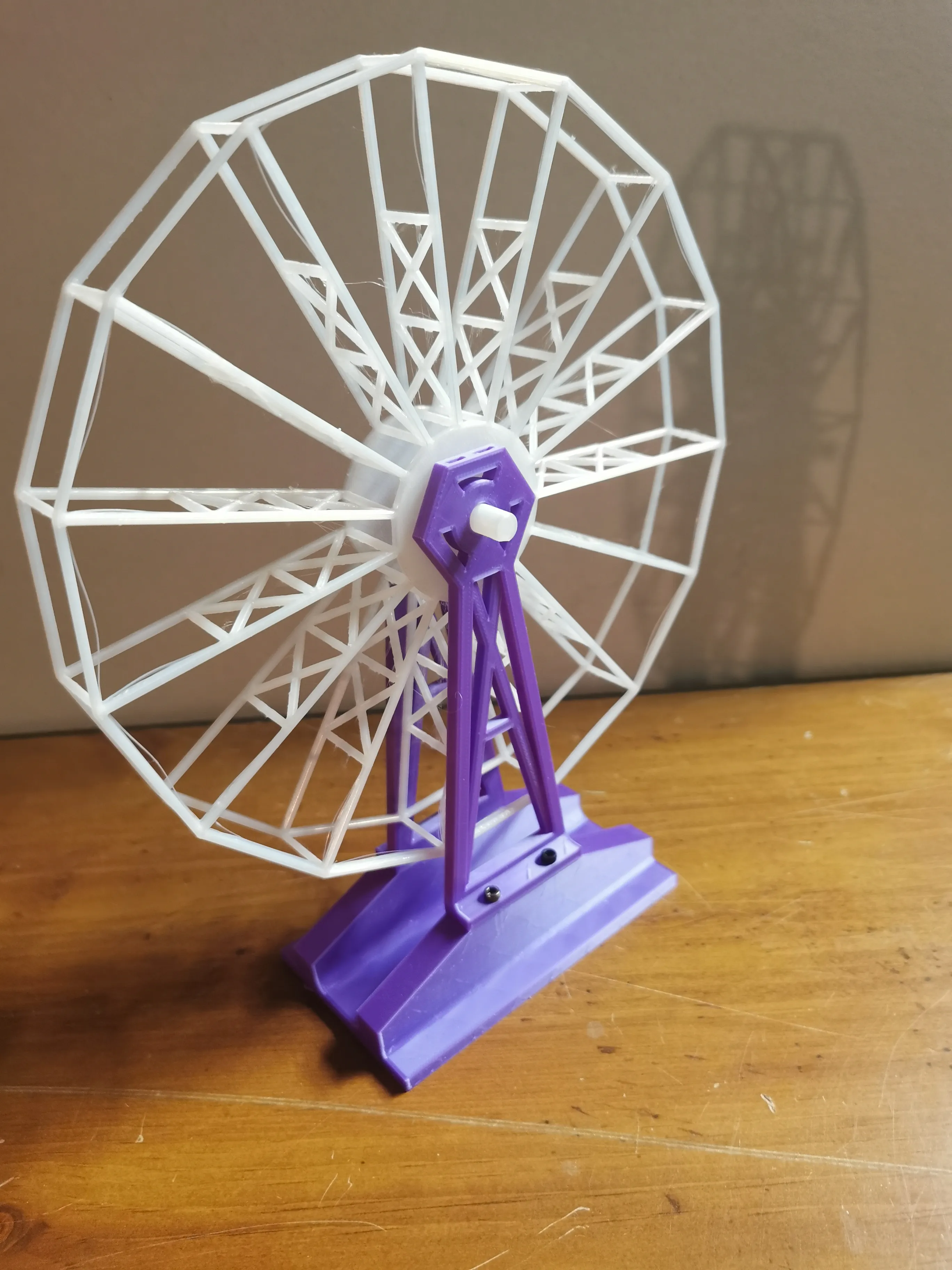

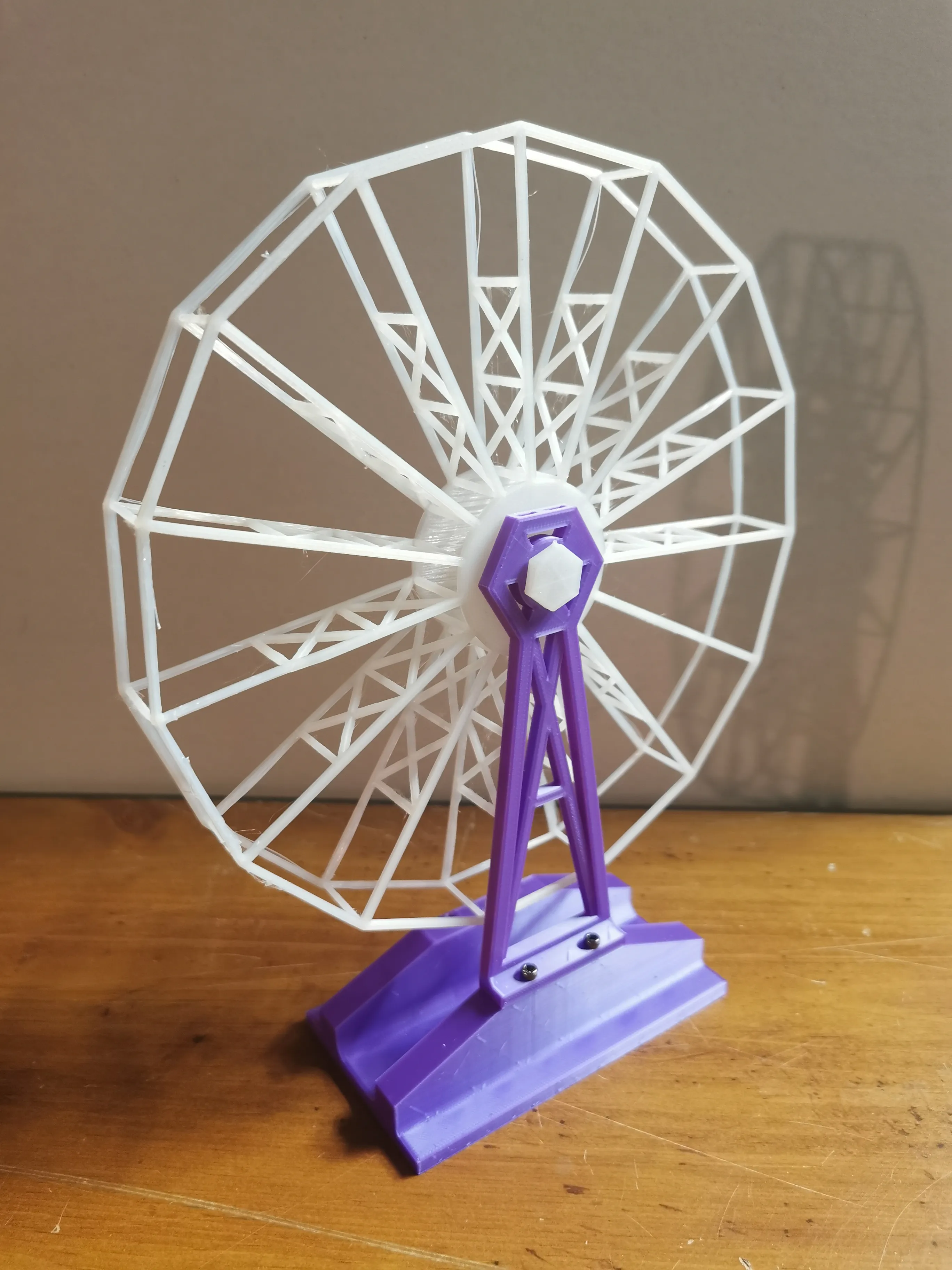

2. Mount the wheel onto the arm with the printed bolt.

3. Attach the crank side arm using two more M3x10 screws.

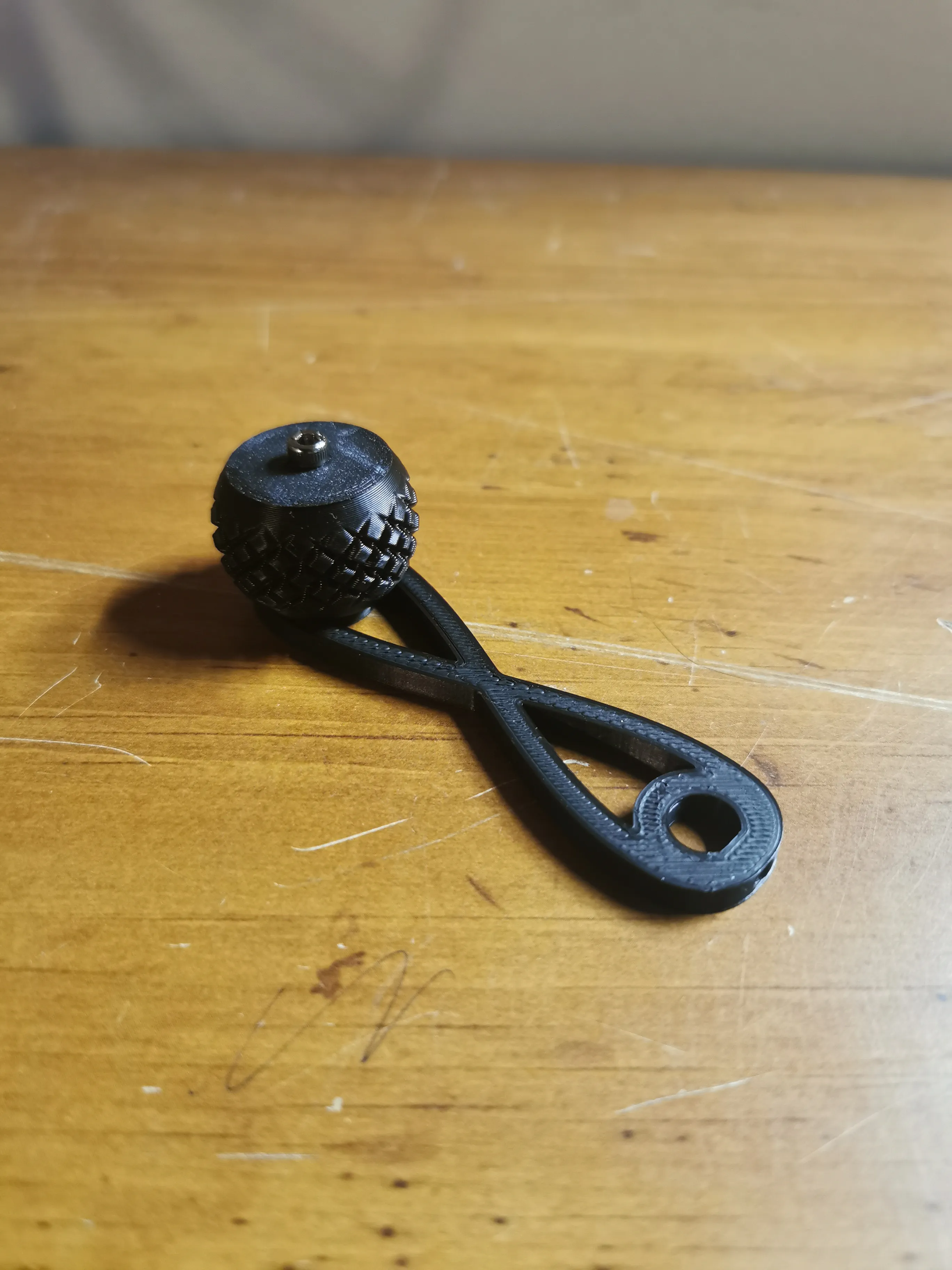

4. Attach the knob to the crank with the last M3x10 screw, once it's snug, loosen it off one full turn so the knob spins freely.

5. Attach the knob to the wheel shaft with the M3x6 screw.

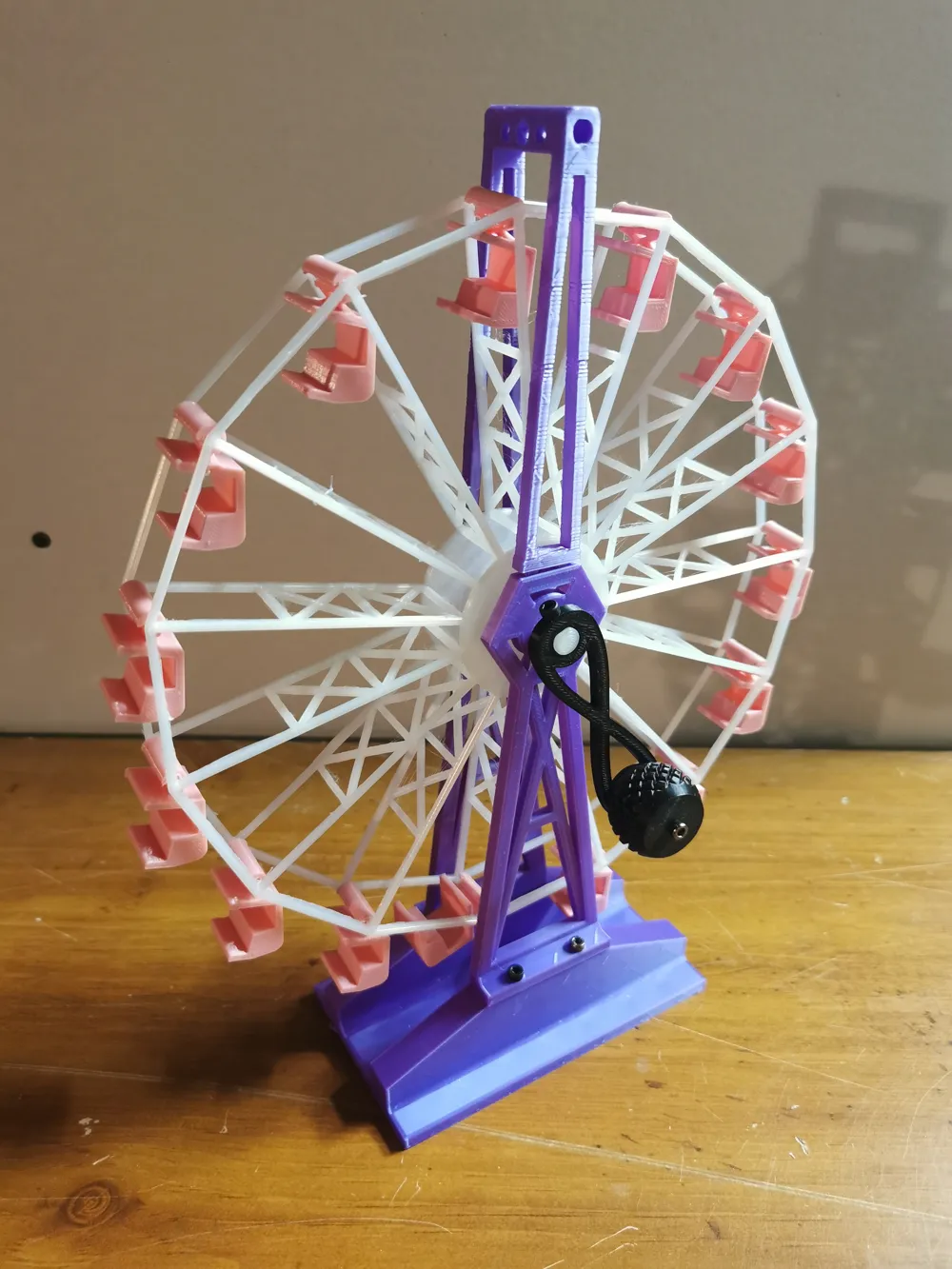

Finally, put the chairs on and the spire on top! You're finished! Time to enjoy your Ferris Wheel!
