Air Engine 2 Cylinder Crankshaft is Valves
Print Profile(1)
Description

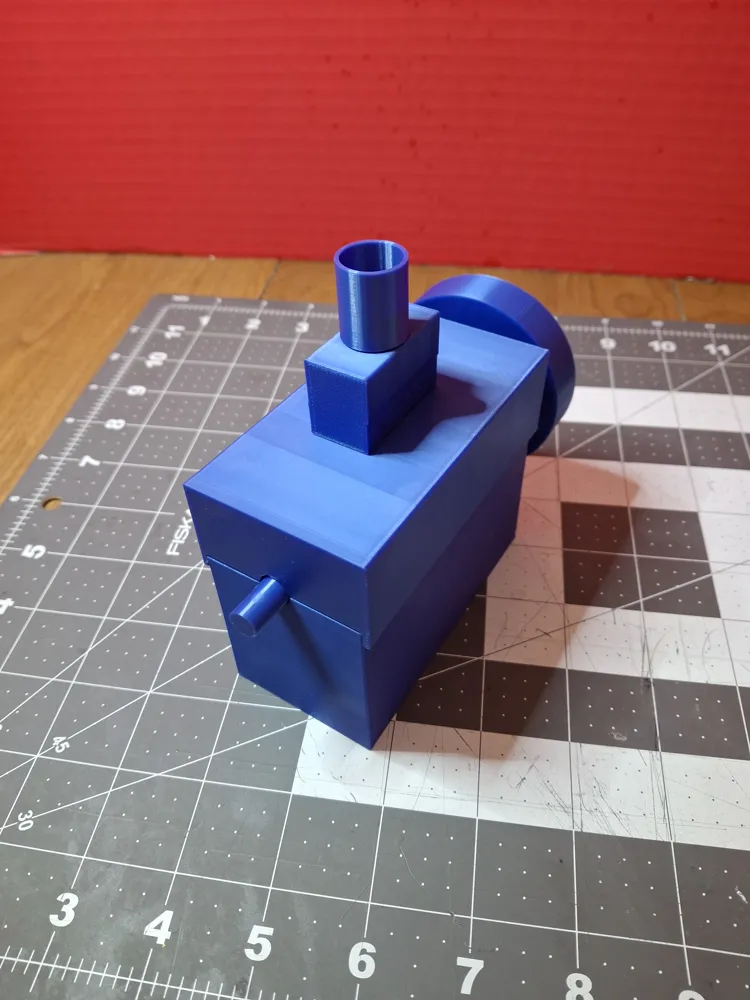

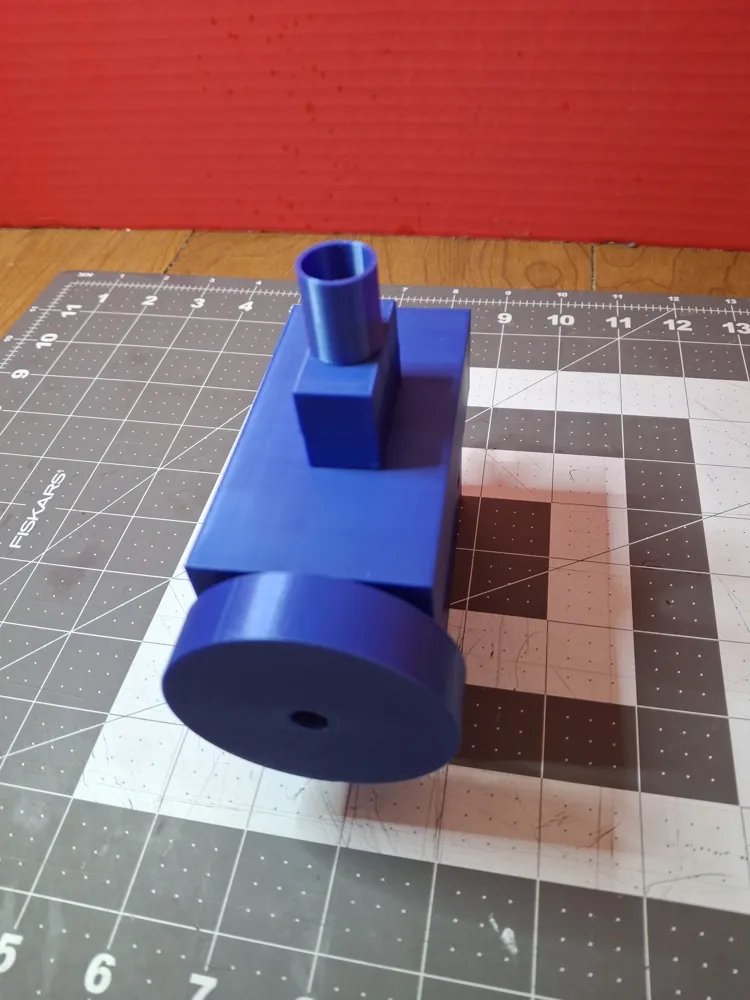

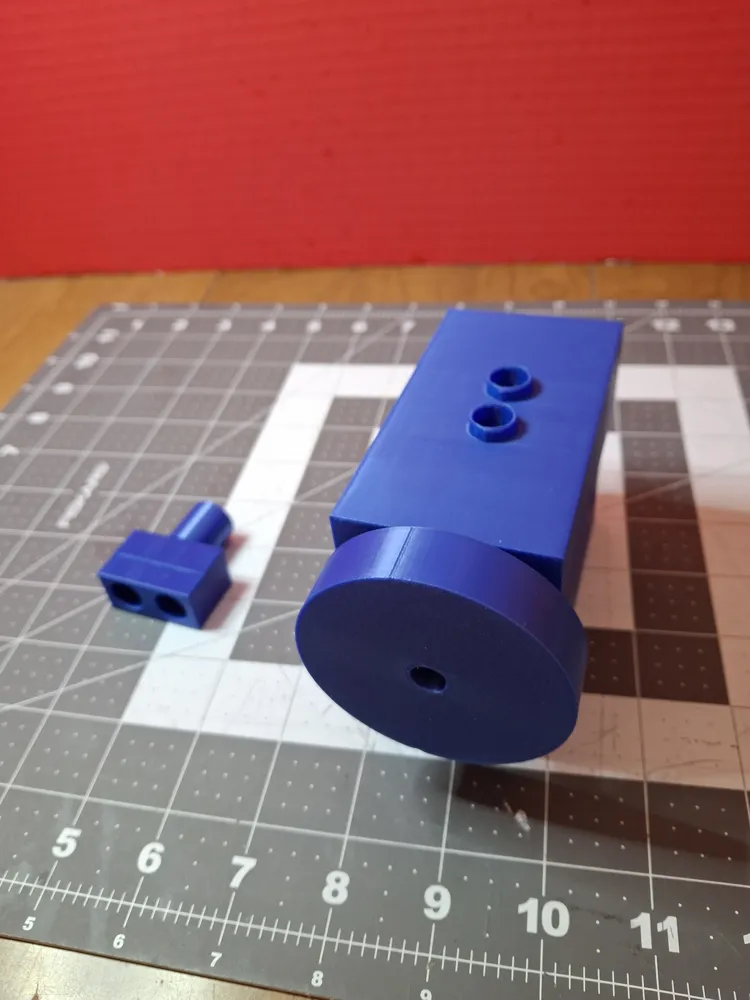

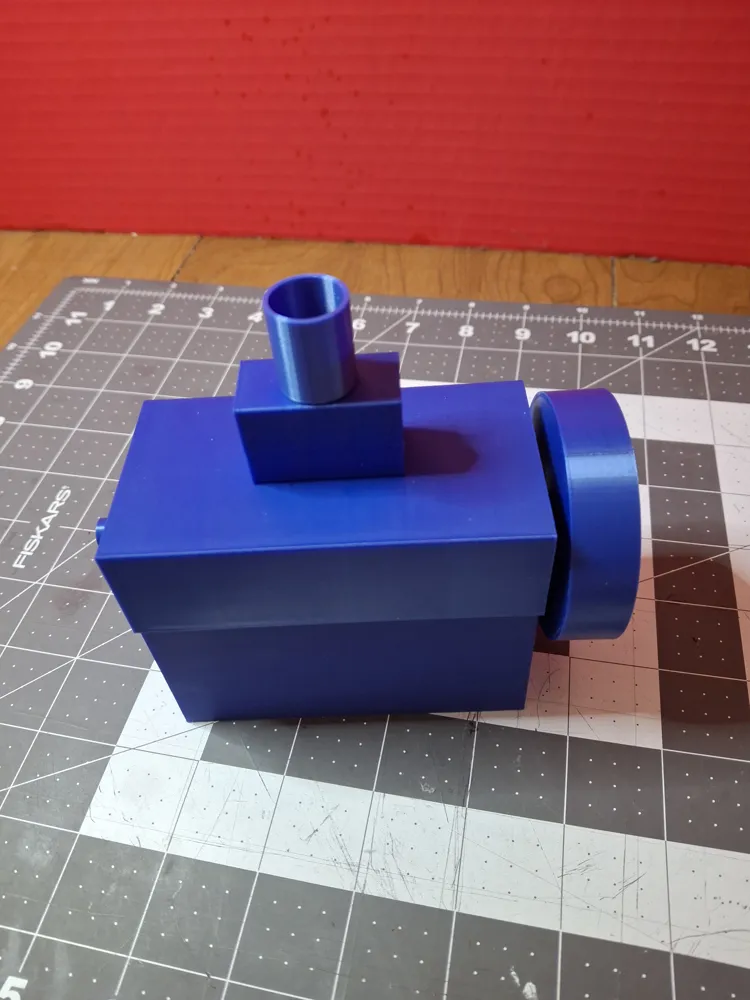

Low Hardware Air Engine - Two Cylinder Version
A compact, easy-to-print air engine that requires minimal hardware. This two-cylinder design offers improved performance over single-cylinder versions while maintaining simplicity and ease of assembly.
Features:
- Two-cylinder design for enhanced performance
- Minimal hardware requirements
- Easy to print and assemble
- Smooth operation with compressed air
Compact and efficient design
Printing Specifications:
- Printer: Tested on Bambu Lab A1 mini
- Layer Height: Recommended 0.16mm for crankshaft (or smaller if your printer supports it)
- Supports: Required
- Infill: Standard settings work well
Material: PLA or PETG recommended
Assembly:

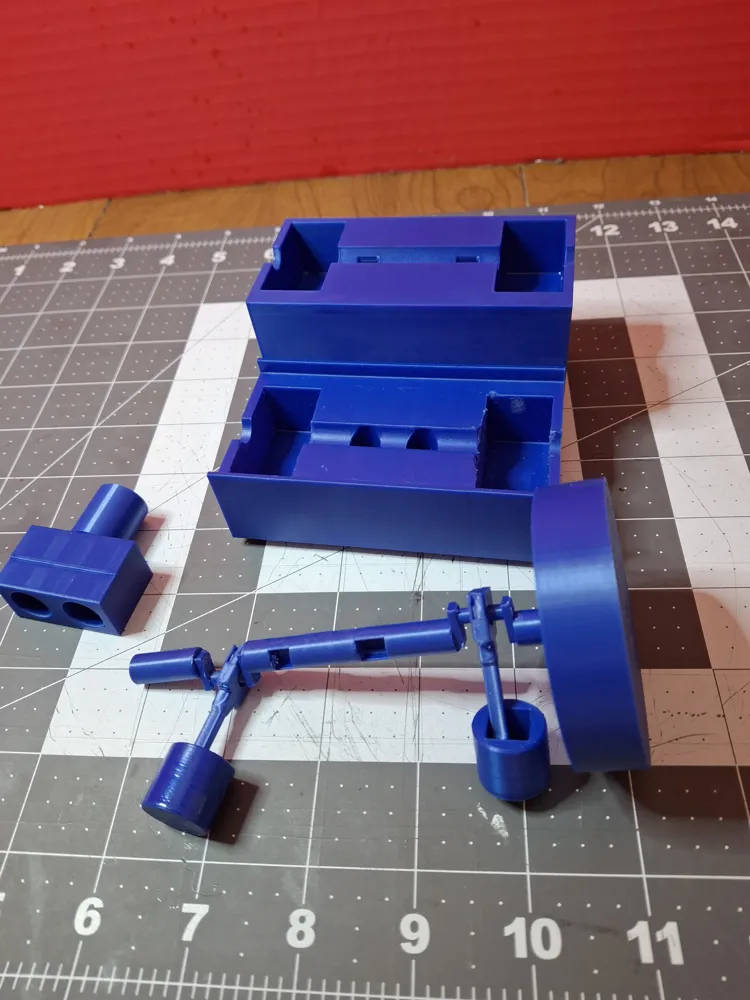

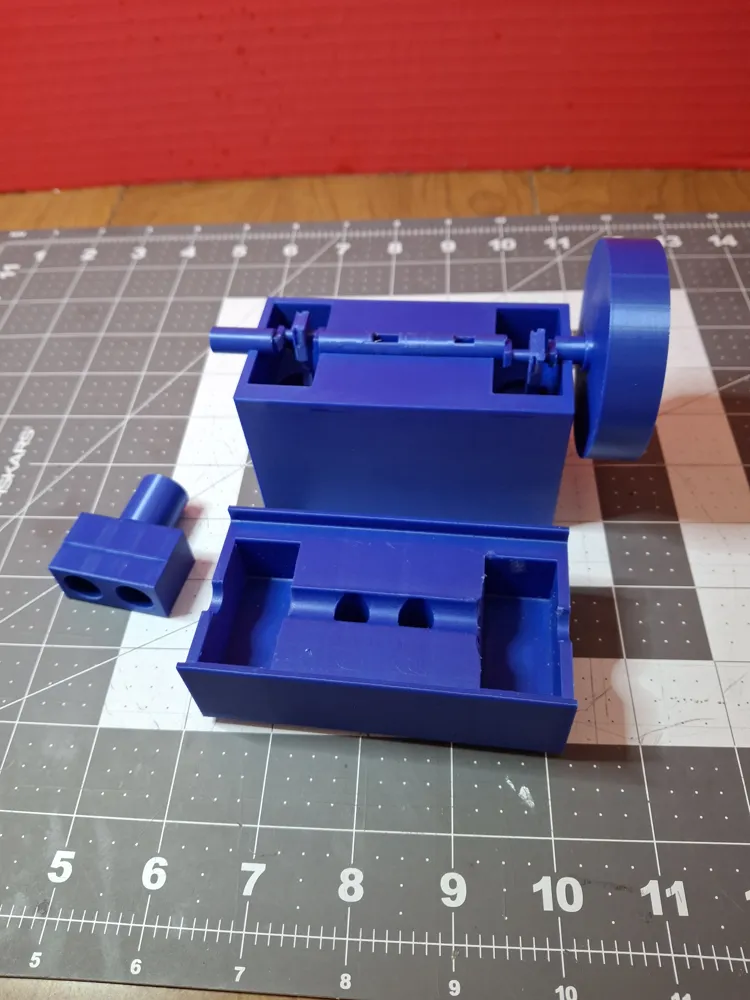

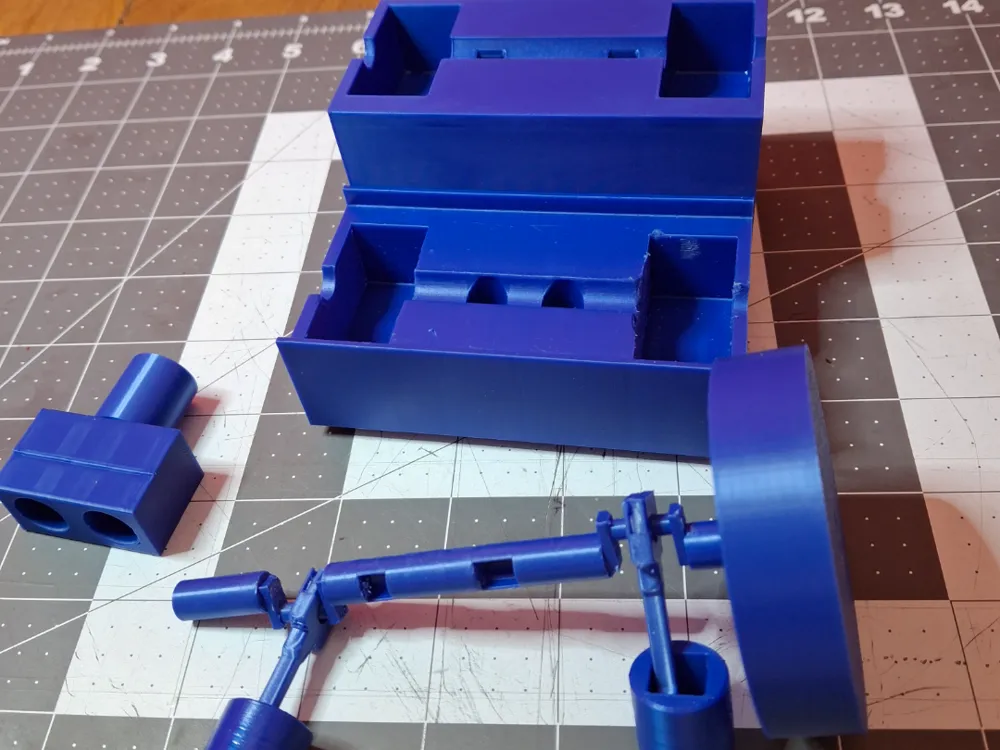

Assembly is straightforward and only requires glue to attach the piston rod fasteners. All other components snap or press fit together without additional hardware.
Video Demonstration:
Watch the build and operation video: https://youtu.be/pP2DdkCq-YA
Notes:
This design was independently developed based on the low hardware engine concept. The two-cylinder configuration provides better performance characteristics compared to single-cylinder versions.
Questions or Issues?
Feel free to leave any questions in the comments section, and I'll be happy to help!
