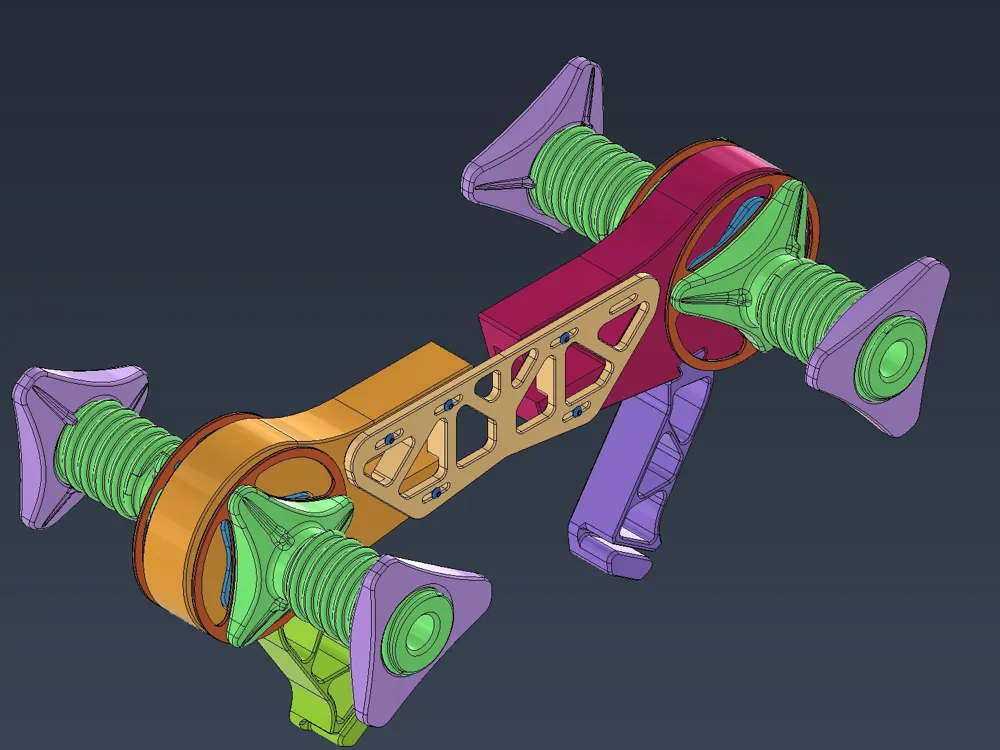

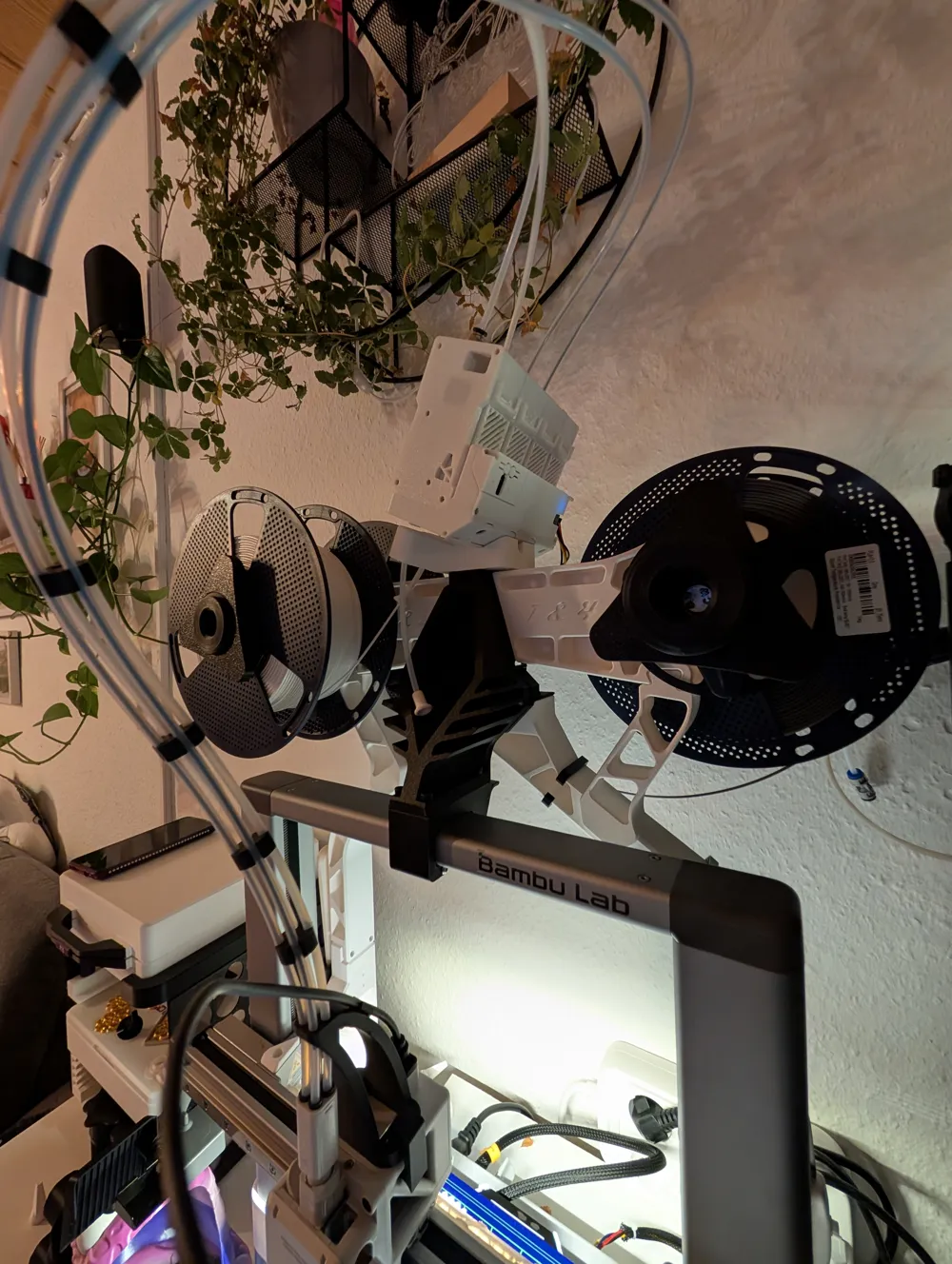

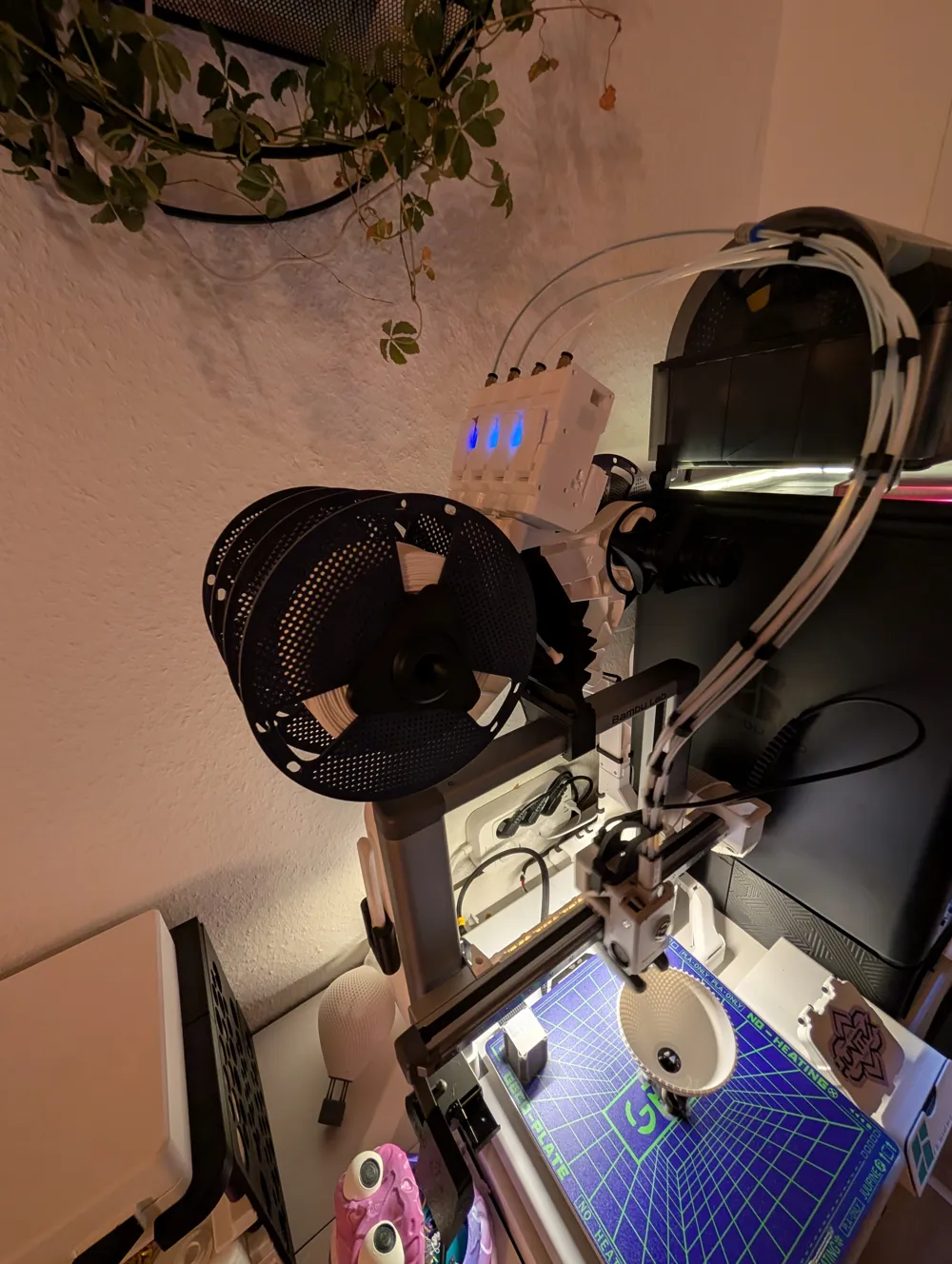

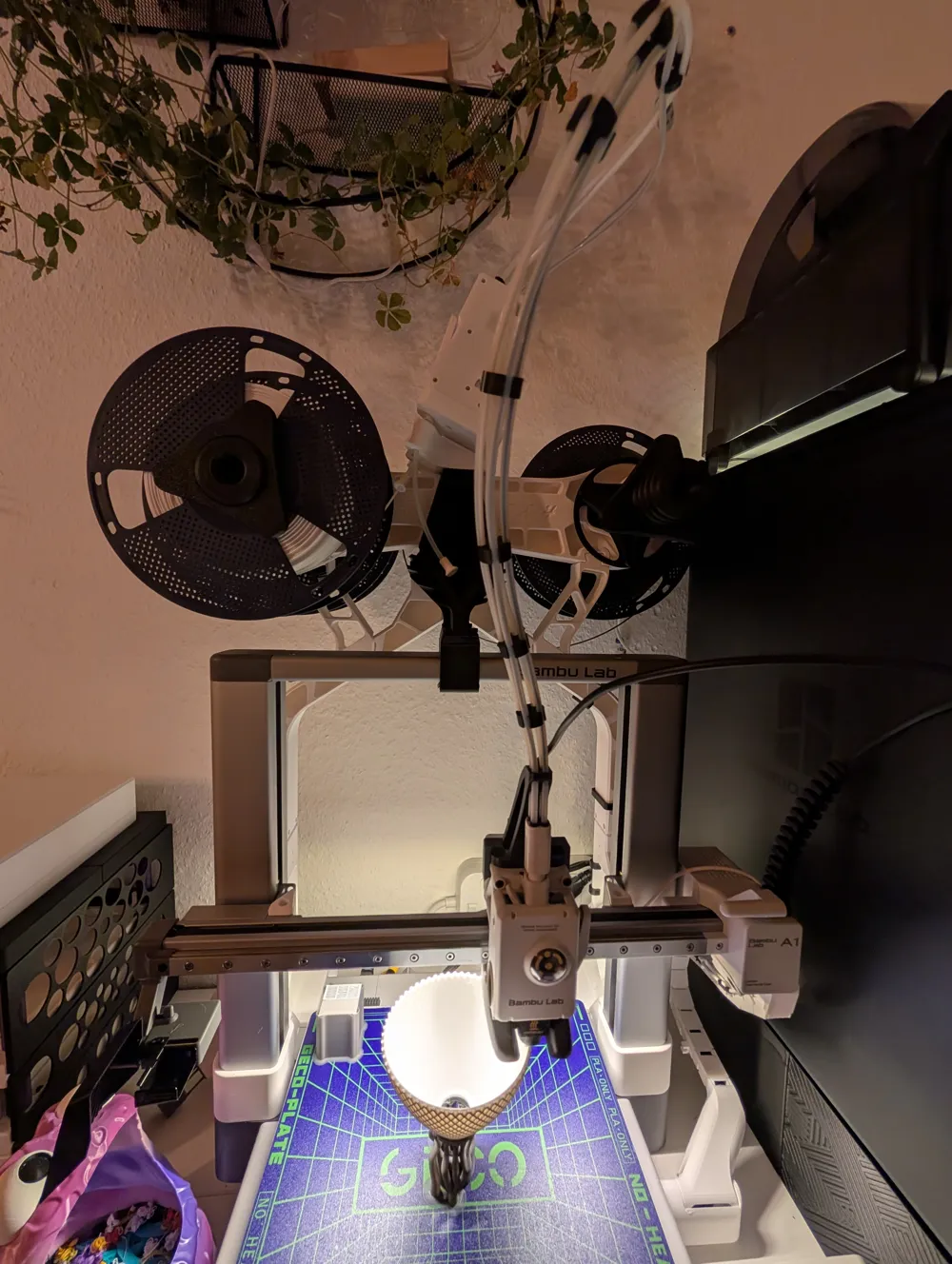

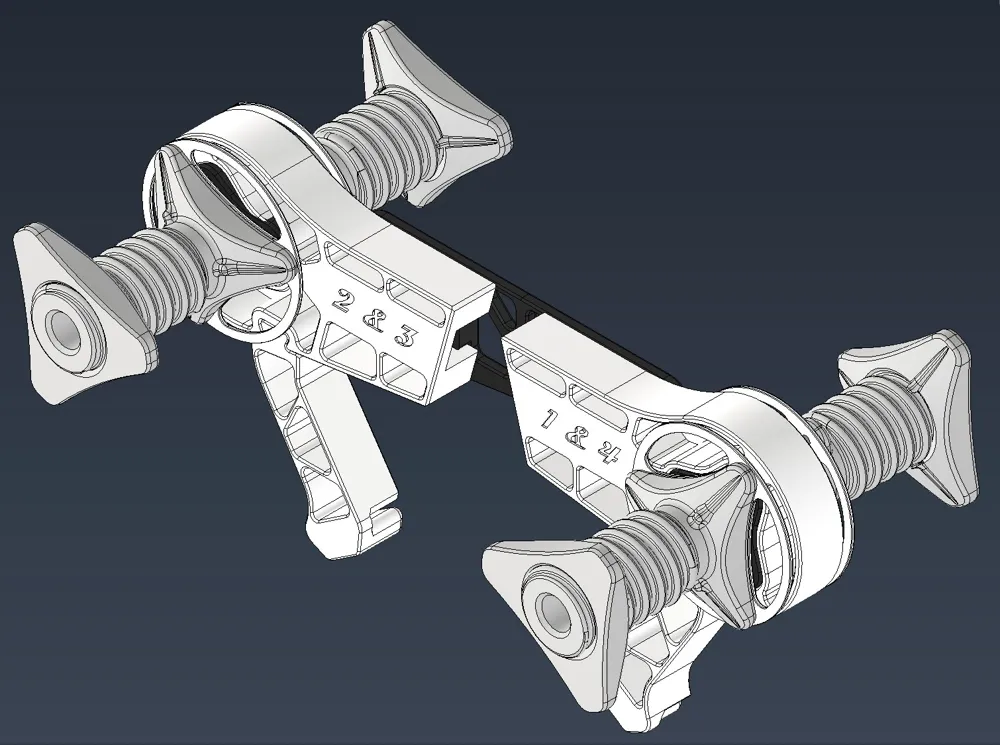

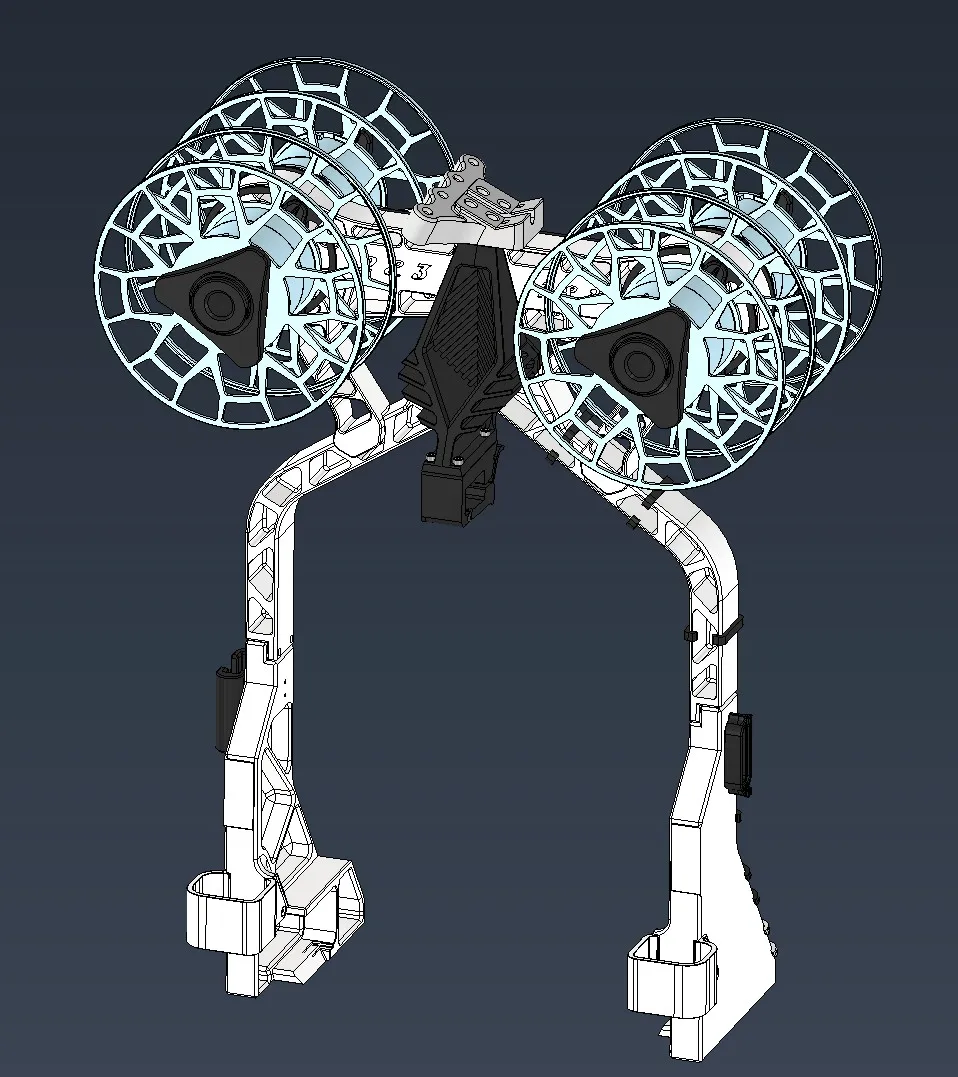

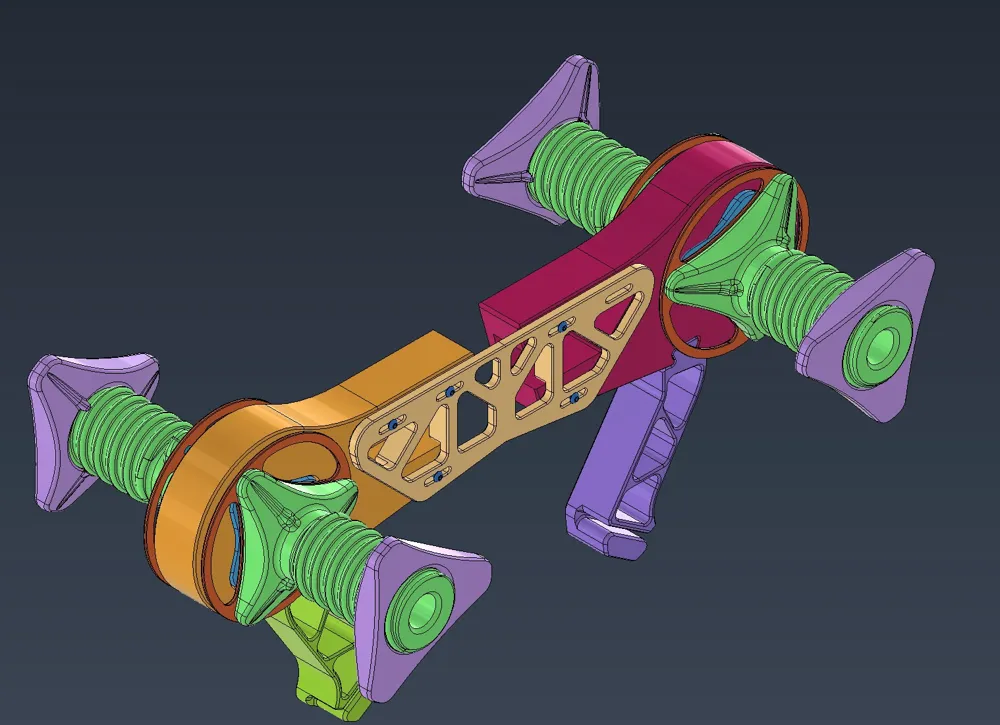

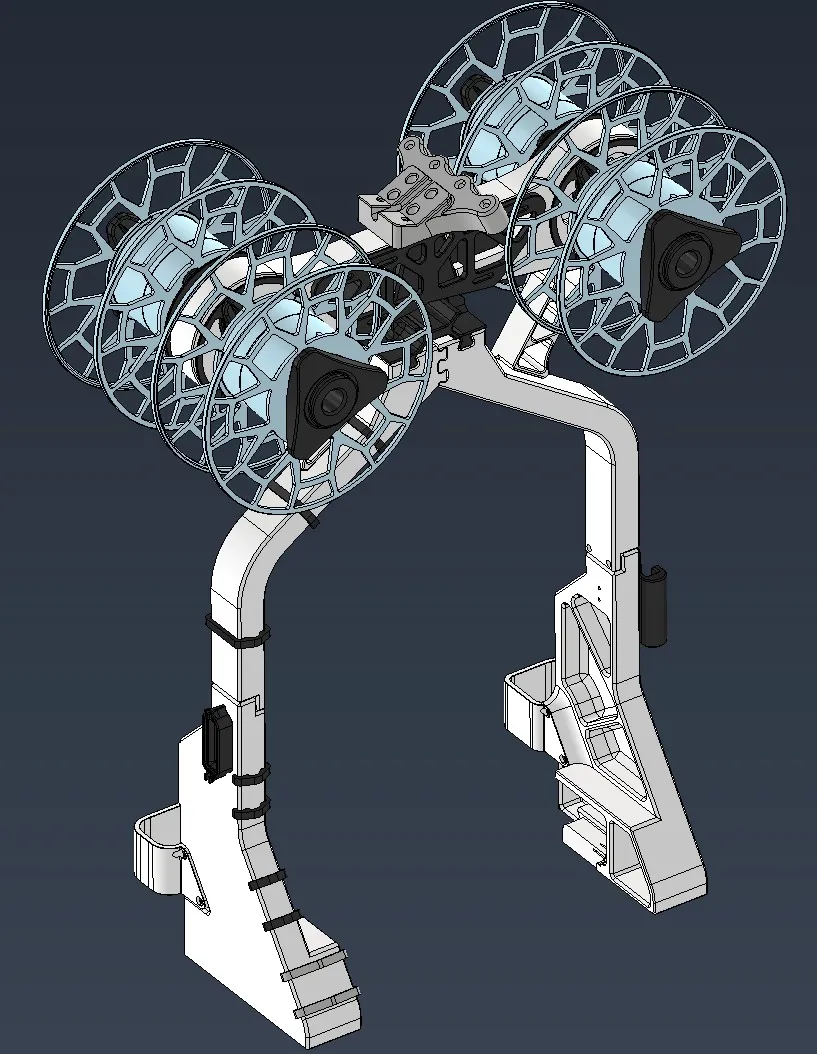

Bambu Lab A1 BMCU370 - Spool Holder V2 (Upgrade)
Print Profile(3)
Description
This upgrade for the Bambu Lab A1 BMCU370 Space Saving Frame optimizes filament guidance and stability. By using deep groove ball bearings, the spools run extremely smoothly, minimizing stress on the extruder. The system is modular and provides space for efficient organization directly above the printer frame
Features:
Ball bearing supported: Uses standard 608 bearings for minimal rolling resistance
Robust Design: Reinforced support brackets and a solid connection for the spool holders
Easy Assembly: By using M3 threaded inserts, the mod is durable and easy to maintain
- 4x Base Mount (1701-01)
- 4x Spool Holder Cover Plate (1701-02)
- 4x Rear Spool Clamp (1701-03)
- 4x Bearing Block (1701-04)
- 4x Front Spool Clamp (1701-05)
- 1x Spool Holder Set (1701-06 1 & 2)
- 1x Support Brace Set (1701-07 1 & 2)
- 1x Spool Holder Connector (1701-08)
- 4x Spacer Washer (1701-09)
