Starmix Quick-Connect Dock | Gravity-Lock System
Print Profile(1)
Bill of Materials
Description

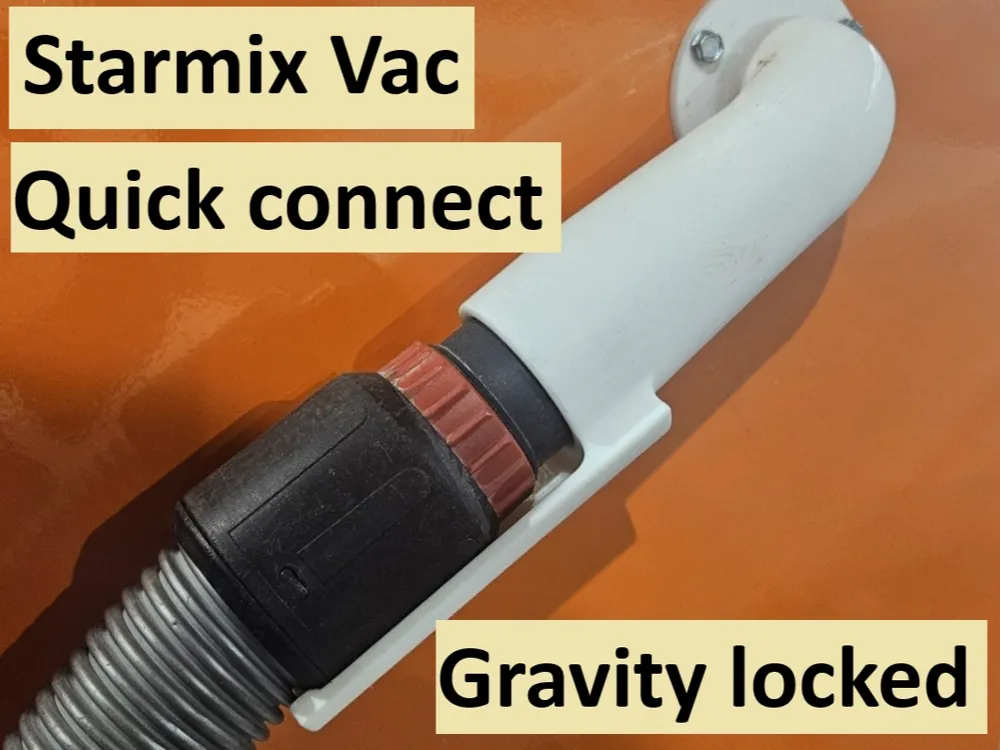

Efficient docking for Starmix vacuum hoses. This dock is precision-engineered to match the specific connector geometry of Starmix hoses. It is not a friction-fit; it uses the unique shape of the connector and gravity to stay securely in place.
This design have an 30 mm inlet at the bend, as it fits my blasting cabinet.
Key Features:
- Gravity Lock: The design ensures the hose remains seated due to its own weight. Mount the dock with a slight downward tilt for optimal security.

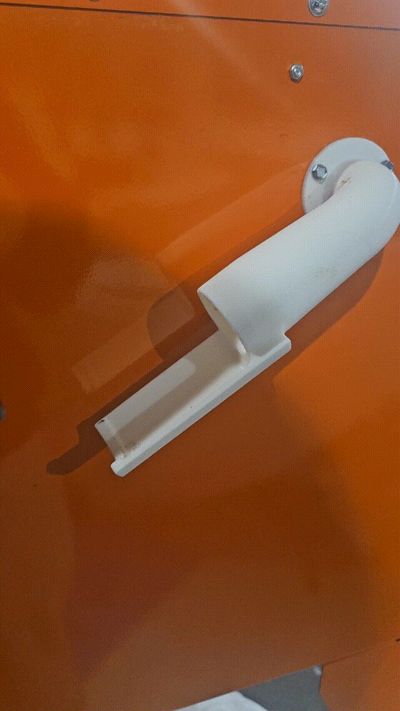

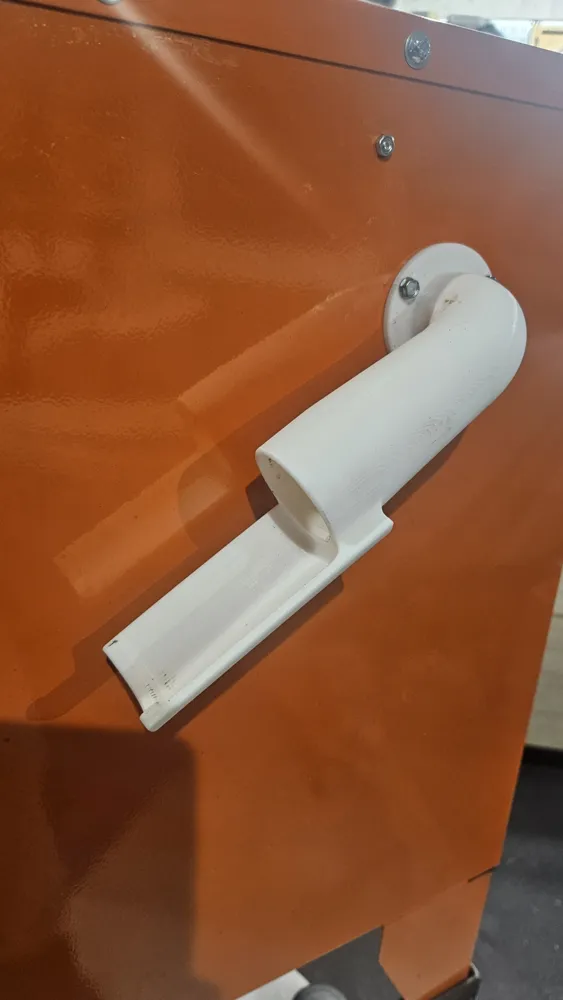

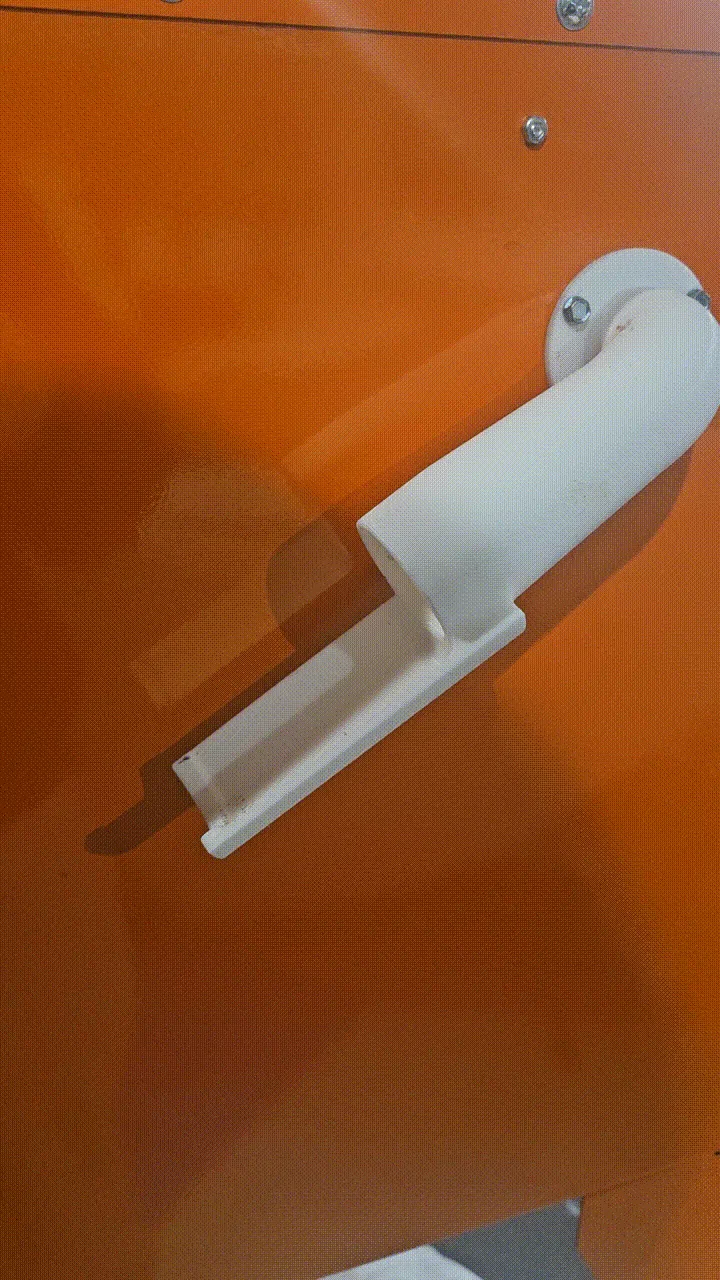

- Machine/Cabinet Mount: Designed for direct mounting on any flat surface, machine, or cabinet.
- Remix-Ready: The simple mounting interface makes it easy to remix for specific machine ports if needed.
- Geometry-Based Fit: Compatibility is determined by the connector shape, not the hose diameter.
Important Compatibility Note: Confirmed to fit Starmix hose ends. While Metabo and Eibenstock often share this connector type, you must ensure their specific geometry matches the Starmix standard for a 100% fit.
Boost Me (for free)
Like this design? Give me boost. I would appreciate it!
Printing Requirements:
- Supports: REQUIRED. This model must be printed with supports to ensure the internal locking geometry is accurate.
- Material: PETG or similar durable filament is recommended for workshop environments.
