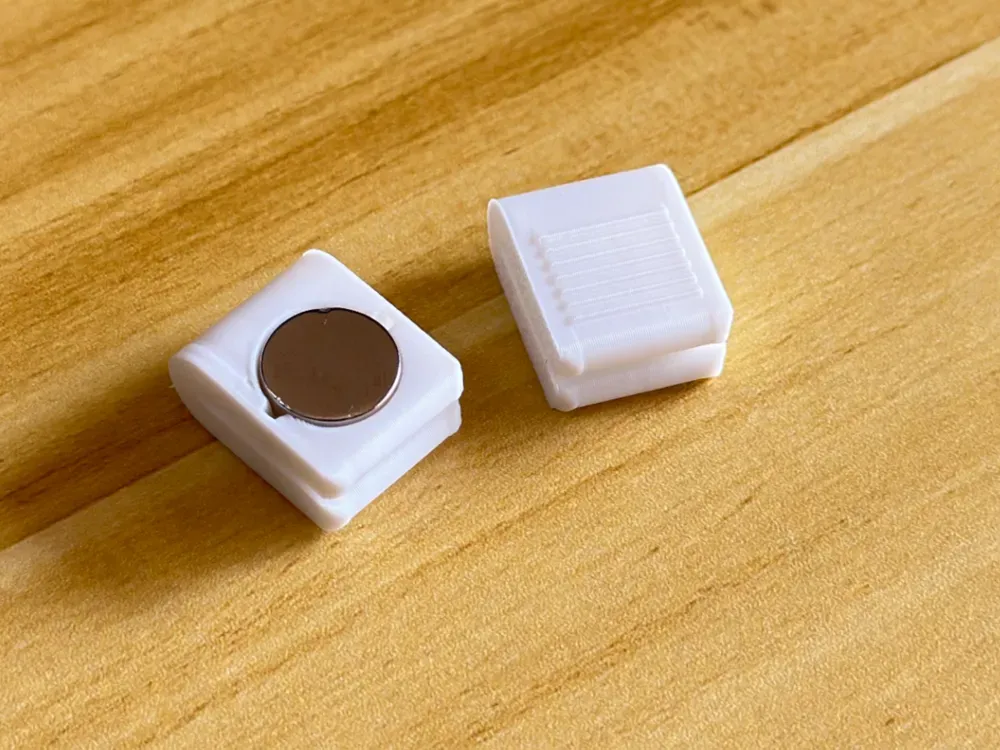

Magnetic Small Clip - Parametric, Customizable Size
Print Profile(2)
Description

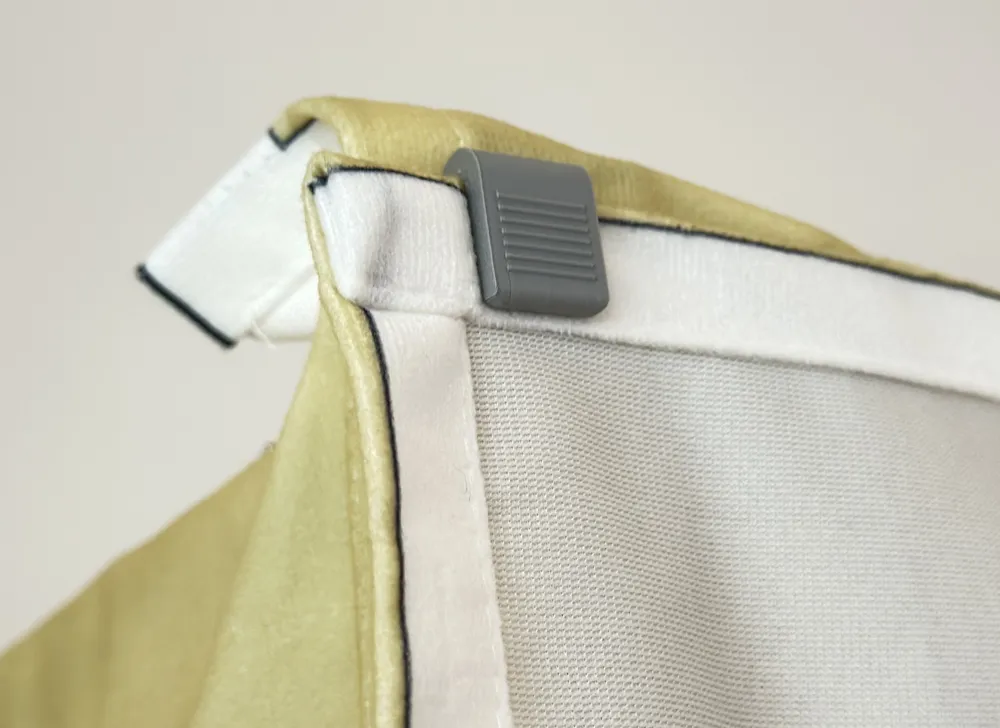

I use it to secure curtains on storage shelves. It can also clip papers and attach them to perforated metal boards
Suitable for scenarios where the clip does not need to be frequently bent, because the elasticity of PLA will degrade with repeated use

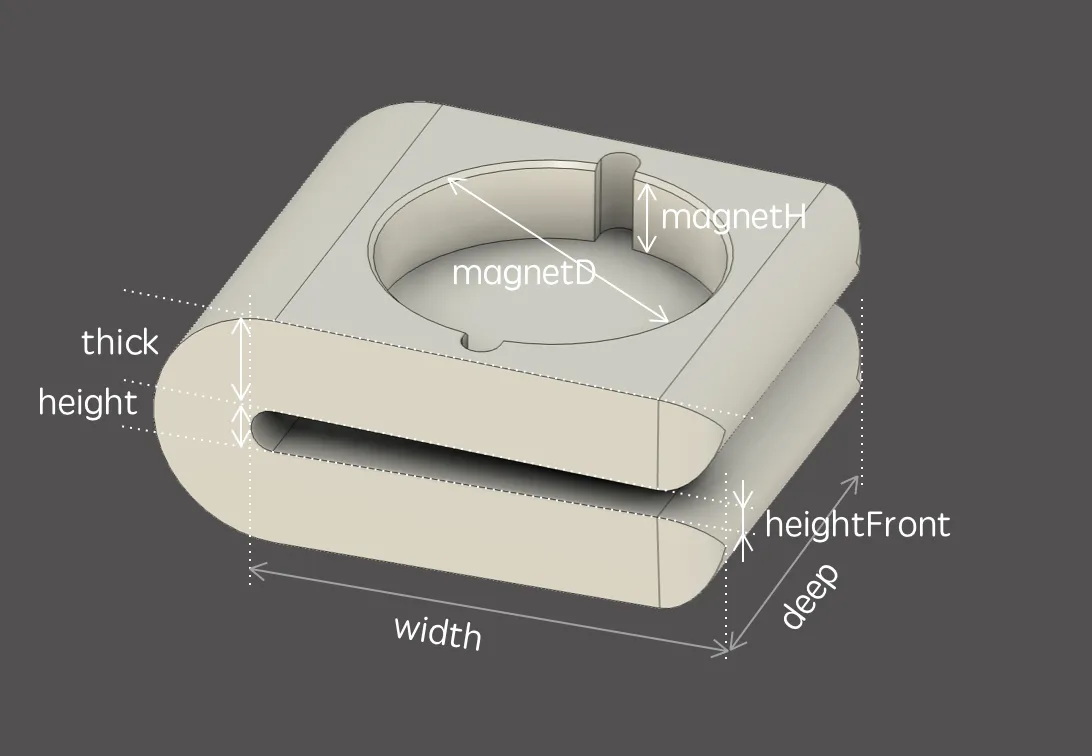

Customizable parameter illustration:
- The thickness of the clip (thick) needs to be greater than the thickness of the magnet (magnetH)
- A tolerance of 0.2mm is already included
- If the print is too tight or too loose, try changing the magnet size by 0.1mm. Reinforcement with super glue is recommended
- Note: The dimensions provided by magnet manufacturers may have slight discrepancies from the actual object; it is best to measure with calipers
The print profile provides several sizes I use, and you can also generate any required size through "Customization"
If you don't need magnets, you can check this out: Parametric Small Clip (International Site)
