hueforge carp koi
Print Profile(1)
Description
This print uses 4 different filaments.
Project: hueforgekarpkoi500
Print with 100% infill
a layer height of 0.08 mm and a base layer of 0.16 mm.

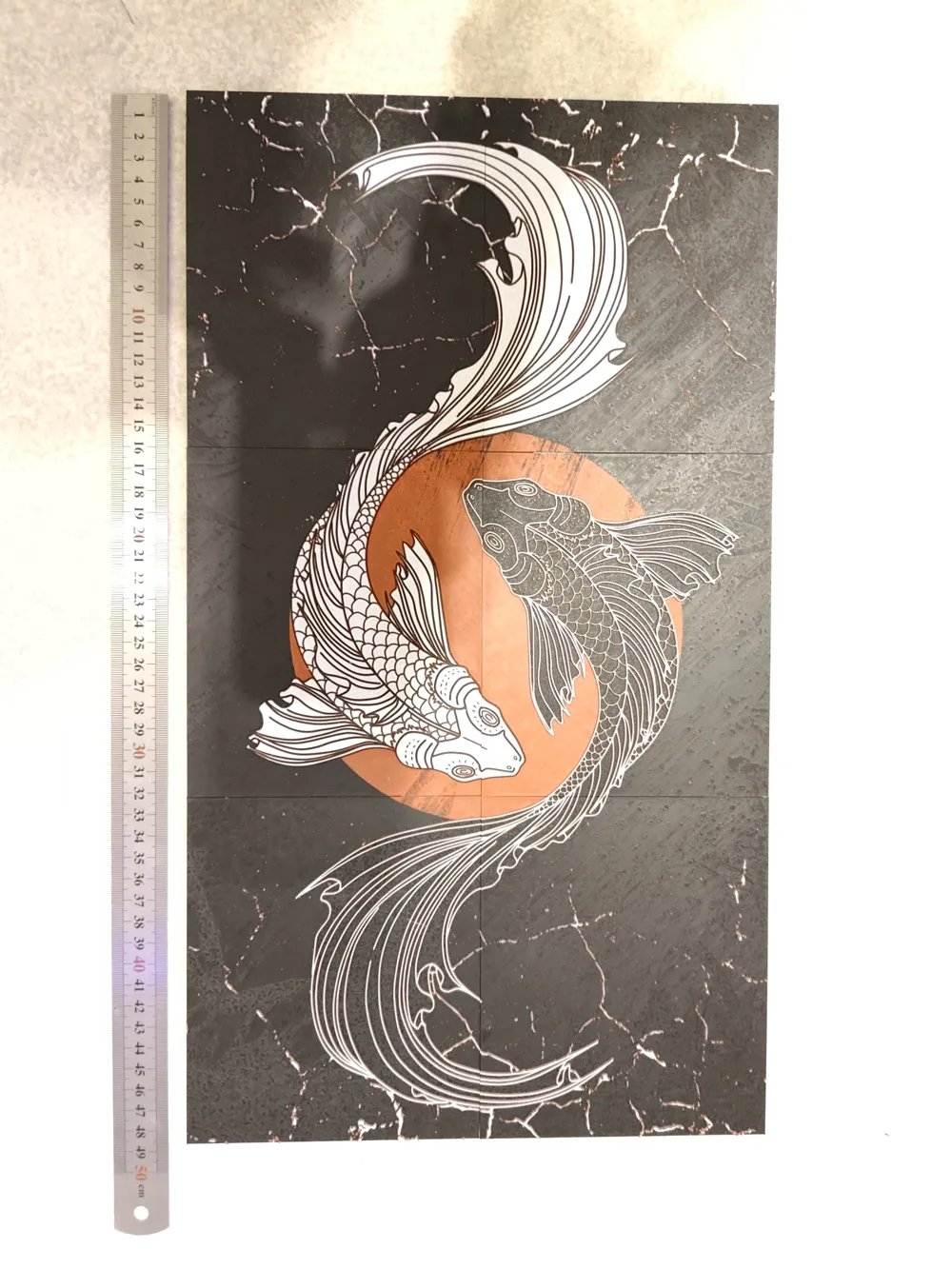

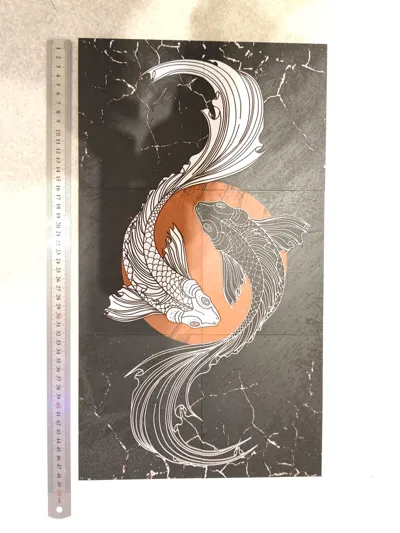

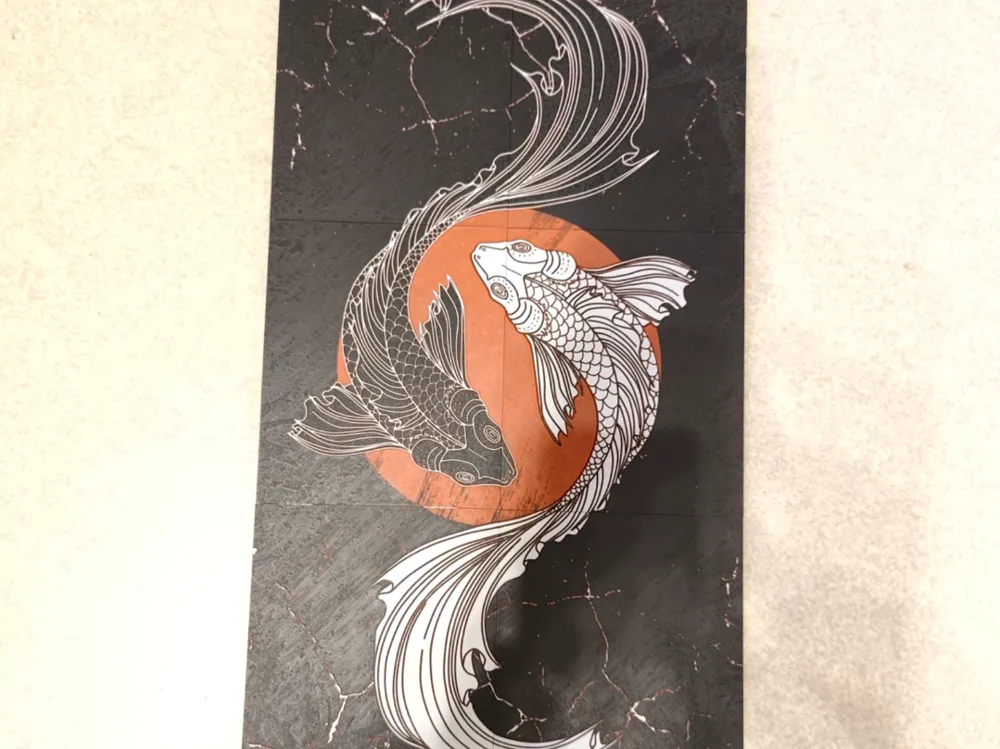

Model dimensions: 280 x 480 mm.
You can print with higher layer heights, within the 0.96 mm base thickness limit.
Maximum allowed thickness: 2.72 mm.
Actual thickness: 2.72 mm.
Bambu Lab PLA Basic Black - Transmission distance: 0.6
Overture PLA Matte Red - Transmission distance: 2.5
Bambu Lab PLA Basic Dark Gray - Transmission distance: 0.6
Bambu Lab PLA Basic Jade White - Transmission distance: 5
This print uses 4 different filaments.
Change Instructions:
-Start with black.
-At layer #14 (1.2 mm), change to red.
-At layer #19 (1.6 mm): change to Dark Gray.
-At layer #27 (2.24 mm): change to Jade White for the rest.
Tile Printing Instructions:
Each tile is a separate STL file (all saved in the STL folder) whose name includes the corresponding row and column. The GridLayout.png file illustrates each section and its size in mm for easier viewing. It is important to note that, in tiled images, some tiles will not show all color changes; this is normal. It is possible to ignore color changes on lower layers if they will never be visible and to use a height range modifier to print the lower parts faster. The choice of method will depend on your image and its colors.
