Mosquito Screen Handle (With/Without Screw Holes)

Replacement handle for mosquito / insect screens, designed to be stronger and more durable than the original part.

The original handle on my screen broke after long sun exposure, so this version was redesigned with:

• increased thickness in stress areas
• reinforced ribs and triangular supports
• smoother curvature for better grip

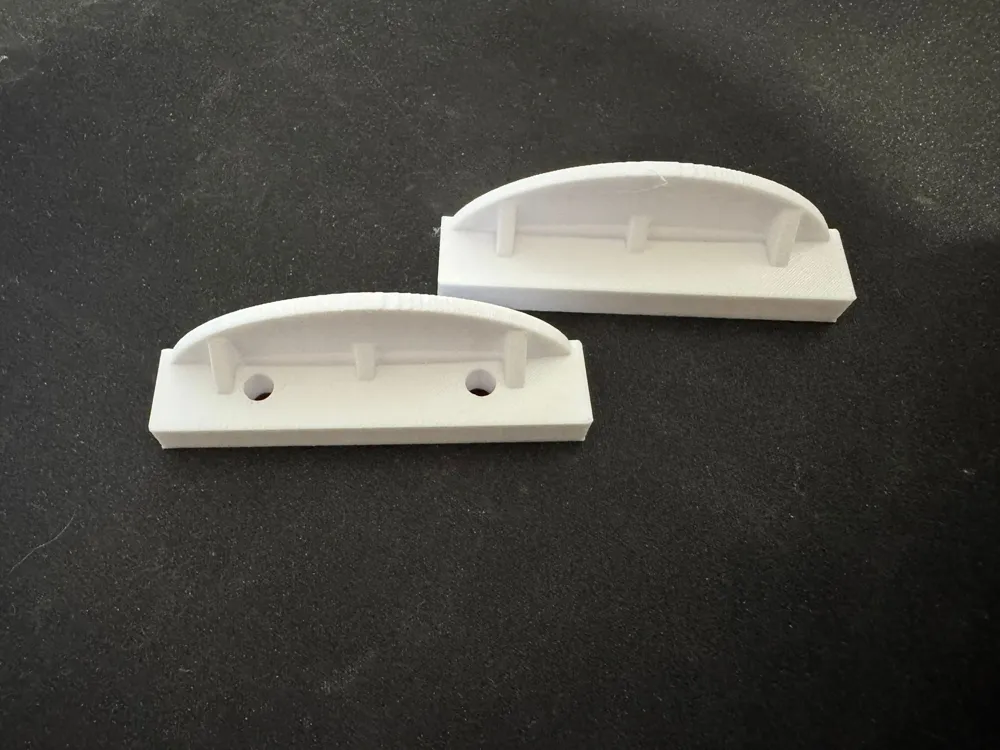

Included versions

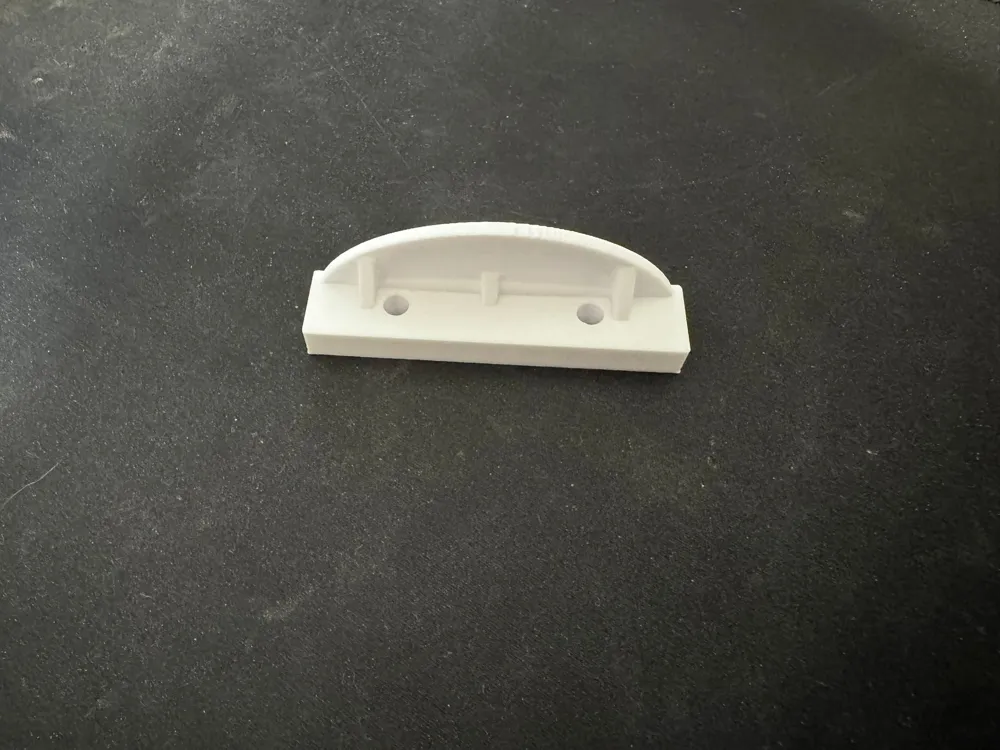

• With screw holes
  Hole spacing matches the original handle I replaced – ideal as a drop-in replacement.

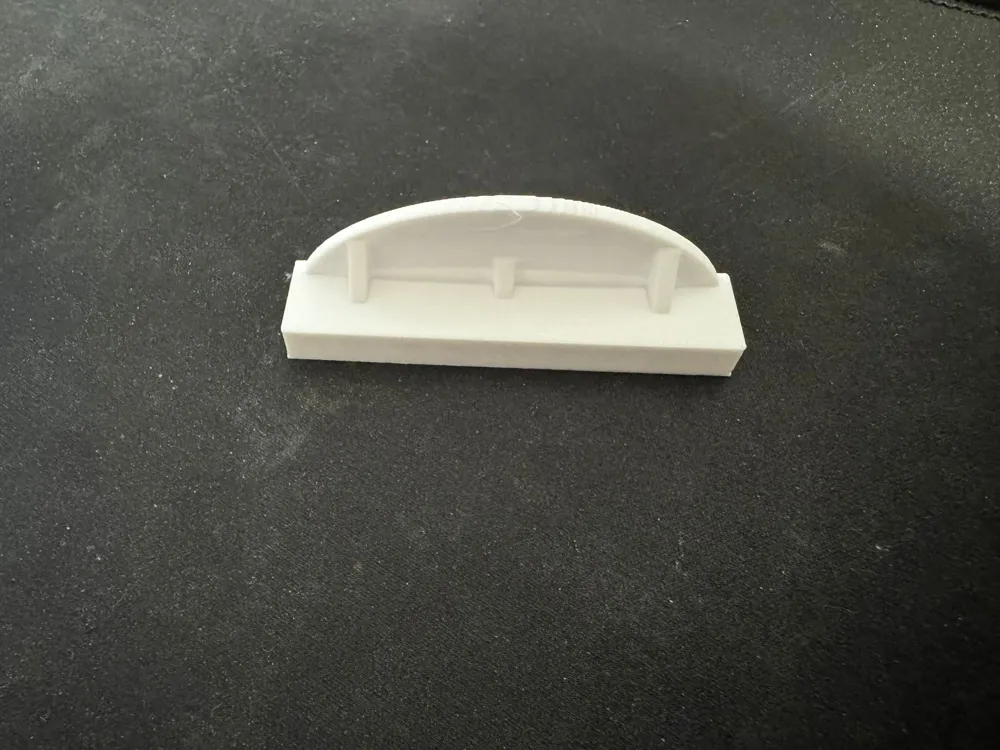

• Solid version (no holes)
  Universal version for other screen frames.
  Users can drill their own holes to match different hole spacing.

Both versions are included in the download.

Printing recommendations

• Material: PETG (recommended)
• Layer height: 0.20 mm
• Perimeters: 3
• Infill: 15%% (any standard pattern)
• Supports: Not required
• Orientation: Flat on the bed (as uploaded)

The part uses ~6 g of filament, so printing time and material cost are minimal.

Dimensions

• Overall width: 15 mm
• Height: 22 mm
• Hole spacing (center to center): 34 mm
• Hole diameter: 5 mm
• Length: 70mm

Users can also rescale the STL in Bambu Studio if minor adjustments are needed.

Notes

• Designed for LED-lit environments only (normal for mosquito screens).
• PETG is recommended for better UV and heat resistance.
• Will come back with photos in use after final mounting, but tested it and works 100% for my dimensions
