Rose Heart with Vine – Version 2 (improved & strengthened)
This revised Version 2 of my model has been specifically improved to increase stability and durability.
What's new in Version 2:
The vine is now closed (heart shape) instead of open
The structure has been slightly reinforced (+1 mm thickness)
Significantly less deflection – even with prolonged use
Overall more stable and harmonious shape
Important note: Due to the thickness adjustment, the new vine no longer fits the old vase/holder.
Please reprint the vine, hook, and vase to ensure an optimal fit.
Update: Based on feedback, I have enlarged the vase. The base area is now approximately 6.4mm, which makes the model significantly more stable and even benefits its appearance.

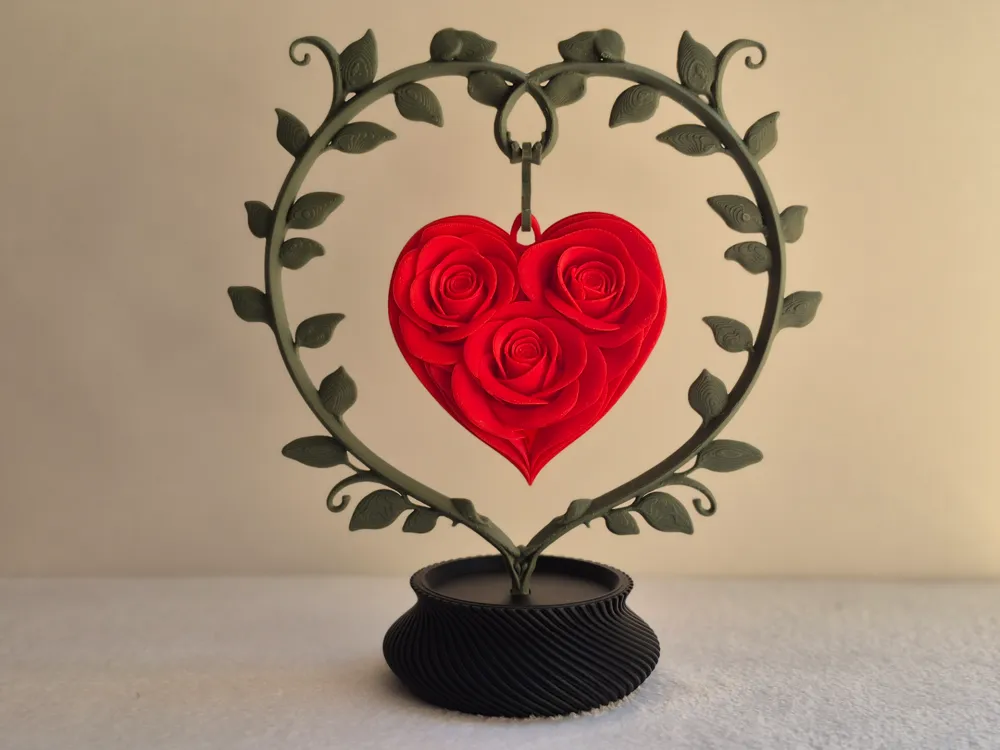

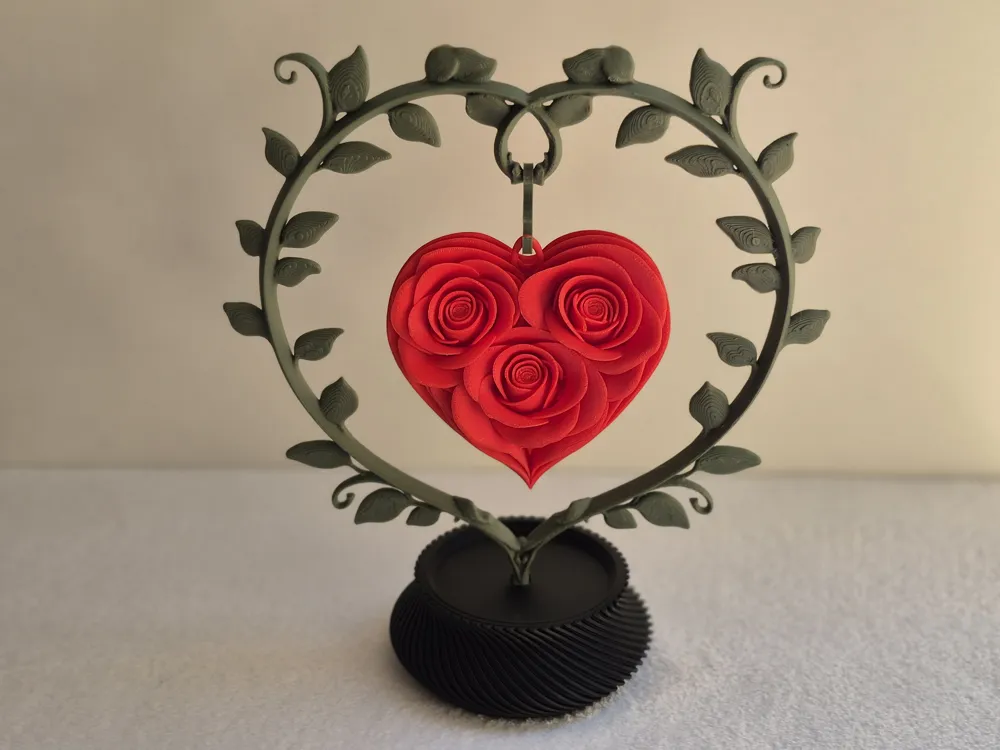

This decorative 3D model features a detailed rose heart elegantly suspended from a curved vine and presented in a vase. Divided into individual components, multi-color printing is possible without an AMS.
Model Details
The model consists of 4 separate parts:
Rose Heart (with hanging loop)
Vine
Hook
Vase
Printed on 3 build plates.
Print Plates & Recommended Settings
Plate 1
Vine
Hook
Layer height: 0.16 mm
Support: no
Plate 2
Rose Heart
Hanging loop (support required)
Additional cooling tower (for better print quality only, discard after printing)
Layer height: 0.12 mm (maximum detail)
Support: Paint-on supports only for the loop
Plate 3
Vase
Layer height: 0.20 mm
Support: no
Important note:
Before each print, it is recommended to thoroughly degrease the print bed to ensure secure adhesion.
Assembly
All parts are precisely designed and can be easily assembled or hung after printing. Glue is not strictly necessary but can be used optionally.
Material Note:
The stand's bracket is under constant mechanical stress.
Under this load – especially at higher ambient temperatures – PLA can tend to deform (creep) over the long term.
PETG HF from Bambu Lab yields excellent results: It offers high dimensional stability, a beautiful surface finish, and is almost as easy to print as PLA.
