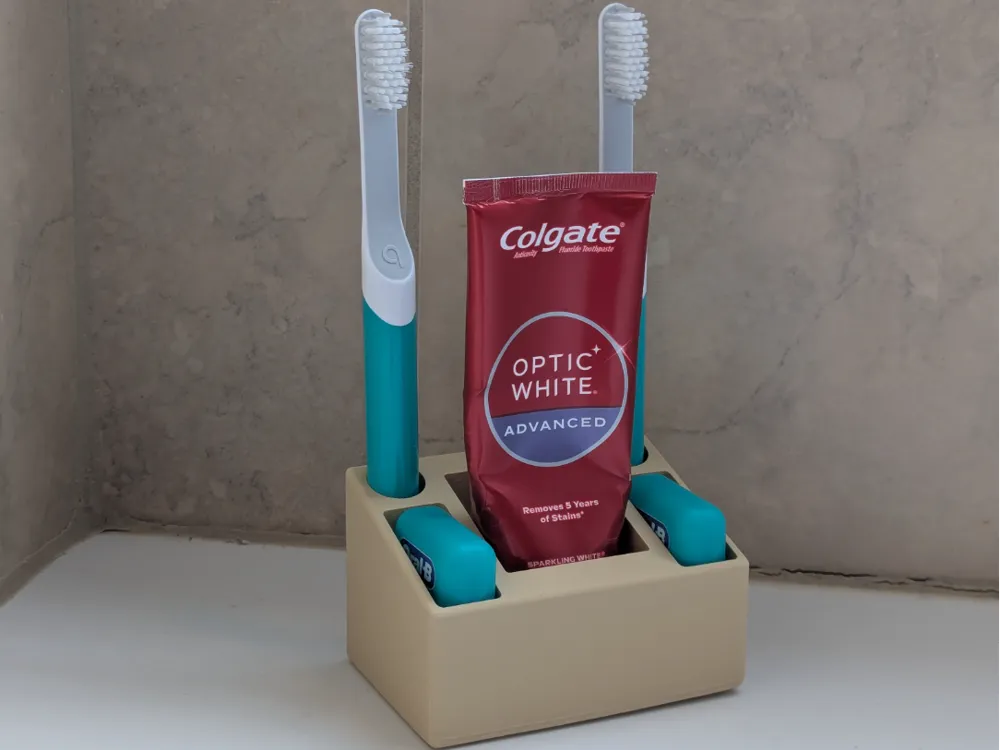

Customizable Toothbrush, Toothpaste & Floss Holder

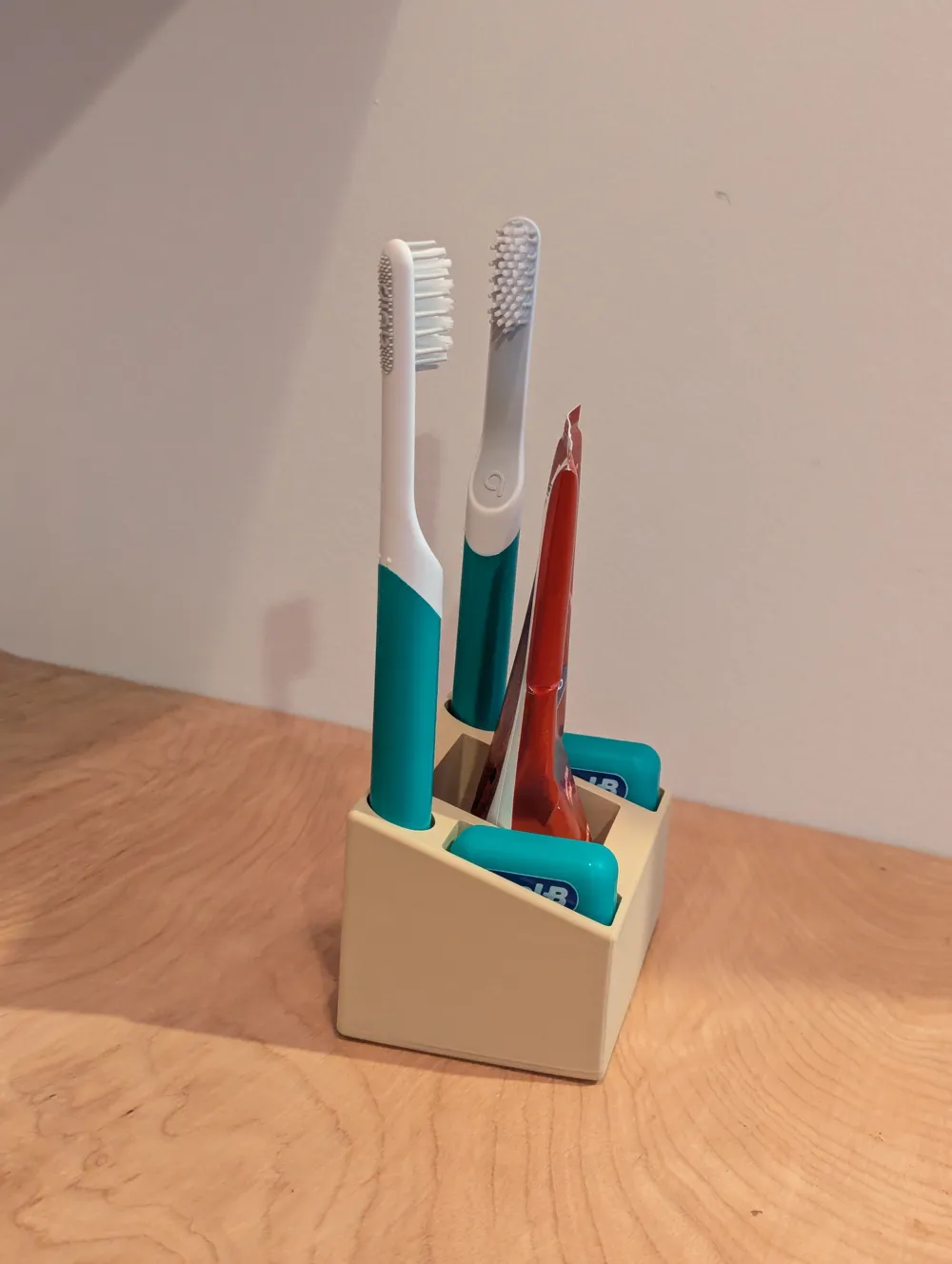

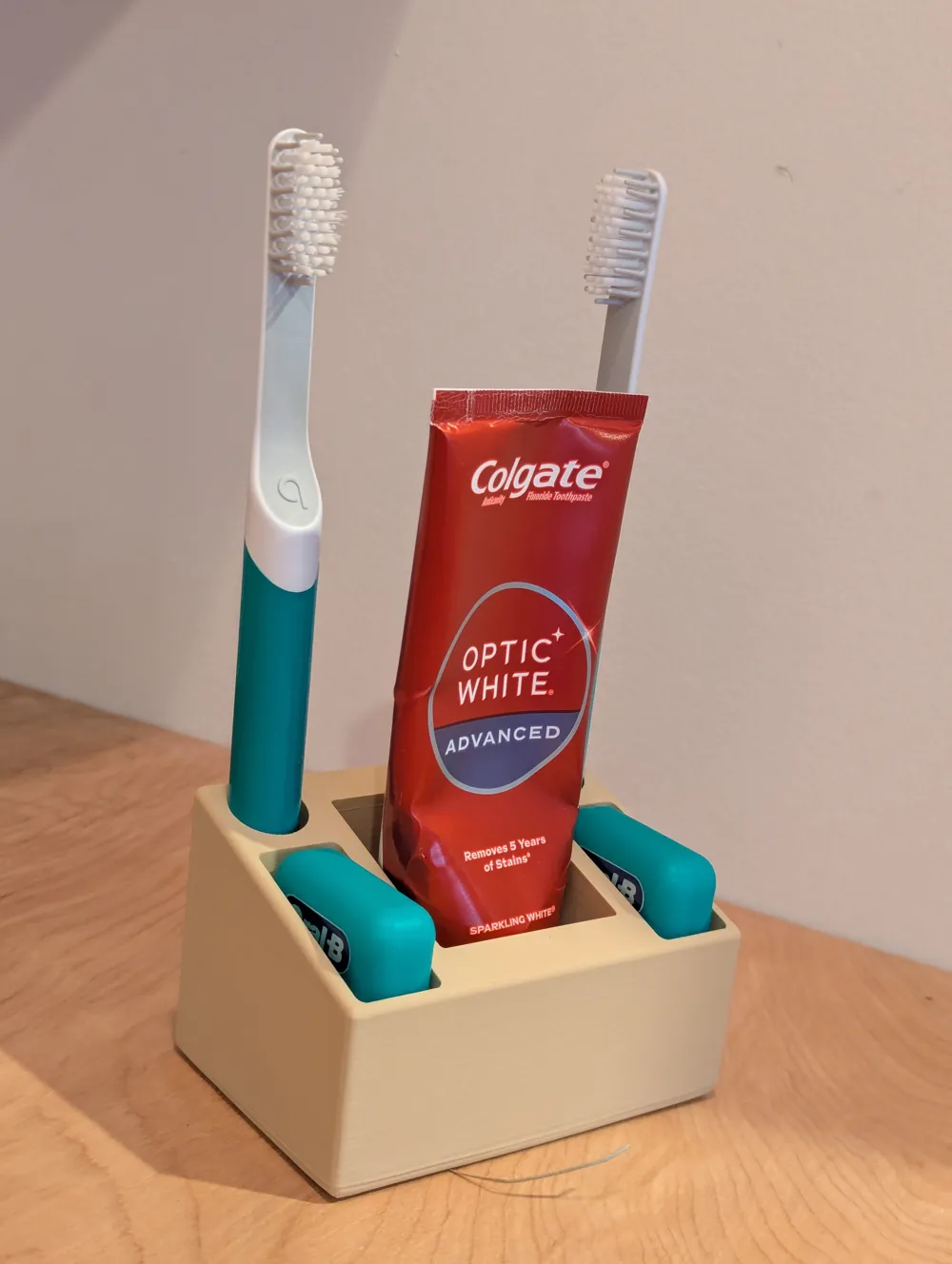

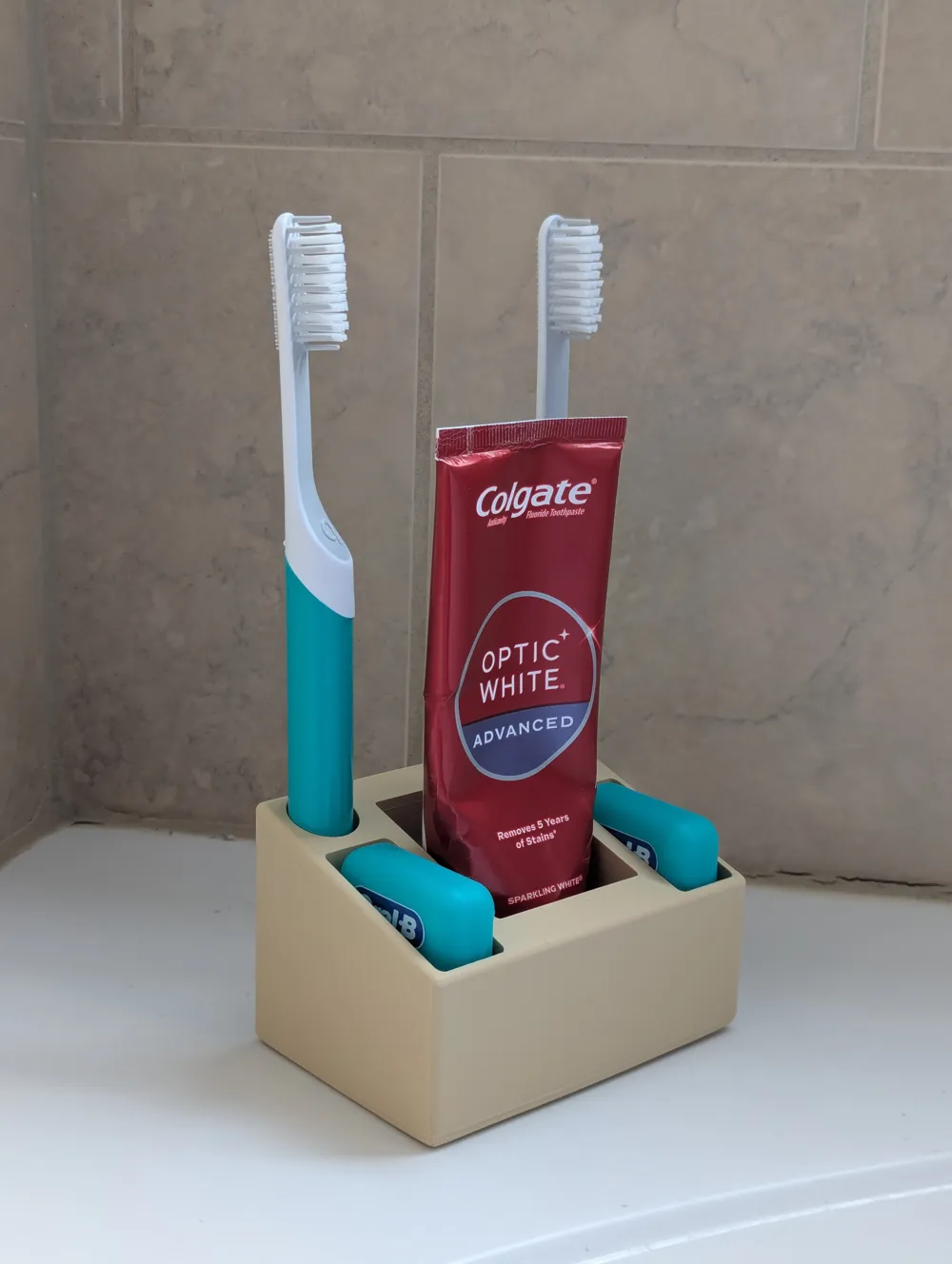

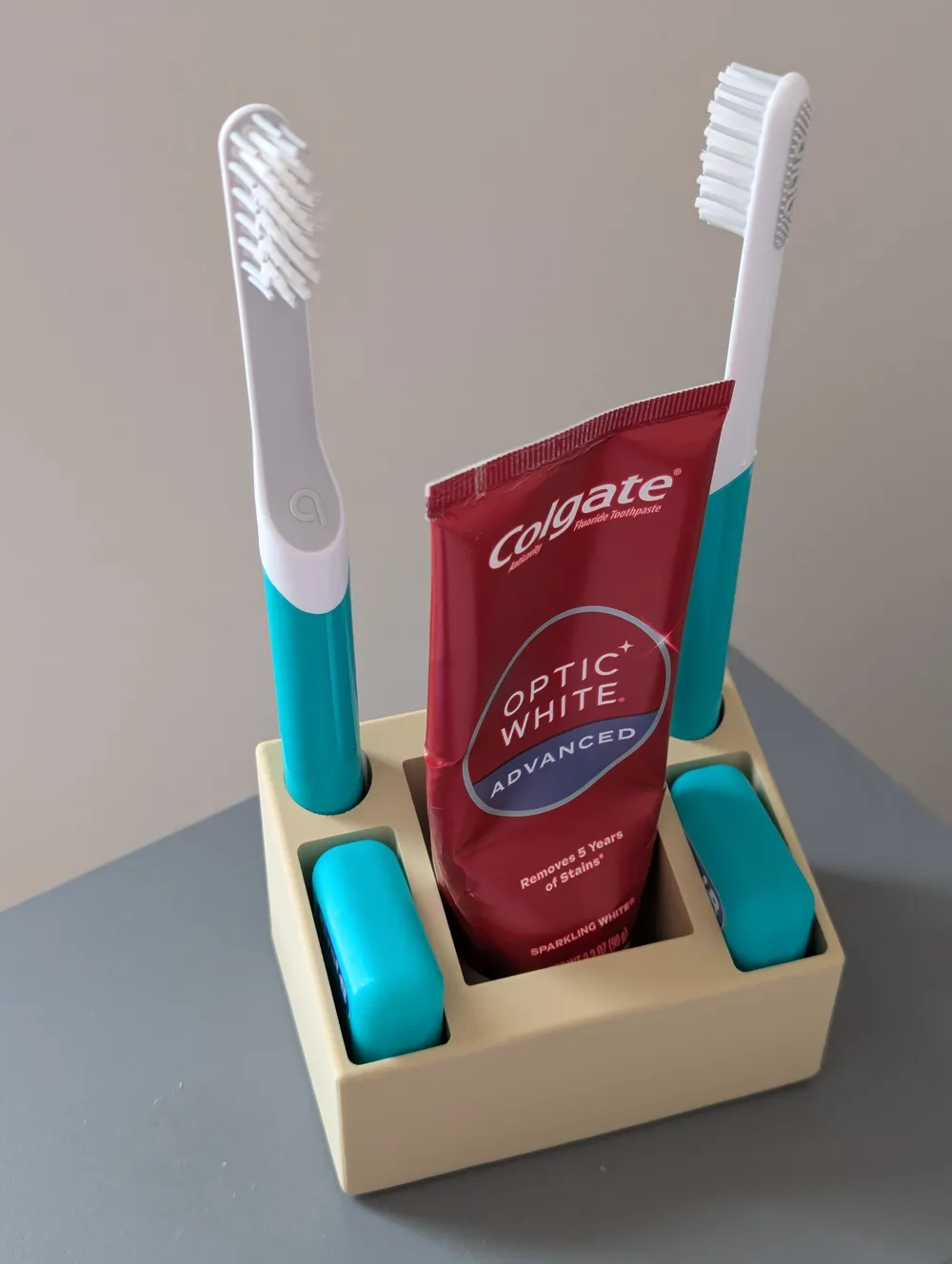

A sleek, fully customizable countertop organizer for toothbrushes, toothpaste, floss, razors, and more. The sloped wedge design gives easy access to every slot, and all dimensions are parametric - adjust everything in MakerWorld's built-in customizer or in OpenSCAD to fit YOUR brushes and accessories.

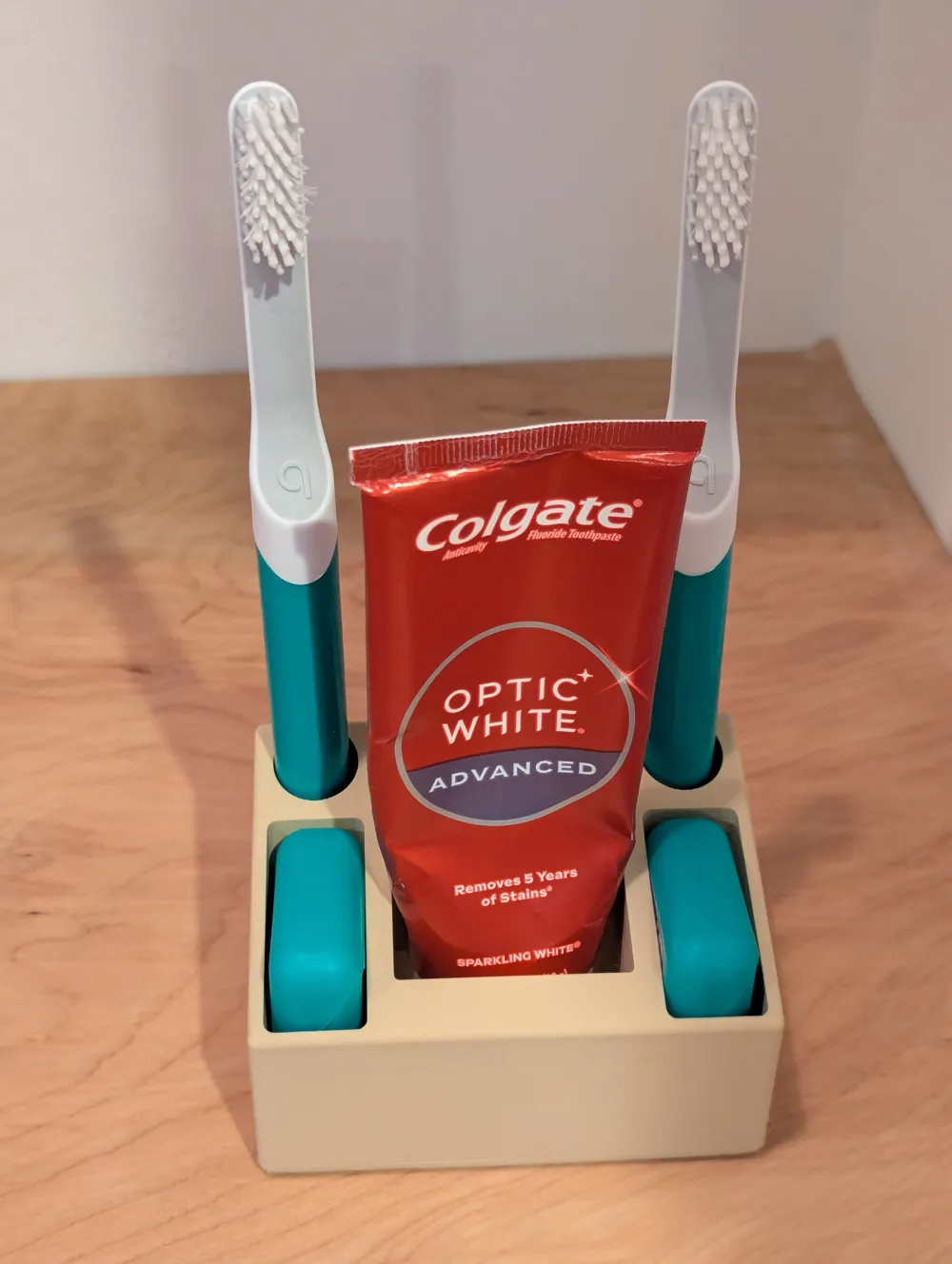

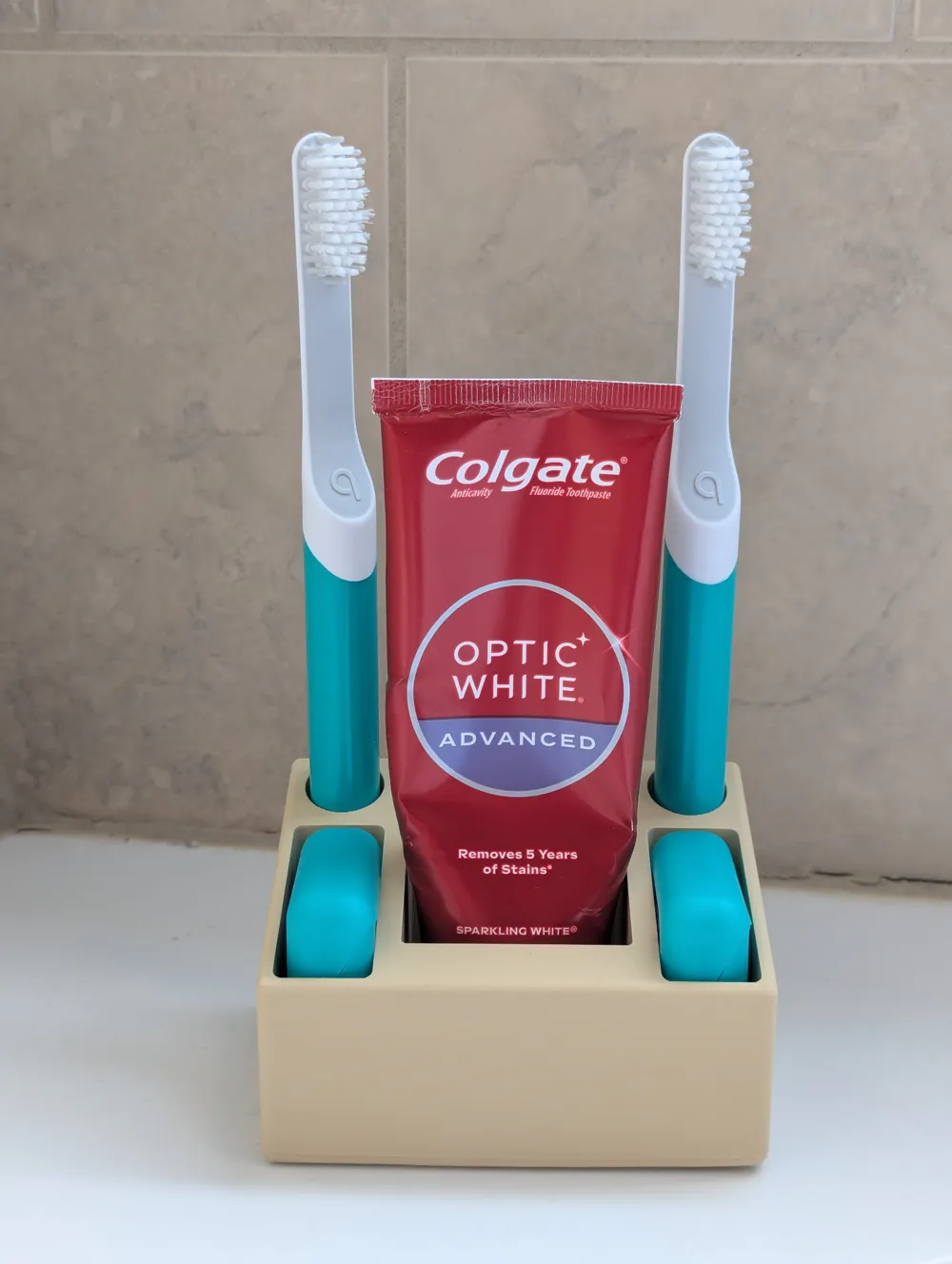

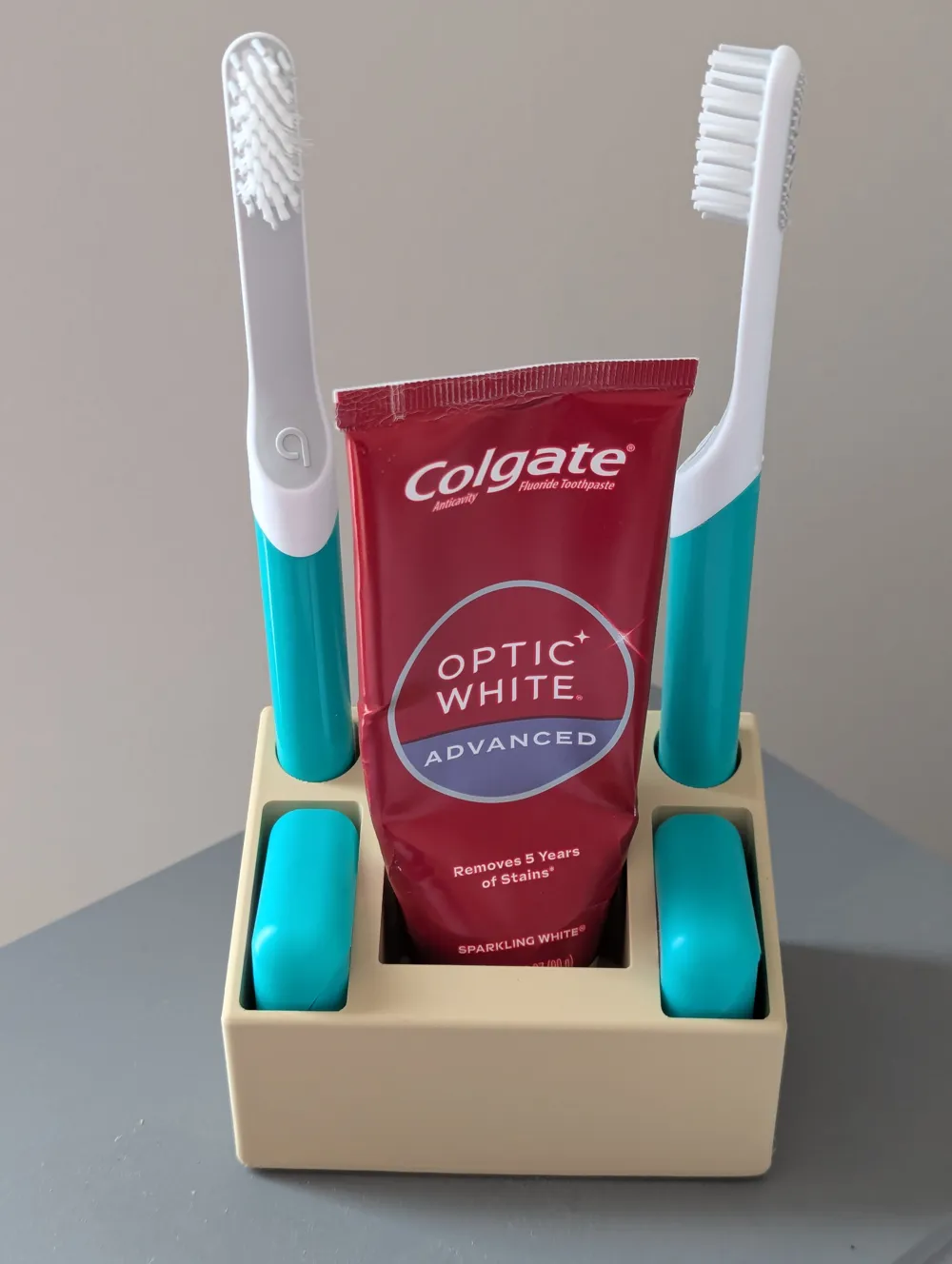

Default configuration: 2 toothbrush slots (17mm default - sized for Quip brushes), 1 toothpaste slot (45×45mm), and 2 accessory slots (40×20mm) for floss, razors, or tweezers. But every dimension is adjustable.

Key Features:

• Fully Parametric - Change hole diameters, wall heights, slot sizes, corner radius, and more. Fits Quip, Oral-B, Sonicare, or any manual brush — just adjust the diameter.
• Hygienic Drainage - Conical funnels at the bottom of the toothbrush slots channel water straight out instead of letting it pool and grow mold.
• Modern Aesthetic - Soft rounded corners, chamfered slot rims for smooth brush insertion, and a floating base with shadow gap for a premium look.

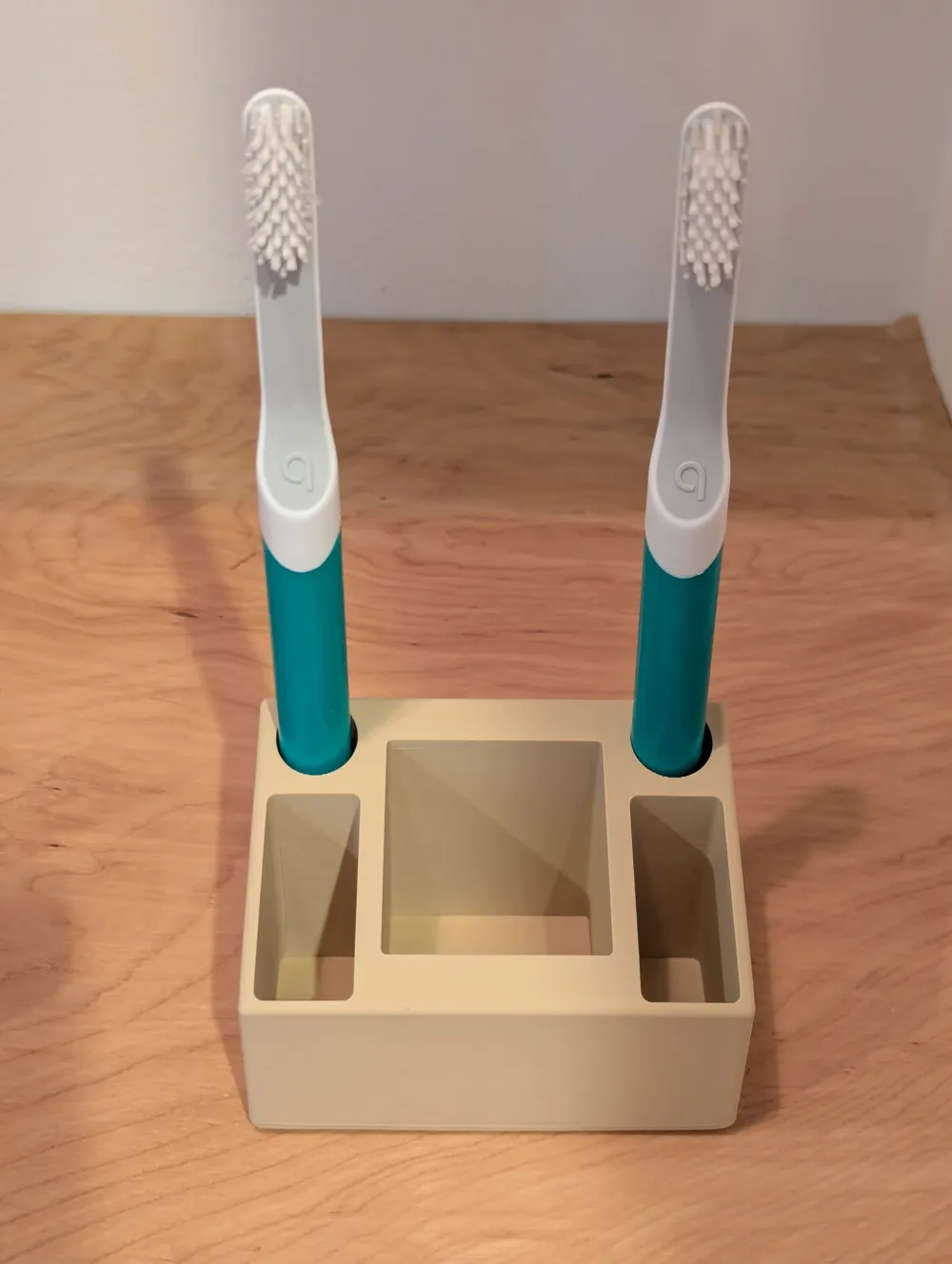

• 5 Compartments - 2 rear brush slots, 1 center paste slot, 2 front accessory slots.

What You Can Customize:

• Toothbrush diameter:
  • tb_diameter - default 17mm
• Toothpaste slot width & depth:
  •  tp_width,
  • tp_depth
• Accessory slot size:
  • acc_width
  • acc_length
• Wall heights, front & back:
  • height_front
  • height_back
• Wall thickness, corner softness, chamfer size
• Drain hole diameter

Print Settings:

• Material: Matte PLA for looks, PETG for better water resistance
• Walls: 3–4 loops (makes it waterproof and gives a solid, weighty feel)
• Layer Height: Adaptive/variable recommended — smooths out the sloped top surface
• Supports: Required for the floating base rim only — use Snug or Normal type
• Infill: 15–20% is fine since the thick walls do the structural work

The .scad source file is included for full customization in OpenSCAD.
