3-gang 503 Electrical Box Cover
Print Profile(1)
Description
Description

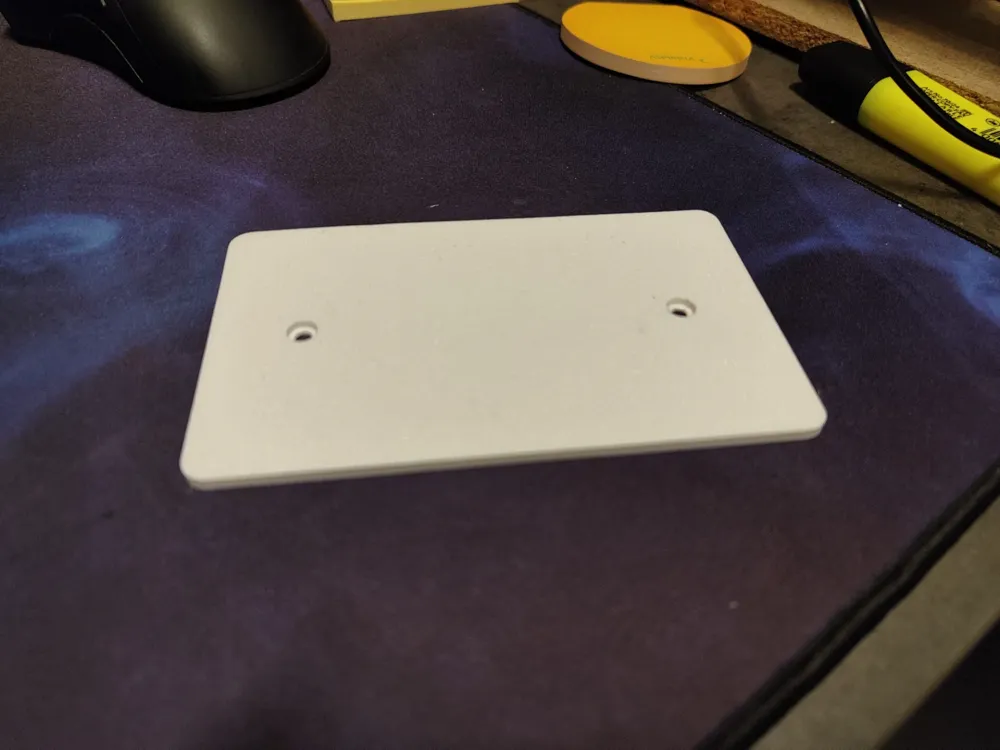

cover for 3-gang electrical box (503)
Dimensions:
Width: 125mm
Length: 76mm
Thickness: 3mm
Corner radius: 5mm
Screw holes: Ø4mm
Screw head countersink: Ø7mm

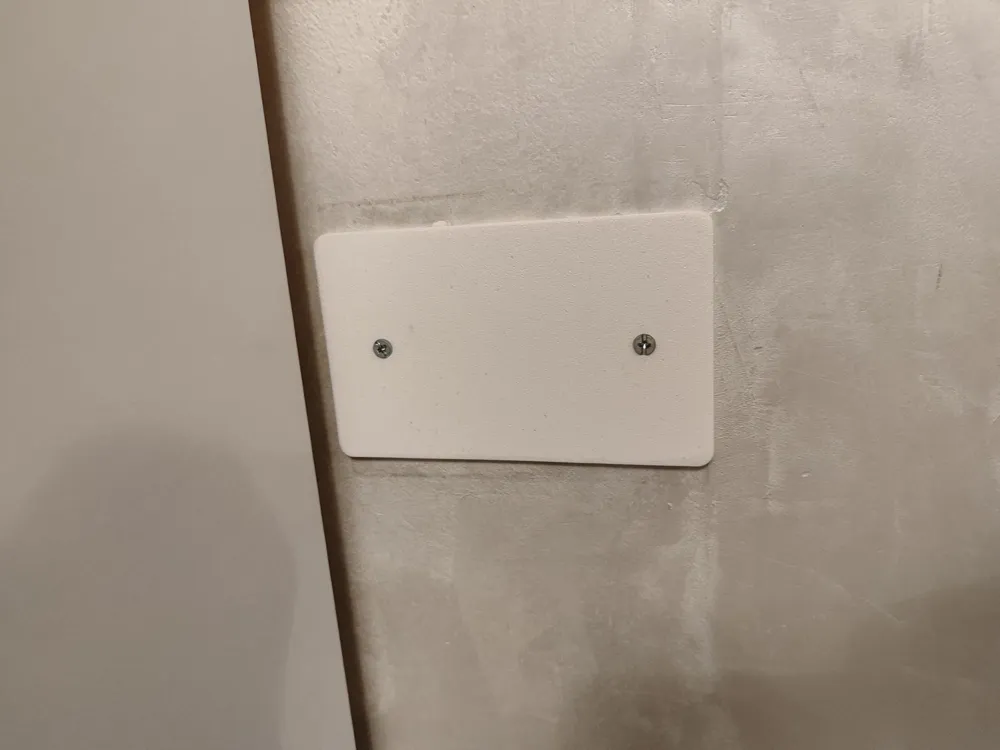

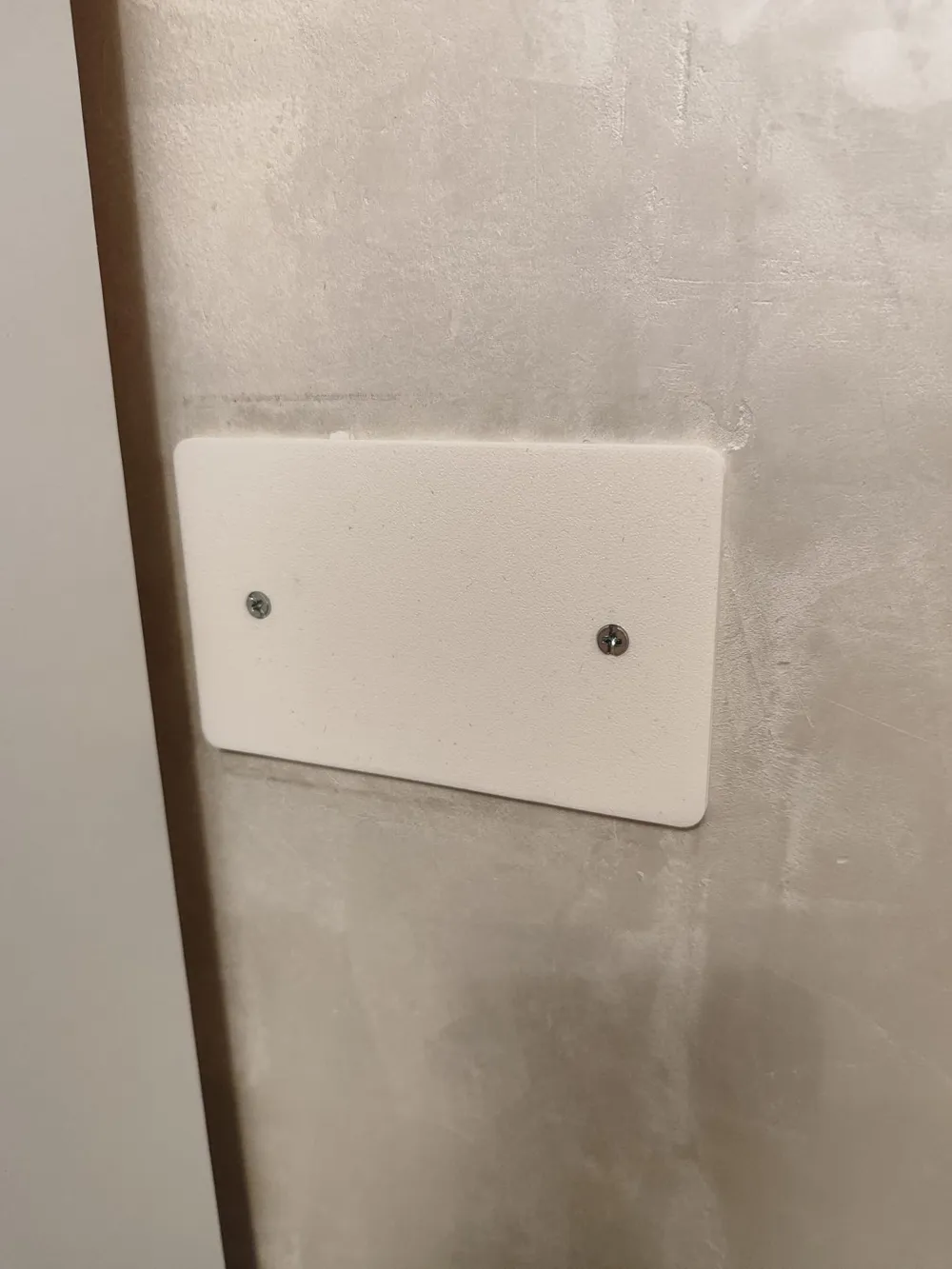

Screws will need to be purchased separately to attach it to the recessed box
The model is ready to print in PLA or PETG.
(the uploaded model is intended for PLA printing)
To create it, the following parameters were used:
- Infill density: 80%
- Wall loops: 2
- Supports required (tree)
- Material: Matte White PLA (but can be made in any color desired)
