Ultra Compact Handheld Vacuum Cleaner & Blower

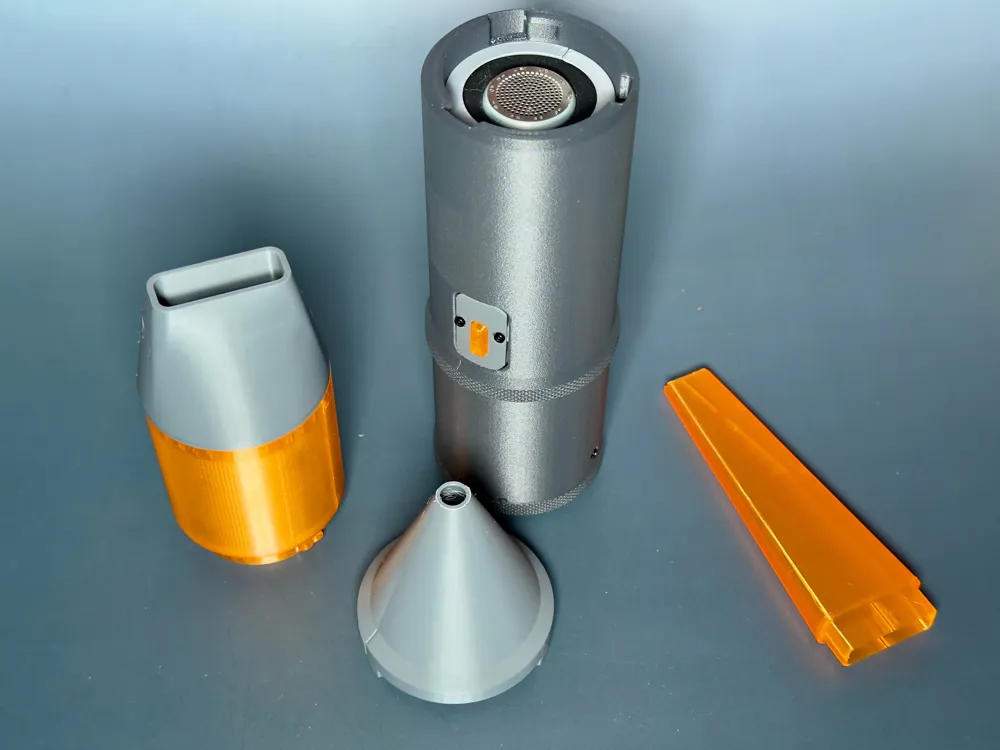

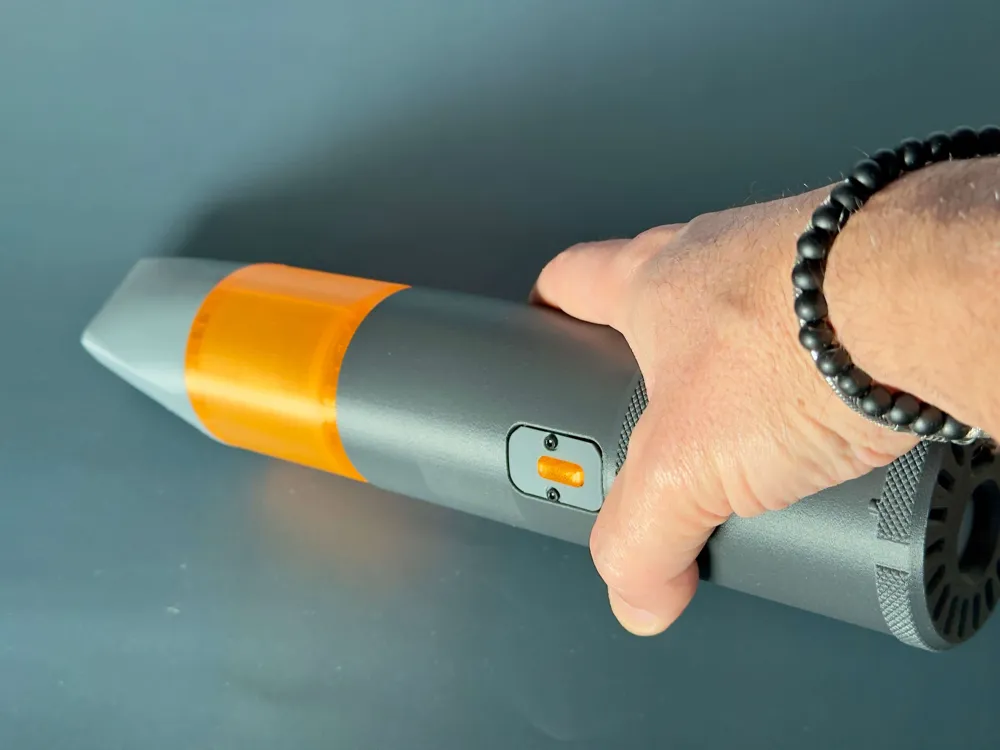

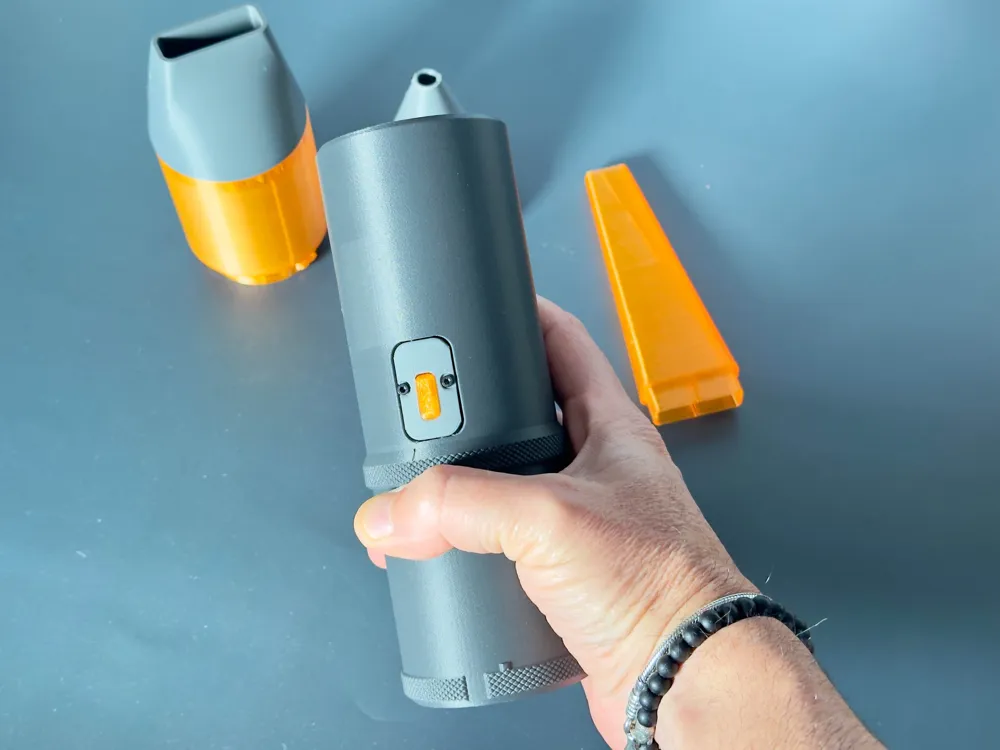

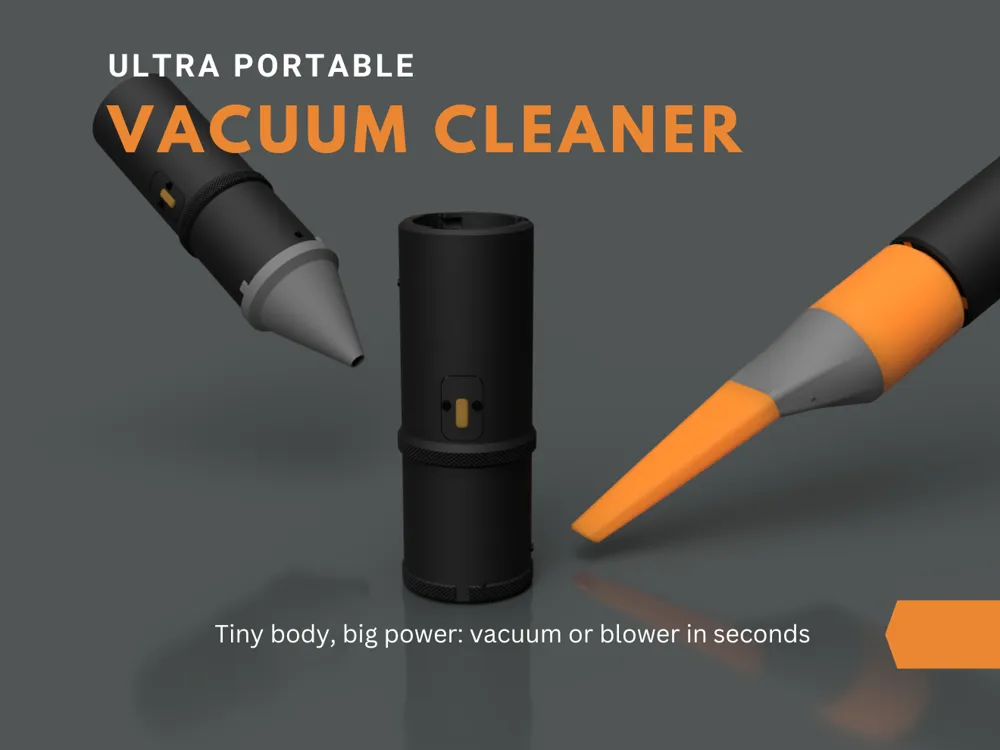

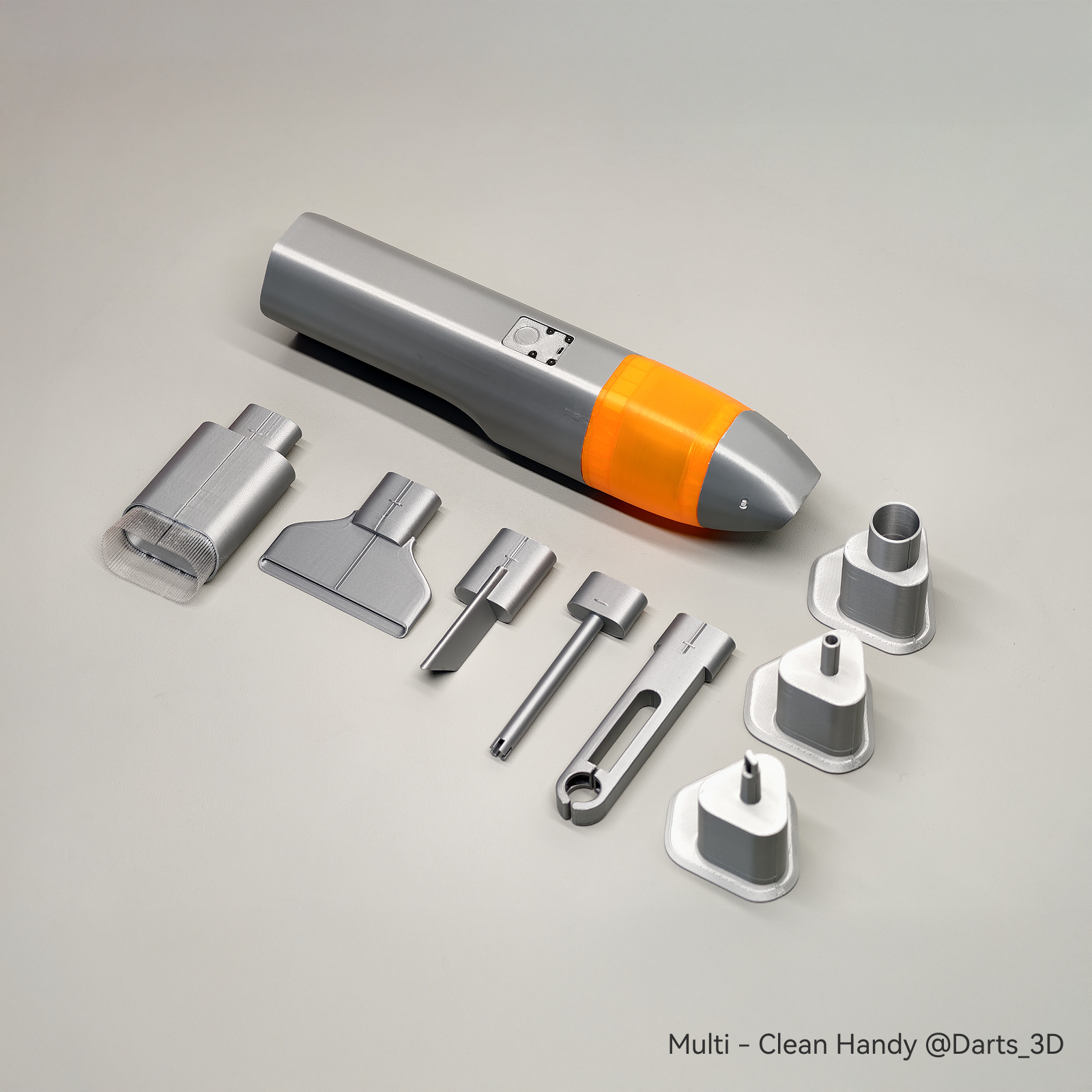

Meet the Ultra Portable Vacuum & Blower: a tiny but mighty cleanup buddy built around the Bambu Lab Handheld Vacuum Cleaner Kit. The main body is super compact (about 170 × 60 mm), and with a simple accessory swap it instantly changes role:

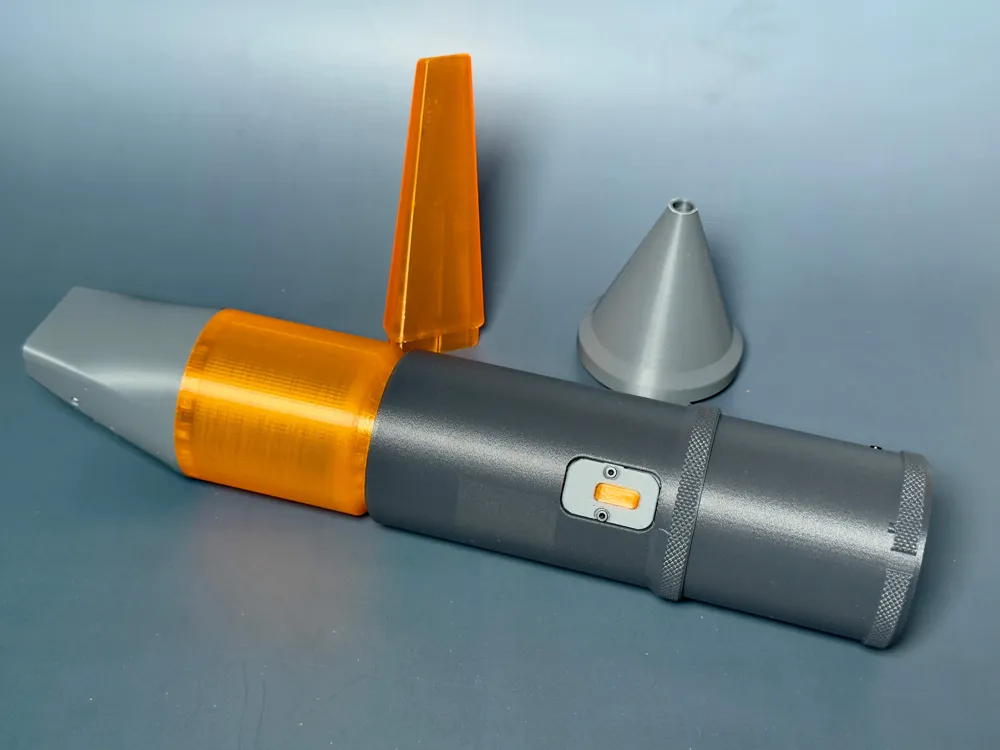

• Vacuum mode: plug the dust container + nozzle on the front to suck up debris
• Blower mode: plug the blower to the rear to push air and blow stuff away 💨

Why it’s great

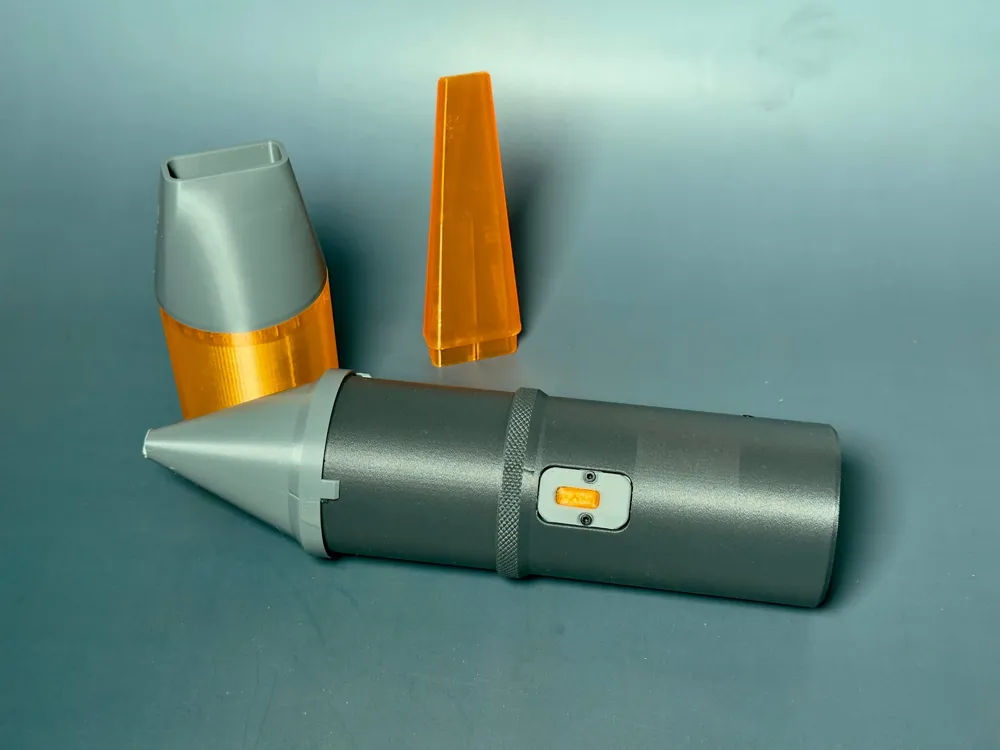

• Quick-swap accessories: everything slides in/out easily 👍

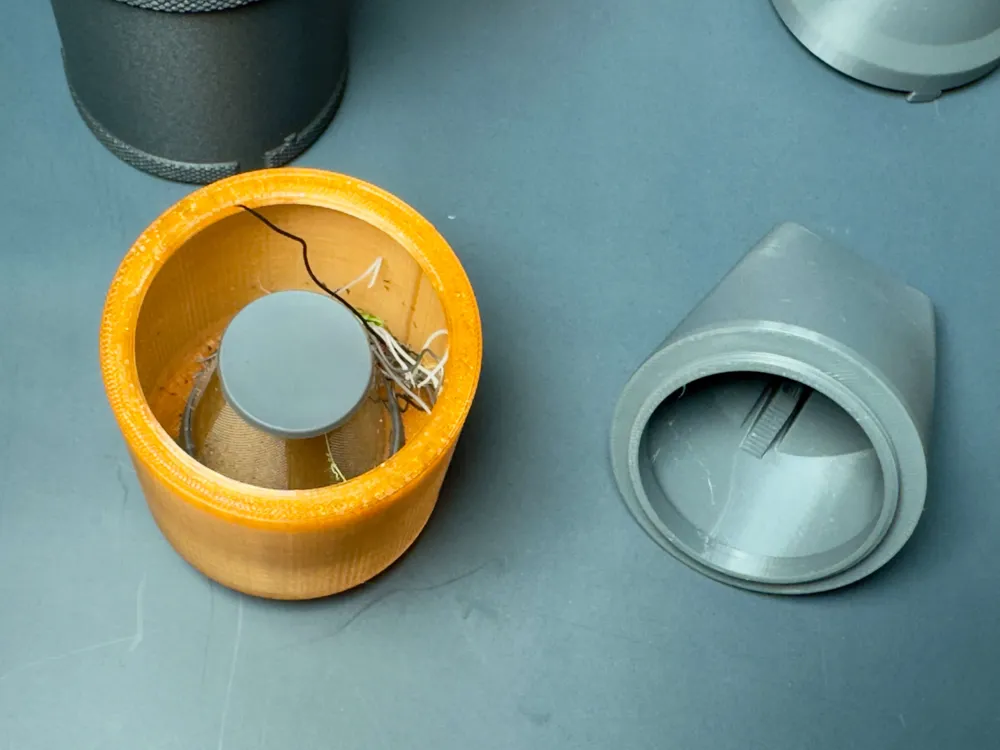

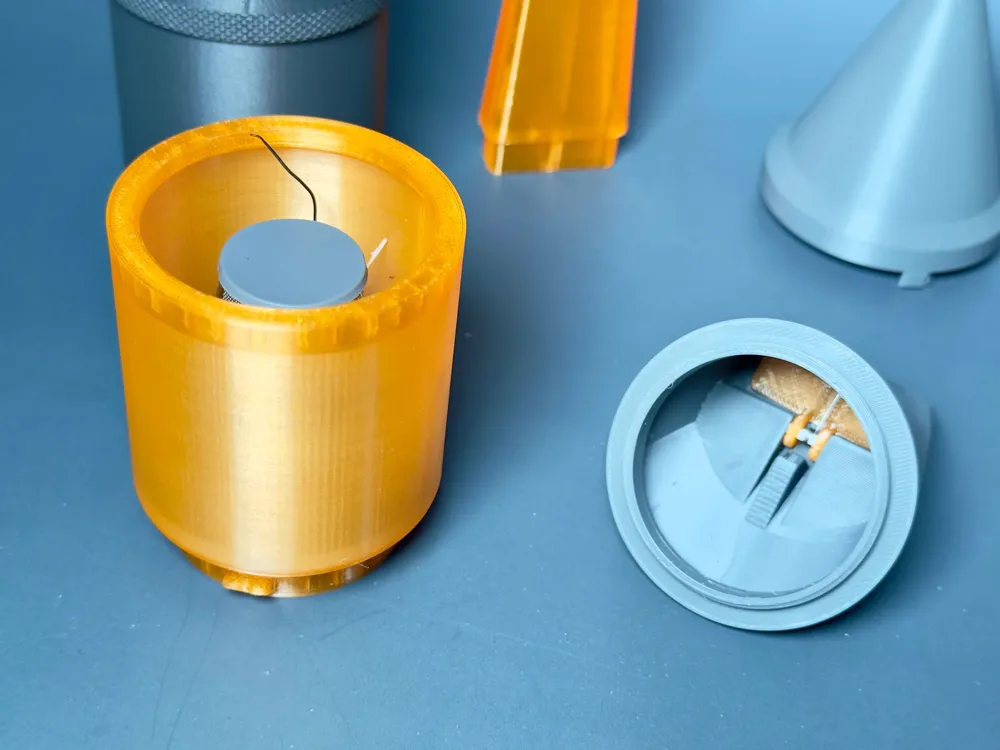

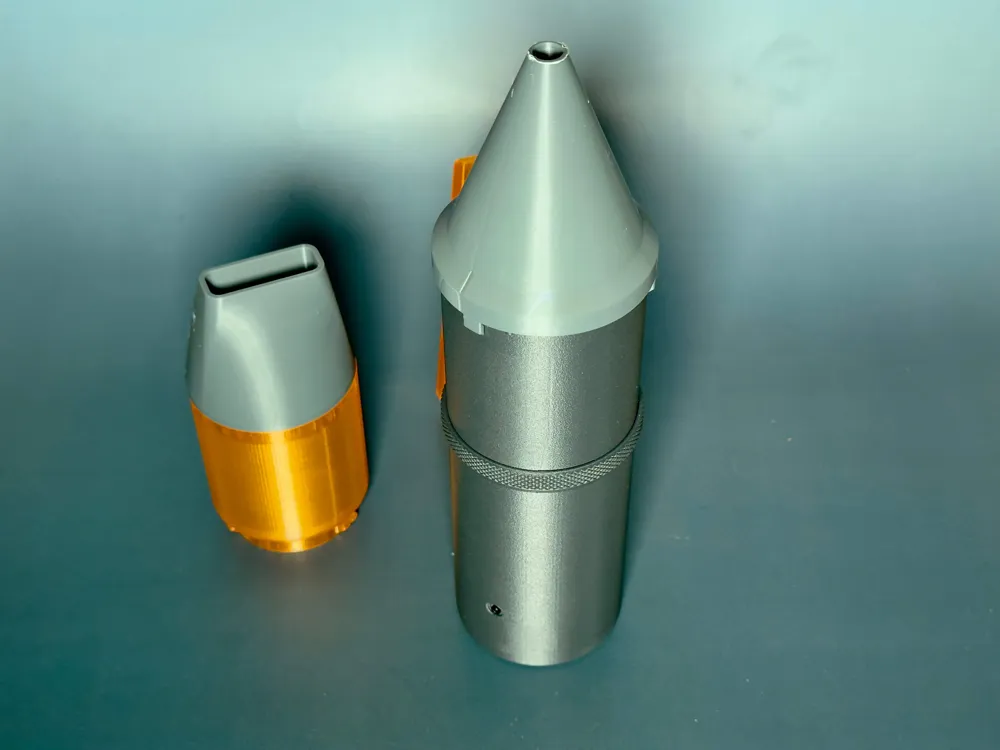

• Built-in dust container + filter: the container includes its own filter, and you can unscrew the nozzle to empty it in seconds 🧹

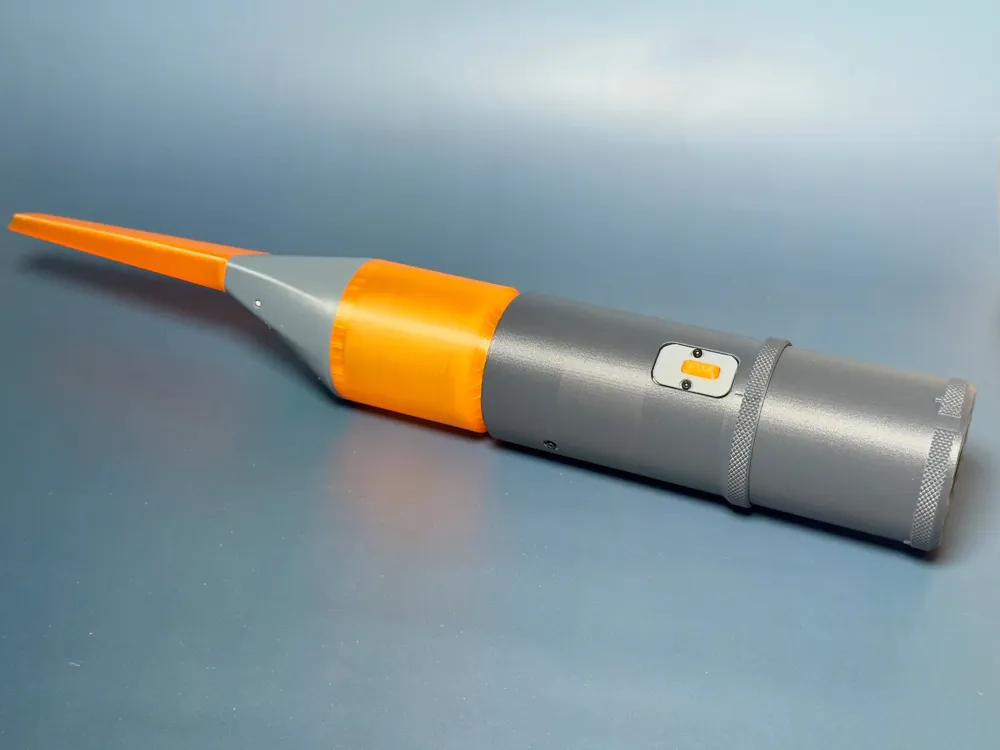

• Narrow extender included: reach tight spots, corners, and tricky gaps with the extender tip 🧩
• Power you can feel: 3 speed levels with adjustable suction, roughly 7k–16k Pa 🚀

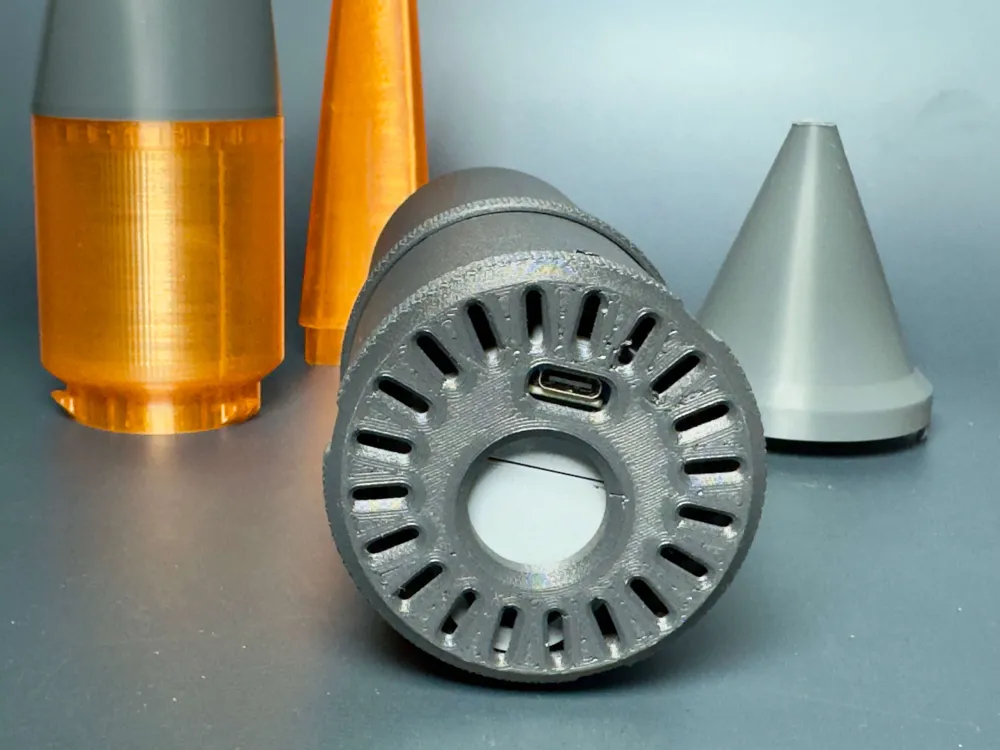

• USB-C rechargeable battery: charge from the back by plugging in a USB-C cable. Battery life is about 40 to 12 minutes, depending on the power level 🔋

Perfect for…

• Cleaning your desk/workbench 🖥️

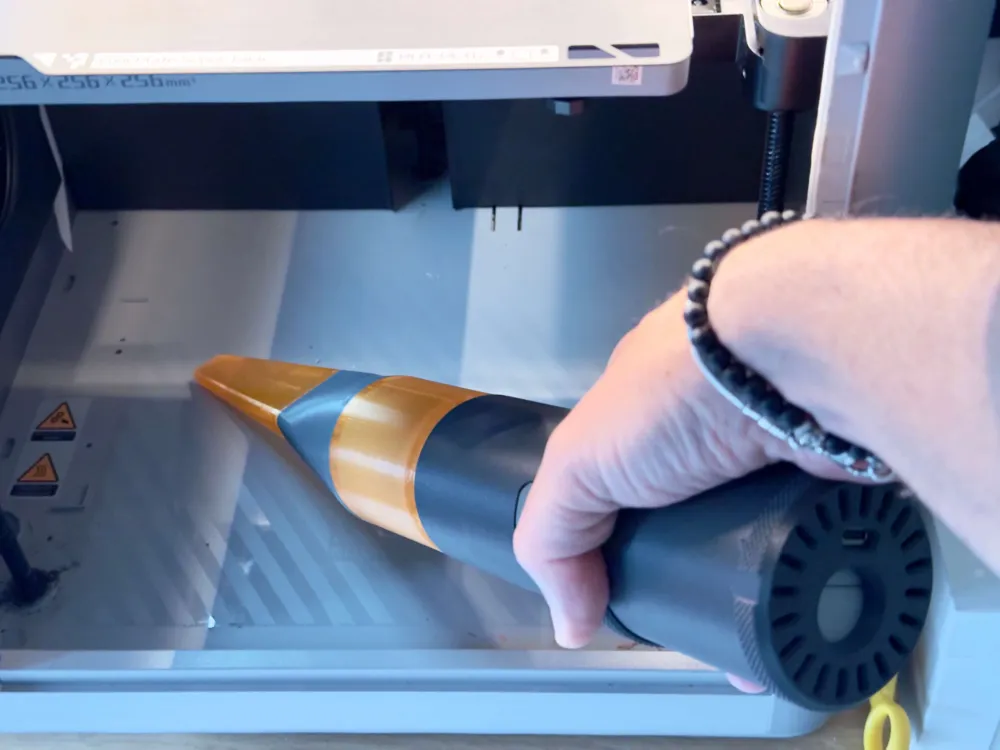

• Dusting the inside of your 3D printer 🖨️
• Vacuuming crumbs in the kitchen 🍪
• Blowing dust or even light debris outdoors (yes, mini “leaf blower” vibes!) 🌿

Printing notes (please read!)

Printing is pretty straightforward, but keep these in mind:

1. Several parts require supports
2. I highly recommend using my print profile: it includes specific settings to reduce/avoid visible seams, especially on the main body shell (without it, the shell can look rough) ⚙️

Materials

• I printed mine in PETG-HF, but PLA can work too.
• A translucent filament for the dust container is recommended (not required) so you can check the fill level at a glance 👀✨
• Do not leave it in direct sun, both for material stability (PLA can deform) and — more importantly — for the battery.

⚠️ Safety note: For safety reasons, we recommend not leaving it unattended in enclosed, hot environments — such as a vehicle parked in direct sunlight — to minimize the risk of battery overheating, swelling, or other hazards.

Please read the included PDF guide to assembly it.

Have fun building it, and enjoy the satisfying whoooosh combo 🌀
